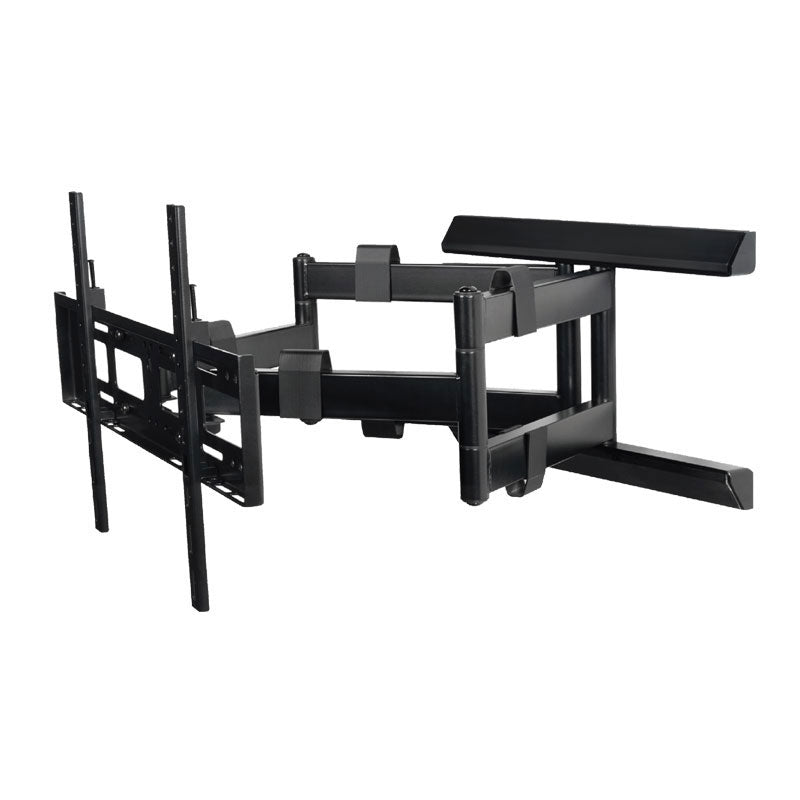

B-Tech Heavy Duty XL Dual Arm TV Wall Mount (Universal) BT8237/B

B-Tech Heavy Duty XL Dual Arm TV Wall Mount BT8237/B

B-Tech Heavy Duty XL Dual Arm TV Wall Mount (Universal) BT8237/B

$582.00 $685.00
Skip to product information
B-Tech Heavy Duty XL Dual Arm TV Wall Mount BT8237/B
  • B-Tech Heavy Duty XL Dual Arm TV Wall Mount BT8237/B

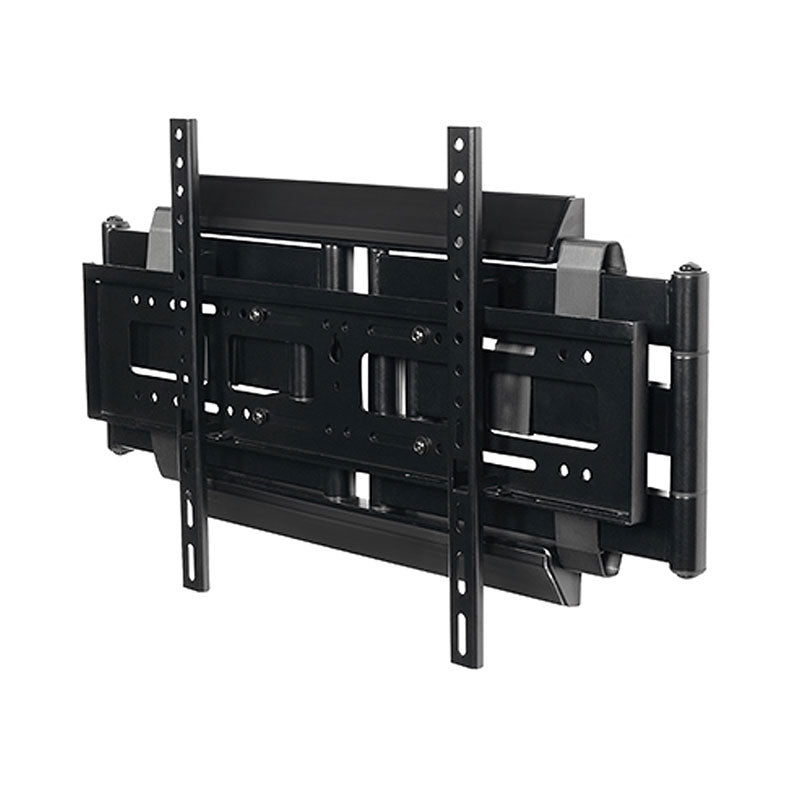

  • B-Tech Heavy Duty XL Dual Arm TV Wall Mount BT8237/B, articulating TV wall mount front three-quarter view

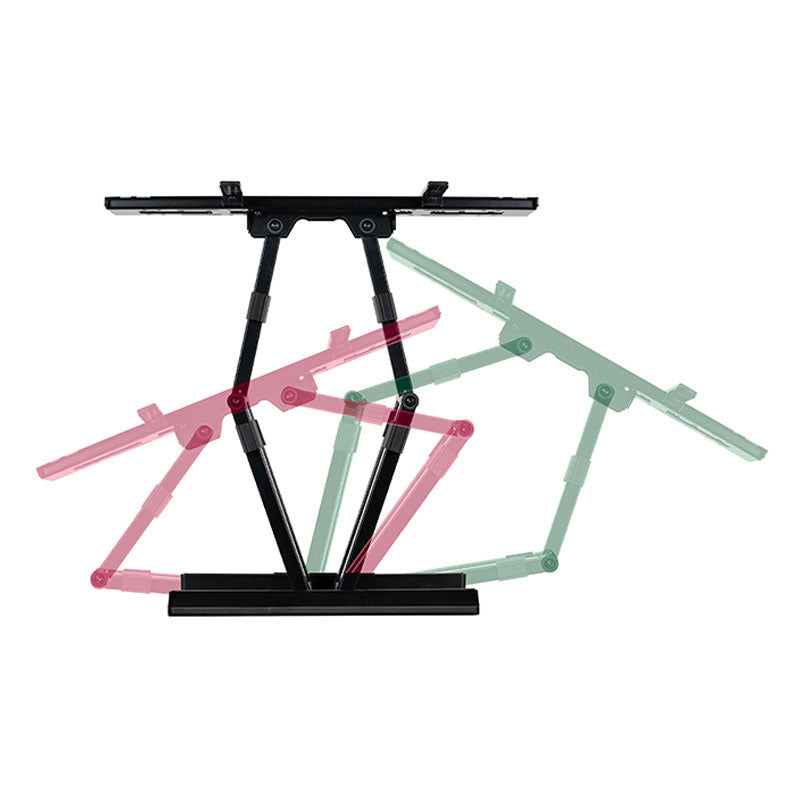

  • B-Tech Heavy Duty XL Dual Arm TV Wall Mount BT8237/B, articulating TV wall mount motion range diagram
  • B-Tech Heavy Duty XL Dual Arm TV Wall Mount BT8237/B, wall mount cable cover clip
  • B-Tech Heavy Duty XL Dual Arm TV Wall Mount BT8237/B, articulating TV wall mount locking screw detail

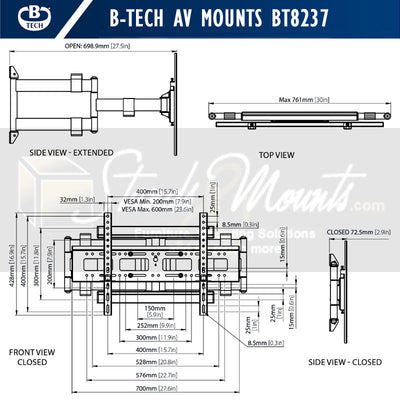

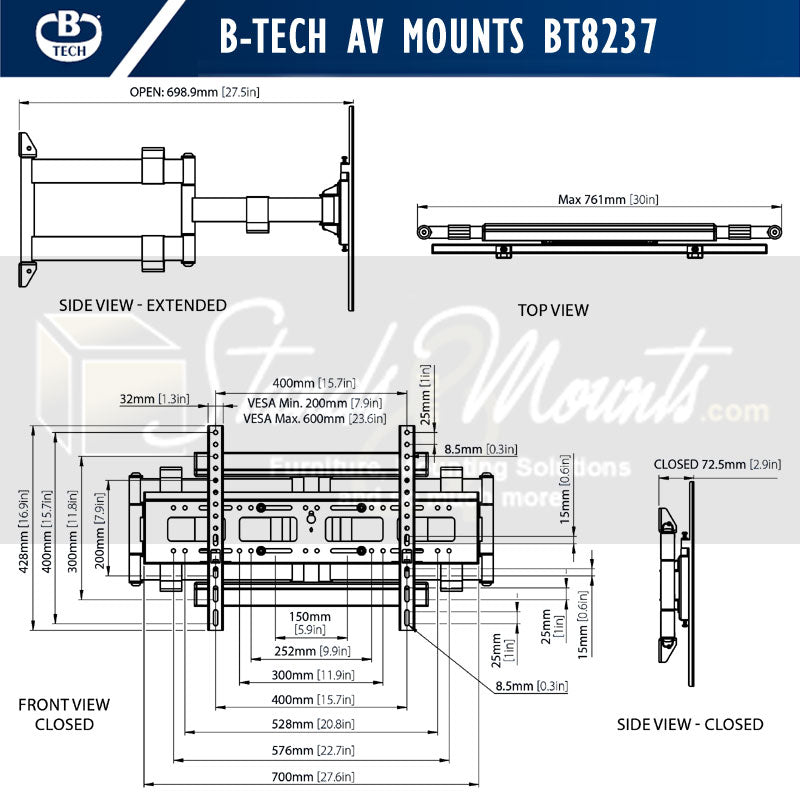

  • B-Tech Heavy Duty XL Dual Arm TV Wall Mount BT8237/B, articulating TV wall mount dimensions diagram
B-Tech Heavy Duty XL Dual Arm TV Wall Mount (Universal) BT8237/B

Mfg Part # BT8237/B
SKU # BTECH-BT8237/B
B-Tech Mounts Certified Experts Authorized Partner logo
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$582.00 $685.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

The B-Tech Extra Large Articulating Wall Arm Mount is designed to mount large flat screens and is ideal for for home installations as well as commercial applications. It features:

  • Recommended screen size: up to 75" with mounting patterns up to 600 x 400mm
  • Twin arms with three swivel points for a multitude of positioning options
  • Folds flat to the wall
  • Central keyhole fixing point for an easy fix and level adjustment

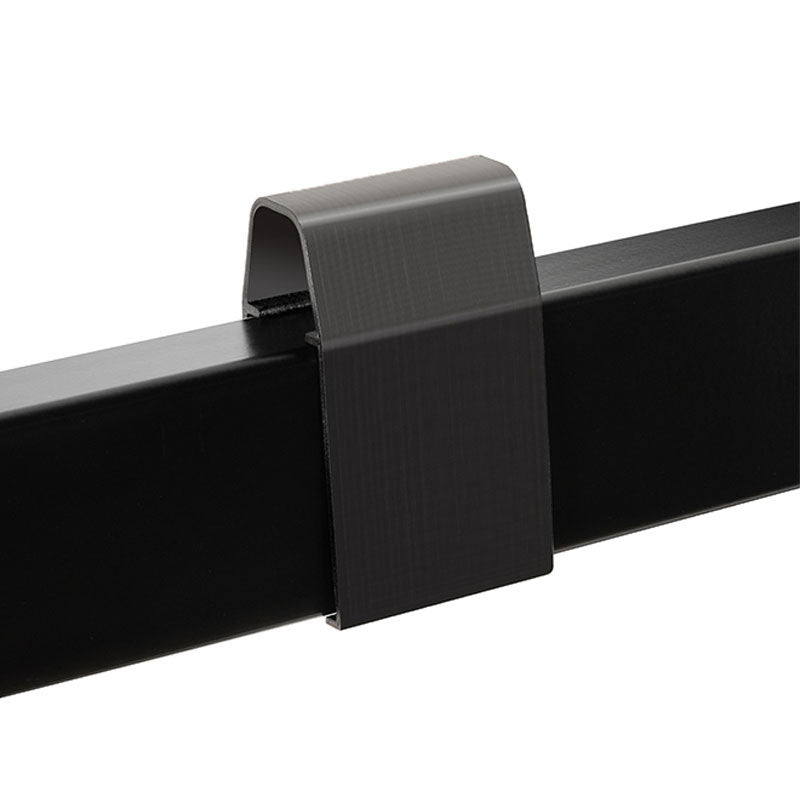

  • Six cable management clips supplied to ensure a tidy install
  • All fixing points are concealed behind attractive cover plates to hide fixings
  • Mount has a 699mm (27.5") extension range from the wall
  • Lateral adjustment of screen once mounted
  • Leveling screws allow adjustment of screen height
  • Security fixings prevent unauthorized removal

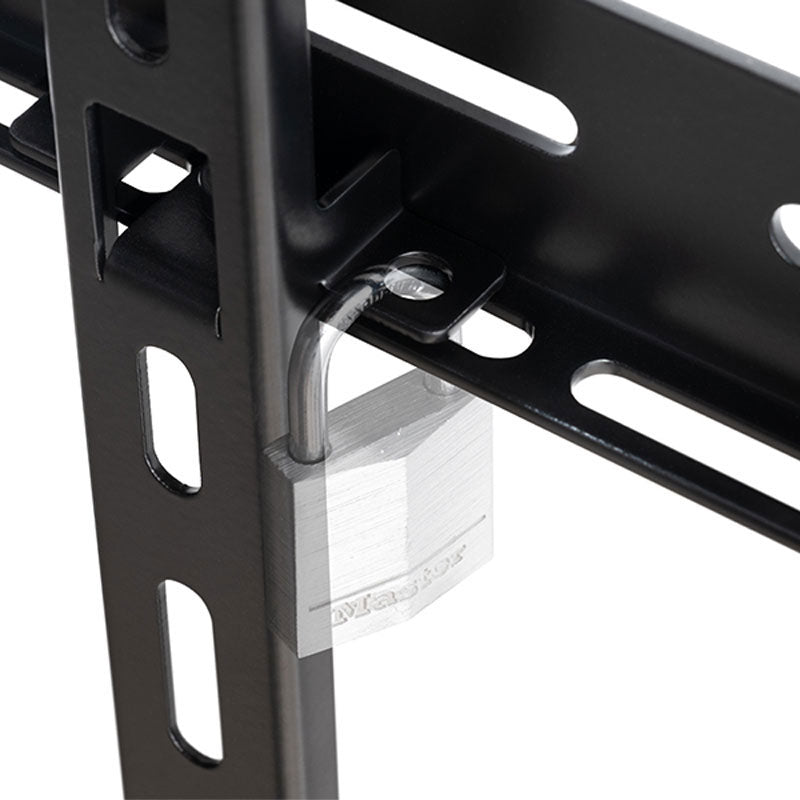

  • Padlock tabs on arms for additional security (padlock not included)
  • Max load: 176lbs (80kg)
  • Swivel: 120°
  • Distance from Wall: 3" - 27.5" (73-699mm)

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

16.90 in.

Width:

30.00 in.

Depth:

02.90 - 27.50 in.

Weight Capacity:

176lbs (80kg),

Color(s):

Black,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in.,

Mount Placement:

Wall,

Model Number:

BT8237/B,

Orientation:

Landscape,

Swivel:

120 degrees

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in.,

Adjustability of Mount:

Swivel Left Right,

Stud Placement:

Dual Stud or More,

Special Features of Mounts:

Swing Out,

Use of Mount:

Monitor or TV,

Related Products

B-Tech Large Fixed TV Wall Mount BTV510/B
On Sale

B-Tech Large Fixed TV Wall Mount (Universal) BTV510/B

B-Tech Large Fixed TV Wall Mount (Universal) BTV510/B
$48.00 $57.50
B-Tech Extra Large Fixed TV Wall Mount BTV520/B
On Sale

B-Tech Extra Large Fixed TV Wall Mount (Universal) BTV520/B

B-Tech Extra Large Fixed TV Wall Mount (Universal) BTV520/B
$62.00 $73.00

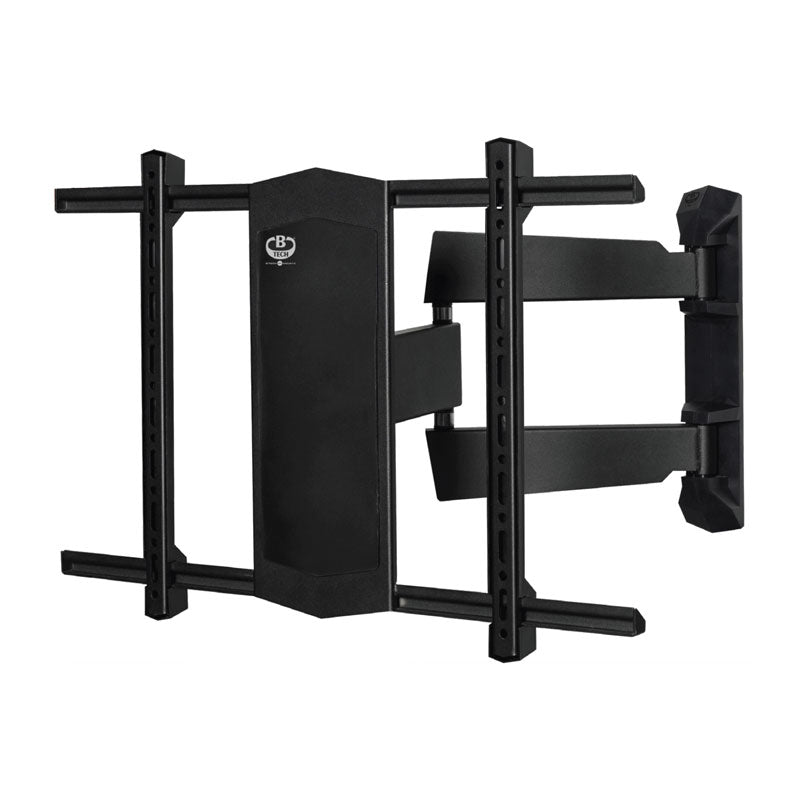

B-Tech Large Dual Arm TV Wall Mount BT8226/B
On Sale

B-Tech Large Dual Arm TV Wall Mount (Single Stud, Univ) BT8226/B

B-Tech Large Dual Arm TV Wall Mount (Single Stud, Univ) BT8226/B
$286.00 $337.50

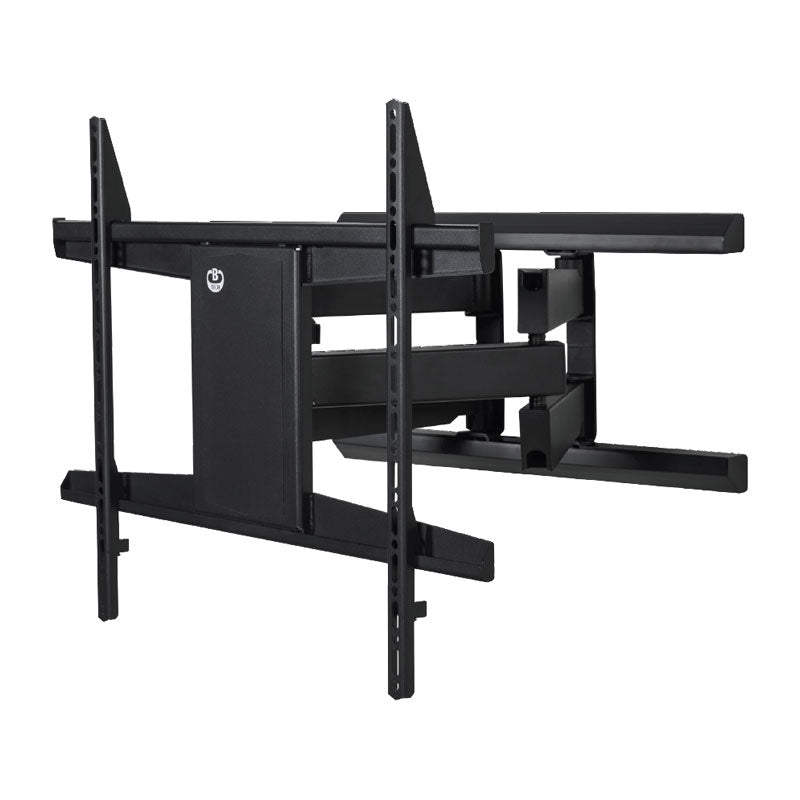

B-Tech Heavy Duty XXL Dual Arm TV Wall Mount BT8228/B
