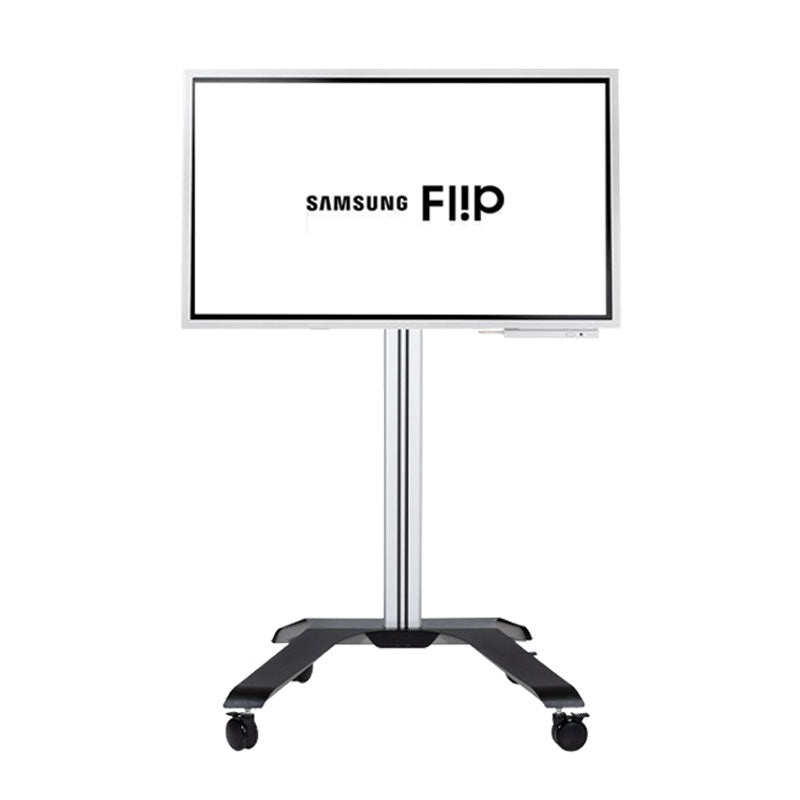

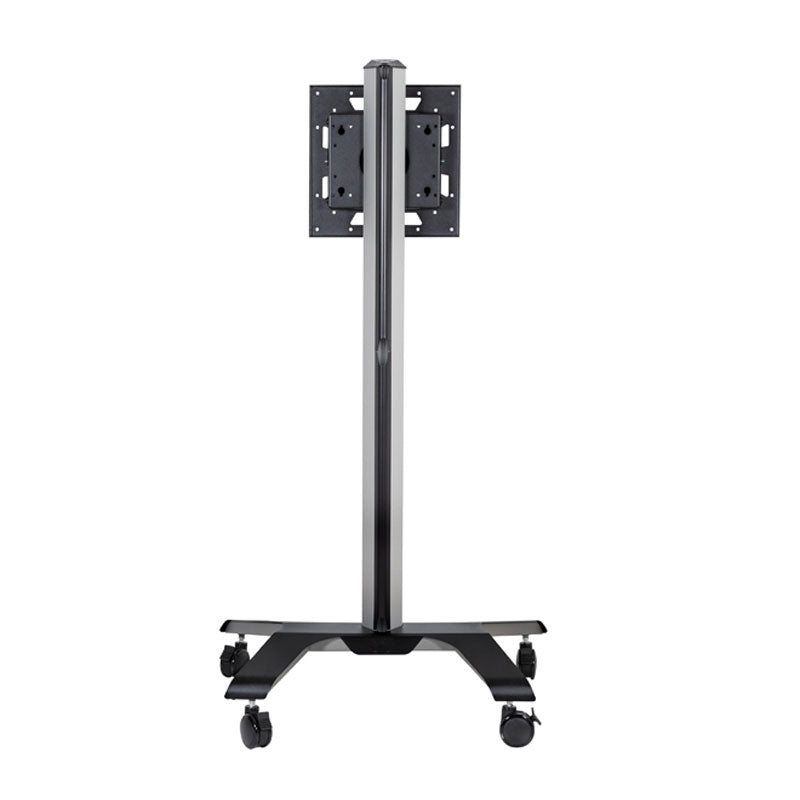

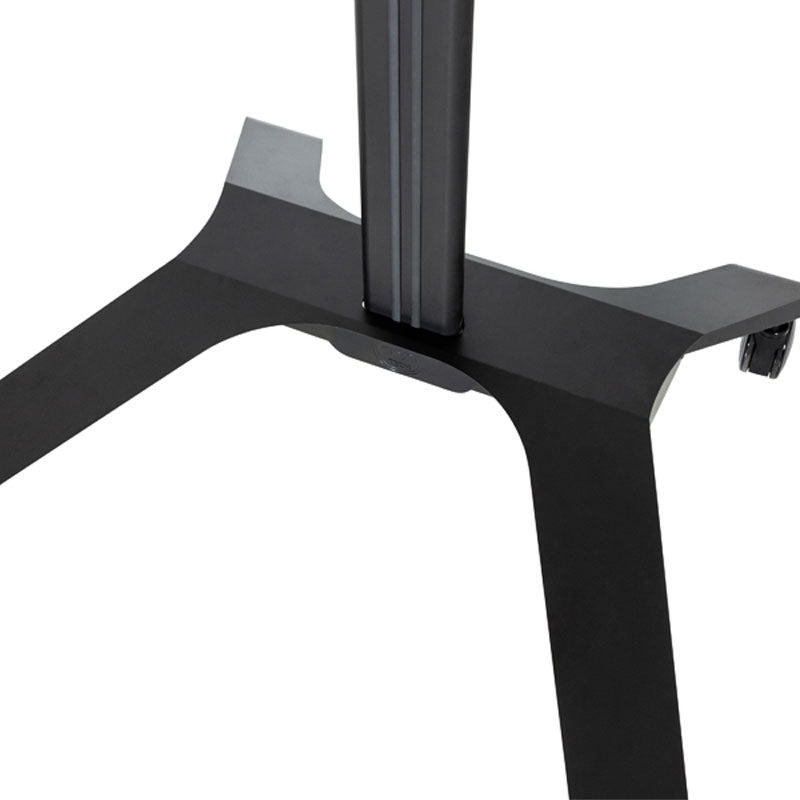

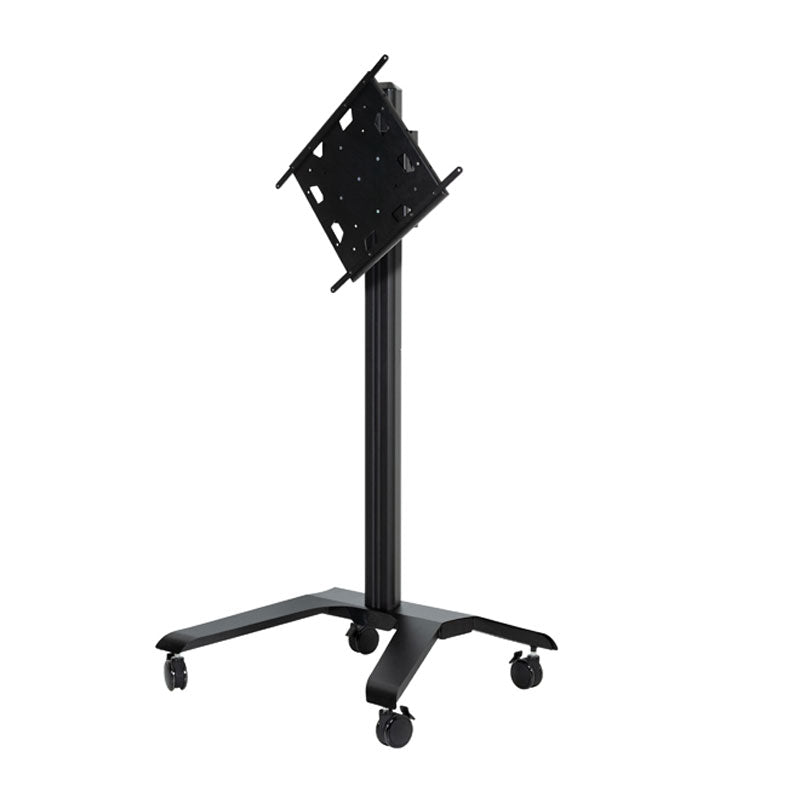

B-Tech Large Rotating TV Cart (VESA, Black) BT8566/BB

B-Tech Large Rotating TV Cart BT8566/BB

B-Tech Large Rotating TV Cart (VESA, Black) BT8566/BB

Sale price  $1,385.00 Regular price  $1,630.00
Skip to product information
B-Tech Large Rotating TV Cart BT8566/BB

Mfg Part # BT8566/BB V2

SKU # BTECH-BT8566/BB V2
B-Tech Mounts Certified Experts Authorized Partner logo
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
Sale price  $1,385.00 Regular price  $1,630.00

Ask The Experts

Email Us

B-Tech BT8566 is a high-end mounting solution ideal for the use of touchscreen displays such as the Samsung Flip. It features:

  • Off-the-shelf kit recommended for 37-70" screens

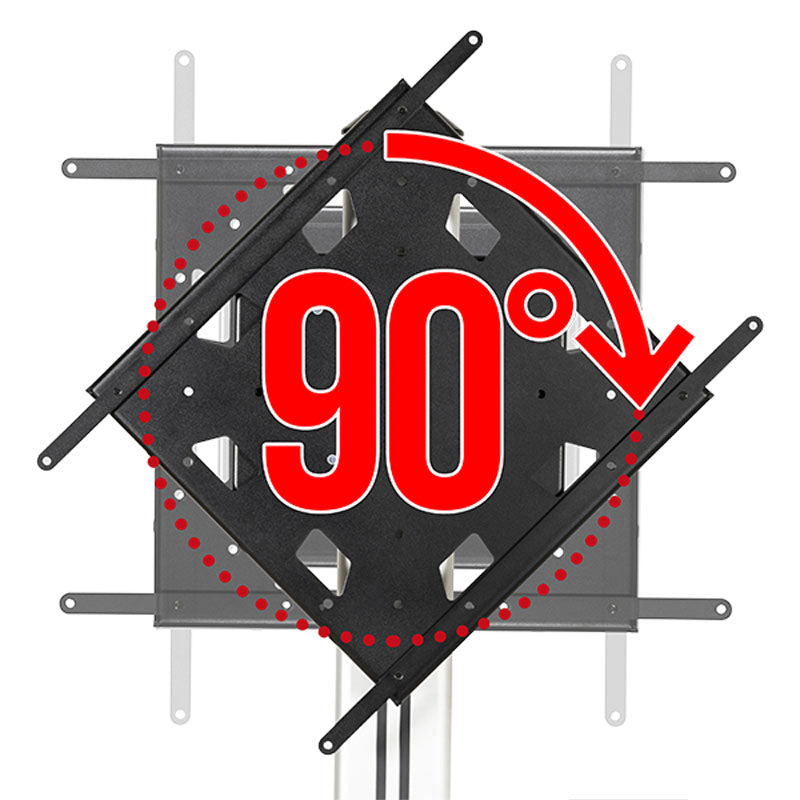

  • Rotational interface allows screens to be rotated from landscape to portrait (and vice versa) in one smooth transition
  • Rotation can be stopped or fixed at any angle between 0° and 90°
  • -4.5° negative tilt provides an ergonomic, natural writing surface (ideal for Samsung Flip)
  • Non-marking locking / braked castors
  • Collar compatible accessories such as shelves (available separately) can be fitted directly to the column
  • Integrated cable management for a smart installation
  • Safety screws help prevent unauthorized removal of screen
  • Dual color options available for a modern, contemporary look
  • Simple 'hook-on' screen installation with all mounting hardware included
  • VESA® and non-Vesa fixings: up to 600 x 400mm
  • Rotation adjustment range: 90°
  • Tilt: -4.5°
  • Max load: 154lbs (70kg)

Help Files

No PDF help files available for this product

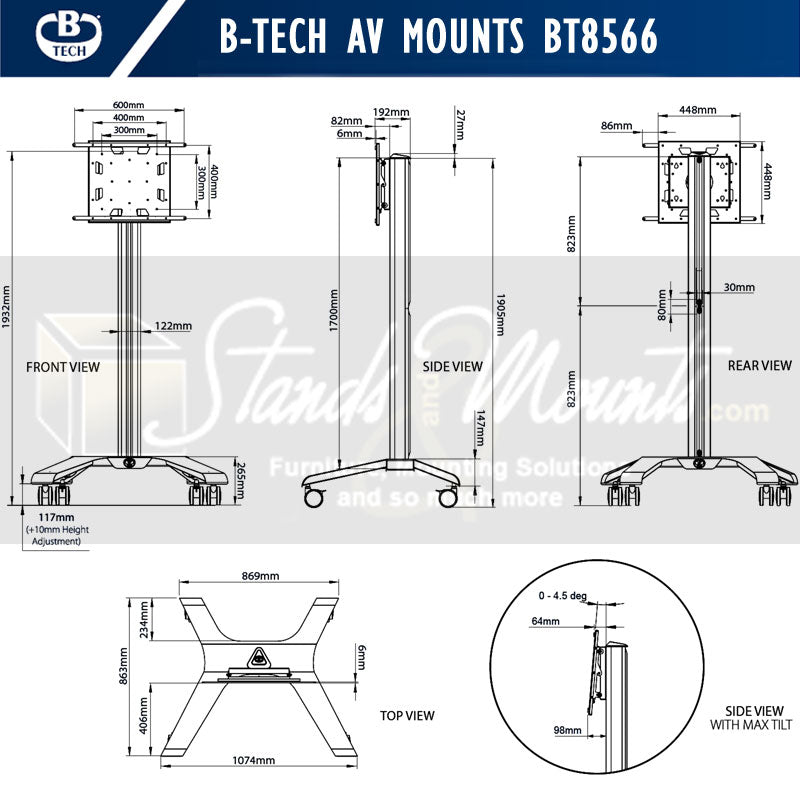

Product Details and Specifications

Height:

76.06 in.

Width:

42.32 in.

Depth:

33.98 in.

Weight:

115lbs,

Weight Capacity:

154lbs (70kg),

Color(s):

Black,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Model Number:

BT8566/BB V2,

Orientation:

Landscape, Portrait, Landscape and Portrait,

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Adjustability of Mount:

Fixed Flat,

Special Features of Mounts:

Stand with Mount, Rotates, Mounts on Stand, Vertical Orientation,
