B-Tech Large Tilt TV Wall Mount (Universal) BT8431/B

B-Tech Large Tilt TV Wall Mount BT8431/B

B-Tech Large Tilt TV Wall Mount (Universal) BT8431/B

$107.00 $127.00
Skip to product information
B-Tech Large Tilt TV Wall Mount BT8431/B

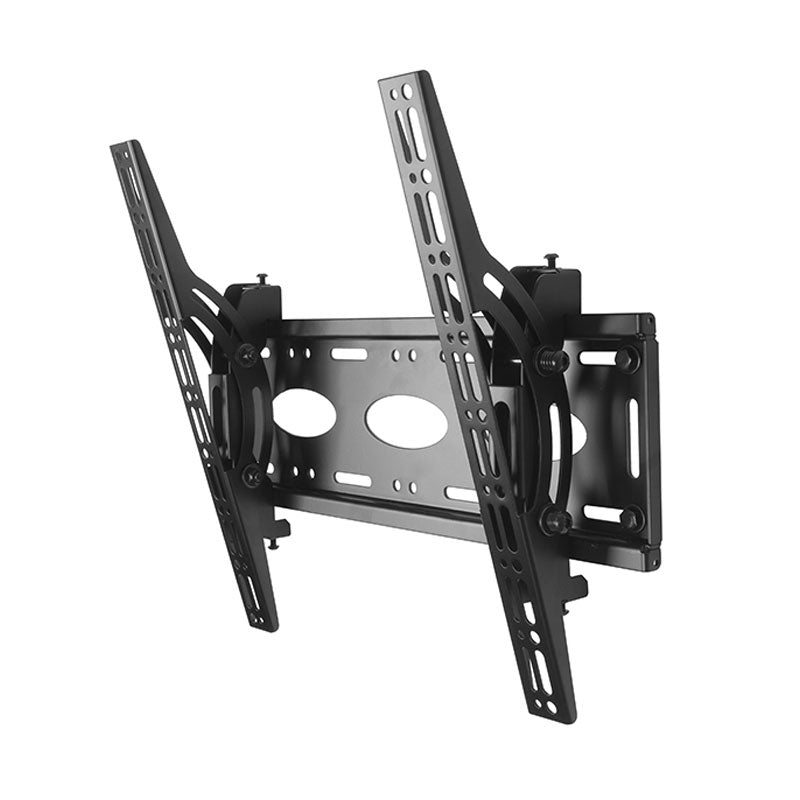

  • B-Tech Large Tilt TV Wall Mount BT8431/B

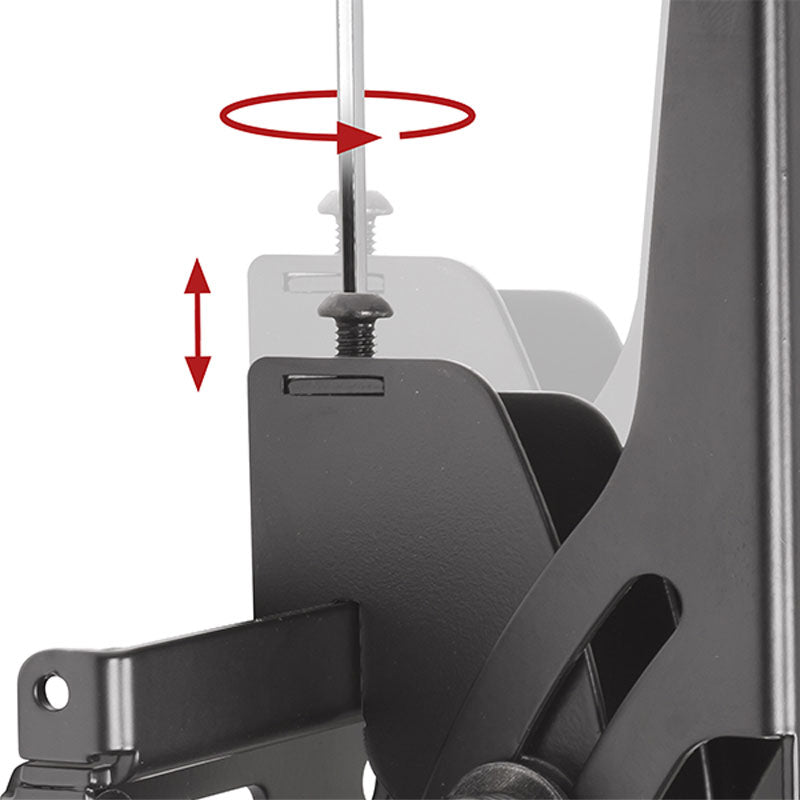

  • B-Tech Large Tilt TV Wall Mount BT8431/B, wall mount vertical adjustment screw in close-up

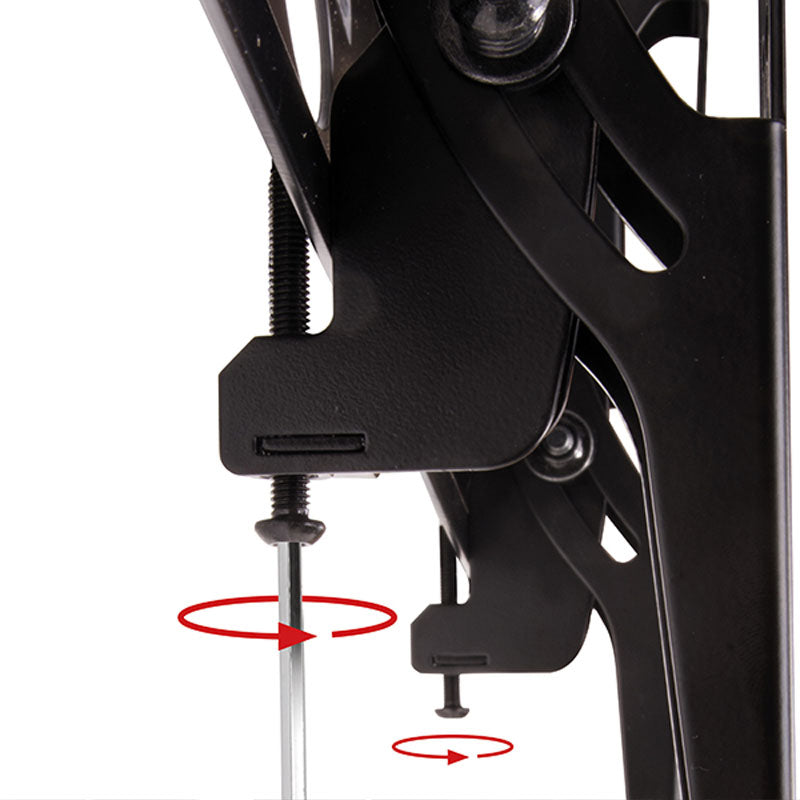

  • B-Tech Large Tilt TV Wall Mount BT8431/B, mount tilt adjustment screws in close-up

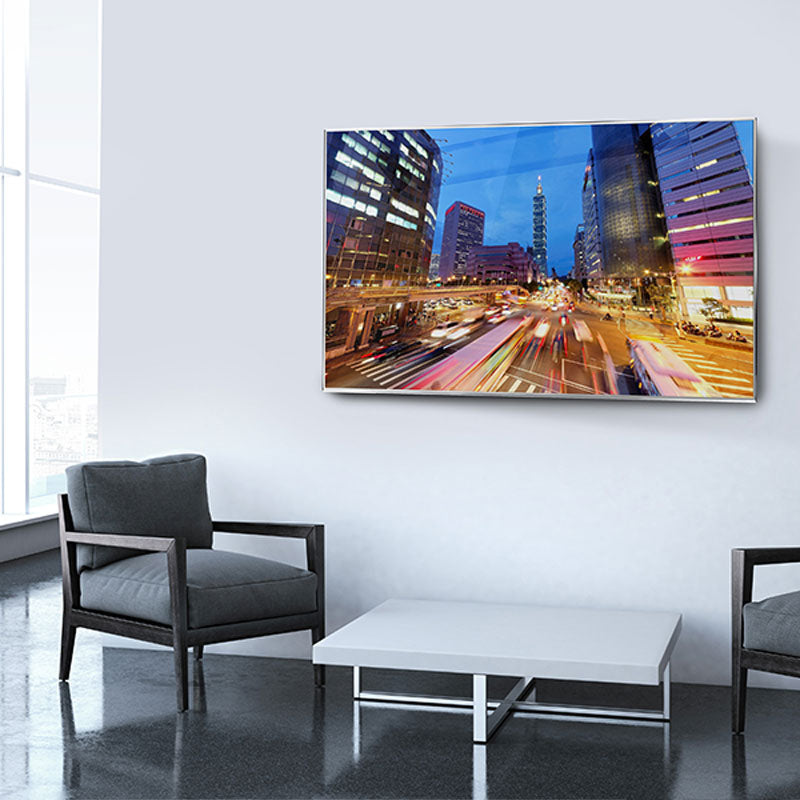

  • B-Tech Large Tilt TV Wall Mount BT8431/B, wall-mounted television installed in a modern lobby
B-Tech Large Tilt TV Wall Mount (Universal) BT8431/B

Mfg Part # BT8431/B
SKU # BTECH-BT8431/B
B-Tech Mounts Certified Experts Authorized Partner logo
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$107.00 $127.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

The B-Tech BT8431-B Large Tilt TV Wall Mount (Universal) is designed to mount medium to large sized screens, the BT8431 is a flat screen wall mount that features a unique 'Torsion-Tilt' mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech's Accessory Collars, the BT8431 features leveling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorized removal of the screen.

  • Recommended screen size: 39 - 55 in.
  • Max load: 110 lbs (50 kg)
  • VESA & non-VESA fixings up to 465 x 400 mm
  • Tilt: +/-15°
  • Distance from wall (flat): 3.18 in (81 mm)
  • Distance from wall (full tilt): 5.82 in (148 mm)
  • Color: Black
  • Unique 'Torsion-tilt' mechanism for easy toolless adjustment
  • Lateral adjustment of screen once mounted
  • Leveling screws allow adjustment of screen height
  • Security locking screws and Allen key to prevent unauthorized screen removal
  • Collar compatible ideal for pole mounting
  • Simple 'hook-on' installation with all mounting hardware included

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

4.57 in

Width:

7.17 in

Depth:

21.42 in.

Weight:

9.28 lbs,

Weight Capacity:

110 lbs (50 kg),

Color(s):

Black,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in.,

Mount Placement:

Wall,

Model Number:

BT8431/B,

Ship Weight:

10 lbs

Max Depth from Wall:

2 to 6 in.,

Tilt:

15 degrees,

Orientation:

Landscape,

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in.,

Adjustability of Mount:

Tilt Up Down,

Stud Placement:

Dual Stud or More,

Use of Mount:

Monitor or TV,
