B-Tech Monitor Desk Mount (Double Arm, Full Motion) BT7383/B

B-Tech Monitor Desk Mount BT7383/B

B-Tech Monitor Desk Mount (Double Arm, Full Motion) BT7383/B

$244.00 $287.50
Skip to product information
B-Tech Monitor Desk Mount BT7383/B

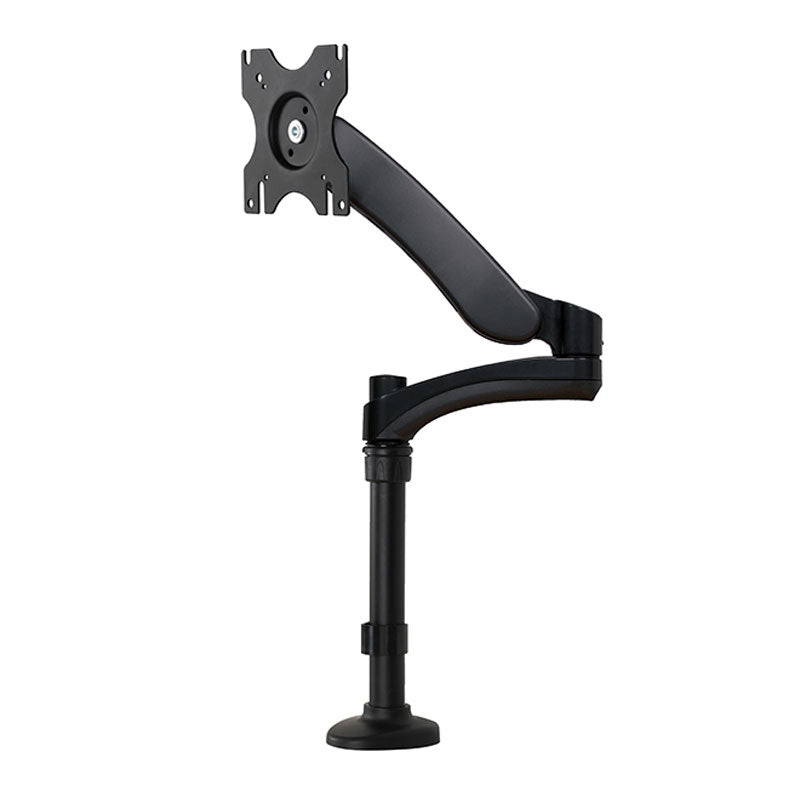

  • B-Tech Monitor Desk Mount BT7383/B

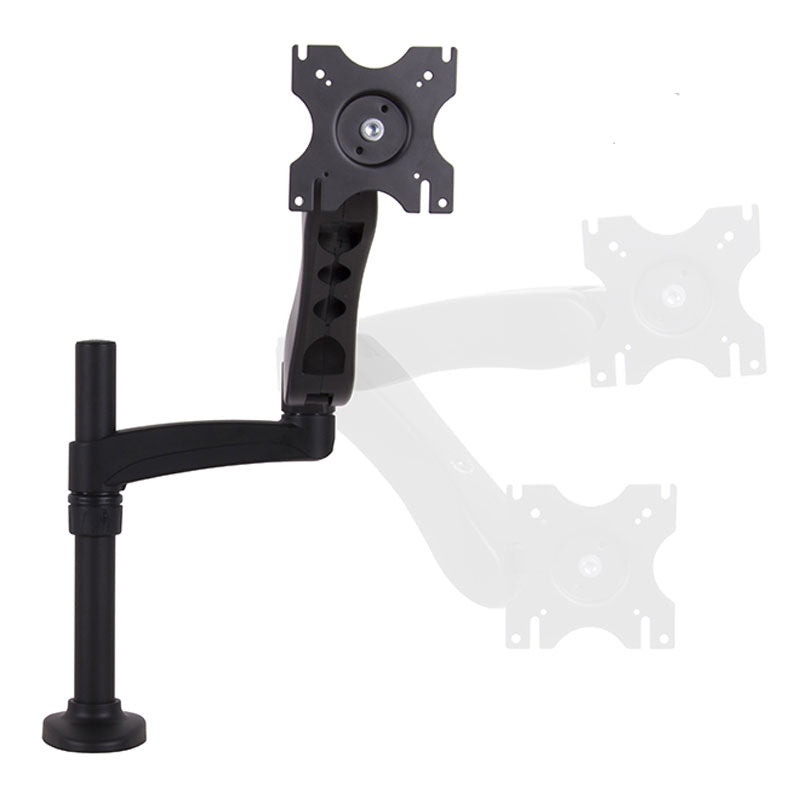

  • B-Tech Monitor Desk Mount BT7383/B, desk monitor arm range of motion positions

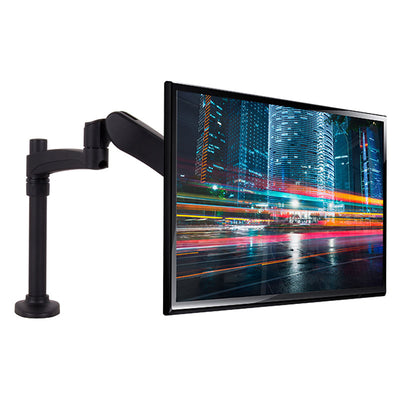

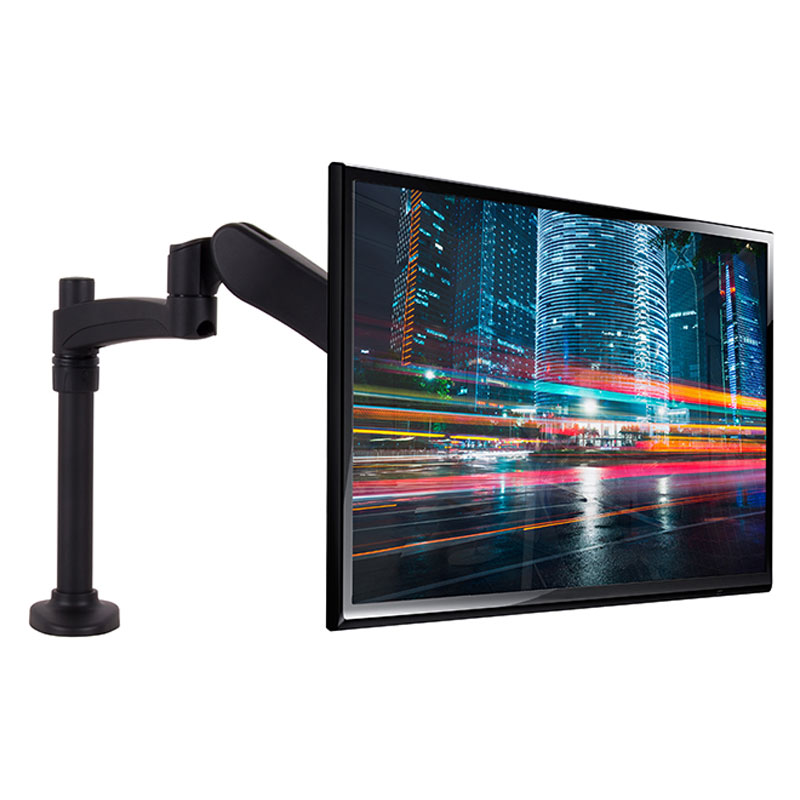

  • B-Tech Monitor Desk Mount BT7383/B, desk monitor arm with display installed

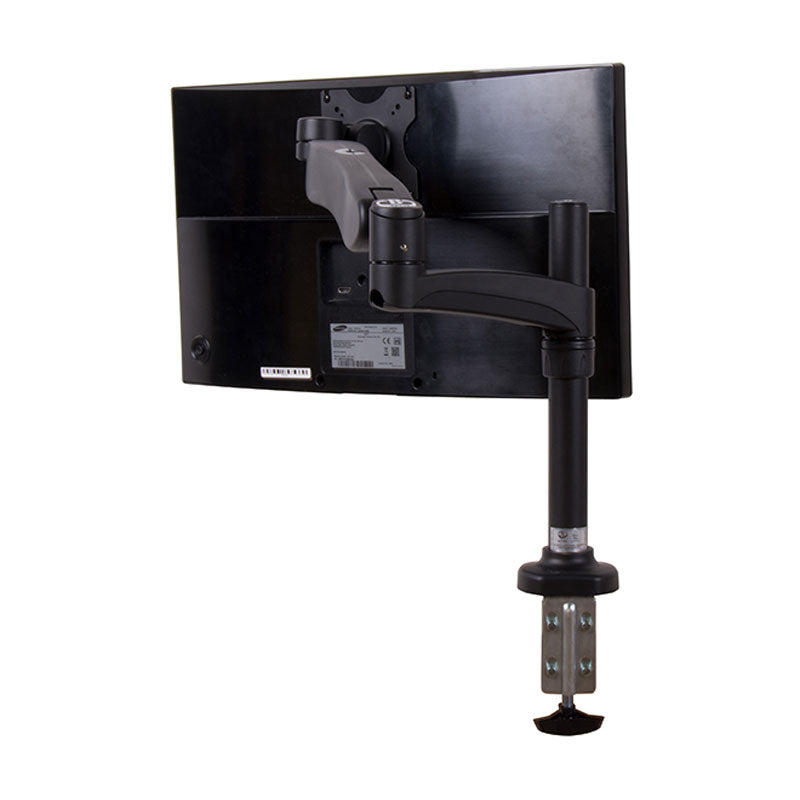

  • B-Tech Monitor Desk Mount BT7383/B, desk monitor arm rear view

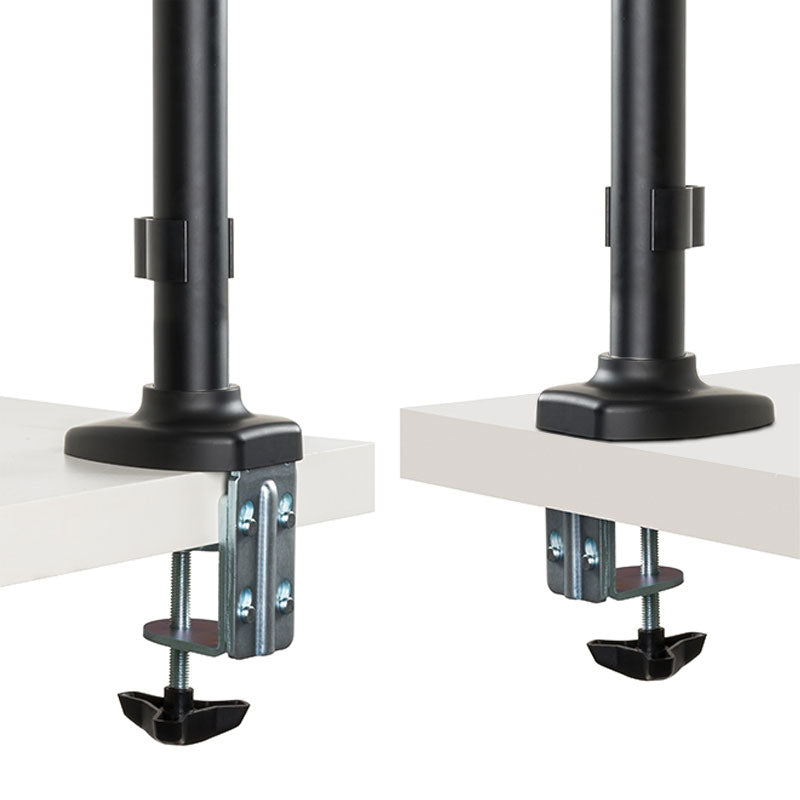

  • B-Tech Monitor Desk Mount BT7383/B, desk monitor arm clamp mounting options

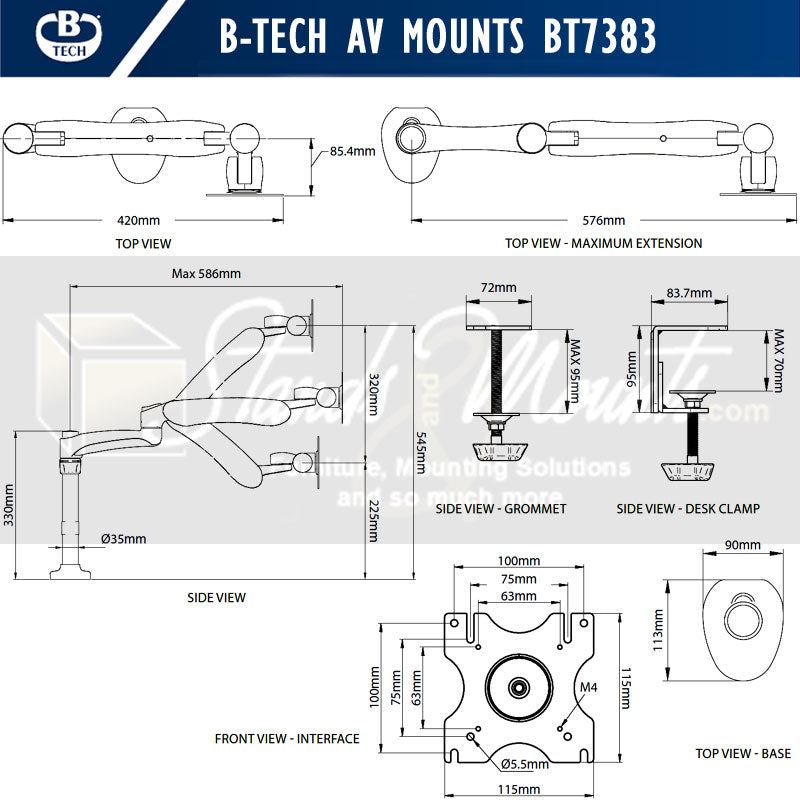

  • B-Tech Monitor Desk Mount BT7383/B, desk monitor arm dimensions diagram
B-Tech Monitor Desk Mount (Double Arm, Full Motion) BT7383/B

Mfg Part # BT7383/B
SKU # BTECH-BT7383/B
B-Tech Mounts Certified Experts Authorized Partner logo
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$244.00 $287.50

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

B-Tech's desk mount can raise/lower effortlessly, swivel 360° on the pole and has a 360° screen rotation on the interface, making this desk mount perfect for portrait or landscape mounting and allowing the user to achieve optimum screen positioning and maximum user comfort. It features:

  • Fits monitors up to 28" with VESA 75x75 or 100x100mm mounting patterns and 19.8lbs (9kgs)
  • Dual articulated arm desk mount made from durable aluminum with a durable powder coated finish
  • 3 swivel points, at the pole, arm pivot and interface
  • Optional insert stoppers lock the extension arms in place
  • High-end aesthetic quality with a durable powder coated finish
  • Easy height adjustment using tool-less locking collar
  • Supplied with both a desk clamp and grommet
  • Integrated cable management
  • Simple 'hook-on' installation with all mounting hardware included
  • Max load: 19.8lbs (9kgs)
  • Tilt: + 65° / - 90°
  • Swivel at pole: 360°
  • Swivel at interface: 180°
  • Screen rotation: 360°
  • Max extension: 23.07" (586mm)

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

21.46 in.

Width:

16.54 in.

Depth:

22.68 in.

Weight Capacity:

19.8lbs (9kg),

Color(s):

Black,

Range of Screens Supported:

10 to 20 in., 21 to 27 in., 28 to 32 in.,

Mount Placement:

Desktop or Tabletop,

Attachment Type:

Clamp Edge of Desk, Grommet Thru-Hole Mounted,

Model Number:

BT7383/B,

Rotate:

360 degrees,

Orientation:

Landscape, Portrait,

Swivel:

360 degrees

TV or Monitor Capacity:

1 Screen,

Style:

Articulating, Dynamic Height Adjustable, Dual Link Arm,

VESA Mount Compatible:

75 x 75 mm, 100 x 100 mm,

Range of Screens Supported:

10 to 20 in., 21 to 27 in., 28 to 32 in.,

Adjustability of Mount:

Tilt Up Down, Vertical Rotation, Swivel Left Right,

Special Features of Mounts:

Vertical Orientation,

Use of Mount:

Monitor or TV,
