B-Tech Small Ultra-Slim Fixed TV Wall Mount (VESA 100) BT7510/B

B-Tech Small Ultra-Slim Fixed TV Wall Mount BT7510/B

B-Tech Small Ultra-Slim Fixed TV Wall Mount (VESA 100) BT7510/B

$19.00 $23.30
Skip to product information
B-Tech Small Ultra-Slim Fixed TV Wall Mount BT7510/B

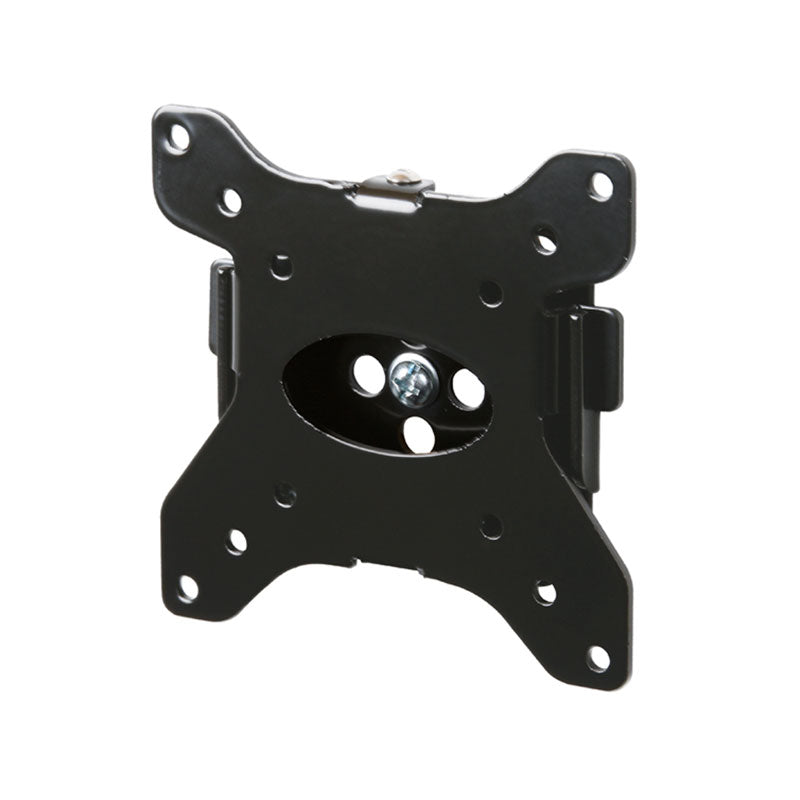

  • B-Tech Small Ultra-Slim Fixed TV Wall Mount BT7510/B

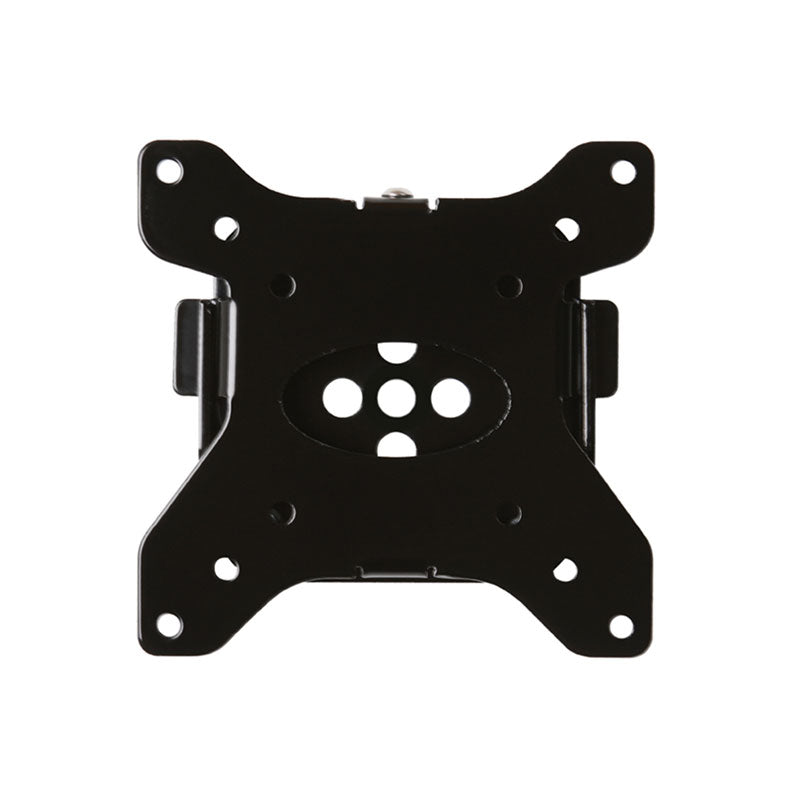

  • B-Tech Small Ultra-Slim Fixed TV Wall Mount BT7510/B, compact television wall mount in a front view

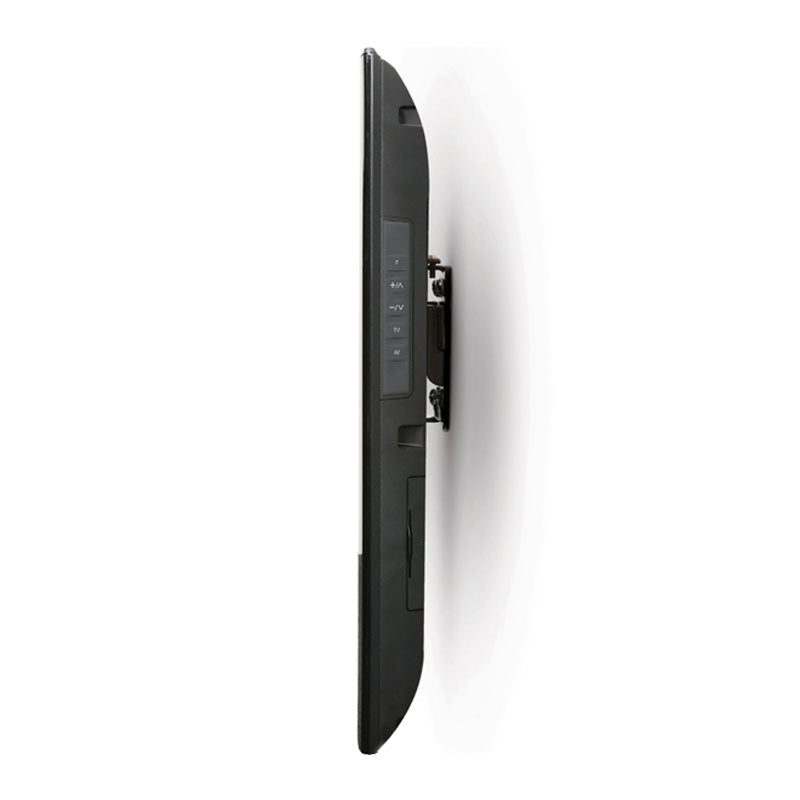

  • B-Tech Small Ultra-Slim Fixed TV Wall Mount BT7510/B, television on a compact wall mount in a side view

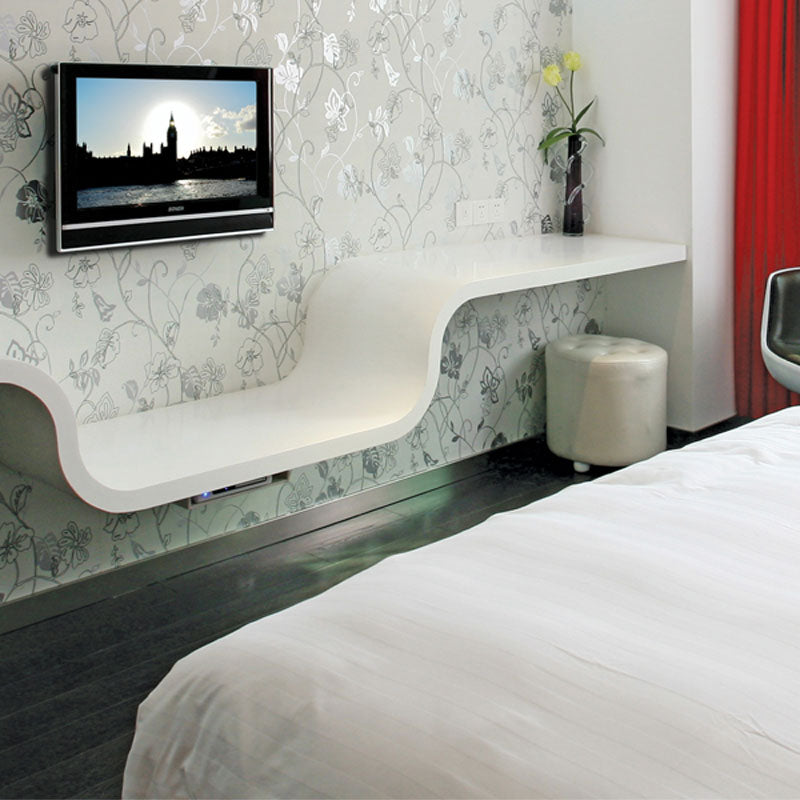

  • B-Tech Small Ultra-Slim Fixed TV Wall Mount BT7510/B, compact television wall mount installed in a bedroom
  • B-Tech Small Ultra-Slim Fixed TV Wall Mount BT7510/B, compact television wall mount dimensions diagram
B-Tech Small Ultra-Slim Fixed TV Wall Mount (VESA 100) BT7510/B

Mfg Part # BT7510/B
SKU # BTECH-BT7510/B
B-Tech Mounts Certified Experts Authorized Partner logo
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$19.00 $23.30

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

The B-Tech BT7510-B Small Ultra-Slim Fixed TV Wall Mount (VESA 100) is designed to mount small flat screens. It is an ultra slim, fixed wall mount that is easy to install and mounts the screen just 0.59 inches from the wall. Suitable for screens up to 28 inches, the wall plate features 'OWLS' on wall leveling system to ensure a straight and smart installation and comes supplied with a security screw to help prevent unauthorized removal of the screen. The BT7510 is also compatible with B-Tech's range of poles and collars, increasing the number of different ways it can be mounted.

  • Screen Size: up to 28 in.
  • Max. Weight: 44 lbs
  • VESA Compatibility: 50 x 50, 75 x 75 & 100 x 100
  • Distance from wall: 0.59 in or 15 mm
  • Color: Black
  • Ultra-slim design for a close to the wall installation
  • Features 'OWLS' On Wall Leveling System
  • Compatible with B-Tech System 2 professional range
  • Mounts to B-Tech BT7850 poles using x1 BT7841 Accessory Collar
  • Security locking screw and Allen key provided help prevent unauthorized removal of screen
  • Simple 'hook-on' installation
  • All mounting hardware included

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

3.27 in

Width:

3.27 in

Depth:

59 in.

Weight Capacity:

44 lbs (20 kg),

Color(s):

Black,

Range of Screens Supported:

10 to 20 in., 21 to 27 in.,

Mount Placement:

Wall,

Model Number:

BT7510/B,

Ship Weight:

3 lbs

Max Depth from Wall:

.5 to 2 in.,

Orientation:

Landscape,

VESA Mount Compatible:

50 x 50 mm, 75 x 75 mm, 100 x 100 mm,

Range of Screens Supported:

10 to 20 in., 21 to 27 in.,

Adjustability of Mount:

Fixed Flat,

Stud Placement:

Single Stud,

Special Features of Mounts:

Low Profile,

Use of Mount:

Monitor or TV,

Related Products

B-Tech Two-Piece Accessory Collar BT7841/B
On Sale

B-Tech Two-Piece Accessory Collar (50mm Poles) BT7841/B

B-Tech Two-Piece Accessory Collar (50mm Poles) BT7841/B
$42.00 $49.75

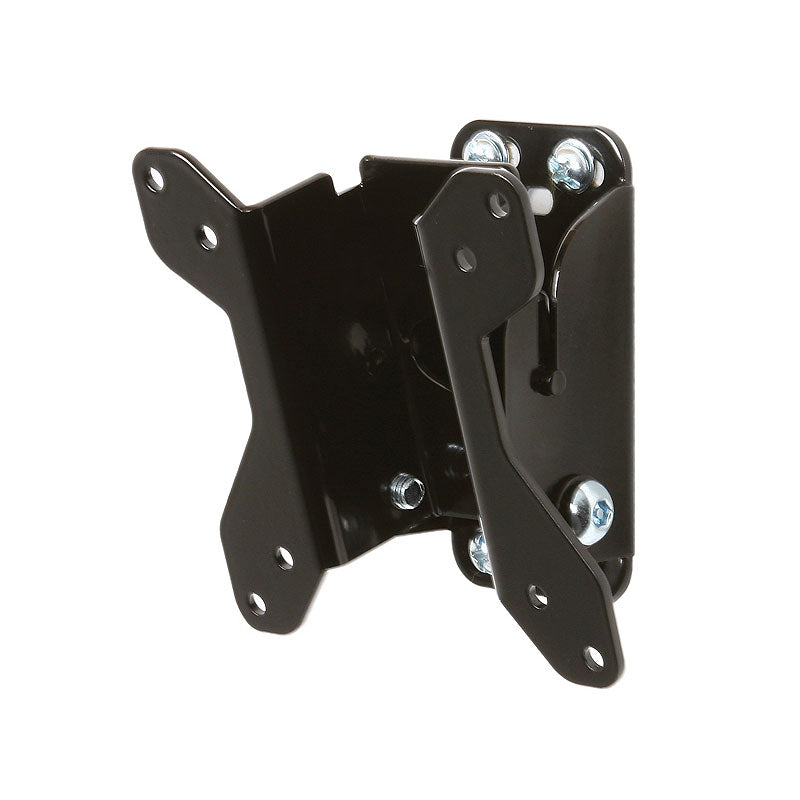

B-Tech Small Tilt TV Wall Mount BT7511/B
