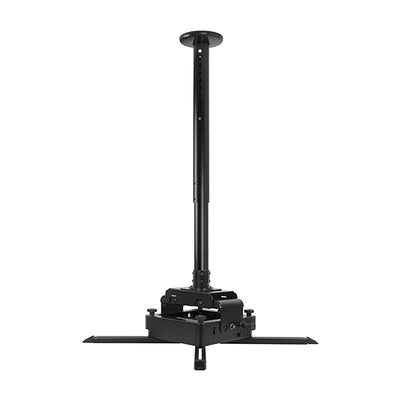

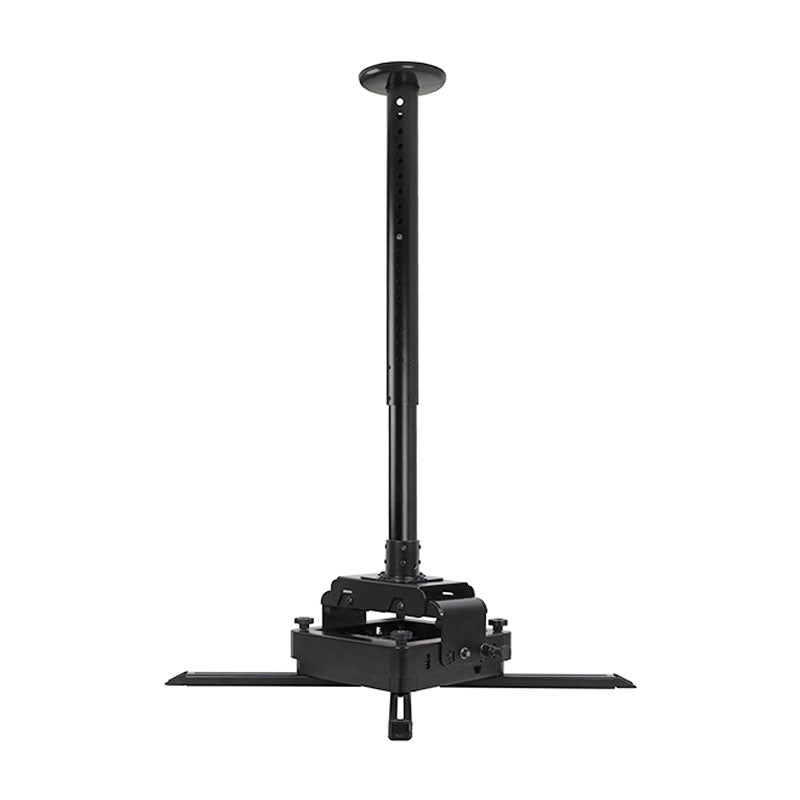

B-Tech System 2 HD Adjustable Projector Ceiling Mount (0.6-1M, BLK) BT893-AD/B

The BT893 is designed to mount projectors up to 154lbs (70kg) and can be lowered or raised in 0.98" (25mm) increments. It features:

• Adjustable drop in 25mm increments for the perfect positioning of projector height

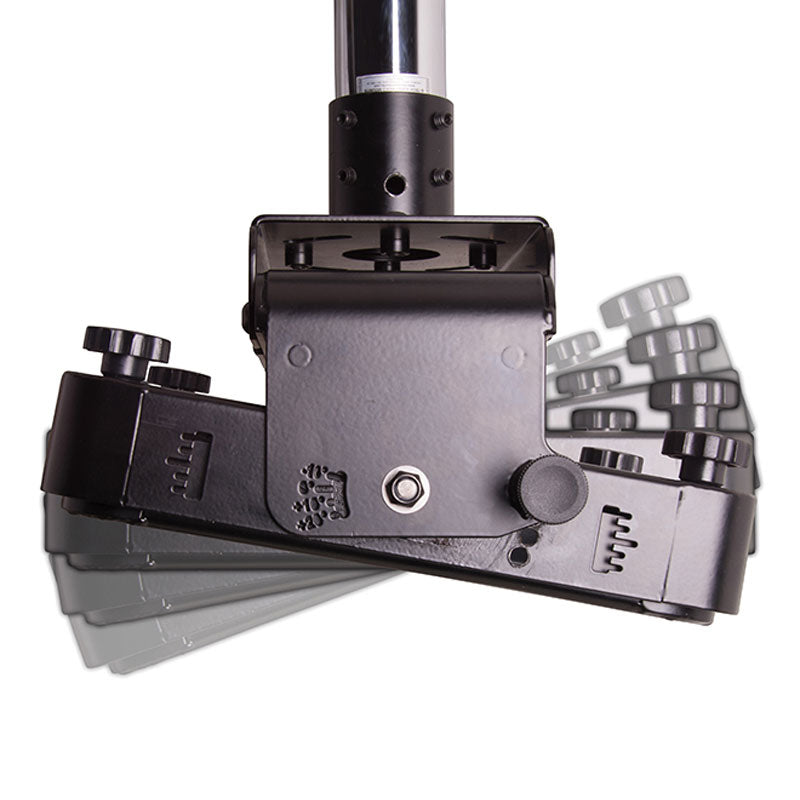

• Features easy, incremented tilt adjustment

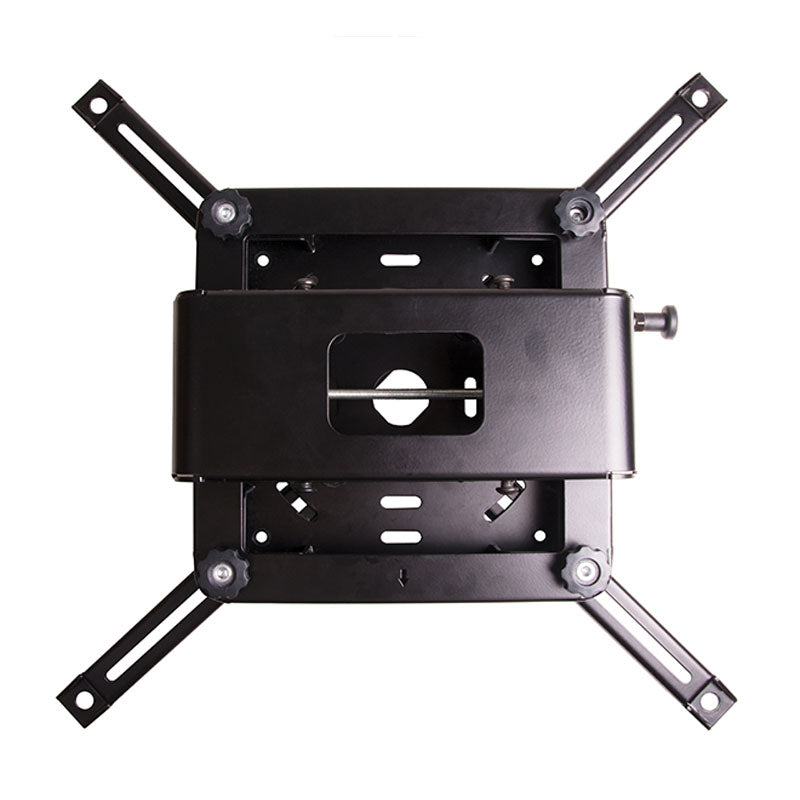

• Extendable mounting plate features 4-point micro-adjustment for perfect alignment of the projected images
• Micro-adjustment is altered using thumb wheels for better grip and a more controlled adjustment
• Poles are internally unobstructed for cables to pass through easily
• Optional extension legs can be used to accommodate larger fixing patterns
• Suitable for projectors using M6, M8, M10 and M12 fixings

• All mounting hardware included
• Maximum load: 154lbs (70kg)
• Tilt (pitch): +20°/-10° (+/- 5° with micro-adjustment)
• Yaw: +/-45°
• Roll : +/-5°

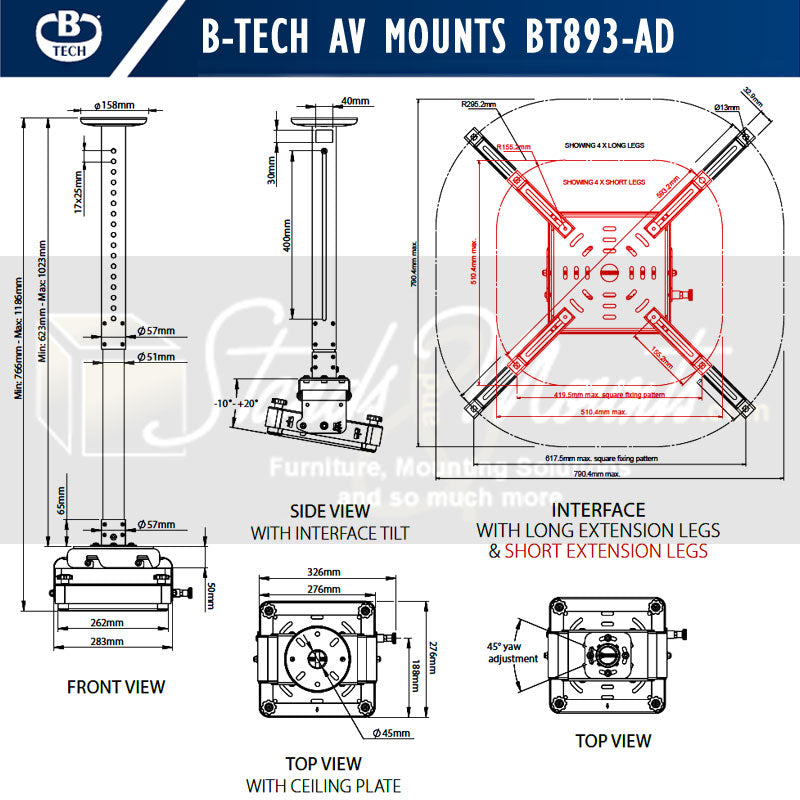

• Adjustable ceiling drop: 30.16" - 46.69" (766-1186mm)* (+/-10mm)
• Maximum distance (between fixings): 34.37" (873mm)
• Maximum distance (square fixing pattern): 24.33" (618mm)


*Add 20mm to ceiling drop if extension legs are used
