B-Tech XL Fixed TV Wall Mount (Pull-Down AV Storage Tray) BT7885/B

B-Tech XL Fixed TV Wall Mount BT7885/B

B-Tech XL Fixed TV Wall Mount (Pull-Down AV Storage Tray) BT7885/B

$722.00 $850.00
Skip to product information
B-Tech XL Fixed TV Wall Mount BT7885/B

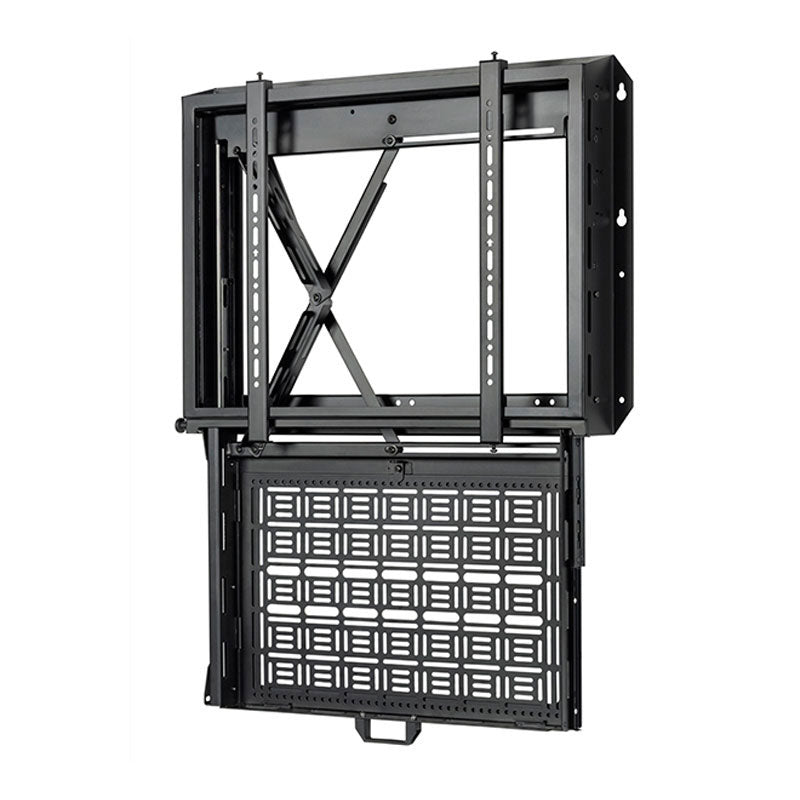

  • B-Tech XL Fixed TV Wall Mount BT7885/B

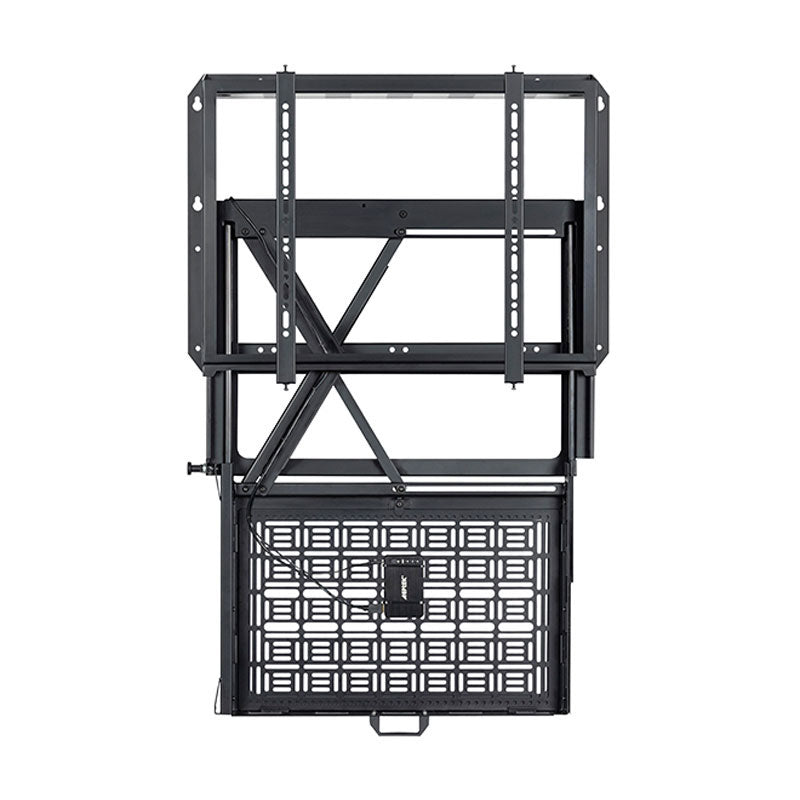

  • B-Tech XL Fixed TV Wall Mount BT7885/B, recessed display mount in a fully raised front view

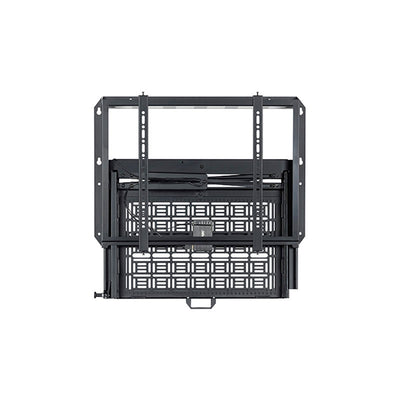

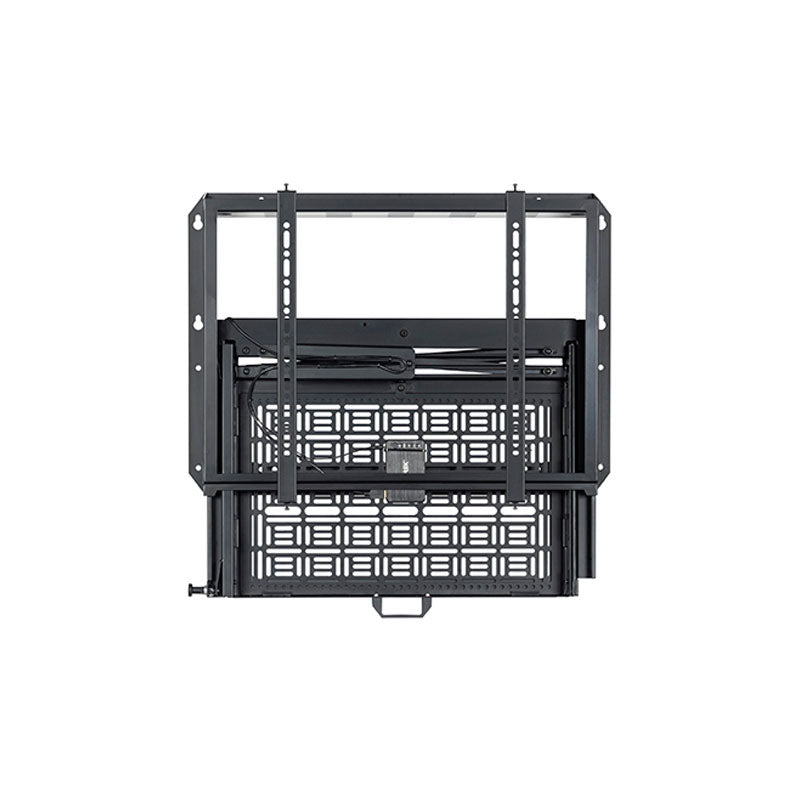

  • B-Tech XL Fixed TV Wall Mount BT7885/B, recessed display mount in a lowered front view

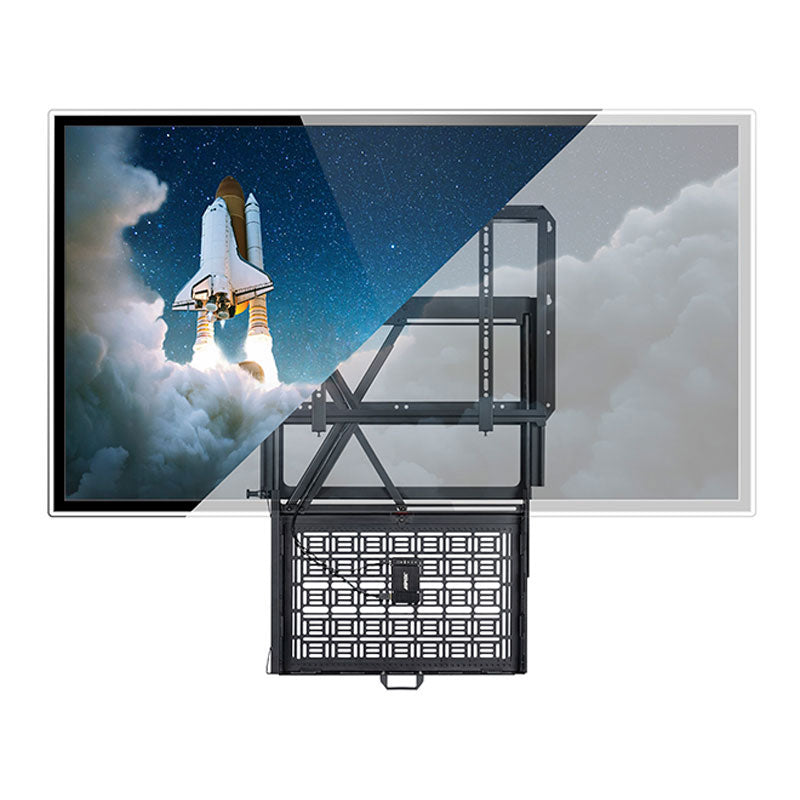

  • B-Tech XL Fixed TV Wall Mount BT7885/B, recessed mount positions shown through a transparent display

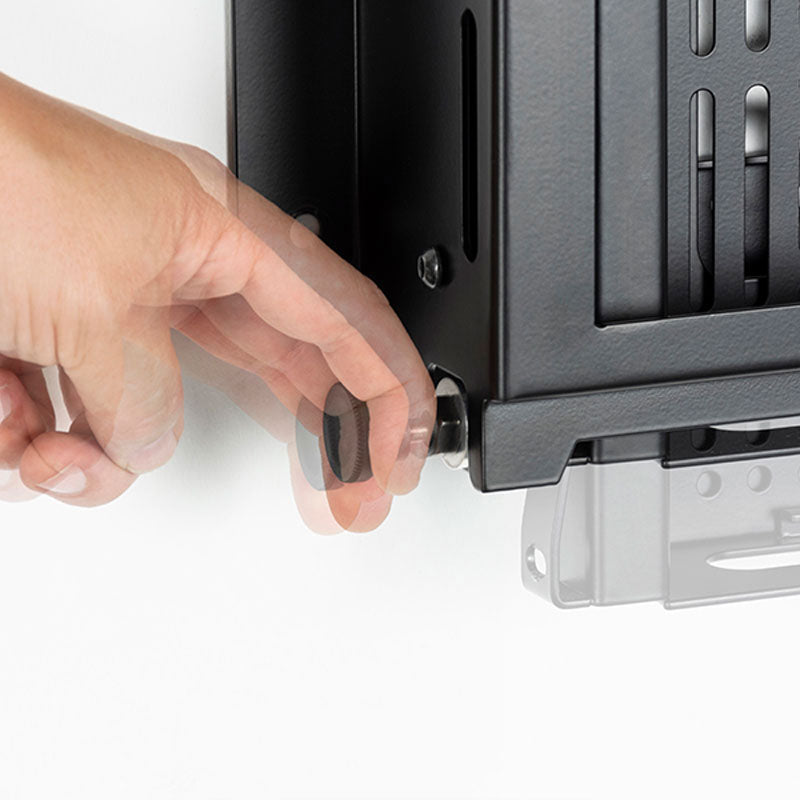

  • B-Tech XL Fixed TV Wall Mount BT7885/B, recessed display mount release handle close-up

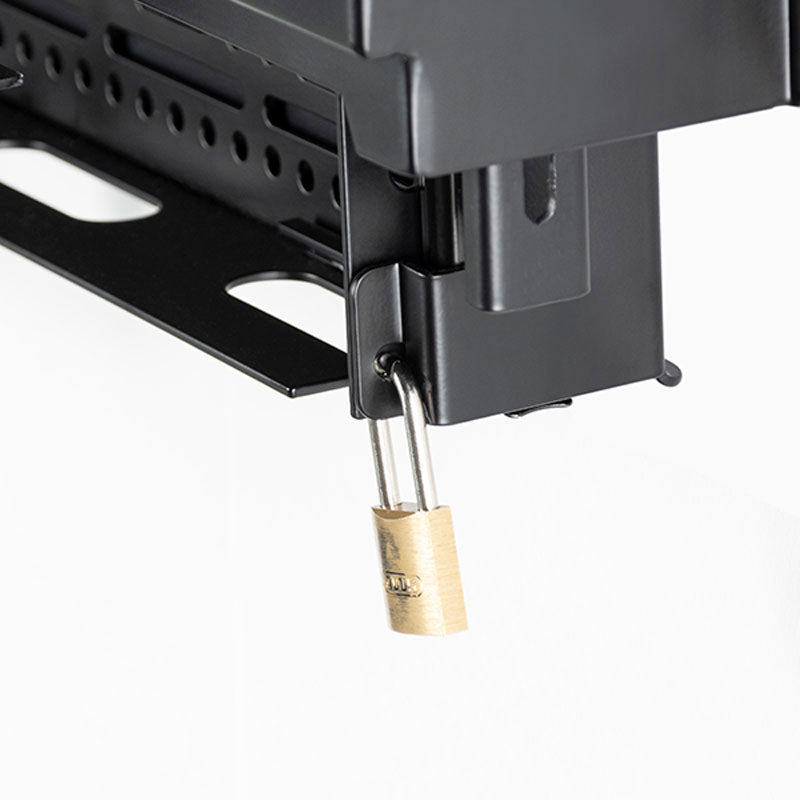

  • B-Tech XL Fixed TV Wall Mount BT7885/B, recessed display mount padlock security point

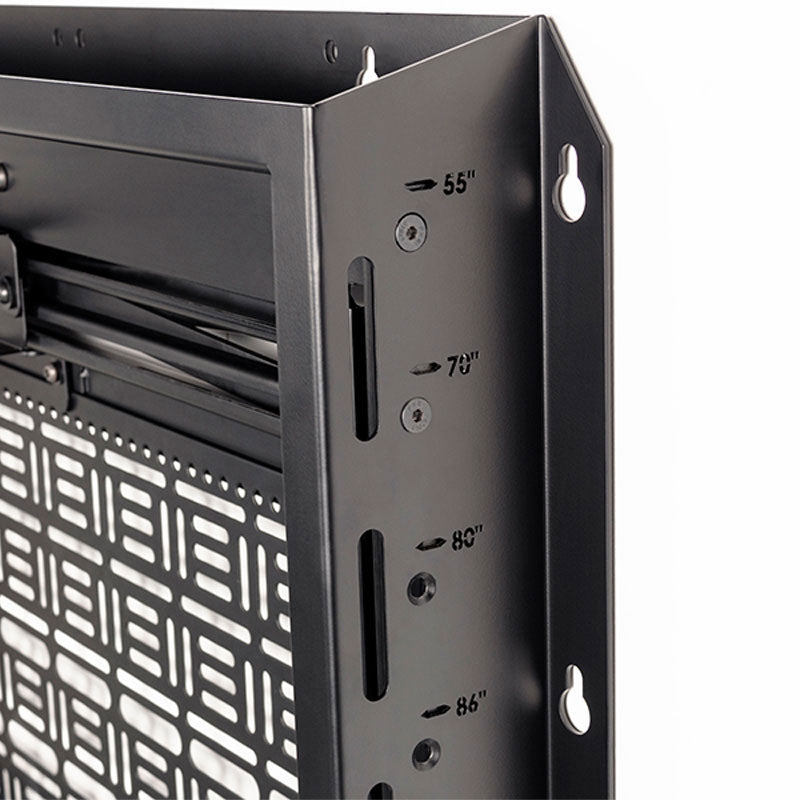

  • B-Tech XL Fixed TV Wall Mount BT7885/B, recessed display mount height-position adjustment holes

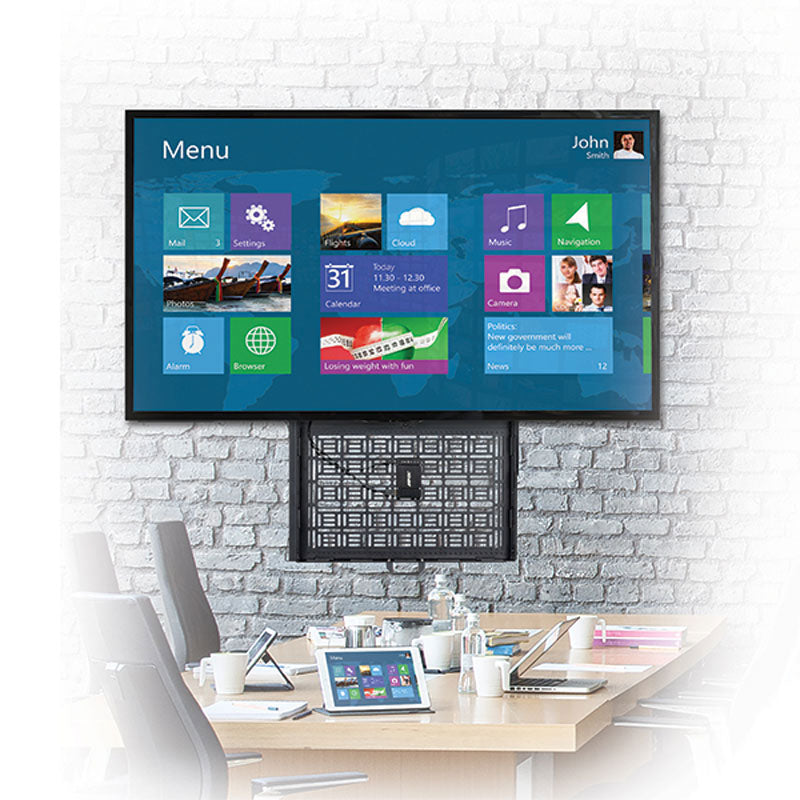

  • B-Tech XL Fixed TV Wall Mount BT7885/B, recessed display mount installed below a meeting-room screen
B-Tech XL Fixed TV Wall Mount (Pull-Down AV Storage Tray) BT7885/B

Mfg Part # BT7885/B
SKU # BTECH-BT7885/B
B-Tech Mounts Certified Experts Authorized Partner logo
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$722.00 $850.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

B-Tech Flat Screen Wall Mount with Pull-Down AV Storage Tray features:

  • Flat screen mount designed to hold & hide AV accessories
  • Tool-less, operation & assisted release of the AV storage tray
  • Accessories can be accessed without screen removal
  • Interface arms include leveling screws to adjust the screen height
  • Locks in closed & open positions & can be secured with a padlock (not included)
  • Keyhole wall mounting for easy installation
  • Locks in closed & open positions & can be secured with a padlock (padlock not included)
  • Compatible with B-Tech's System X, Mode-AL columns & B-Tech collars for pole mounted installations
  • Additional trays available for purchase to allow for fast change over of AV equipment
  • All mounting hardware included
  • Recommended screen size: 49" (124cm) - 86" (218cm)
  • Max load: 70kg (154lbs)
  • VESA Fixings: up to 100 x 100 - 600 x 400
  • Depth from wall: 100mm (4")
  • Max equipment dimensions: H:361mm (14.2") W:575mm (22.6") D:60mm (2.4")
  • Max tray extension (from top of mount): 1192mm (47")

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

22.99 in.

Width:

33.08 in.

Depth:

3.93 in.

Weight:

47.39 lbs,

Weight Capacity:

154lb (70kg),

Color(s):

Black,

Range of Screens Supported:

43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in., 81 to 90 in.,

Mount Placement:

Wall,

Model Number:

BT7885/B,

Ship Weight:

48 lbs

Max Depth from Wall:

2 to 6 in.,

Orientation:

Landscape,

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm,

Range of Screens Supported:

43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in., 81 to 90 in.,

Adjustability of Mount:

Fixed Flat,

Stud Placement:

Dual Stud or More,

Special Features of Mounts:

CPU/Media Player Storage,

Use of Mount:

Monitor or TV,

Related Products

B-Tech Two-Piece Accessory Collar BT7841/B
On Sale

B-Tech Two-Piece Accessory Collar (50mm Poles) BT7841/B

B-Tech Two-Piece Accessory Collar (50mm Poles) BT7841/B
$42.00 $49.75

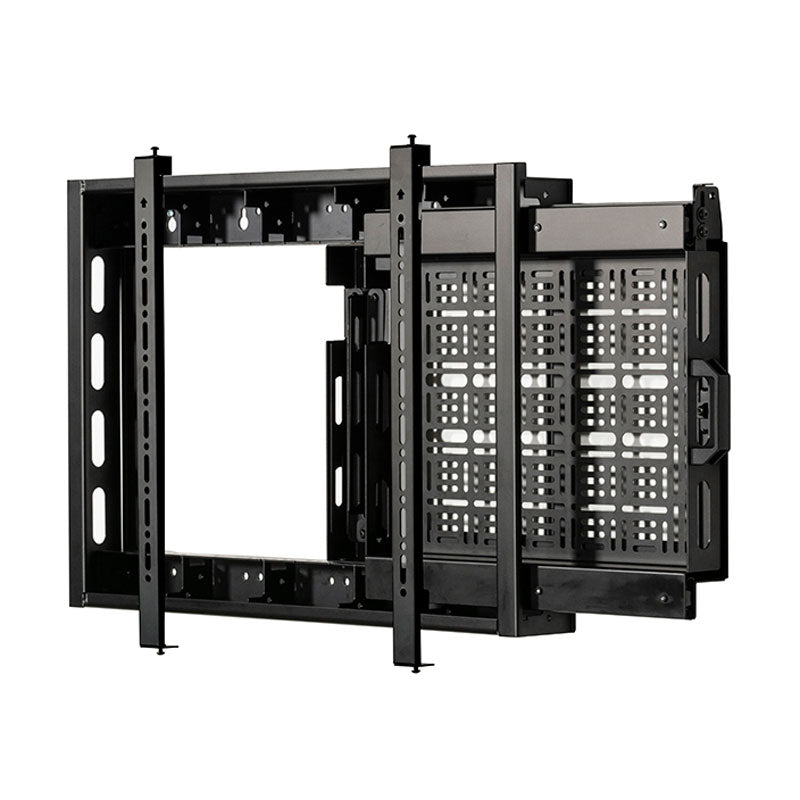

B-Tech Large Fixed TV Wall Mount with Slide-Out Storage Tray BT7883/B
On Sale

B-Tech Large Fixed TV Wall Mount with Slide-Out Storage Tray BT7883/B

B-Tech Large Fixed TV Wall Mount with Slide-Out Storage Tray BT7883/B
$582.00 $685.00
B-Tech System 2 Pole BT7850-100/B
On Sale

B-Tech System 2 Pole (50mm OD, 1M, Black) BT7850-100/B

B-Tech System 2 Pole (50mm OD, 1M, Black) BT7850-100/B
$45.00 $53.50
B-Tech System 2 Pole BT7850-150/B
On Sale

B-Tech System 2 Pole (50mm OD, 1.5M, Black) BT7850-150/B

B-Tech System 2 Pole (50mm OD, 1.5M, Black) BT7850-150/B
$62.00 $73.00
B-Tech AV Storage Cradle BT7882/B
On Sale

B-Tech AV Storage Cradle BT7882/B

B-Tech AV Storage Cradle BT7882/B
$314.00 $370.00
B-Tech Flip-Down AV Storage Tray BT7884/B
On Sale

B-Tech Flip-Down AV Storage Tray BT7884/B

B-Tech Flip-Down AV Storage Tray BT7884/B
$488.00 $575.00

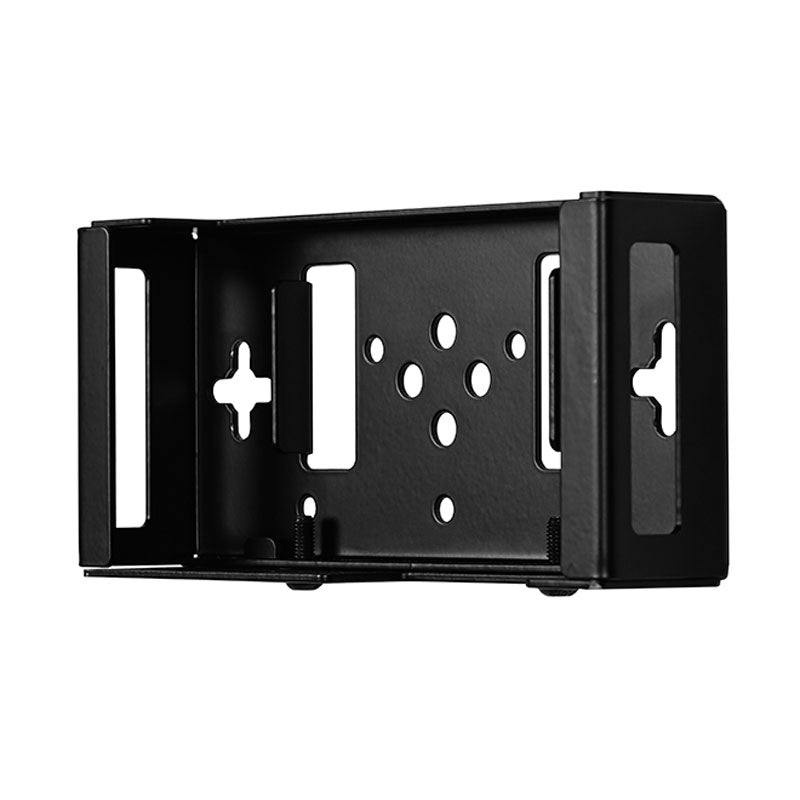

B-Tech Mounting Cradle BT7886/B
On Sale

B-Tech Mounting Cradle (for Mersive Solstice Pod) BT7886/B

B-Tech Mounting Cradle (for Mersive Solstice Pod) BT7886/B
$68.00 $81.00
B-Tech Interface Adapter Arms BT7566/B, display stand mounting rails
On Sale

B-Tech Interface Adapter Arms (VESA 500, 600, 700, 800, 900) BT7565/B

B-Tech Interface Adapter Arms (VESA 500, 600, 700, 800, 900) BT7565/B
$60.00 $71.00

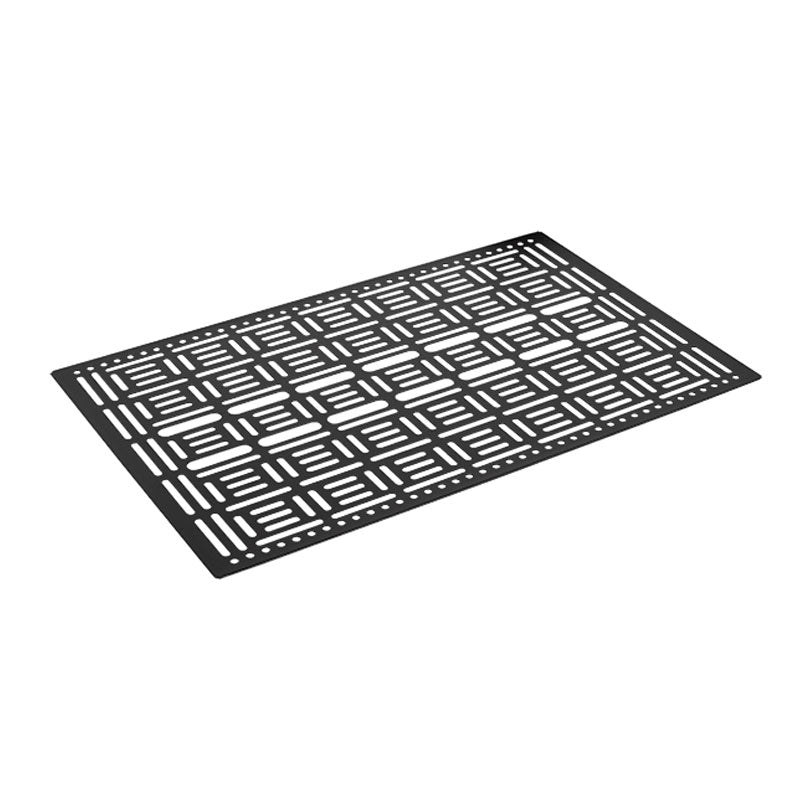

B-Tech Spare Pull-Down Accessory Tray BT7885-TRAY/B
On Sale

B-Tech Spare Pull-Down Accessory Tray (Fits BT7885) BT7885-TRAY/B

B-Tech Spare Pull-Down Accessory Tray (Fits BT7885) BT7885-TRAY/B
$78.00 $92.50

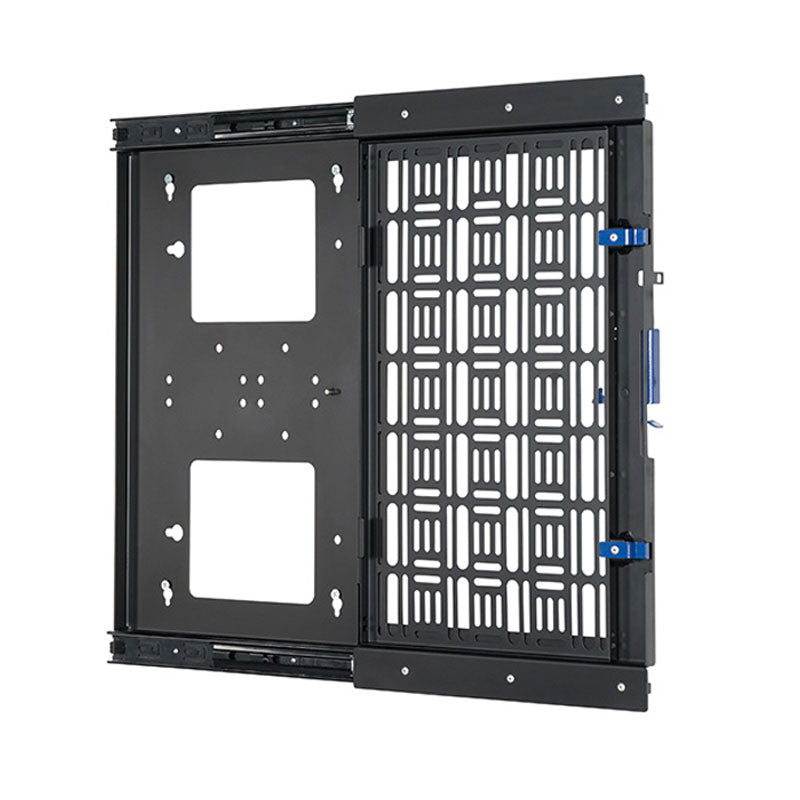

B-Tech Wall Mounted AV Storage Tray BT7888/B
On Sale

B-Tech Wall Mounted AV Storage Tray (Slide-Out) BT7888/B

B-Tech Wall Mounted AV Storage Tray (Slide-Out) BT7888/B
$248.00 $292.50

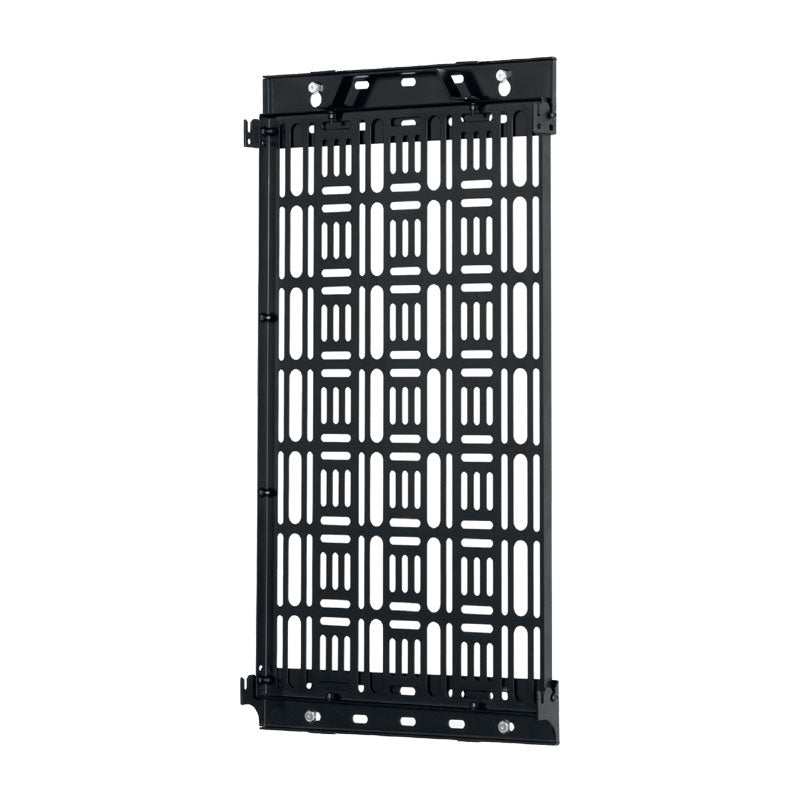

B-Tech Wall Mounted AV Storage Tray BT7889/B
