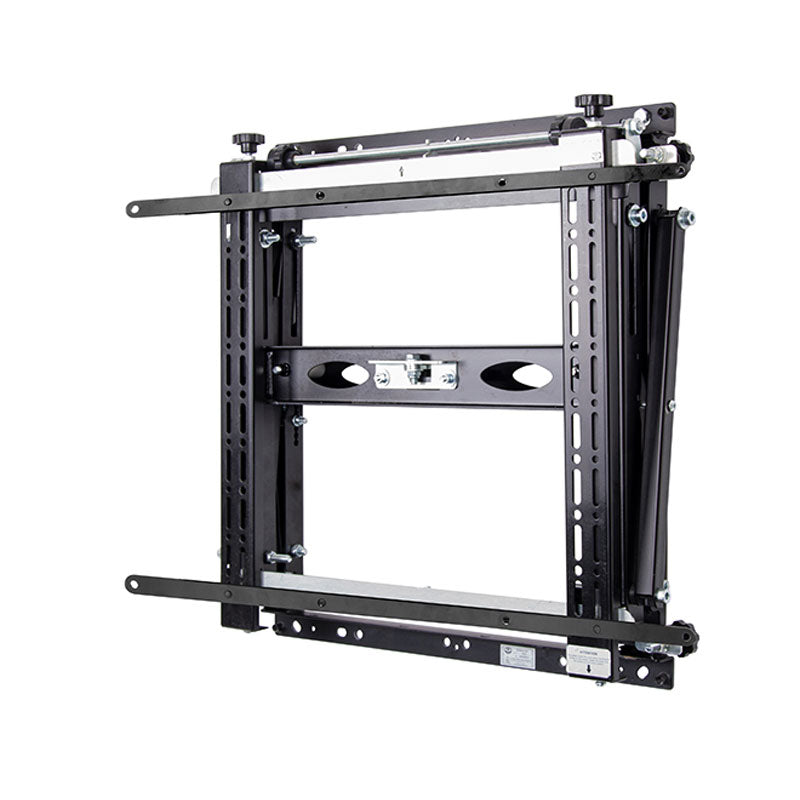

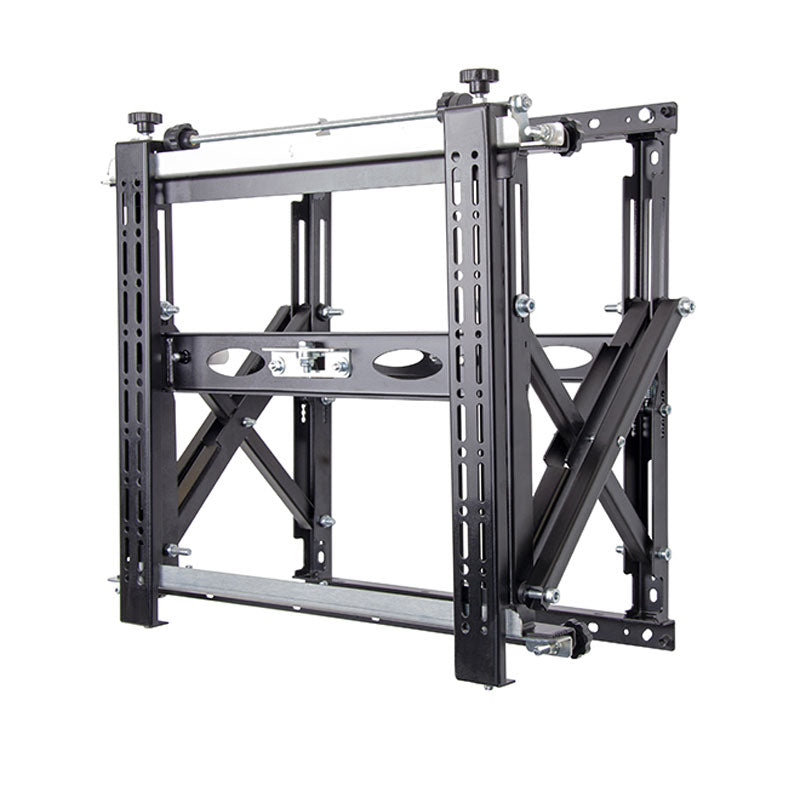

B-Tech XL Heavy Duty Pop-Out Video Wall Mount (Micro Adjust) BT8310XL/B

The B-Tech BT8310XL is designed to mount extra-large screens from 110lb (50kg) up to 275lb (125kg) in both landscape and portrait orientations. It features:

• Perfect solution for mounting large heavy duty screens into a recessed wall
• Suitable for landscape or portrait screen mounting
• Push to open / push to close system provides quick and easy service access

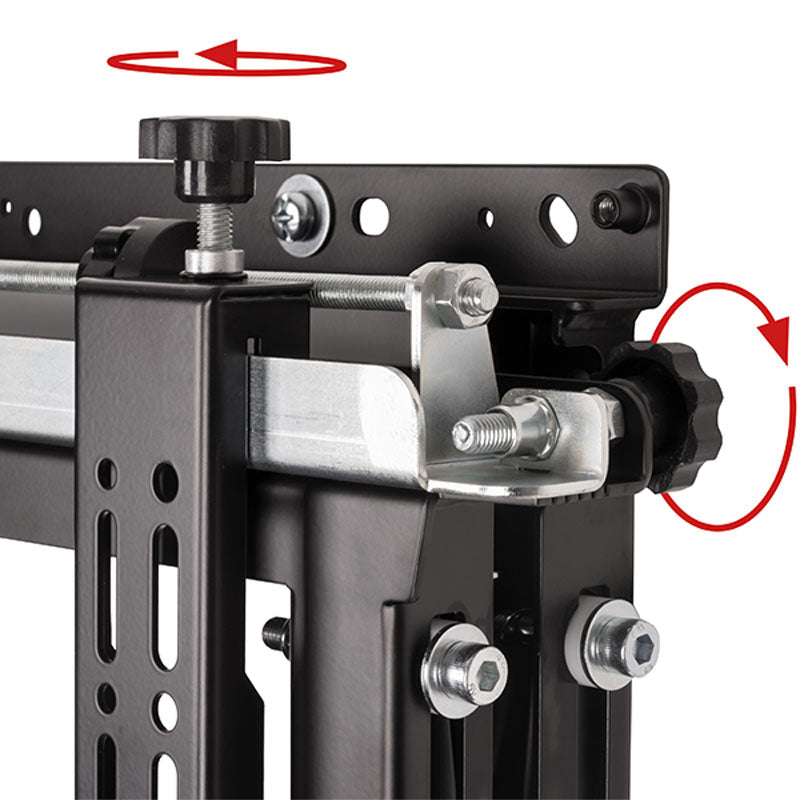

• Tool-less micro-adjustments at 8 points for seamless display alignment
• Suitable for both wall or pole mounting
• Integrated cable management
• Perfect solution for mounting screens into a recessed wall
• Locking kit (BT8310-LK) to prevent accidental pop-out of mount is also available (separately)
• Safety screws help prevent unauthorized removal of screens
• Includes Interface Adapter Arms as standard (pictured below) for use with screens with VESA 600 x 400 fixings
• All mounting hardware included

• Recommended screen size: 42" - 120" (46" - 120" in portrait)
• Min - Max load: 110-275lbs (50-125kg)
• VESA® compatibility (as standard): 200 x 100 to 400 x 400
• VESA® compatibility (with included adapters): up to 600 x 400*
• Flat to wall depth: 3.98" (101mm) (+/-0.28" with micro-adjustment)

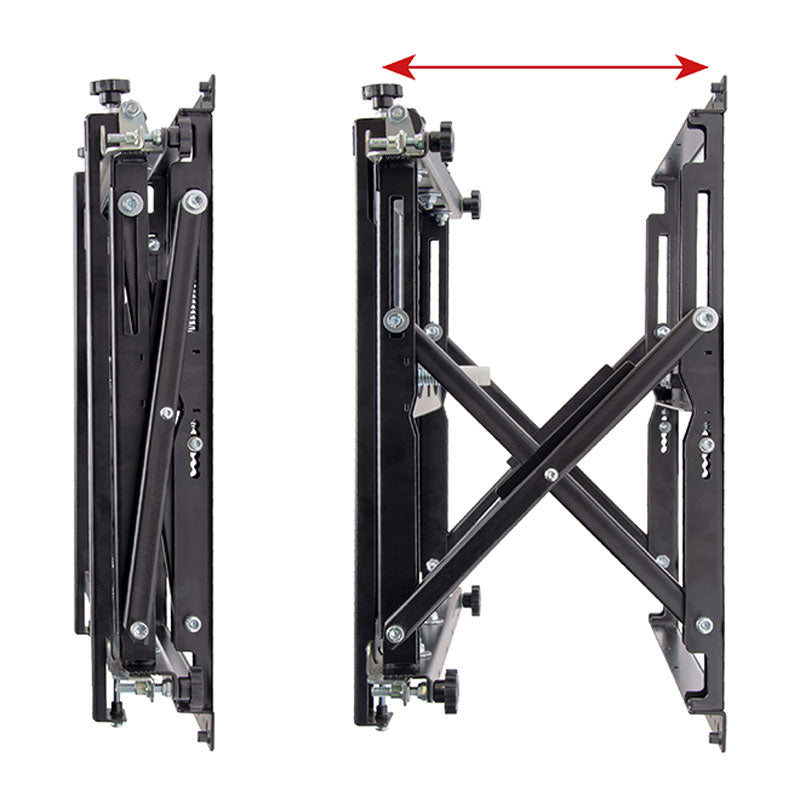

• Popped out depth: 11.54" (293mm) (+/-0.28" with micro-adjustment)
• Screen height adjustment: +0.59" (15mm)

*Please note using the included Interface Adapter Arms to mount VESA 600 x 400 screens will increase the total depth of the product by 0.24" (6mm), for a total depth of: 4.21" (107mm) or 11.77" (299mm) while popped out.
