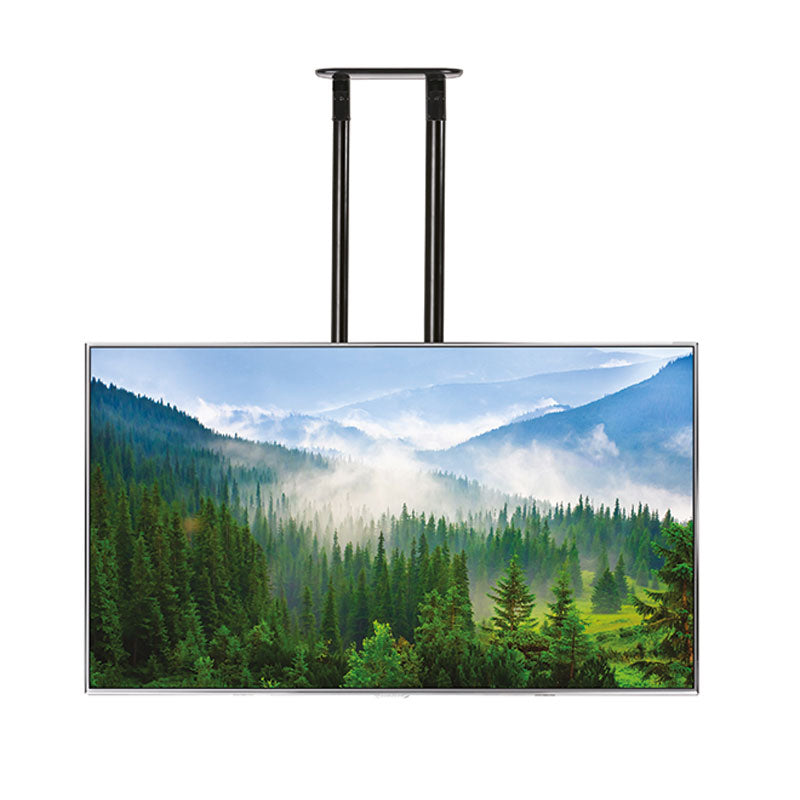

B-Tech XL Universal TV Ceiling Mount (1M, Black) BT8448-100/BB

B-Tech XL Universal TV Ceiling Mount (1M, Black) BT8448-100/BB

Name: B-Tech XL Universal TV Ceiling Mount (1M, Black) BT8448-100/BB
Brand: B-TECH AV MOUNTS
SKU: BTECH-BT8448-100/BB
Price: 600.00 USD
Availability: InStock

B-Tech XL Universal TV Ceiling Mount BT8448-100/BB

B-Tech XL Universal TV Ceiling Mount (1M, Black) BT8448-100/BB

Mfg Part # BT8448-100/BB

SKU # BTECH-BT8448-100/BB

In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.

$600.00 $707.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Email Us

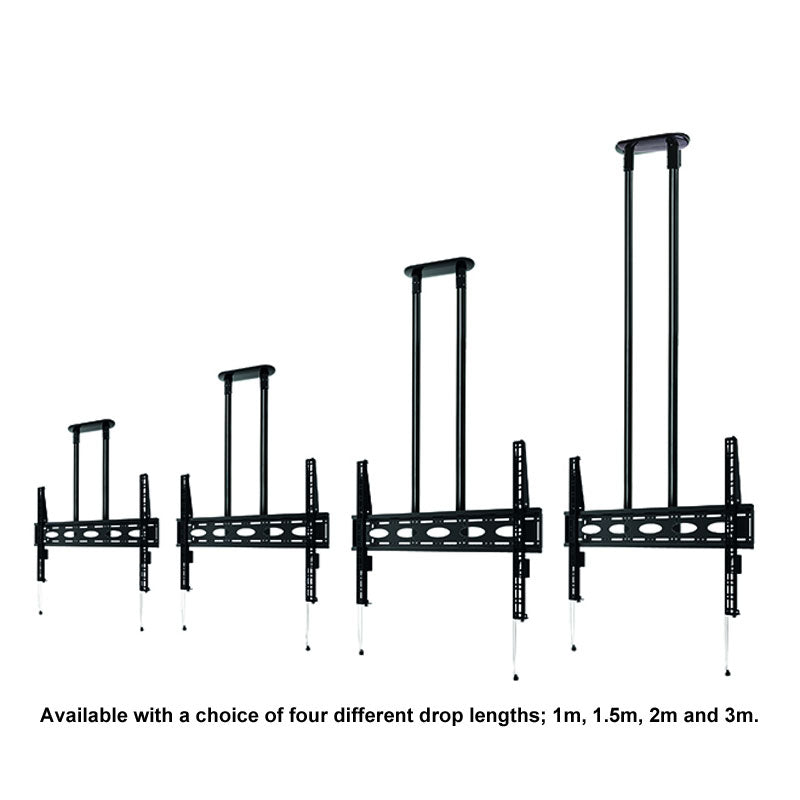

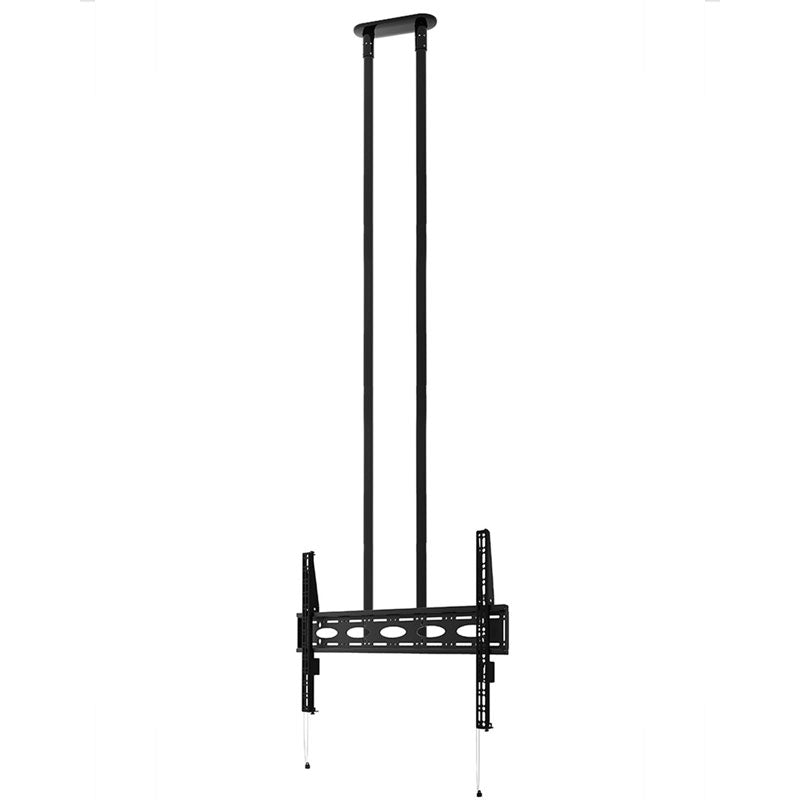

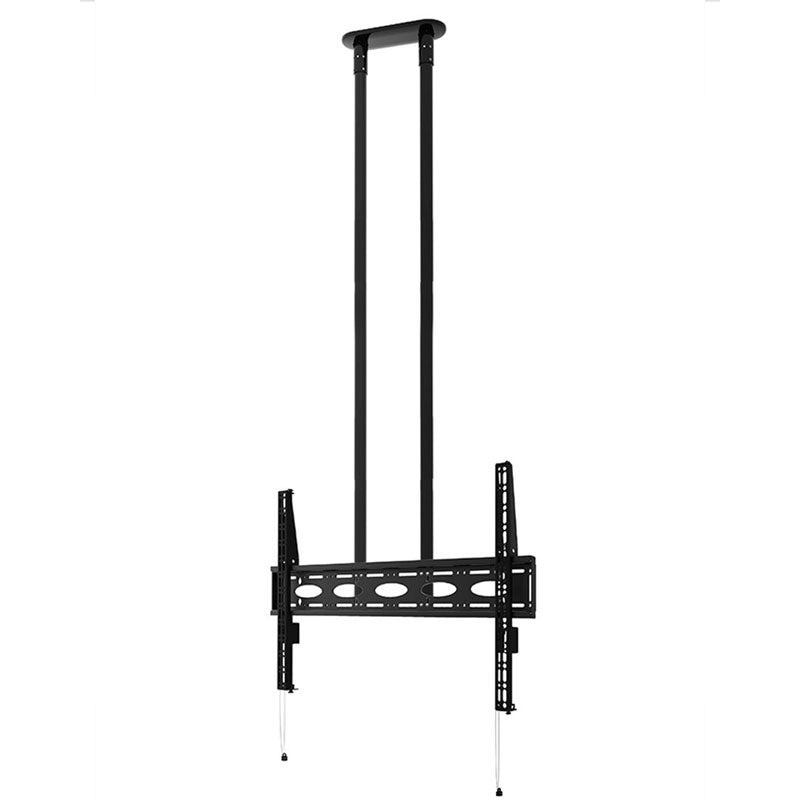

B-Tech's ceiling mount is designed to mount extra large screens up to 286lbs (130kg) and is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. It features:

Fits 65-120" TV's with mounting patterns up to VESA 1000x600mm and 286lbs (130kg)
Twin pole mount suitable for screens 65" and over
Heavy duty steel capable of supporting very heavy loads

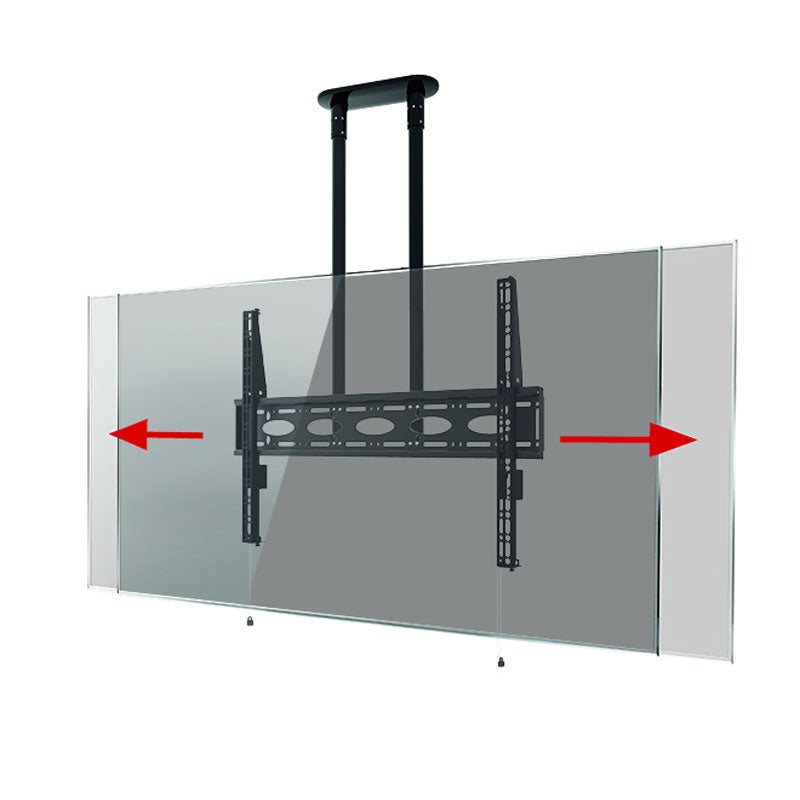

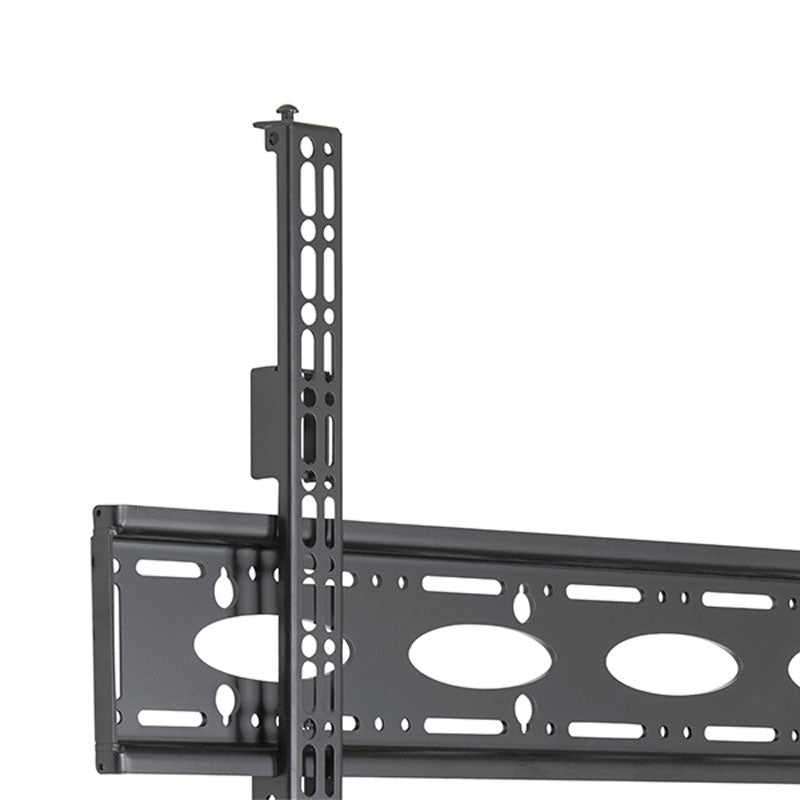

Lateral adjustment of screen once mounted

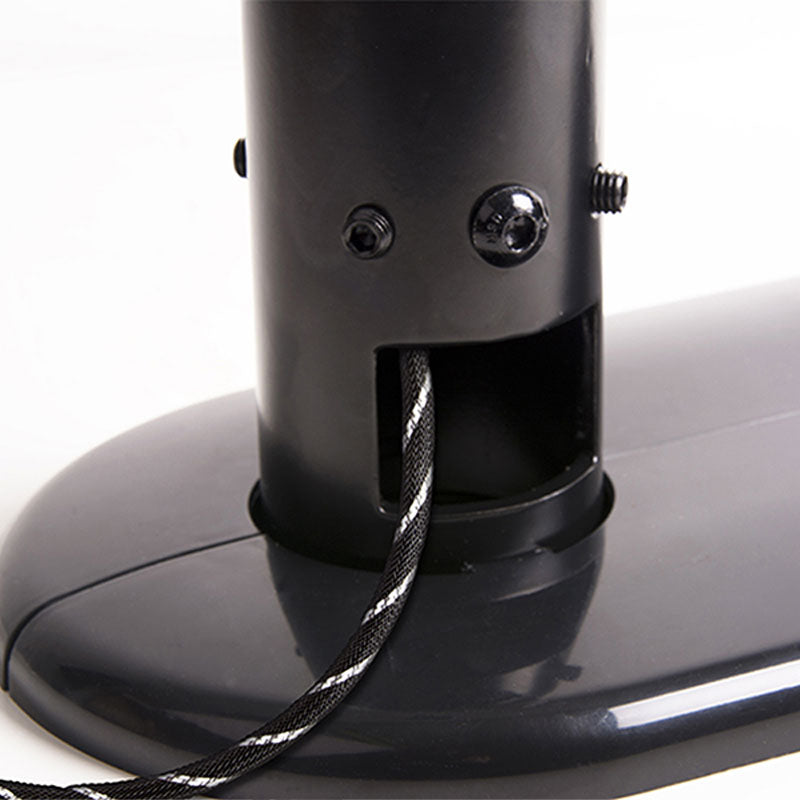

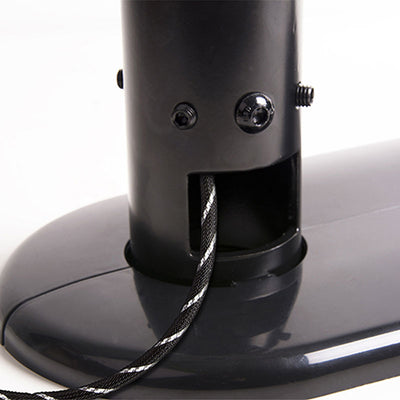

Integrated cable management for a neat and tidy installation
Adjustment screws allow screen to be leveled once mounted
Simple 'hook-on' installation
Max load: 286lbs (130kg)
VESA & non-VESA fixings: up to 1000 x 600mm
Ceiling drop: 39.37" (1m)*

*From the ceiling to the center of the mount.

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

41.71 in.

Width:

42.13 in.

Depth:

05.74 in.

Weight Capacity:

286lbs (130kg),

Color(s):

Black,

Range of Screens Supported:

61 to 70 in., 71 to 80 in., 81 to 90 in., Over 91 in.,

Mount Placement:

Ceiling,

Model Number:

BT8448-100/BB,

Orientation:

Landscape,

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 700 x 500 mm, 800 x 400 mm, 800 x 500 mm, 800 x 600 mm, 900 x 600 mm, 1000 x 600 mm,
