Chief FUSION Bolt Down Video Wall Stand (2x2, Portrait) LBM2X2UP

Chief FUSION Bolt Down Video Wall Stand (2x2, Portrait) LBM2X2UP

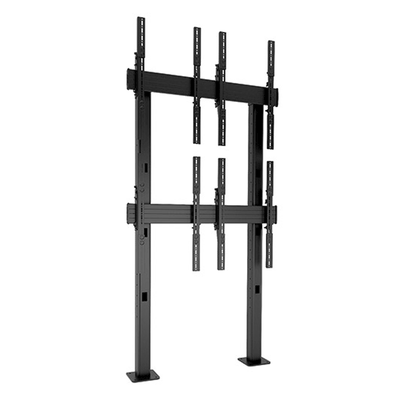

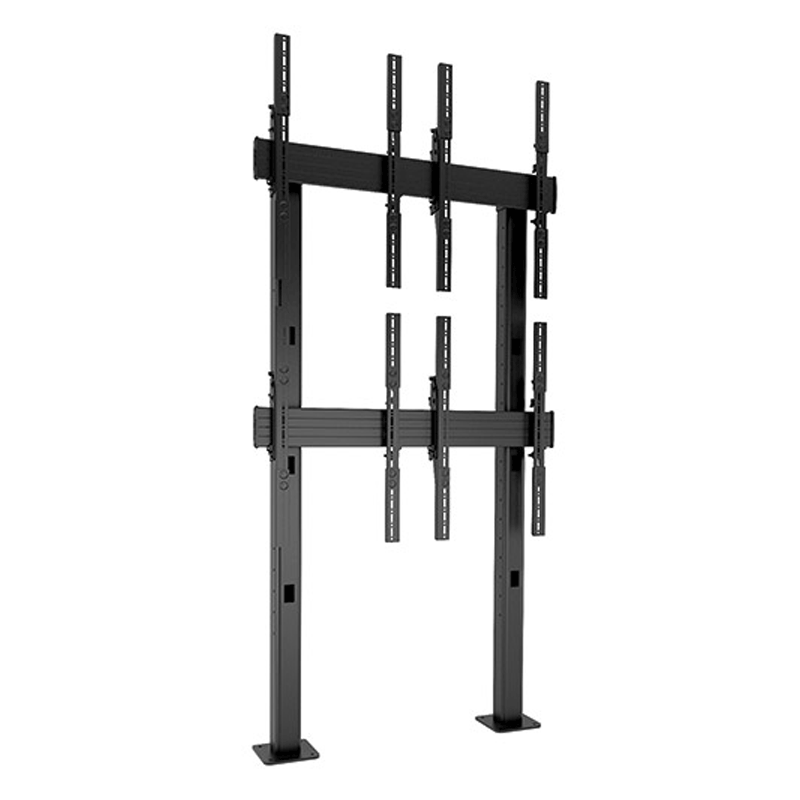

Chief FUSION 2x2 Bolt Down Portrait Video Wall Stand LBM2X2UP

Chief FUSION Bolt Down Video Wall Stand (2x2, Portrait) LBM2X2UP

Mfg Part # LBM2X2UP

SKU # CHF-LBM2X2UP

In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.

$4,280.00 $6,115.00

View Current Discounts and Promotions

Ask The Experts

Chief's FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications. It features:

Fits 42-50" screens with maximum vertical mounting patterns between 100mm and 400mm.
Can fit up to 60" screens with FCAX brackets (sold separately)
Easily align displays with independent height, plumb and lateral shift adjustment
Bolts down for permanent displays
Integrated cable management for a clean, professional look
Orientation: Portrait
Center of Display to Floor: 17.38" (441 mm) (minimum bottom row) - 82.38" (2092 mm) (maximum top row)
Manual Height Adjustment: Micro-adjustment up to 0.75" (19 mm) per screen
Weight Capacity: 125 lbs. (56.7 kg) per screen

Help Files

No PDF help files available for this product

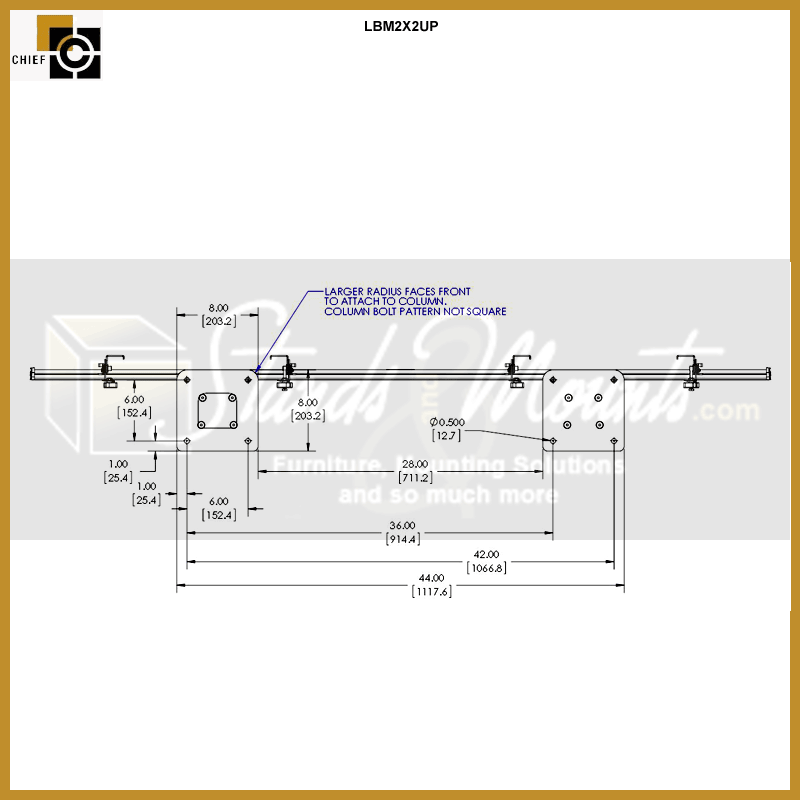

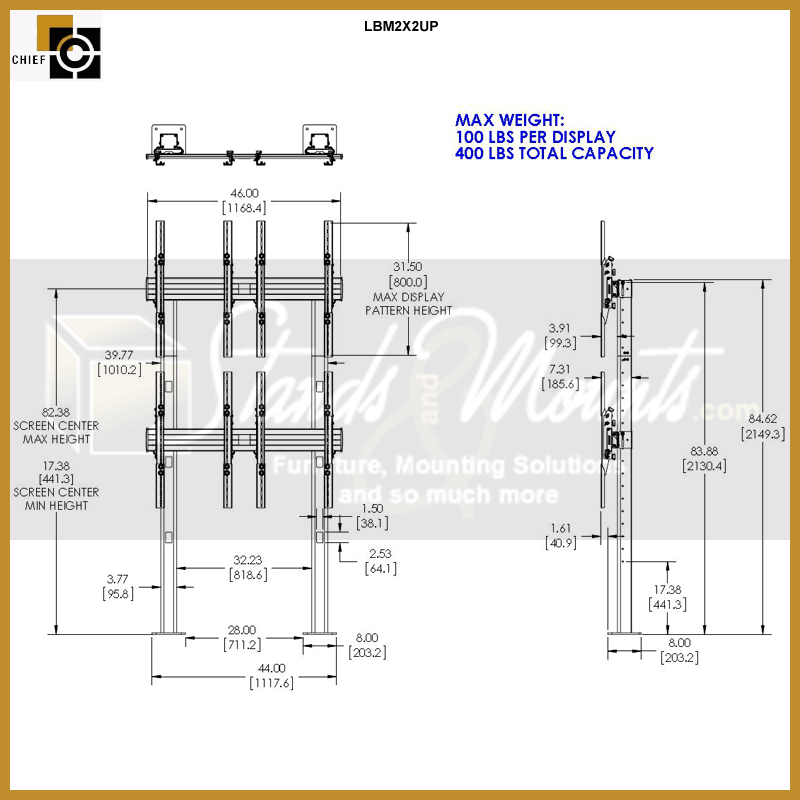

Product Details and Specifications

Height:

98.60 in.

Width:

46.00 in.

Depth:

09.61 in.

Weight Capacity:

100 lbs (45.4 kg) per screen,

Color(s):

Black,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in.,

Mount Placement:

Floor Stand,

Model Number:

LBM2X2UP,

Ship Weight:

193.00 lbs

Orientation:

Portrait,

VESA Mount Compatible:

100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 700 x 400 mm, 800 x 400 mm, 800 x 500 mm, 800 x 600 mm,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in.,

Special Features of Mounts:

Multiscreen, Multi-Monitor Video Wall, Vertical Orientation,

TV Monitor Stand Style:

Monitor Floor Pedestals, Multiple-Monitor Stands,

Use of Mount:

Monitor or TV, Monitor Floor Stand,

Specific Mounting Patterns:

Any width x 100mm - 800mm,
