Chief FUSION Bolt Down Video Wall Stand (3x) LBM3X3U

Chief FUSION 3x3 Bolt Down Video Wall Stand LBM3X3U

Chief FUSION Bolt Down Video Wall Stand (3x) LBM3X3U

$6,760.00 $9,658.00
Skip to product information
Chief FUSION 3x3 Bolt Down Video Wall Stand LBM3X3U

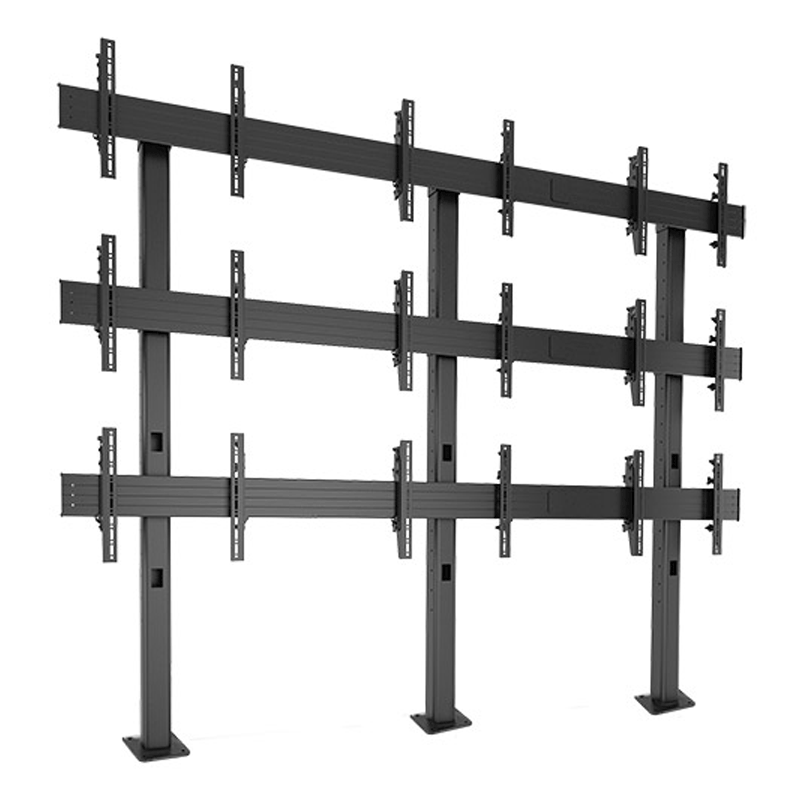

  • Chief FUSION 3x3 Bolt Down Video Wall Stand LBM3X3U
  • Chief FUSION Bolt Down Video Wall Stand LBM3X3U, triple-display ceiling mount dimensions diagram
  • Chief Vertical Dual Monitor Desk Mount KTC230S, shipping transit-time map
Chief FUSION Bolt Down Video Wall Stand (3x) LBM3X3U

Mfg Part # LBM3X3U
SKU # CHF-LBM3X3U
Chief logo with 'Certified Experts' and 'Authorized Partner' to show partnership and affiliation.
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$6,760.00 $9,658.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

Chief's FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications. It features:

  • Fits 42-46" screens with maximum vertical mounting patterns between 100mm and 400mm
  • Can fit larger screens up to 60" with FCAX brackets (sold separately)
  • Easily align displays with independent height, plumb and lateral shift adjustment
  • Bolts down for permanent displays
  • Integrated cable management for a clean, professional look
  • Orientation: Portrait
  • Center of Display to Floor: 16.38" (416 mm) (minimum bottom row) - 82.38" (2092 mm) (maximum top row)
  • Manual Height Adjustment: Micro-adjustment up to 0.75" (19 mm) per screen
  • Weight Capacity: 100 lbs. (45.4 kg) per screen

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

90.90 in.

Width:

108.90 in

Depth:

09.43 in.

Weight Capacity:

100 lbs (45.4 kg) per screen,

Color(s):

Black,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Mount Placement:

Floor Stand,

Model Number:

LBM3X3U,

Ship Weight:

283.00 lbs

Orientation:

Landscape,

VESA Mount Compatible:

100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 700 x 400 mm, 800 x 400 mm,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Special Features of Mounts:

Multiscreen, Multi-Monitor Video Wall,

TV Monitor Stand Style:

Monitor Floor Pedestals, Multiple-Monitor Stands,

Use of Mount:

Monitor or TV, Monitor Floor Stand,

Specific Mounting Patterns:

Any width x 100mm - 400mm,
