Chief FUSION Flat Panel Ceiling Mount (Back to Back, Portrait) LCB1UP

Chief FUSION Flat Panel Ceiling Mount (Back to Back, Portrait) LCB1UP

Name: Chief FUSION Flat Panel Ceiling Mount (Back to Back, Portrait) LCB1UP
Brand: CHIEF
SKU: CHF-LCB1UP
Price: 673.00 USD
Availability: InStock

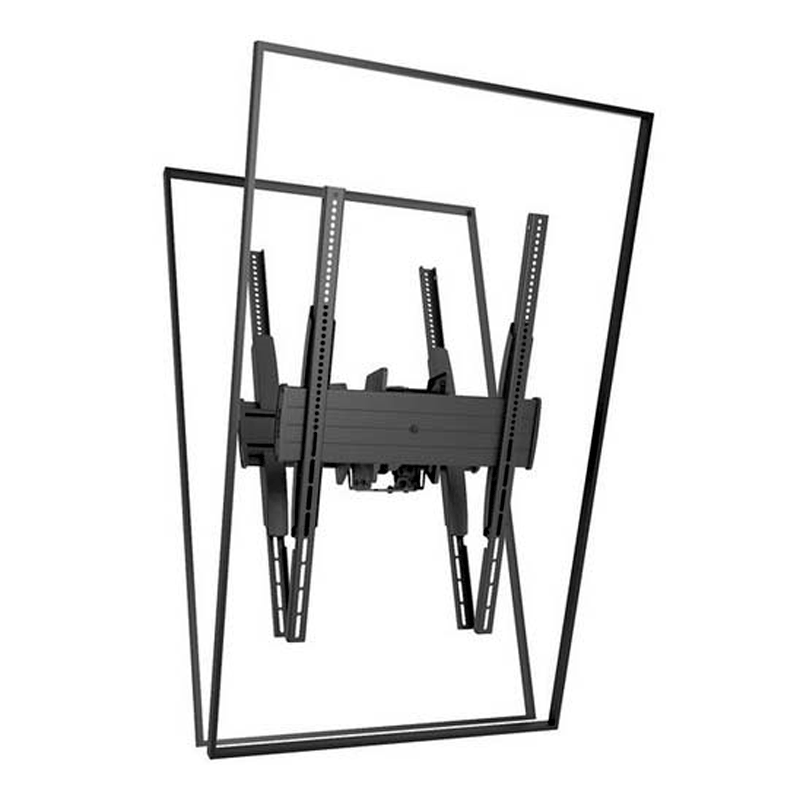

Chief FUSION Large Portrait Back to Back Flat Panel Ceiling Mount LCB1UP

Chief FUSION Flat Panel Ceiling Mount (Back to Back, Portrait) LCB1UP

Mfg Part # LCB1UP

SKU # CHF-LCB1UP

In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.

$673.00 $962.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Email Us

Chief FUSION™ Large Portrait Flat Panel Ceiling Mount features:

Fits 32-60+" screens with mounting patterns between 200x100mm and 800x460mm
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
Stackable on a single pole when used with CPA columns
Mount swivels to any preferred viewing angle
Continuous tilt ranges with four set locking points
Tool free screen engagement with optional padlock security
Orientation: Portrait
Tilt: +5°/-20°
Roll: +/-3°
Weight Capacity: 125 lbs (56.7 kg) per screen

Please Note: Ceiling Plate and Extension Column are required and must be ordered separately

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

32.50 in.

Width:

20.80 in.

Depth:

10.20 in.

Weight Capacity:

125 lbs (56.7 kg) per screen,

Color(s):

Black,

Mount Placement:

Ceiling,

Model Number:

LCB1UP,

Roll:

-/+ 3 degrees,

Tilt:

-5/+20 degrees,

Orientation:

Portrait,

VESA Mount Compatible:

200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 700 x 400 mm, 800 x 400 mm,
