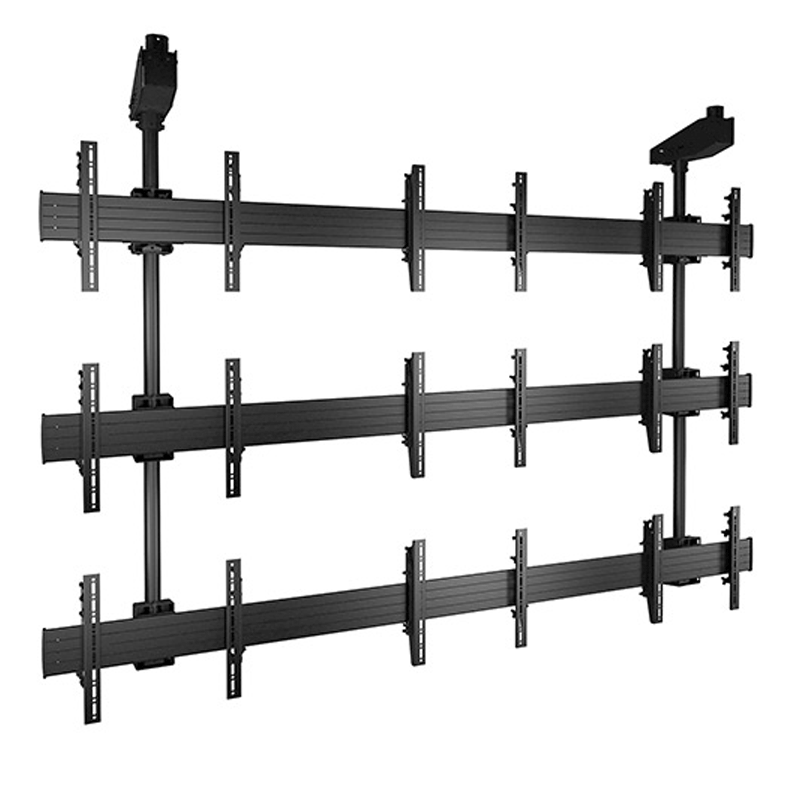

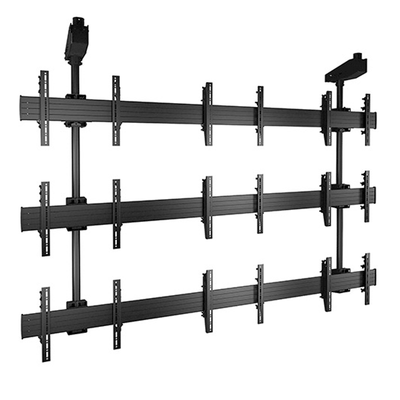

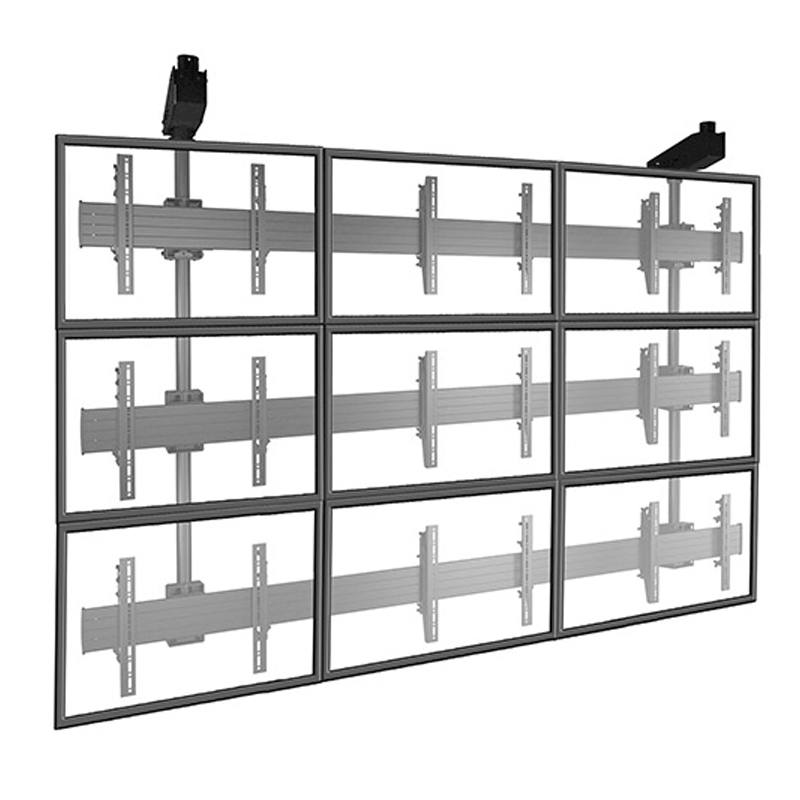

Chief FUSION Large Video Wall Ceiling Mount (3x3) LCM3X3U

Chief FUSION™ Micro-Adjustable Large Ceiling Mounted 3 x 3 Video Wall Solutions feature:

• Fits 40-46" screens with maximum vertical mounting patterns between 100mm and 400mm
• Larger screens possible with FCAX extension brackets
• Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
• Easily align displays with independent knobs for height and plumb adjustments, no tools required.
• Micro-height and leveling adjustment at all column intersection points.
• Tool free screen engagement with optional padlock security
• Orientation: Landscape
• Max Screen Width with 400mm Pattern: 44.27"W (1124.5mm)
• Max Screen Width with 600mm Pattern: 40.33"W (1024.5mm)
• Max Screen Width with 800mm Pattern: 36.40"W (924.5mm)

• Weight Capacity: 85 lbs (38.5 kg) per screen

Please Note: Ceiling Plates and Extension Columns are required and must be ordered separately
