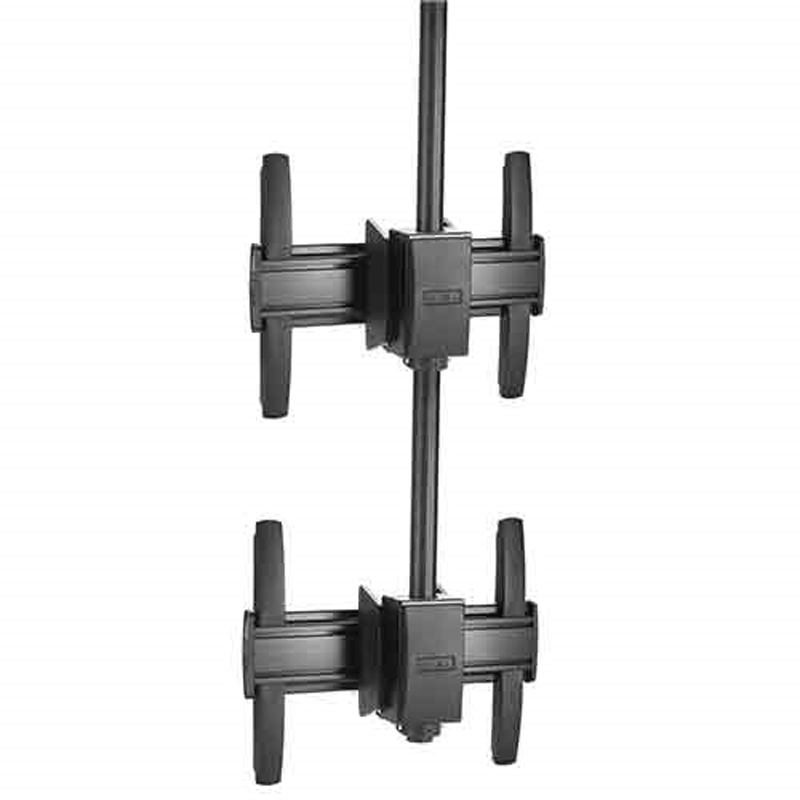

  • Chief FUSION Medium Stacked Ceiling Mount MCM1X2U

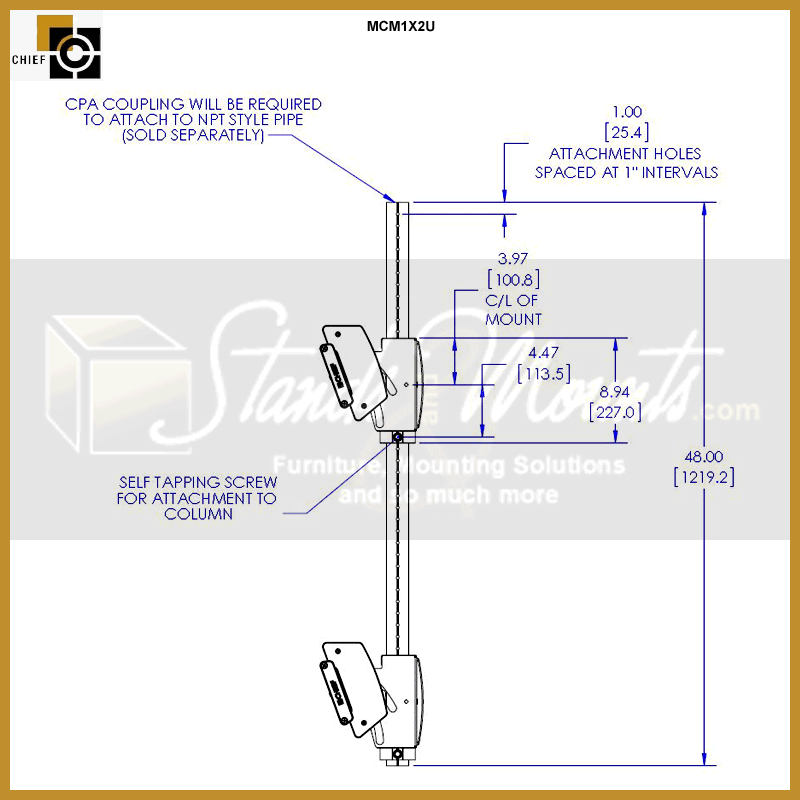

  • Chief FUSION Medium Stacked Ceiling Mount MCM1X2U, dual-pole mount technical dimensions

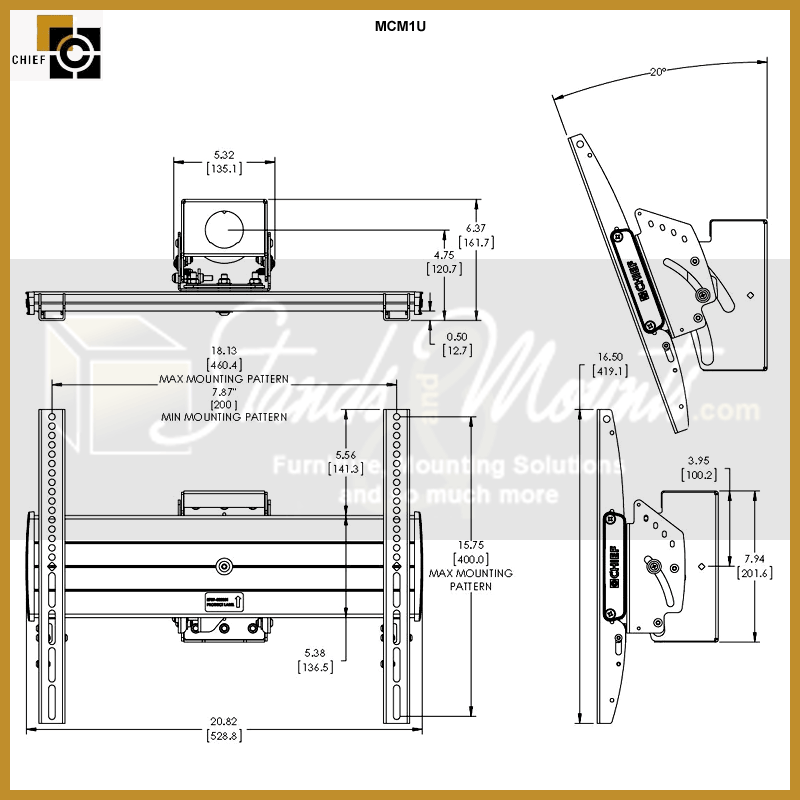

  • Chief FUSION Medium Stacked Ceiling Mount MCM1X2U, articulating display mount technical dimensions and extension range
  • Chief Vertical Dual Monitor Desk Mount KTC230S, shipping transit-time map
Chief FUSION Medium Stacked Ceiling Mount MCM1X2U

Mfg Part # MCM1X2U
SKU # CHF-MCM1X2U
Chief logo with 'Certified Experts' and 'Authorized Partner' to show partnership and affiliation.
Product image with a clear background
In Stock: Delivered Free in 3-9 Days.
$681.00 $973.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

Chief FUSION™ Medium Stacked Ceiling Mounts feature:

  • Fits 32-55+" screens with mounting patterns between 200x100mm and 460x400mm
  • Kit includes two MCM1U ceiling mounts and (1) CPA048P 4ft pre-drilled column
  • For connecting to longer drop length 1.5" NPT extension columns you must order CPA264 separately
  • For connecting to longer drop length pin connection columns you must order CPA263 separately
  • Mount swivels to any preferred viewing angle
  • Continuous tilt ranges with four set locking points
  • Tool free screen engagement with optional padlock security
  • Orientation: Landscape
  • Tilt: +5°/-20°
  • Roll: +/-3°
  • Weight Capacity: 100 lbs (45.3 kg) per screen

Please Note: Ceiling Plate is required and must be ordered separately

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

48.00 in

Width:

20.80 in.

Depth:

06.37 in.

Weight Capacity:

100 lbs (45.3 kg) per screen,

Color(s):

Black,

Mount Placement:

Ceiling,

Model Number:

MCM1X2U,

Roll:

-/+ 3 degrees,

Tilt:

-5/+20 degrees,

Orientation:

Landscape,

VESA Mount Compatible:

200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm,

Adjustability of Mount:

Tilt Up Down,

Special Features of Mounts:

Multiscreen,

Use of Mount:

Monitor or TV,
