Chief FUSION X-Large Heavy Duty Back to Back Ceiling Mount XCB7000

Chief FUSION X-Large Heavy Duty Back to Back Ceiling Mount XCB7000

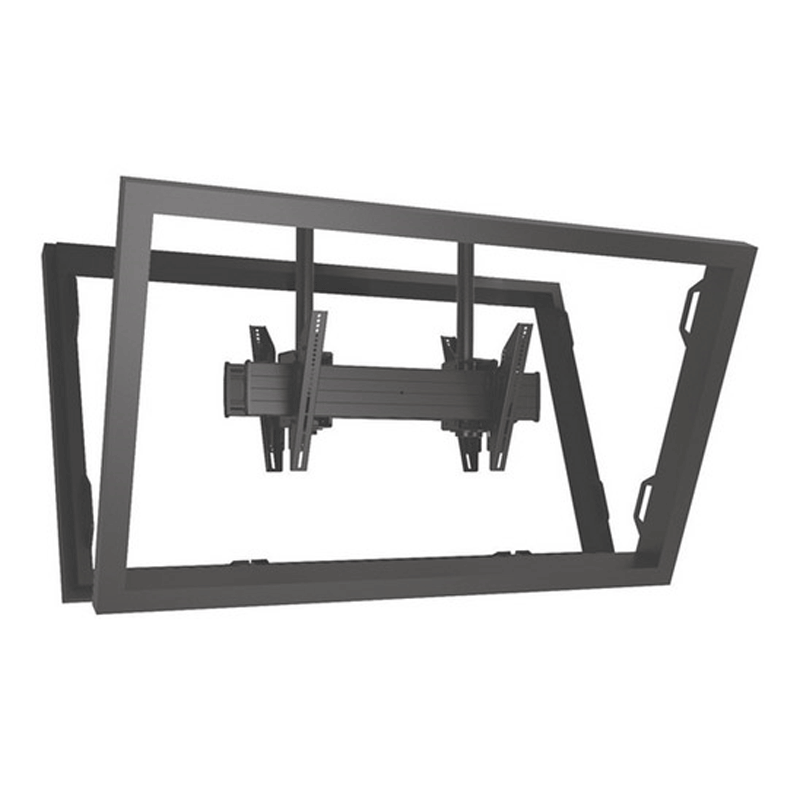

Name: Chief FUSION X-Large Heavy Duty Back to Back Ceiling Mount XCB7000
Brand: CHIEF
SKU: CHF-XCB7000
Price: 1733.00 USD
Availability: InStock

Chief FUSION X-Large Heavy Duty Back to Back Ceiling Mount XCB7000

Mfg Part # XCB7000

SKU # CHF-XCB7000

In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.

$1,733.00 $2,476.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Email Us

Chief FUSION™ X-Large Flat Panel Ceiling Mount features:

Fits 46-90+" screens over 5" deep with mounting patterns between 200x100mm and 800x400mm
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
Effortlessly adjust display using Centris fingertip tilt technology
Continuous tilt ranges with four set locking points
Tool free screen engagement with optional padlock security
Orientation: Landscape
Tilt: +7.5°/-20°
Weight Capacity: 300 lbs (136 kg) per screen

Please Note: Ceiling Plate and Extension Column are required and must be ordered separately

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

16.60 in

Width:

34.80 in.

Depth:

11.80 in.

Weight Capacity:

300 lbs (136 kg) per screen,

Color(s):

Black,

Mount Placement:

Ceiling,

Model Number:

XCB7000,

Ship Weight:

51.00 lbs

Roll:

-/+ 3 degrees,

Tilt:

-7.5/+20 degrees,

Orientation:

Landscape,

VESA Mount Compatible:

200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 700 x 400 mm, 800 x 400 mm,
