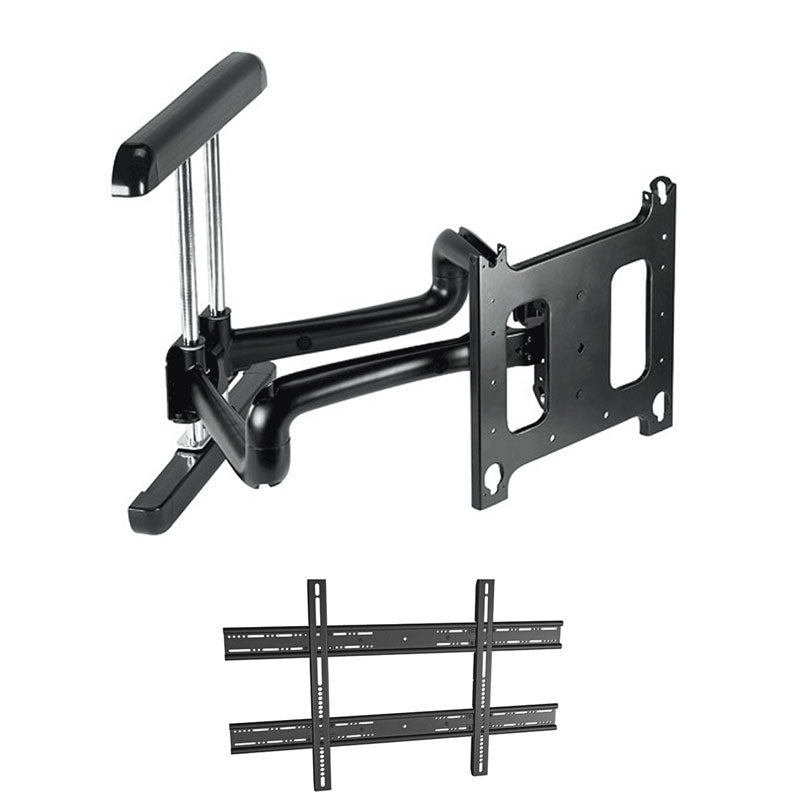

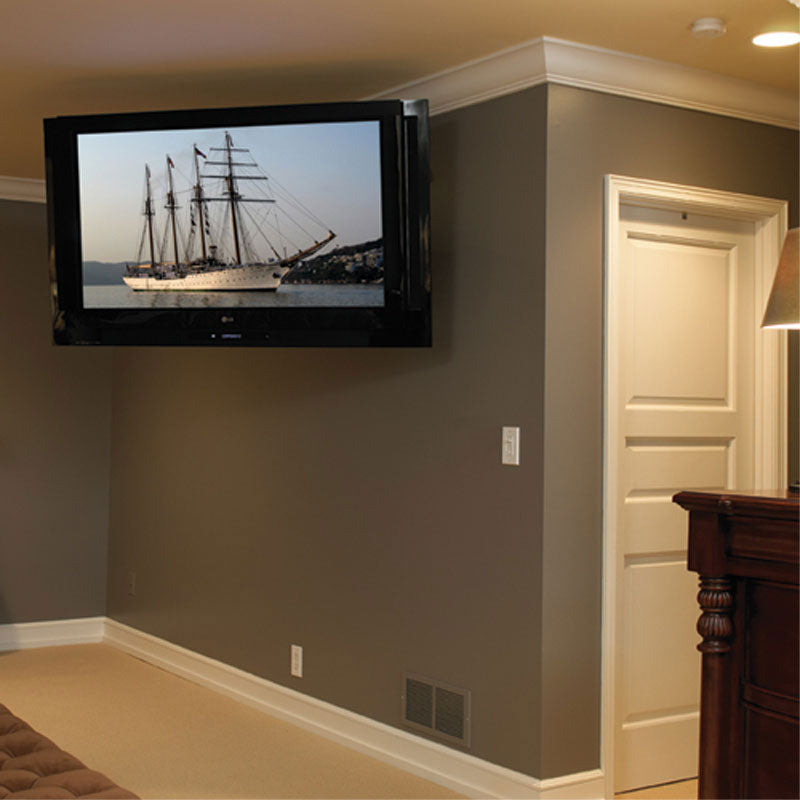

Chief Large Swing Arm TV Mount (Universal, 37 inch Ext) PDRUB

Chief Large Swing Arm TV Mount (Universal, 37 inch Ext) PDRUB

Name: Chief Large Swing Arm TV Mount (Universal, 37 inch Ext) PDRUB
Brand: CHIEF
SKU: CHF-PDRUB
Price: 892.00 USD
Availability: InStock

Chief Large Swing Arm TV Mount (Universal, 37 inch Ext) PDRUB

Mfg Part # PDRUB

SKU # CHF-PDRUB

In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.

$892.00 $1,275.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Email Us

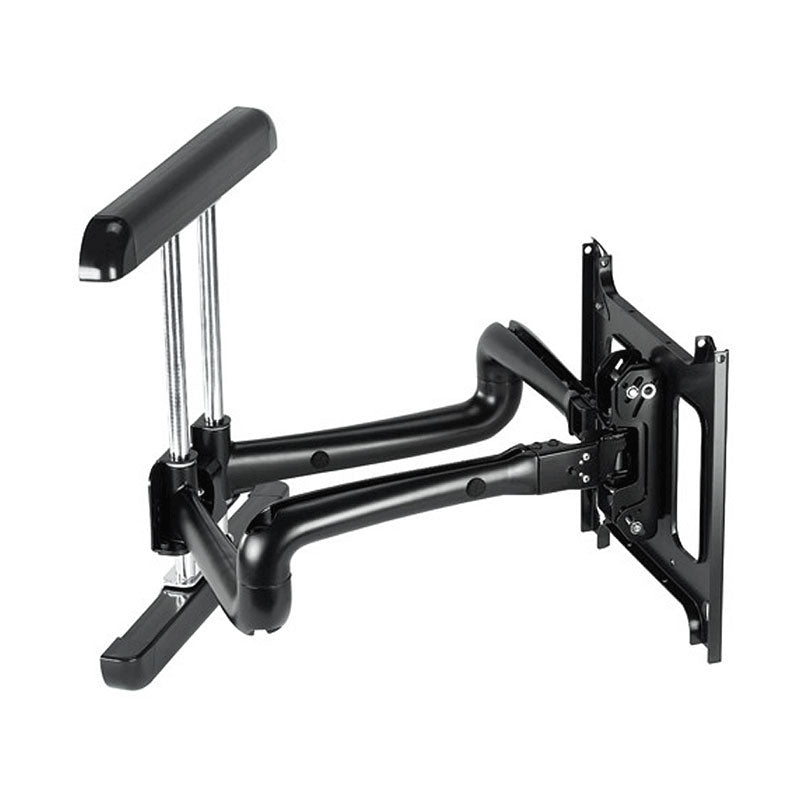

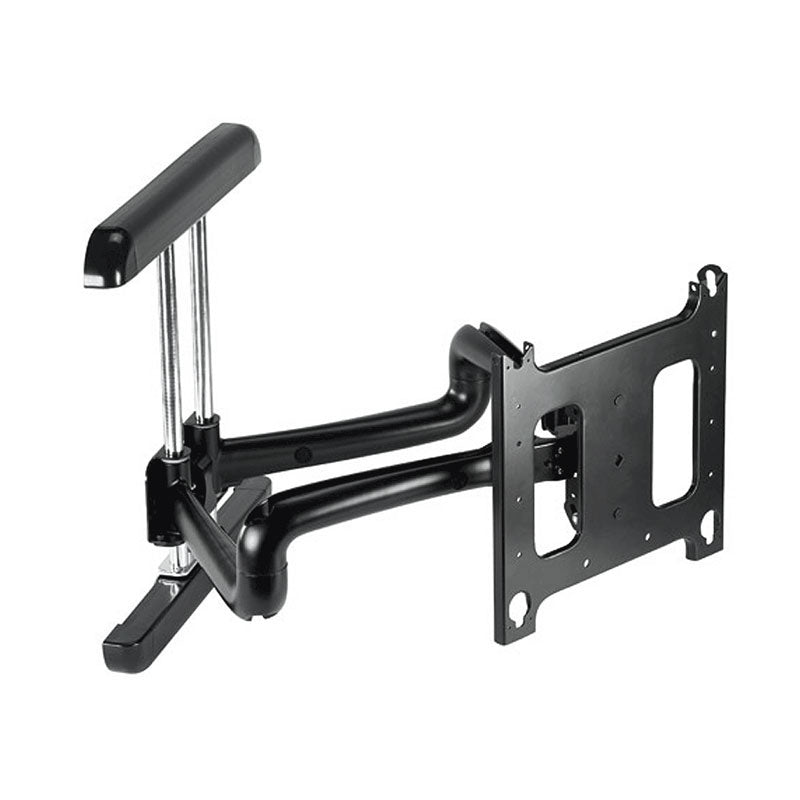

Chief's Large Flat Panel Swing Arm Wall Mount - 37" (with universal interface) features:

Fits 42-71+" screens with 200 x 200mm - 862 x 517mm mounting patterns and 200lbs.

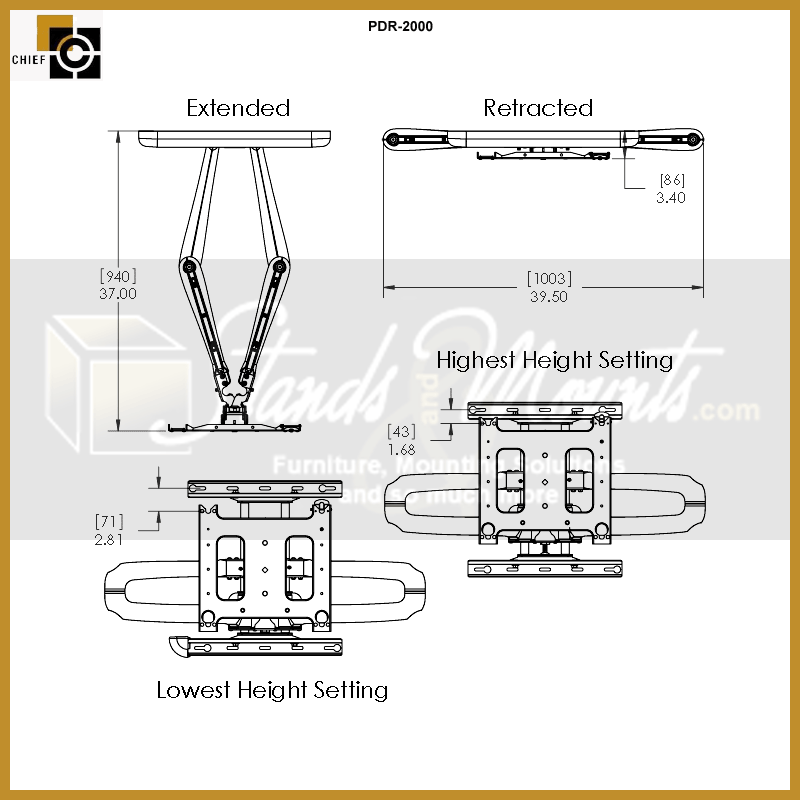

Over 37 inches of extension and a fold-away design, collapsing to only 3.4 inches from the wall.
Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility

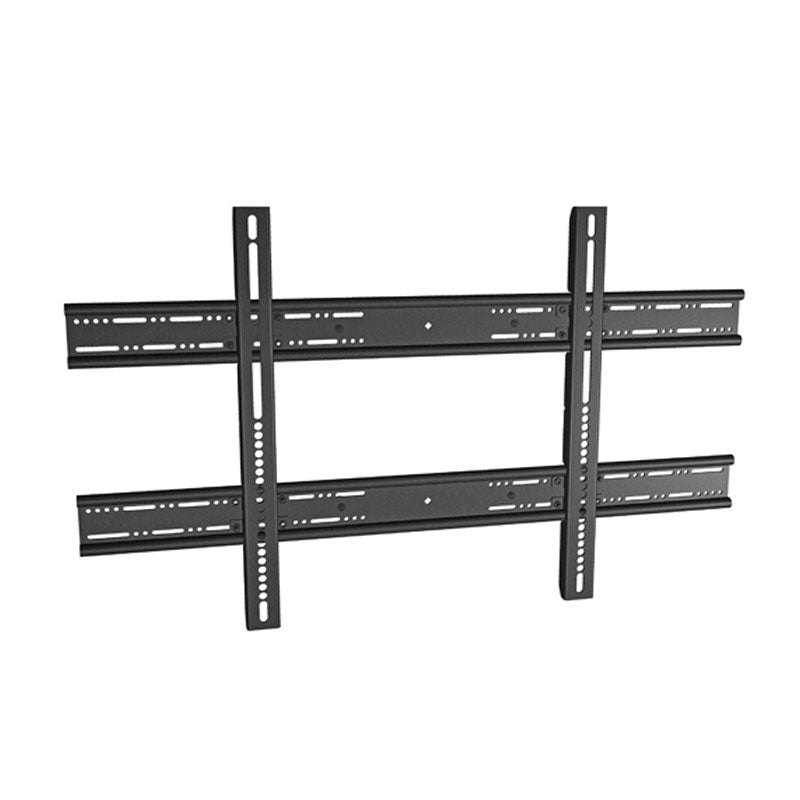

Q-Latch Mounting System secures flat panel to mount with a latching flag
CableTrac System provides built-in cable management channels inside the arms for a clean installation
Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

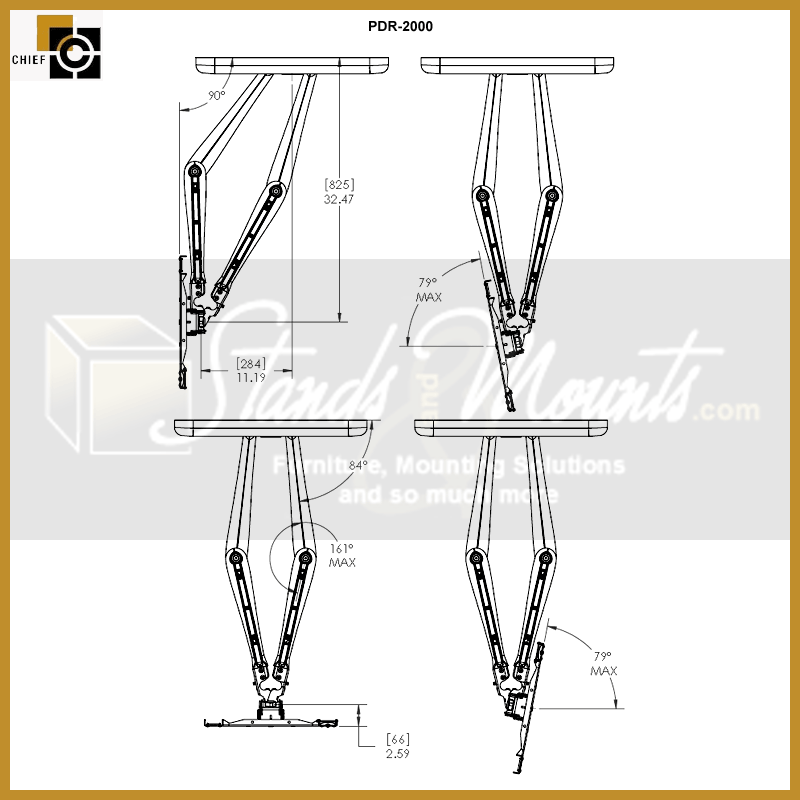

Lateral Shift: 9" (229 mm)
Maximum Extension: 37" (939.8mm)
Manual Height Adjustment: 1" (25 mm)
Minimum Depth: 3.4" (86.4mm)
Wall Stud Compatibility (inches): 16" (406 mm)

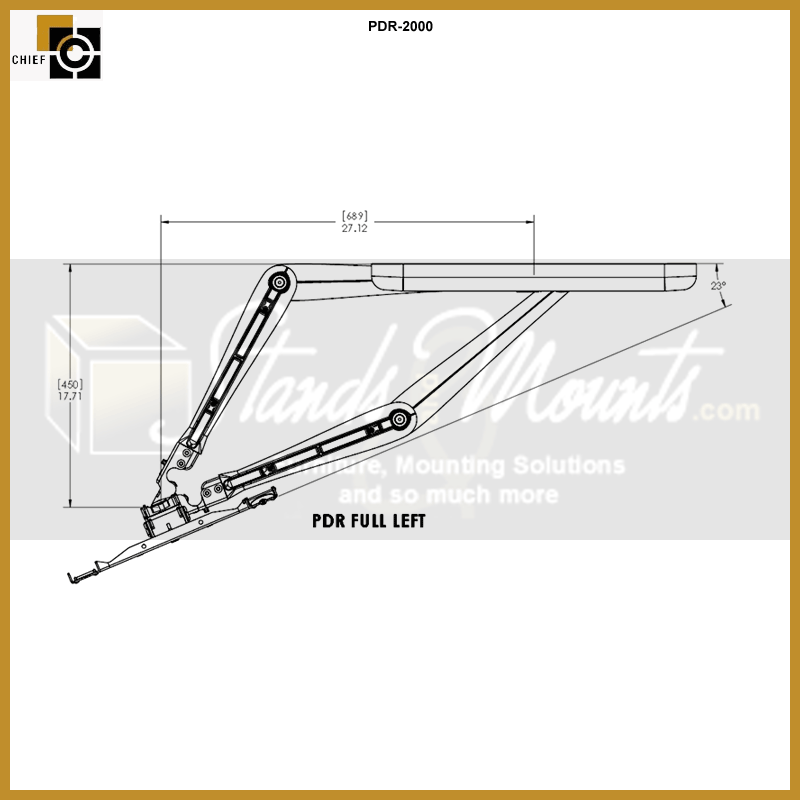

Tilt: + 5° , - 16°
Orientation: Landscape and Portrait
Weight Capacity: 200 lbs (90.7kg)

*Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

Help Files

No PDF help files available for this product

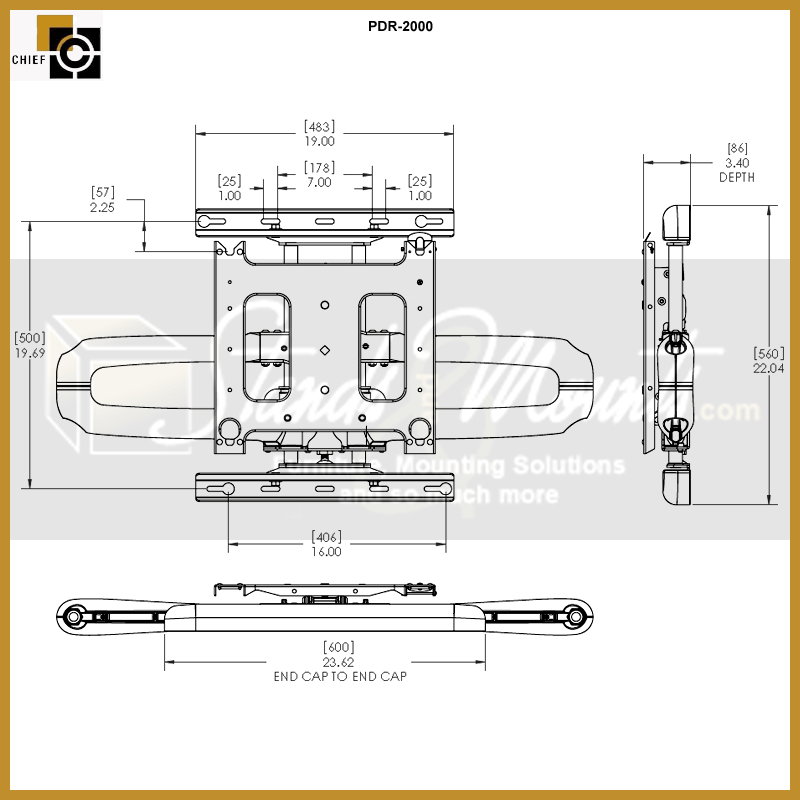

Product Details and Specifications

Height:

22.00 in.

Width:

39.50 in.

Depth:

03.40 in.

Weight Capacity:

200 lbs (90.7kg),

Color(s):

Black,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in.,

Mount Placement:

Wall,

Model Number:

PDRUB,

Ship Weight:

79.70 lbs

Extension:

37 (939.8mm),

Tilt:

+ 5° , - 16°,

Orientation:

Landscape, Portrait,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 700 x 500 mm, 800 x 400 mm, 800 x 500 mm,
