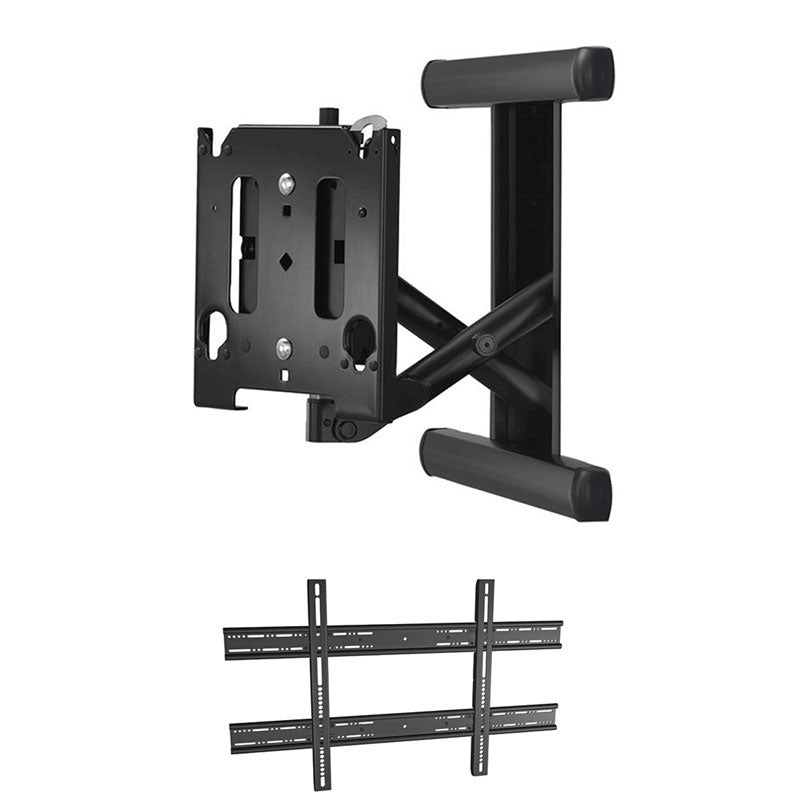

Chief Medium Swing Arm In-Wall Mount (Universal) MIWRFUB

Chief's MIWRF series in-wall swing arm mount is designed to accommodate medium flat panel displays while keeping the mount hidden from view. It features:

• Fits 30-75" screens up to 125lbs. with mounting patterns up to 709x431mm
• Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary
• Low-profile design hides the mount behind the display
• Centris Technology provides smooth, fingertip tilt
• Provides post-installation height adjustment
• ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
• Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)
• Integrated cable management
• Ships as complete in-wall swing arm - zero assembly required
• Lateral Shift: 5" (127.mm)
• Manual Height Adjustment: 1"
• Maximum Extension: 9.9" (251.5mm)*
• Minimum Depth from Wall: 1.7" (43.2mm)*
• Tilt: + 2° , - 15°
• Pivot: +/- 37.5° (depending on screen width)

*Please note: Depth and Extension dimensions do not include interface bracket (adds 0.5 - 1.5")
