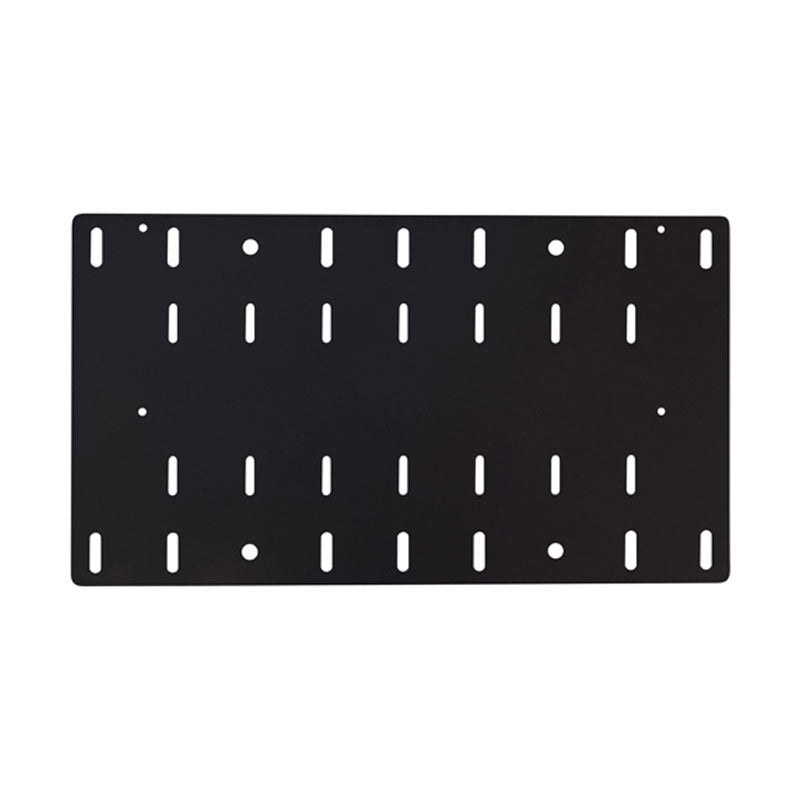

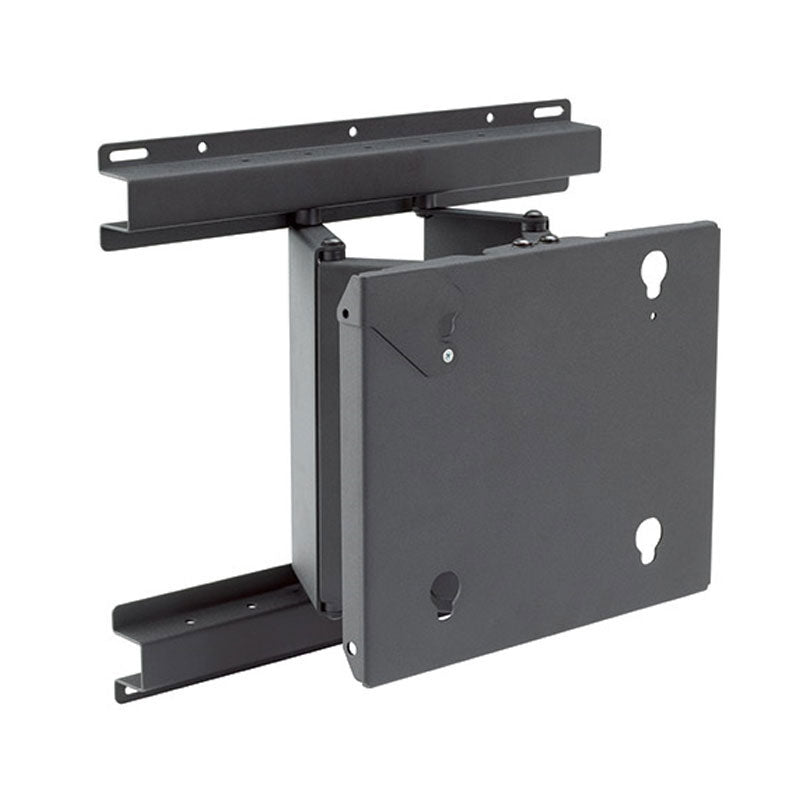

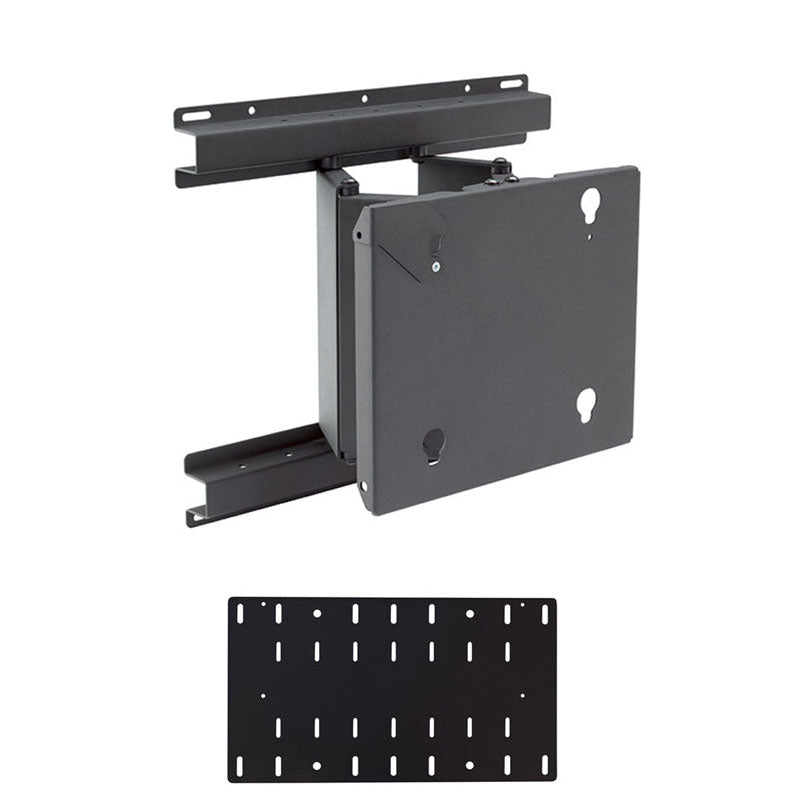

Chief Medium Swing Arm TV Wall Mount (VESA) MPWVB

Chief's MPW swing arm wall mount provides ultra smooth extension for flat panel displays and monitors, and remains low profile in the home position. It features:

• Fits 32-70" screens up to 100lbs with 100x100, 200x100, 200x200 and 400x200mm VESA mounting patterns
• Smooth extension up to 8.75" (222 mm) to achieve ideal viewing angle
• Ultra low-profile in the home position, only 1.5" (38 mm) deep
• Provides up to 45° of swivel in either direction (depending on screen size)
• Lockable in home position to prevent articulation (pin included)
• Installs on 16" center studs
• Integrated lateral shift allows repositioning of the mount right or left after installation for ultimate positioning flexibility
• Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)
• Lateral Shift: 4.5" (114.3mm)
• Maximum Extension: 8.75" (222.3mm)*
• Minimum Depth: 1.5" (38.1mm)*

*Please note: Depth and Extension dimensions do not include interface bracket (adds 0.5 - 1.5")
