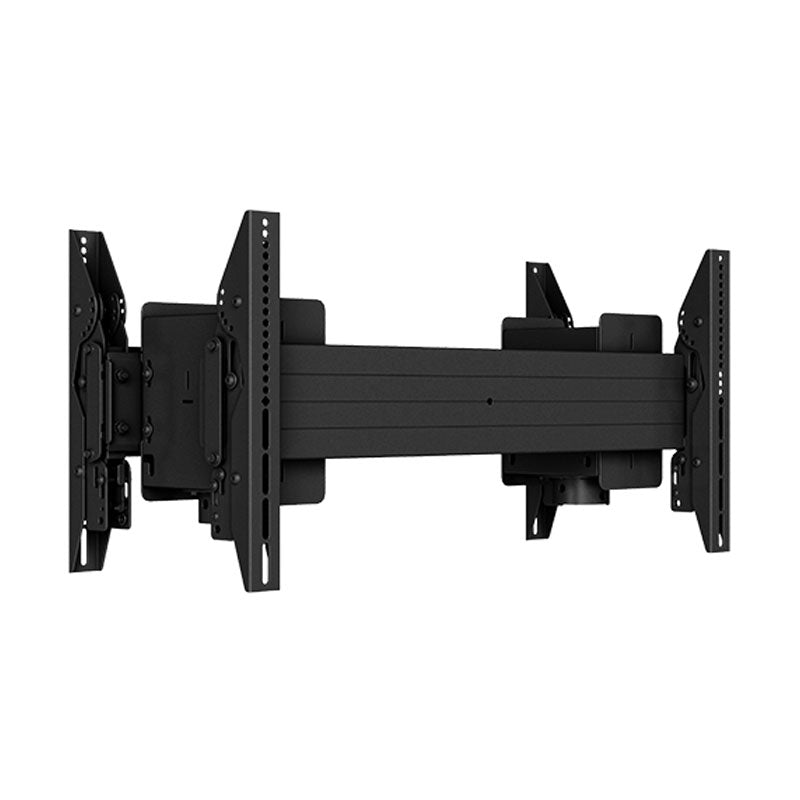

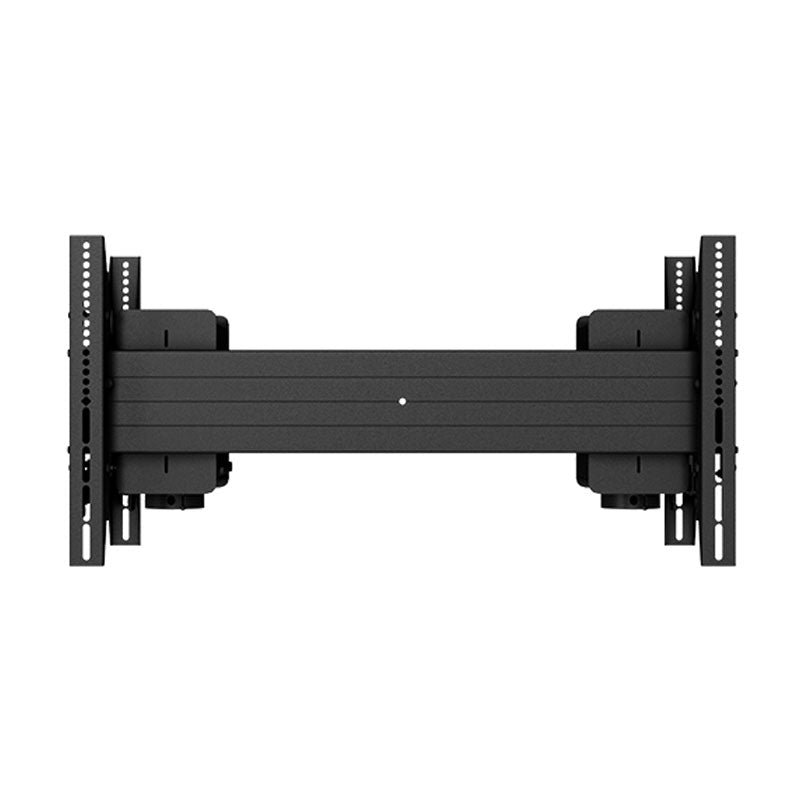

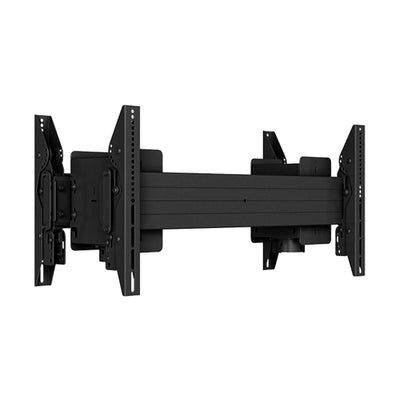

Chief Outdoor XL Back-to-Back Ceiling and Pedestal Mount OXCB1U

Chief Outdoor Back-to-Back XL Ceiling and Pedestal Mount features:

• Fits 65-84+" screens with mounting patterns between 200x100mm and 800x400mm
• Weatherproof design meets UL 2442 Part 2 -Suitable for Outdoor Use with corrosion resistant paint, UV-rated plastics and stainless-steel hardware
• The system comes in three pieces (mount, column and plate - each sold separately) for better customization to fit the particular installation requirements
• The four-step installation process keeps each piece separate for a safer, more manageable lifting load
• Tilt range of +7.6 to -20 degrees has set locking points to eliminate guesswork when adjusting multiple displays
• Universal interface fits most indoor and outdoor displays with up to 800 x 400 mm max VESA® pattern
• Built to withstand rain, humidity and ocean air, sun exposure and high winds
• Orientation: Landscape
• Tilt: +7.6°, -20°
• Certifications: UL Listed
• Weight Capacity: 250 lbs (113.4 kg) Per Display, 500 lbs Total

Please Note: Requires 2 Ceiling/Floor Plates and 2 Columns for complete installation (sold separately).
