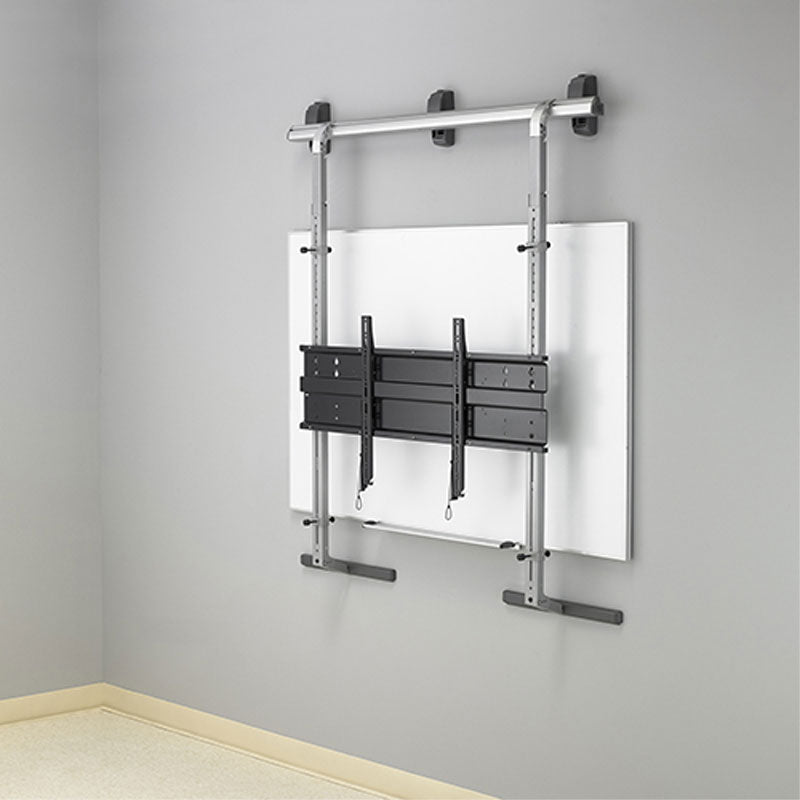

Chief Over-the-Whiteboard Interactive Display Mount OB1U

Chief's OB1U allows for easy installation and adjustment of heavy interactive flat panel displays over existing chalkboards or whiteboards. It features:

• Heavy-duty weight capacity of 310 lbs (140.6 kg)
• Display height adjustment range of 26" (660 mm)
• Interface brackets mount directly to display, then hang on single rail-style cross bracket, eliminating need to remove display from box prior to installation
• Installs into various wall types (wood, concrete, steel, cinder-block)
• Flexible wall assembly anchoring points ensure a minimum of two studs are used - three brackets for 16" on-center studs, or two brackets for 24" on-center studs are included
• Integrated lateral shift allows for easy adjustment left or right
• When installed, mount allows for a minimum of 4" (102mm) clearance from wall
• Plumb adjustment up to 1.5° to compensate for uneven walls
• Telescoping legs allow mount to be adjusted easily around classroom obstacles


Recommended for:

• 50-80+" flat screens with 400 x 100 -1020 x 500mm mounting patterns (use FHB7036 bracket to extend to VESA®1020-600mm) and up to 310 lbs.
