Chief Tempo In-Wall Flange-Mount-Storage Kit (Finishing) FPIWMKIT2

Name: Chief Tempo In-Wall Flange-Mount-Storage Kit (Finishing) FPIWMKIT2
Brand: CHIEF
SKU: CHF-FPIWMKIT2
Price: 910.00 USD
Availability: InStock

Chief Tempo In-Wall Flange-Mount-Storage Kit (Finishing) FPIWMKIT2

Mfg Part # FPIWMKIT2

SKU # CHF-FPIWMKIT2

In Stock: Delivered Free in 3-9 Days.

$910.00 $1,300.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Email Us

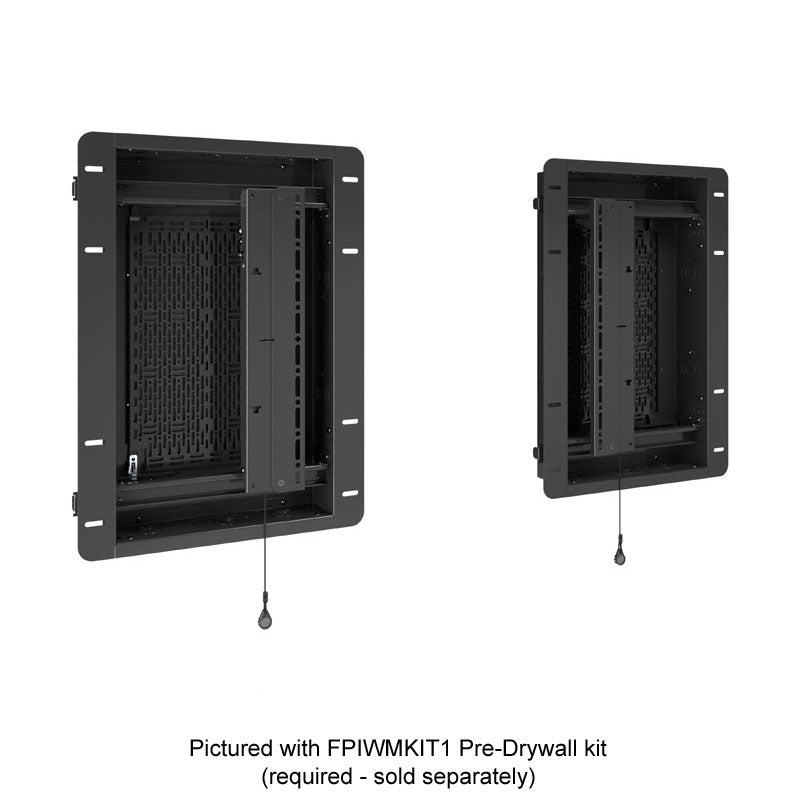

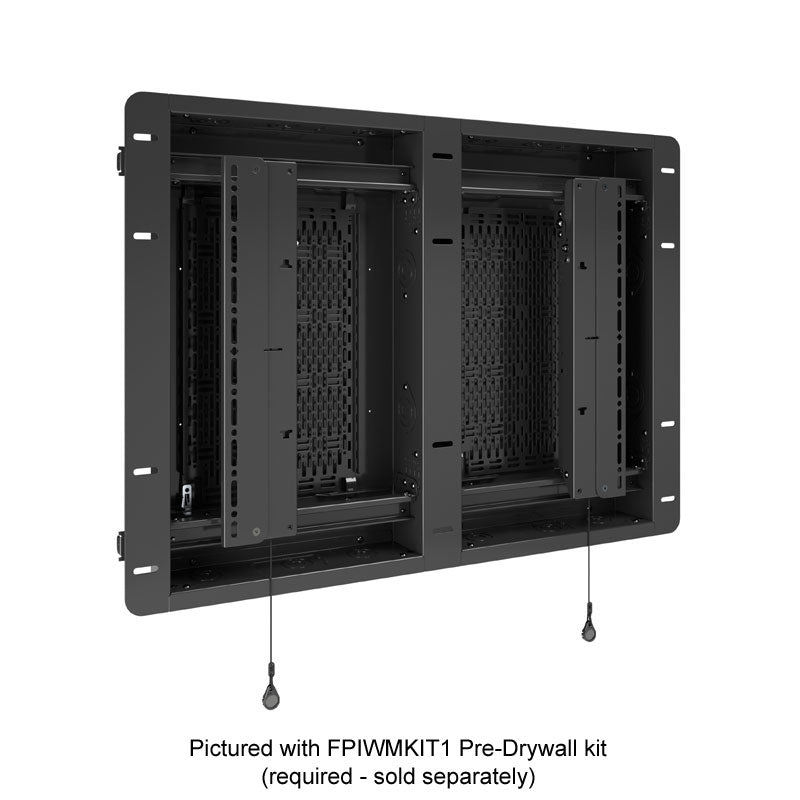

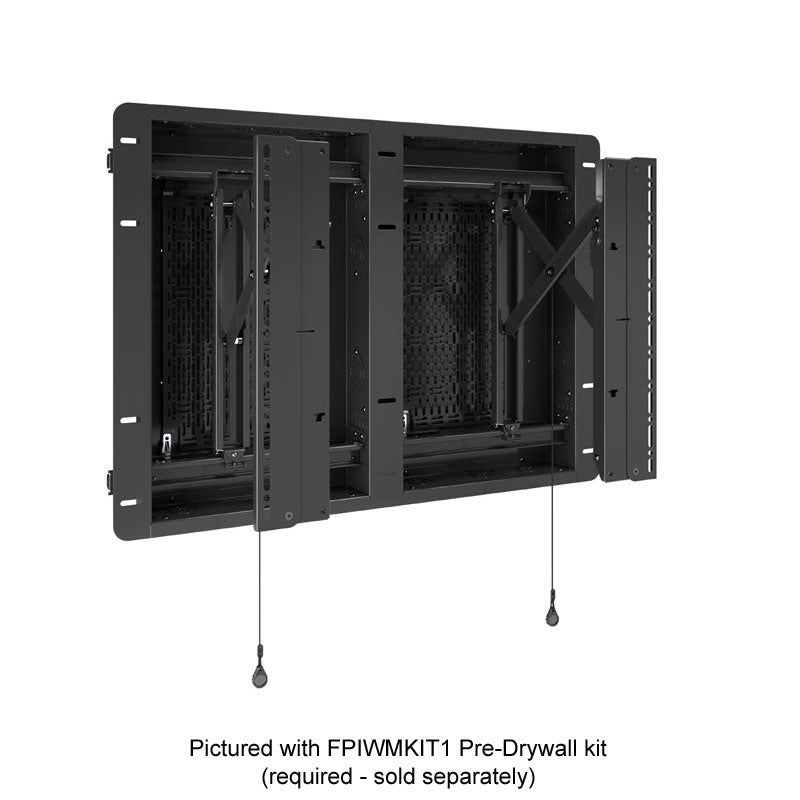

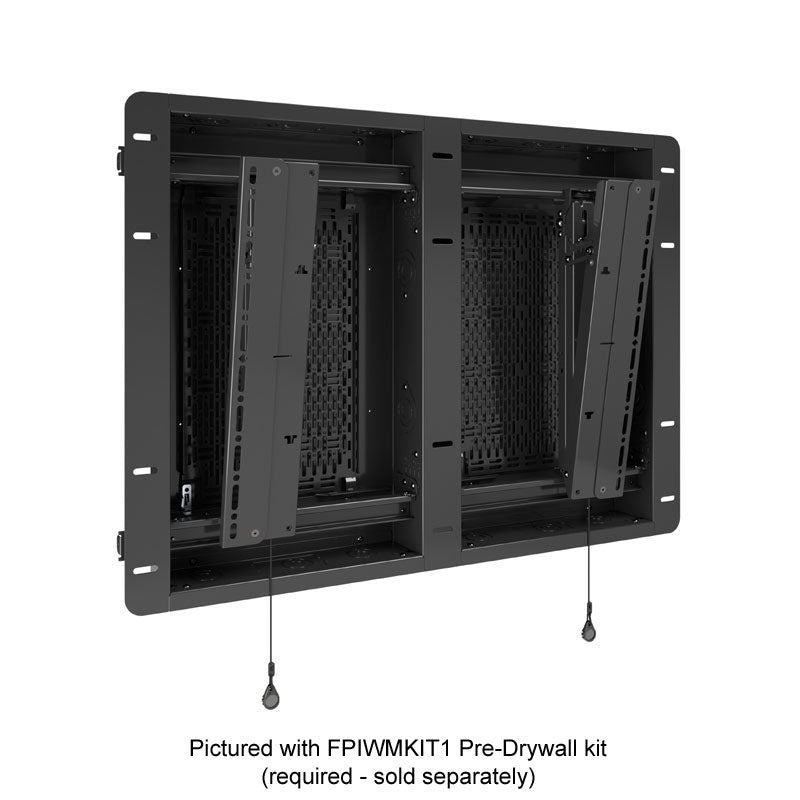

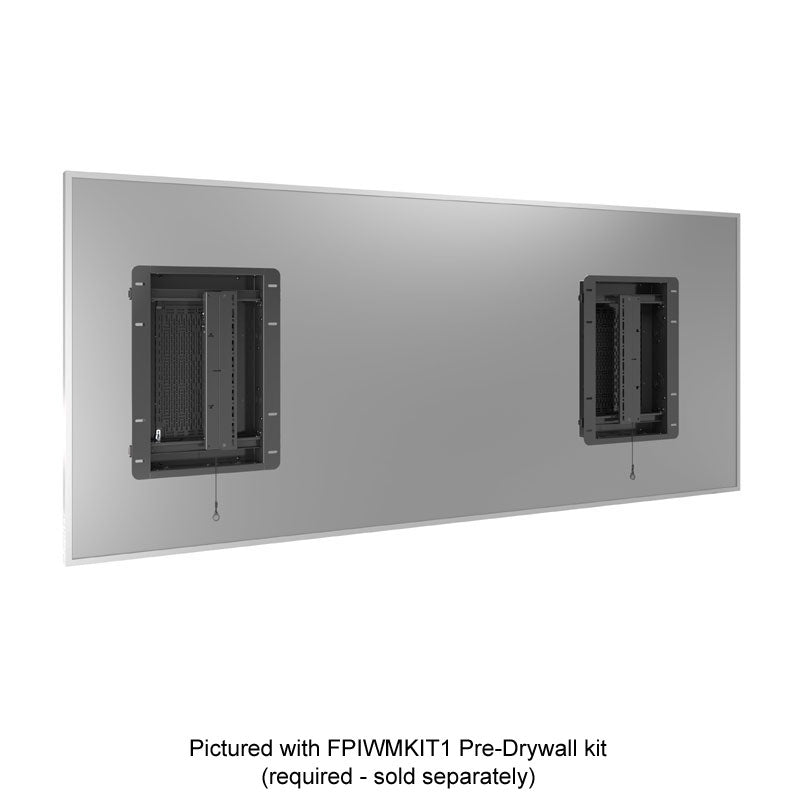

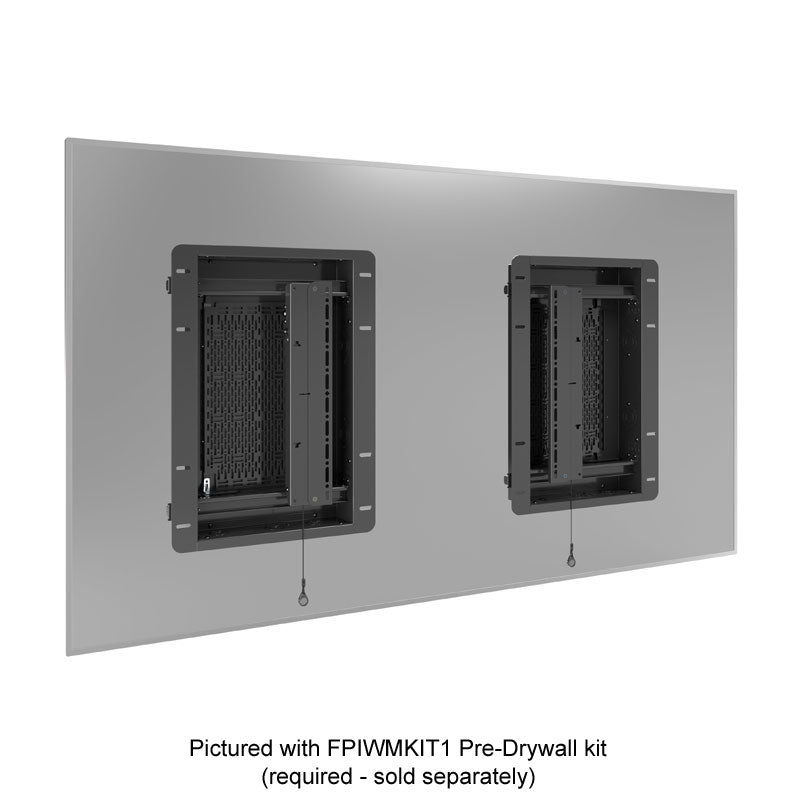

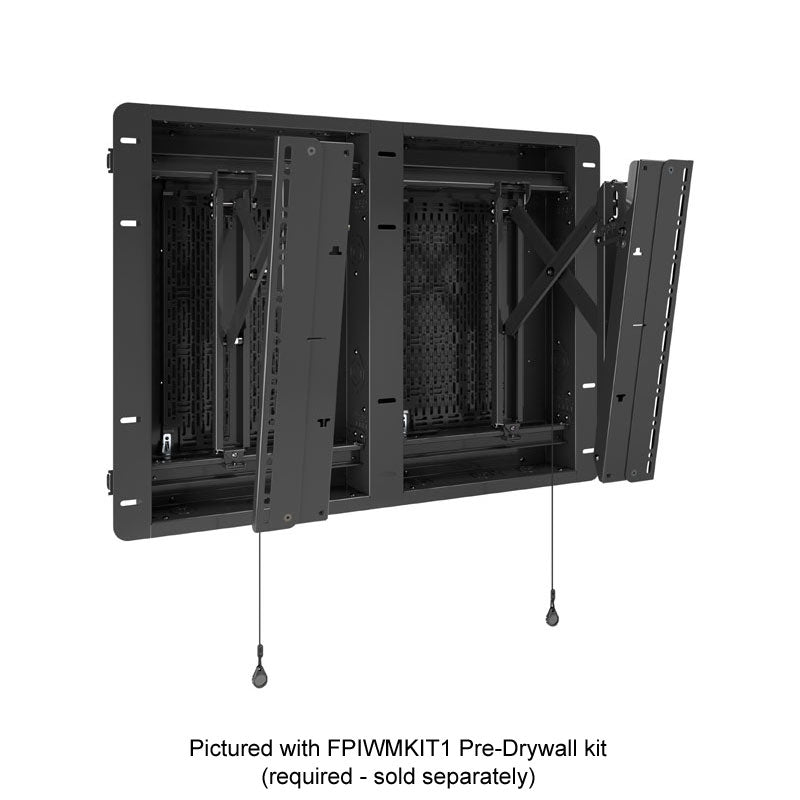

The Chief Tempo™ Flat Panel In-Wall Flange-Mount-Storage Kit can be ordered separately and delivered after wall finishing is complete to add flanges, display mount and small-device storage plates. It features:

No need to cut wall studs to accommodate flat panel VESA patterns.
Robust weight rating also removes the need for wood blocking reinforcement (when installed per manufacturer instructions).
Infinite number of horizontal mounting patterns are compatible with the system to accommodate extra-large and some ultra-wide displays.
Mounting patterns can extend up to 650 mm tall with the FHB5174 adapter bracket (sold separately).
Two 15x10" Lever Lock™ plates, offering a minimum clearance for 1 RU of AV equipment.
Lateral shift flexibility within the storage boxes allows placement of small devices where you need them.
Compatible with Middle Atlantic® Forward Small Device Mounting Clamps to quickly secure devices in place.
Three types of knockouts per box offer flexibility in vertical and horizontal cabling between storage boxes.
Side Wall Knockouts: 1.5", 1.25", 1" and 0.5"
Top (3) & Bottom (3) Knockouts: 1.25", 1" and 0.5"per box
Single-gang Electrical Box: one bottom, one top per box
Drywall Thickness: 0.5" to 1.25"
Manual Height Adjustment: +/- 0.50" (12.7 mm)
Storage Weight Capacity: 20 lbs (9 kg) per Lever Lock plate
Wall Stud Compatibility In: 16" on-center
Facilitates ADA Compliance
TAA Compliant

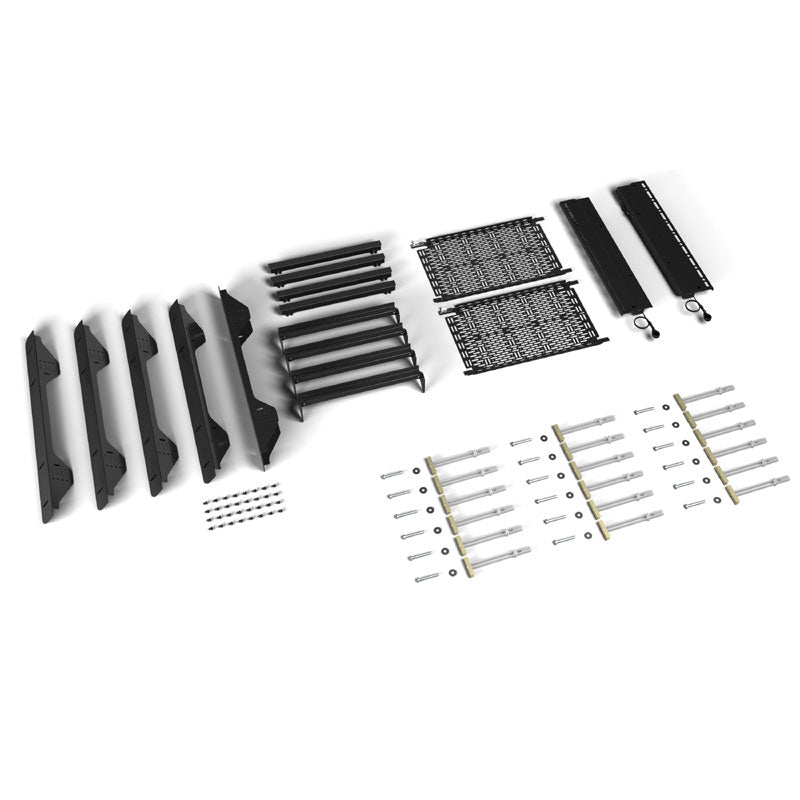

Kit Includes:

(2) Interfaces
(4) Side flanges
(1) Saddle flange
(4) Top/bottom flange
(4) In-wall rail assembly
(2) Lever Lock panel
(8) Cable tie
(1) 1/8" Allen key
(2) Lever Lock rivet
(4) Cable tie mount
(32) #10-24 x ¼" button head cap screw
(3) Toggler anchor hardware bag
(1) 1/8" Hex ball-end screwdriver
(1) Display mounting hardware bag
(1) Installation Manual

Help Files

No PDF help files available for this product

Important Notice

NOTE: For a complete system installation the Tempo Flat Panel In-Wall Boxes and Stud Tabs Kit (FPIWMKIT1) is required, purchased separately.

Product Details and Specifications

Weight Capacity:

250 lbs (113.4 kg) on 20 gauge steel studs, 200 lbs (90.7 kg) on 25 gauge steel studs,

Color(s):

Black,

Range of Screens Supported:

61 to 70 in., 71 to 80 in., 81 to 90 in., Over 91 in.,

Mount Placement:

Wall,

Model Number:

FPIWMKIT2,

Ship Weight:

42.17 lbs (19.12 kg)

Extension:

10.65 (270mm),

Tilt:

0/-10 degrees,

Orientation:

Landscape, Portrait,

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 800 x 400 mm,
