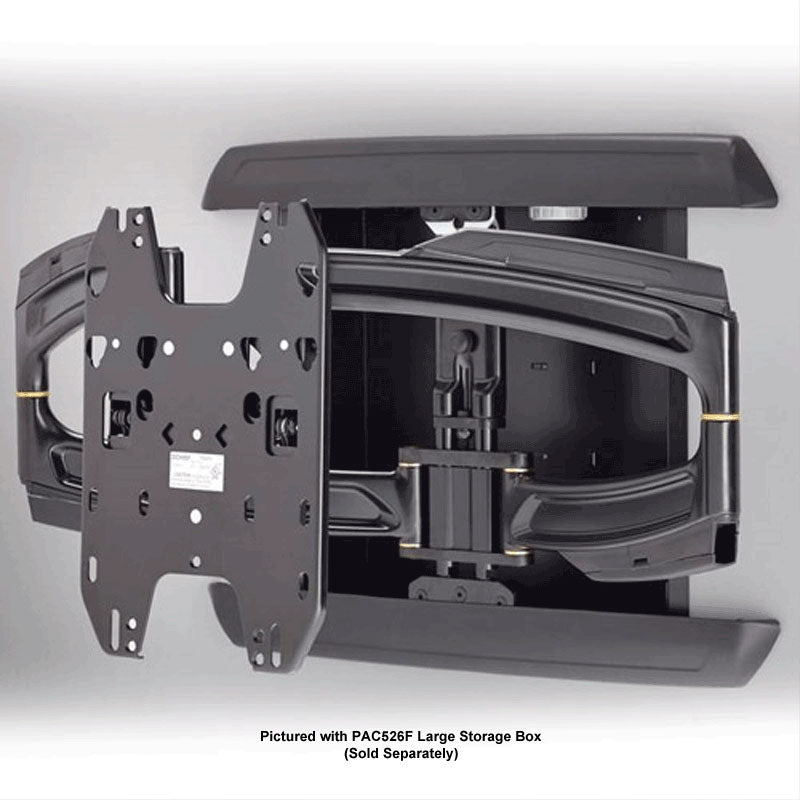

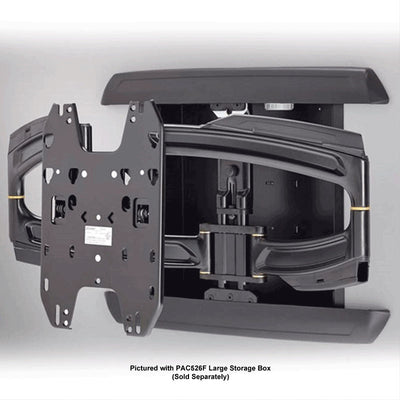

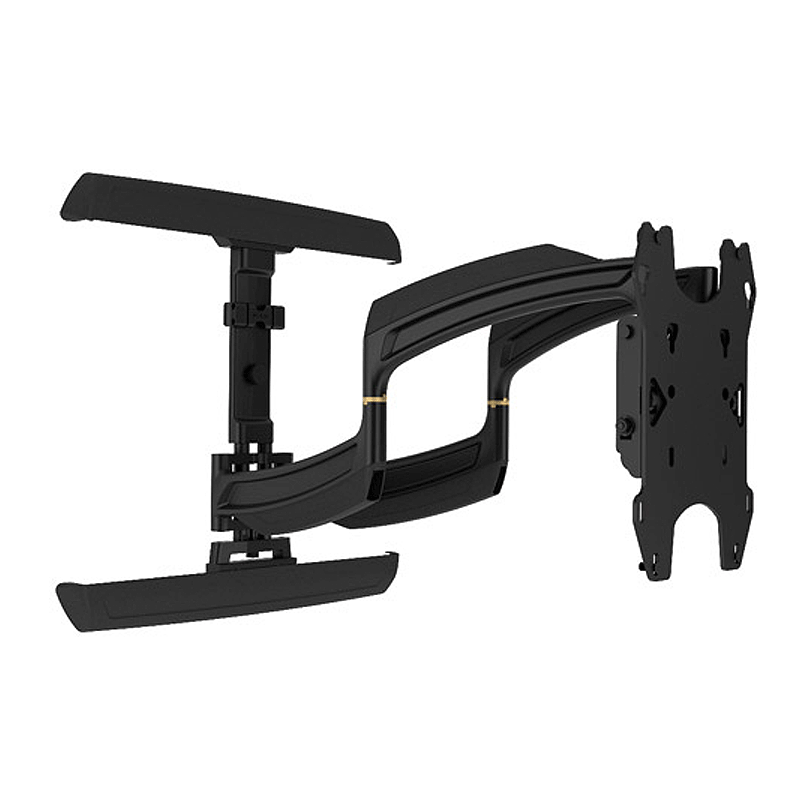

Chief THINSTALL Medium Dual Swing Arm Wall Mount (25 in. Ext) TS325TU

Chief's new THINSTALL Swing-out mount is a lightweight, low-profile full-motion wall mount for TVs 26-65 inches. It features:

• Ultra Low Profile Sleek design collapses to 1.8" (46 mm)
• Provides an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
• Extends up to 25.7" (652.8 mm)
• Full extension maximizes viewing potential
• Post-installation lateral shift allows up to 16" of adjustment for limitless centering capability.
• Centris™ tilt provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles
• Integrated Cable Management
• Enclosed, tool-free cable covers
• Wide open wall plate makes it easy to route power and signal cables
• Manual Height Adjustment: 1"
• Lateral Shift: 16" (406.4mm)
• Maximum Extension: 25.7" (652.8 mm)
• Minimum Depth: 1.8" (46 mm)
• Tilt: + ° , - 15°
• Wall Stud Compatibility: Dual Stud 16" on-center
• Weight Capacity: 75 lbs (34.kg)


Recommended for:

• 26-65" flat screens up to 75 lbs with 100x100mm to 600x400mm mounting patterns.
