Crimson Adjustable Height Projector Ceiling Mount (18-24 in) JKR3-24A

Crimson Adjustable Height Ceiling Projector Mount with 18-24 inch Drop (Black) JKR3-24A

Crimson Adjustable Height Projector Ceiling Mount (18-24 in) JKR3-24A

$341.00 $427.00
Skip to product information
Crimson Adjustable Height Ceiling Projector Mount with 18-24 inch Drop (Black) JKR3-24A

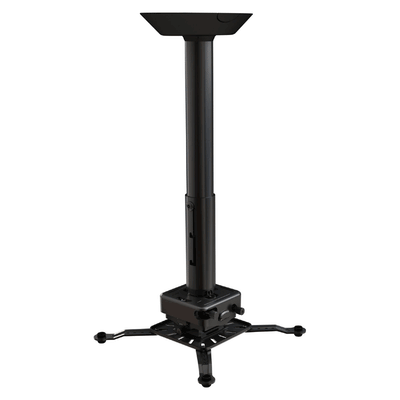

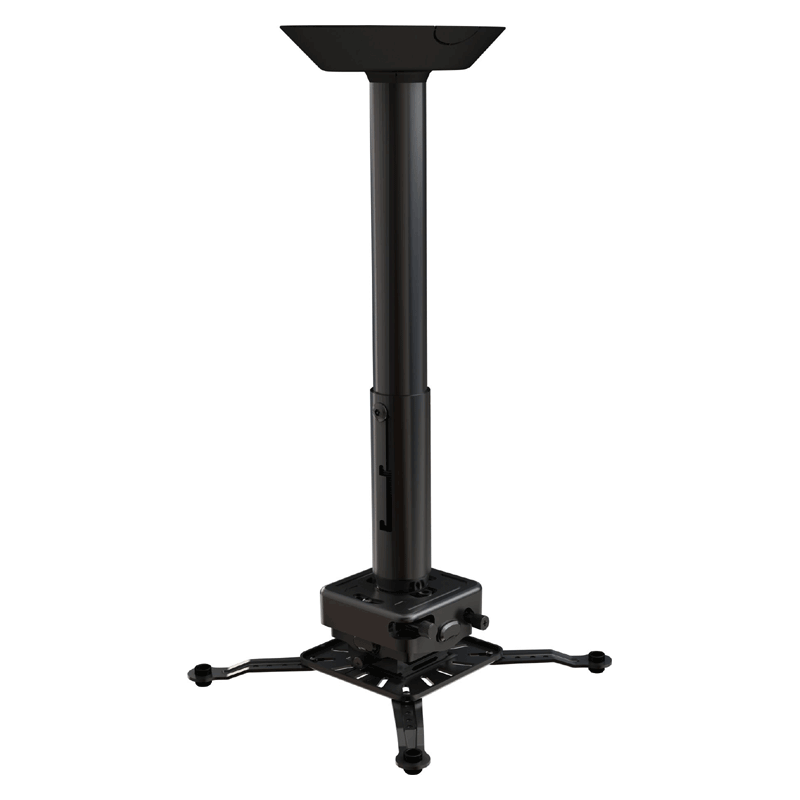

  • Crimson Adjustable Height Ceiling Projector Mount with 18-24 inch Drop (Black) JKR3-24A

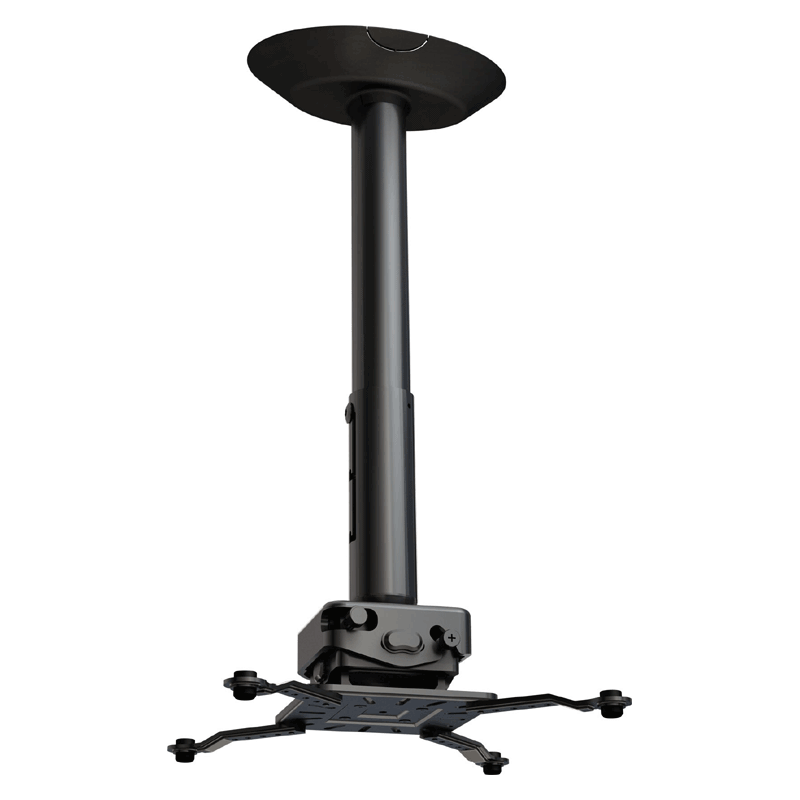

  • Crimson Adjustable Height Projector Ceiling Mount JKR3-24A, projector ceiling mount front view

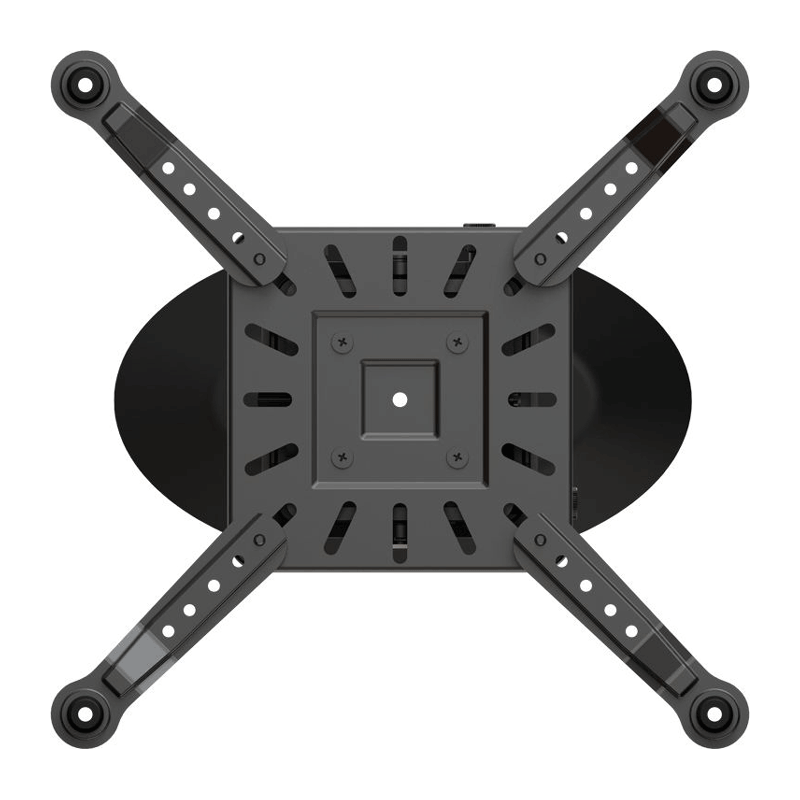

  • Crimson Adjustable Height Projector Ceiling Mount JKR3-24A, projector ceiling mount underside view

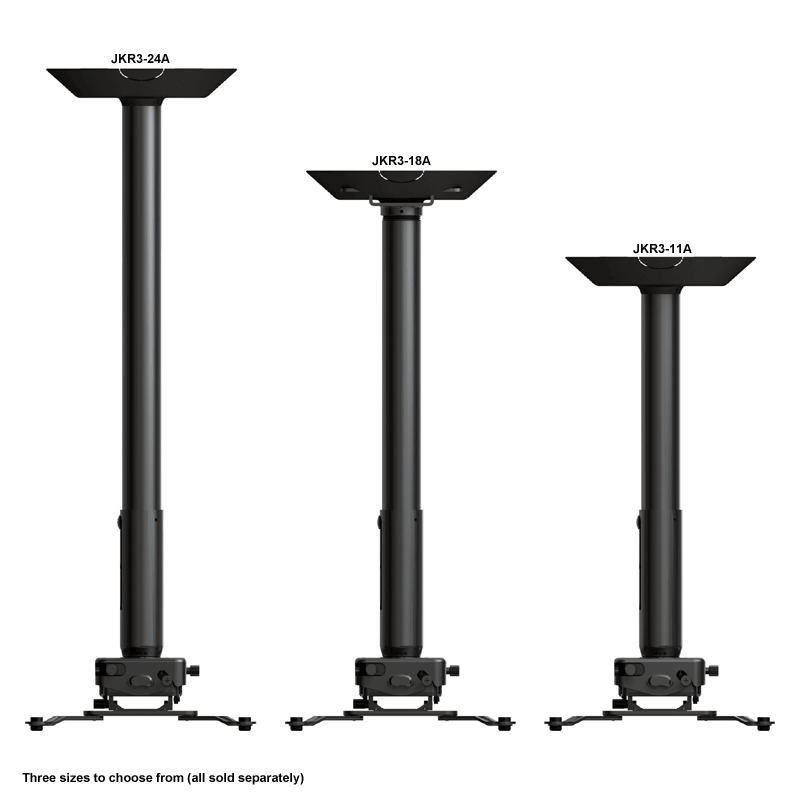

  • Crimson Adjustable Height Projector Ceiling Mount JKR3-24A, projector mount drop length options
  • Crimson Adjustable Height Projector Ceiling Mount JKR3-24A, projector mount dimensions diagram
  • Crimson Standoff Spacer HSO635, shipping transit-time map
Crimson Adjustable Height Projector Ceiling Mount (18-24 in) JKR3-24A

Crimson

Save 15% on this product with code SAVE15

Mfg Part # JKR3-24A
SKU # CRIMSON-JKR3-24A
Crimson AV badge showing StandsandMounts.com as authorized partner
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$341.00 $427.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

JKR3 is Universal Projector Mount with adjustable height extension. It is ideal for projectors weighing up to 70 lbs. Built-in roll, pitch and yaw adjustments make alignment fast and easy while the Quick release mechanism allows the mount to be easily removed for service. Compatible with all 1.5 NPT threaded pipe. It features:

  • Security hardware included for all connection points
  • Height adjusts in 1" increments
  • Completely pre-assembled mounting interface for quick installation
  • Fully adjustable roll, pitch and yaw
  • Quick release mechanism allows for easy service of projector
  • Pre-sorted hardware pack for easy installation
  • Compatible with any 1.5" NPT threaded pipe
  • Mounts to wood joist, structural wood or structural concrete

**Click on the last image above for detailed dimensions.

Help Files

No PDF help files available for this product

Product Details and Specifications

Width:

15.20 in

Depth:

15.20 in.

Weight:

8.6 lbs (3.9kg),

Weight Capacity:

70 lbs. (31.8kg),

Color(s):

Black,

Mount Placement:

Ceiling,

Model Number:

JKR3-24A,

Pitch:

+/- 15 degrees,

Roll:

+/-8 Degrees,

Extension:

18-24,

Yaw:

360 degrees,

Projector Mounting Pattern Reach:

00.01 - 14.00 inches,

Feature of Projector Mount:

All-in-One Kits,

Use of Mount:

Projector,

Specific Mounting Patterns:

Up to 13.8 (351.5mm) diameter,
