Crimson Extra Large Tilt TV Wall Mount (Key Lock, Universal) T63L

Crimson Tilt Mount with Lock and Key System for 37-63 inch Screens (Black) T63L

Crimson Extra Large Tilt TV Wall Mount (Key Lock, Universal) T63L

$173.00 $217.00
Skip to product information
Crimson Tilt Mount with Lock and Key System for 37-63 inch Screens (Black) T63L

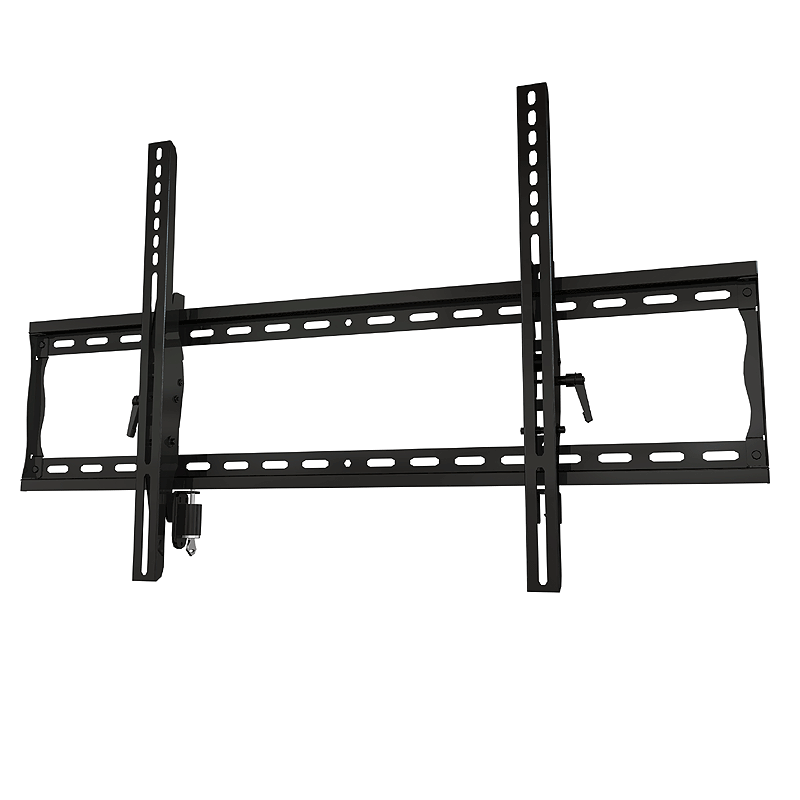

  • Crimson Tilt Mount with Lock and Key System for 37-63 inch Screens (Black) T63L

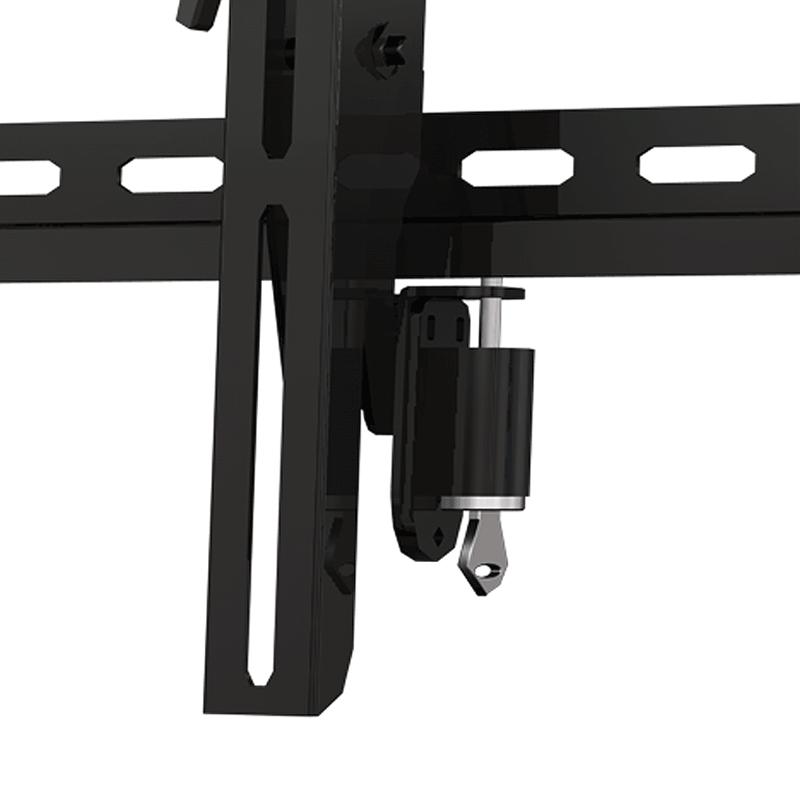

  • Crimson XL Tilt TV Wall Mount T63LL, wall mount locking mechanism detail

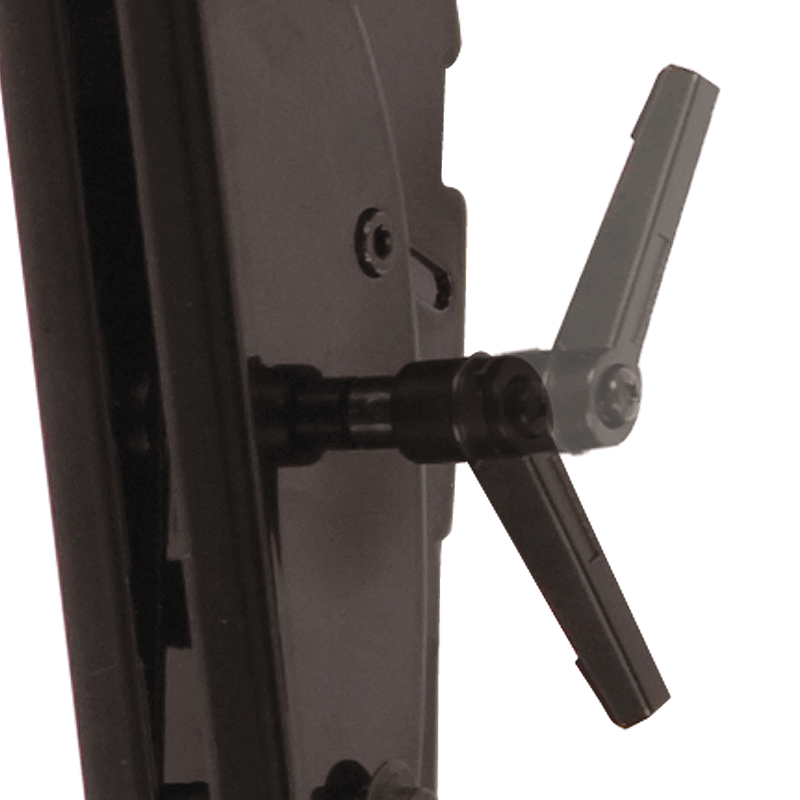

  • Crimson XL Tilt TV Wall Mount T63LL, tilting TV wall mount adjustment handle detail

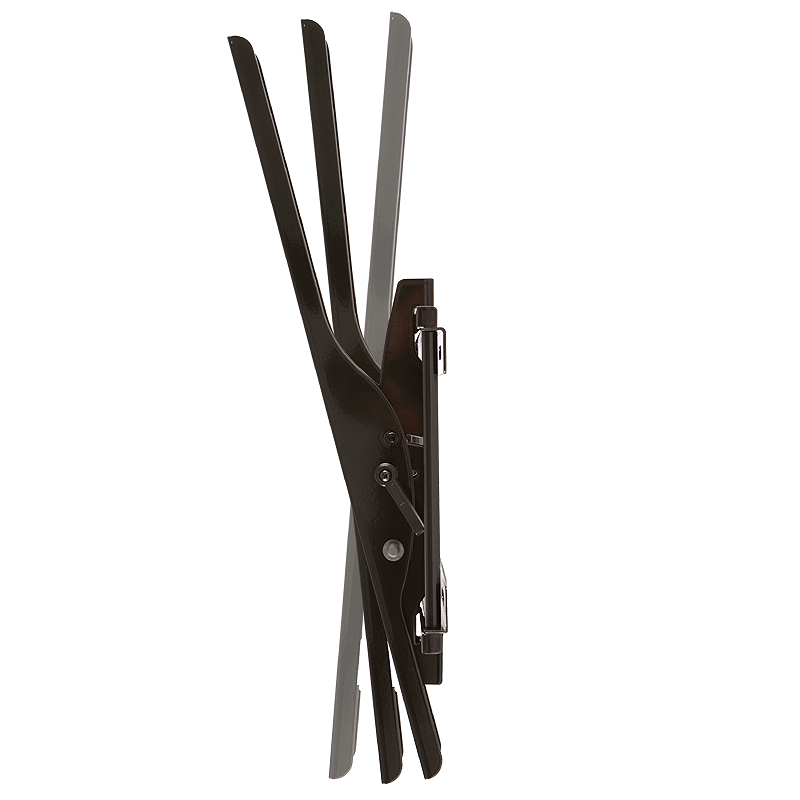

  • Crimson XL Tilt TV Wall Mount T63LL, tilting wall mount angle range side view
  • Crimson Extra Large Tilt TV Wall Mount T63L, tilting wall mount dimensions diagram
  • Crimson Standoff Spacer HSO635, shipping transit-time map
Crimson Extra Large Tilt TV Wall Mount (Key Lock, Universal) T63L

Crimson

Save 15% on this product with code SAVE15

Mfg Part # T63L
SKU # CRIMSON-T63L
Crimson AV badge showing StandsandMounts.com as authorized partner
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$173.00 $217.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

Crimson's flat panel tilt wall mount with smooth adjustments support a variety of viewing angles. It features:

  • Works with 37-90" TV's with universal mounting patterns up to 838x501mm and 200lbs.
  • VESA compatible
  • Universal design
  • One touch lock and key system for added security
  • Low-profile, holds screen close to wall for a clean look
  • Pre-tensioned tilt mechanism for smooth adjustment
  • Open wall plate allows easy access for wiring
  • Lateral shift for perfect placement
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
  • Fast and easy installation

**Click on the last image above for detailed dimensions.

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

20.60 in.

Width:

34.60 in.

Depth:

02.20 in

Weight:

7.5lb (3.4kg),

Weight Capacity:

200lb (91kg),

Color(s):

Black,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Mount Placement:

Wall,

Model Number:

T63L,

Tilt:

+15°/-5°,

Orientation:

Landscape,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 700 x 500 mm, 800 x 400 mm, 800 x 500 mm,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Adjustability of Mount:

Tilt Up Down,

Stud Placement:

Dual Stud or More,

Use of Mount:

Monitor or TV,

Specific Mounting Patterns:

Up to 838x501mm,

Related Products

Crimson Metal Stud and Drywall Toggle Bolts (6 Pack) HT6

Crimson Metal Stud and Drywall Toggle Bolts (6 Pack) HT6

Crimson Metal Stud and Drywall Toggle Bolts (6 Pack) HT6
$41.00

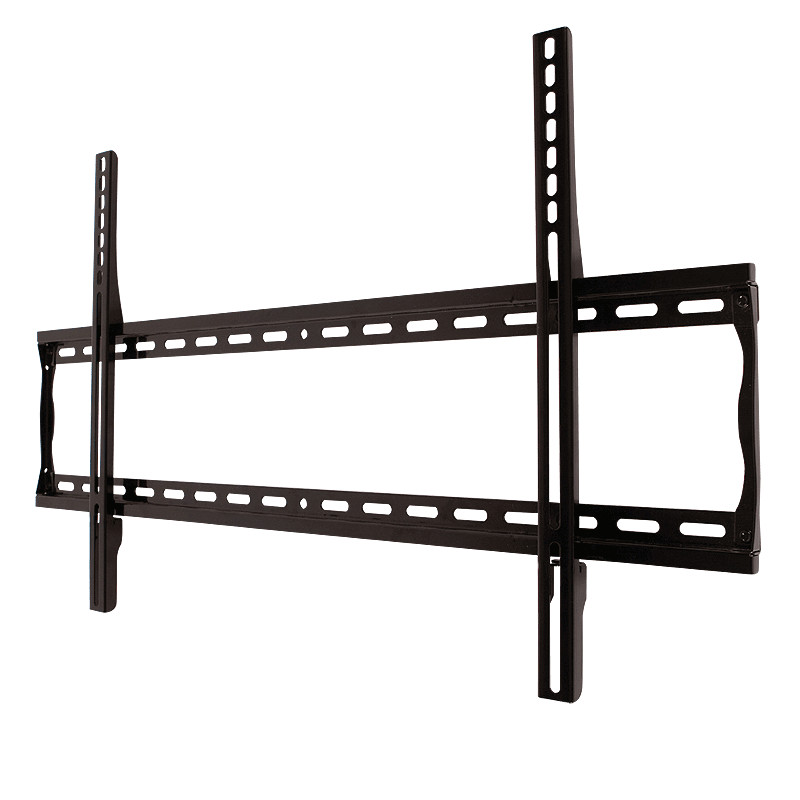

Crimson Fixed Wall Mount for 37-63 inch Screens (Black or Silver) F63 F63S
On Sale

Crimson Extra Large Fixed TV Wall Mount (Universal) F63

Crimson Extra Large Fixed TV Wall Mount (Universal) F63
$98.00 $122.00
Crimson Tilt Universal Wall Mount for 37-63 inch Screens (Black) T63
On Sale

Crimson Large Tilt TV Wall Mount (Universal) T63

Crimson Large Tilt TV Wall Mount (Universal) T63
$123.00 $154.00
Crimson Tilt Mount with Lock and Key System for 26-46 inch Screens (Black) T46L
On Sale

Crimson Medium Tilt TV Wall Mount (Key Lock, Universal) T46L

Crimson Medium Tilt TV Wall Mount (Key Lock, Universal) T46L
$139.00 $174.00

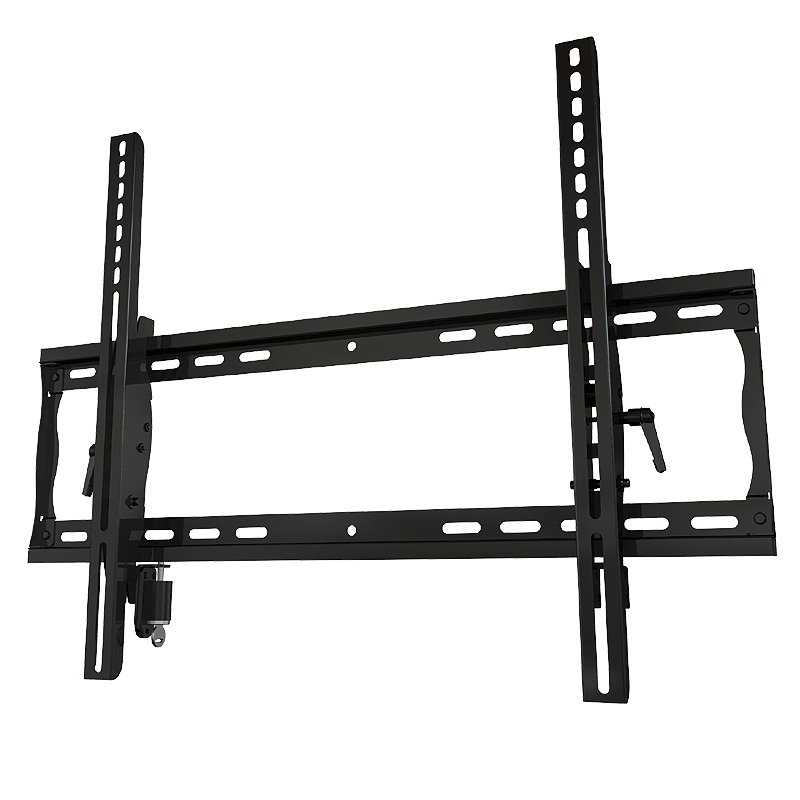

Crimson Tilt Mount with Lock and Key System for 32-55 inch Screens (Black) T55L
On Sale

Crimson Large Tilt TV Wall Mount (Key Lock, Universal) T55L

Crimson Large Tilt TV Wall Mount (Key Lock, Universal) T55L
$157.00 $196.00

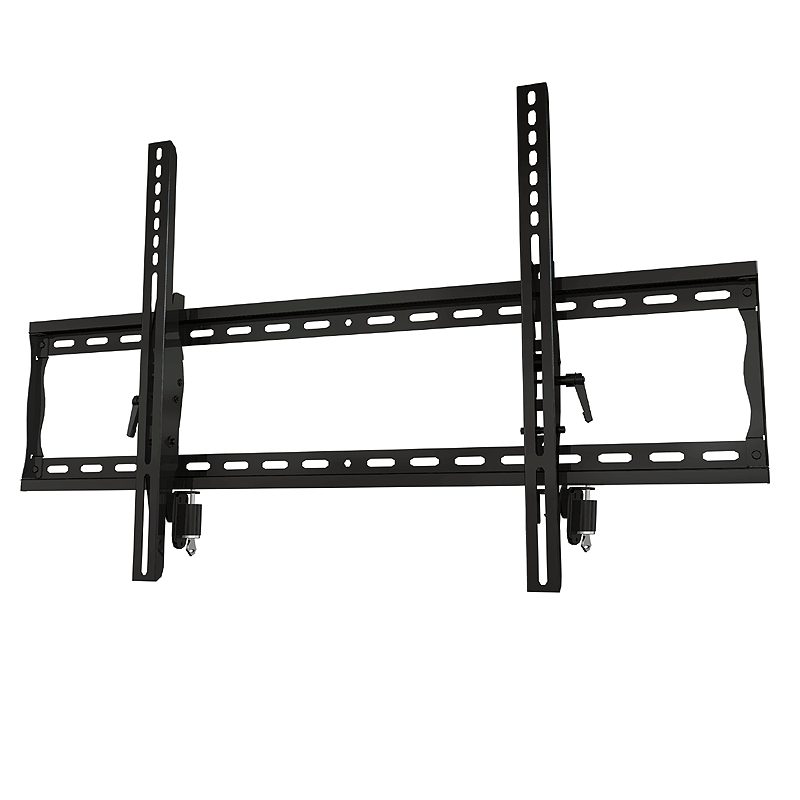

Crimson Tilt Mount with Double Lock and Key System for 37-63 inch Screens (Black) T63LL
