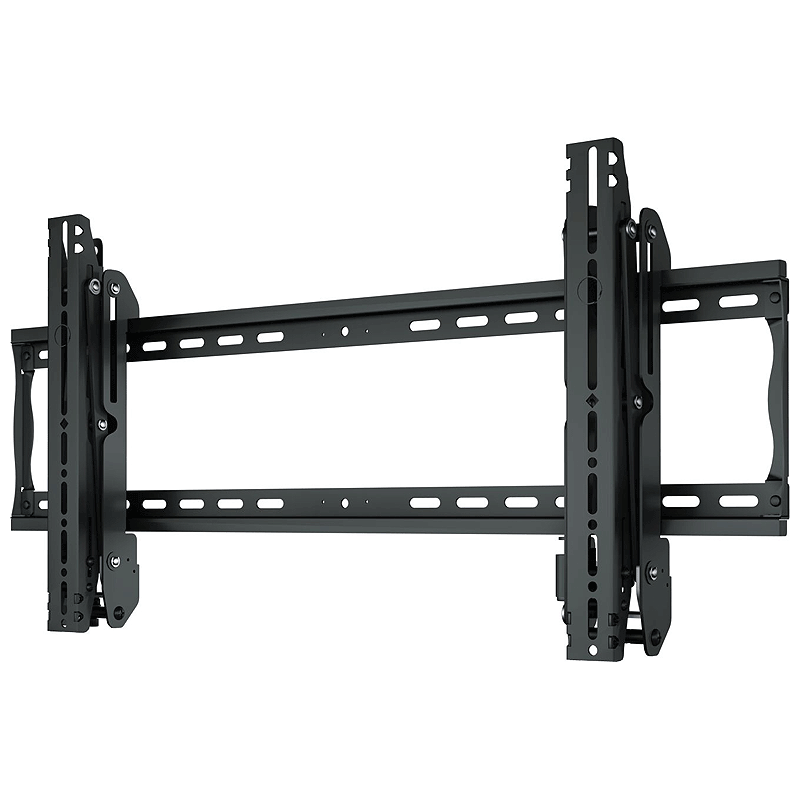

  • Crimson Extra Large Video Wall TV Mount VW4600, tilting wall mount front angled view
  • Crimson Extra Large Video Wall TV Mount VW4600, tilting wall mount front view
  • Crimson Extra Large Video Wall TV Mount VW4600, tilting wall mount scissor-arm side profile
  • Crimson Extra Large Video Wall TV Mount VW4600, tilt mechanism and locking pin detail
  • Crimson Extra Large Video Wall TV Mount VW4600, tilting wall mount technical dimensions
  • Crimson Standoff Spacer HSO635, shipping transit-time map
Crimson Extra Large Video Wall TV Mount (Universal) VW4600

Crimson

Save 15% on this product with code SAVE15

Mfg Part # VW4600
SKU # CRIMSON-VW4600
Crimson AV badge showing StandsandMounts.com as authorized partner
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$467.00 $586.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

Crimson's best value in class VW4600 Video Wall Mount System features lateral, vertical, horizontal, and plumb adjustments. Includes an integrated lock and key system with a quick-release mechanism enabling 10.75" pull out extension for wiring and monitor servicing, and a lightweight wall plate design that enables a single installer to lay out the wall grid. It features:

  • Works with 37-75+" TV's with mounting patterns up to 800x400mm and 200 lbs.
  • Universal design up to 800x400mm
  • VESA compatible
  • Full featured video wall solution and pull out mount

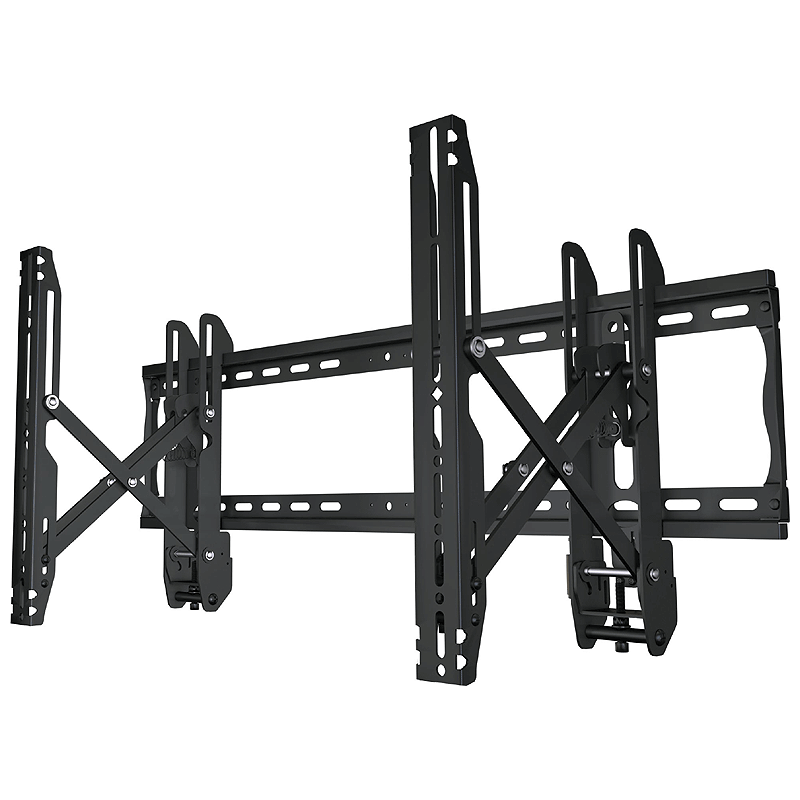

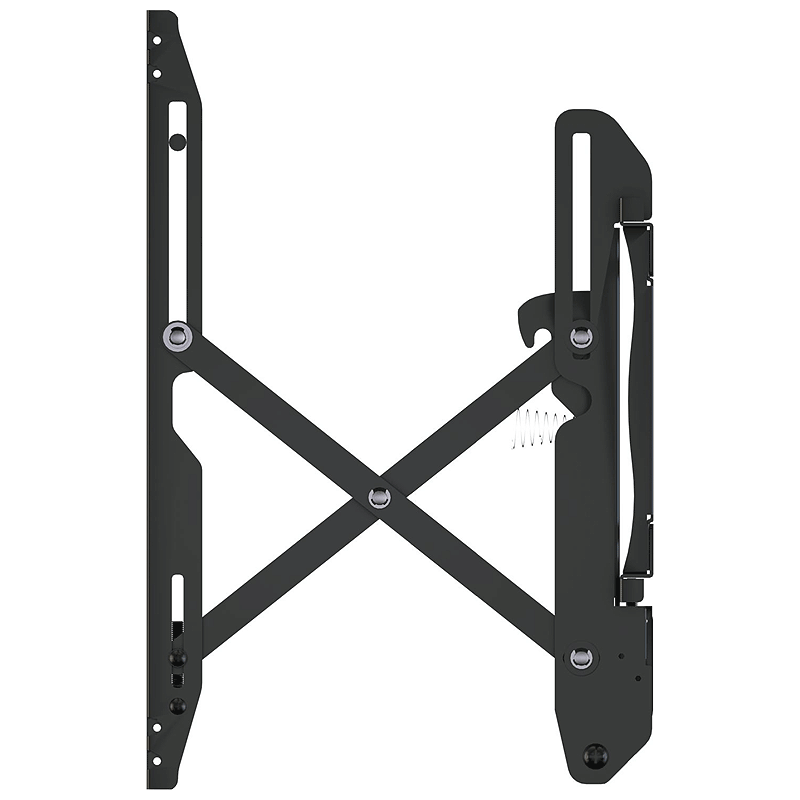

  • 10.75" pull out extension from wall for easy wiring
  • Quick release latch and click to closed position feature
  • Lateral shift
  • Vertical adjustment and horizontal leveling
  • Plumb adjustment

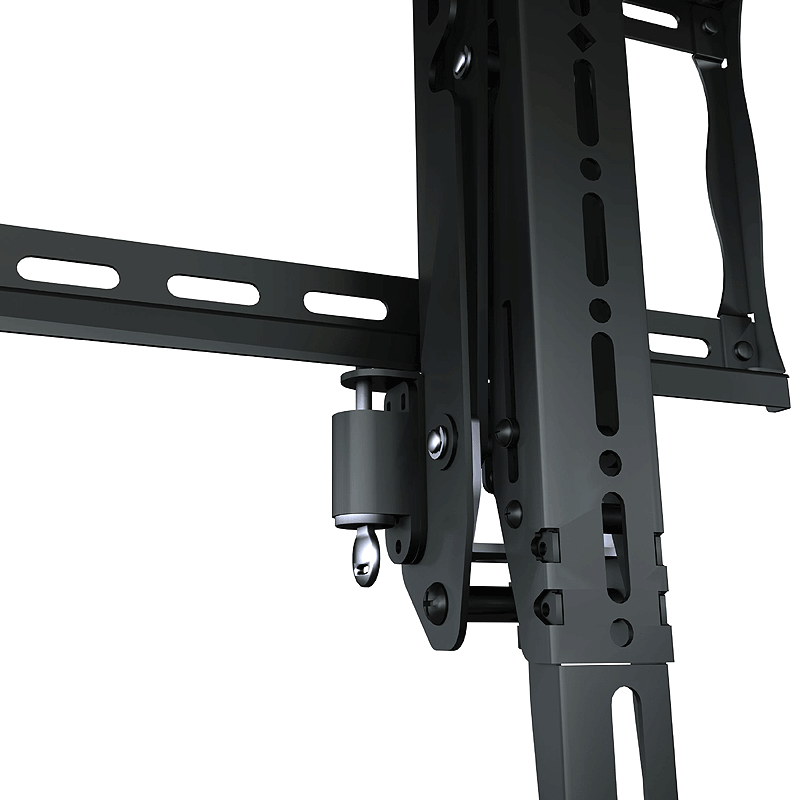

  • Integrated dual keyed lock system

*Sold individually, only one mount is included per order.

**Click on the last image above for detailed dimensions.

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

16.54 in.

Width:

34.49 in

Depth:

03.07 - 10.69 in.

Weight:

16lb (7.3kg),

Weight Capacity:

200lb (91kg),

Color(s):

Black,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Mount Placement:

Wall,

Model Number:

VW4600,

Extension:

10.69 (271mm),

Orientation:

Landscape,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 800 x 400 mm,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Stud Placement:

Dual Stud or More,

Use of Mount:

Monitor or TV,

Specific Mounting Patterns:

Up to 800x400mm,

Related Products

Crimson Quad Display VESA Ceiling Mount for Four 32-55 inch Screens (Black) CQUAD55V
On Sale

Crimson Large TV Ceiling Mount (Quad, VESA 400) CQUAD55V

Crimson Large TV Ceiling Mount (Quad, VESA 400) CQUAD55V
$2,333.00 $2,917.00
Crimson Quad Display Universal Ceiling Mount for Four 37-60 inch Screens (Black) CQUAD63
On Sale

Crimson Large TV Ceiling Mount (Quad, Universal, 723x501mm) CQUAD63

Crimson Large TV Ceiling Mount (Quad, Universal, 723x501mm) CQUAD63
$2,078.00 $2,597.00
Crimson ADCPU40 Universal CPU DVD or Media Player Bracket
On Sale

Crimson ADCPU40 Universal CPU DVD or Media Player Bracket

Crimson ADCPU40 Universal CPU DVD or Media Player Bracket
$87.00 $110.00
Crimson Push In Out Video Wall Mount for XL Screens VW4600G3
On Sale

Crimson XL Video Wall TV Mount (Push In Out, Universal) VW4600G3

Crimson XL Video Wall TV Mount (Push In Out, Universal) VW4600G3
$647.00 $809.00
Crimson Pop In Out Portrait Video Wall Mount for Large Screens VWP4600G3
On Sale

Crimson XL Video Wall TV Mount (Portrait, Push In Out, Univ) VWP4600G3

Crimson XL Video Wall TV Mount (Portrait, Push In Out, Univ) VWP4600G3
$766.00 $958.00

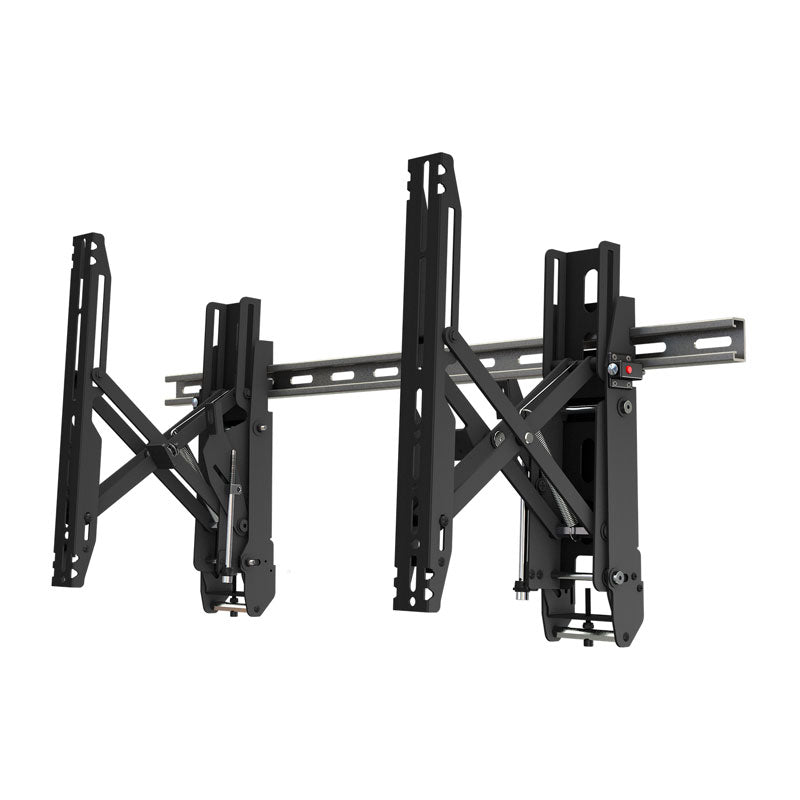

Crimson Unistrut Video Wall Mount (Pop-Out, Universal) VWG3U
