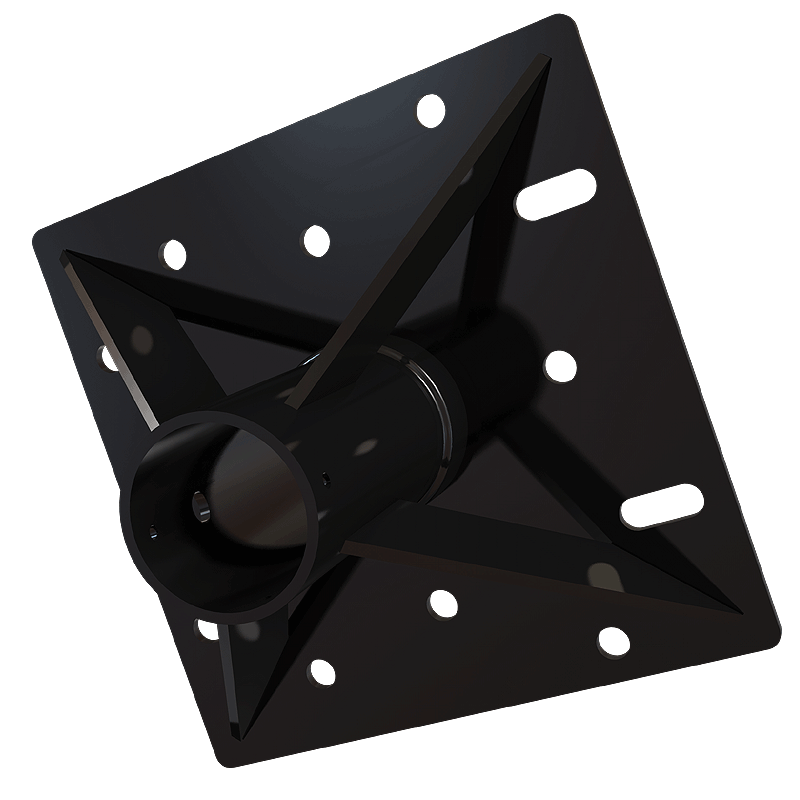

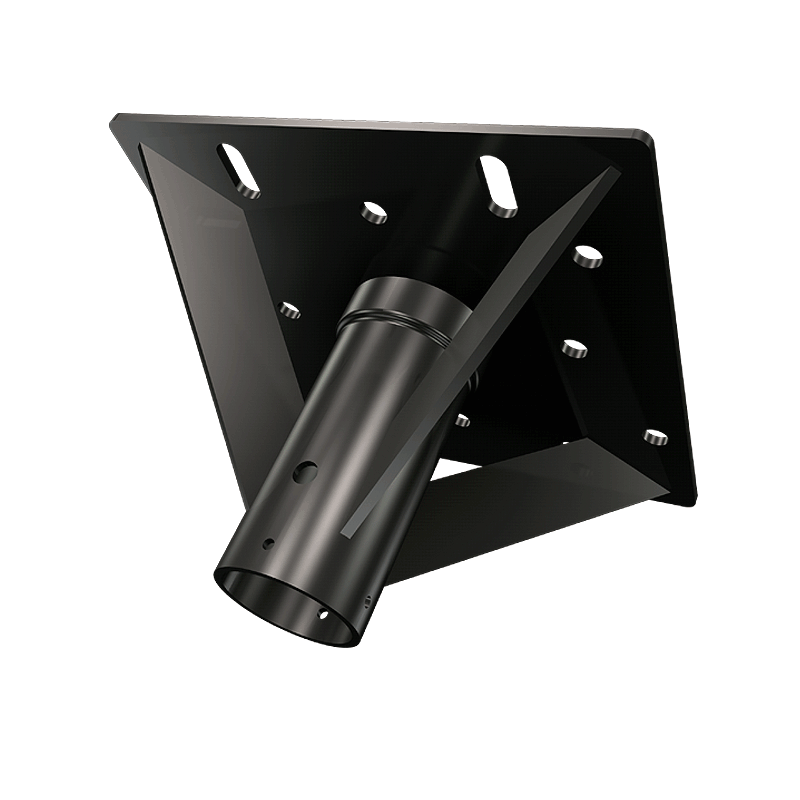

Crimson Heavy Duty Ceiling Adapter (8x8, Long Drops) CA8HD

Heavy duty 8x8" ceiling adapter compatible with all standard 1.5" NPT interfaces weighing up to 500lb. Adapter mounts to any structural wood, wood joist, unistrut (accessory required), or structural concrete (accessory required). Side load stabilization for extra long extension drops and staggered hole pattern to help prevent stress fractures and avoid steel rebar in structural concrete. It features:

• Attaches to solid structural ceiling or standard 1 5/8" and 1 5/8" unistrut
• Compatible with all fixed ceiling extensions and components that use standard 1.5" NPT interface**
• Staggered hole pattern helps avoid structural stress fractures and interference of steel rebar in structural concrete
• Side load stabilization for extra long extension drops

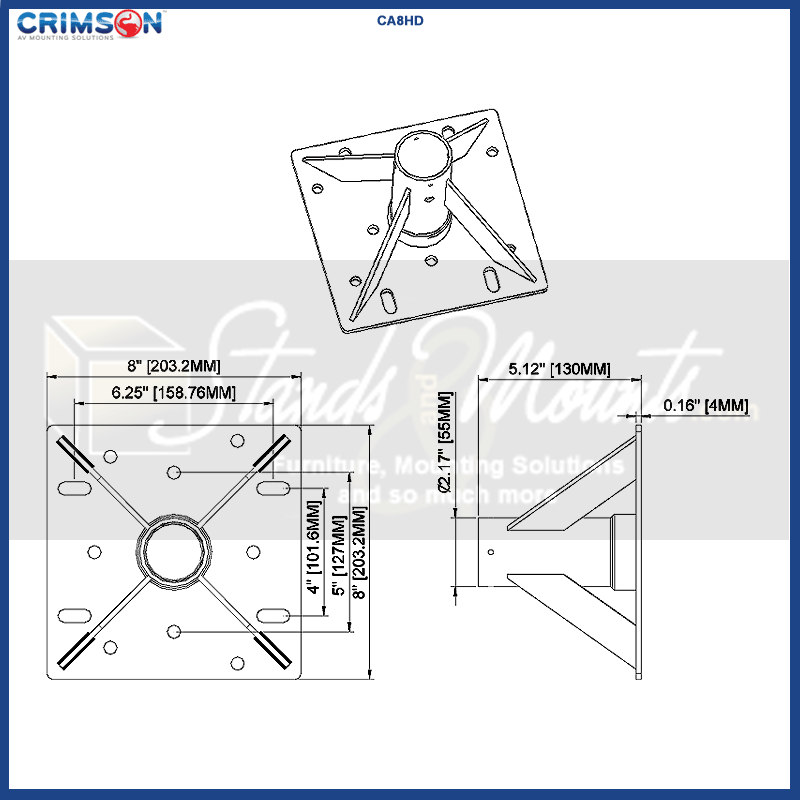

**Click on the last image above for detailed dimensions.

** For use with adjustable extensions, one E06 six-inch fixed column and one EC1 NPT coupler is required (sold separately).
