Crimson Large TV Ceiling Mount (B2B, 3 ft Drop, Universal) C63D-36

Crimson Fixed Height Dual Universal Ceiling Mount with 3 ft Drop for 37-63 inch Screens (Black) C63D-36

Crimson Large TV Ceiling Mount (B2B, 3 ft Drop, Universal) C63D-36

$565.00 $707.00
Skip to product information
Crimson Fixed Height Dual Universal Ceiling Mount with 3 ft Drop for 37-63 inch Screens (Black) C63D-36

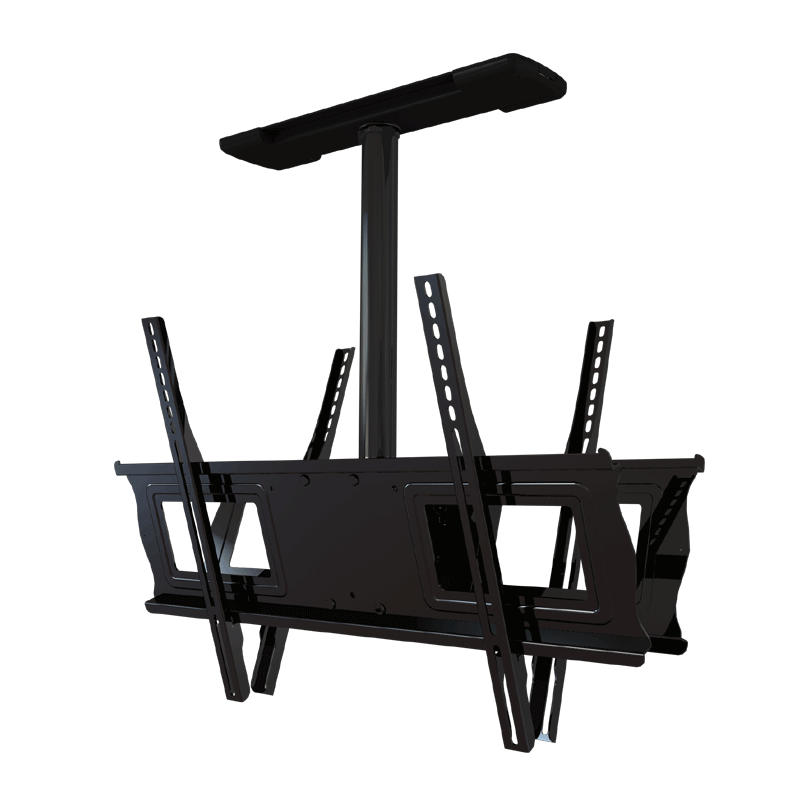

  • Crimson Fixed Height Dual Universal Ceiling Mount with 3 ft Drop for 37-63 inch Screens (Black) C63D-36

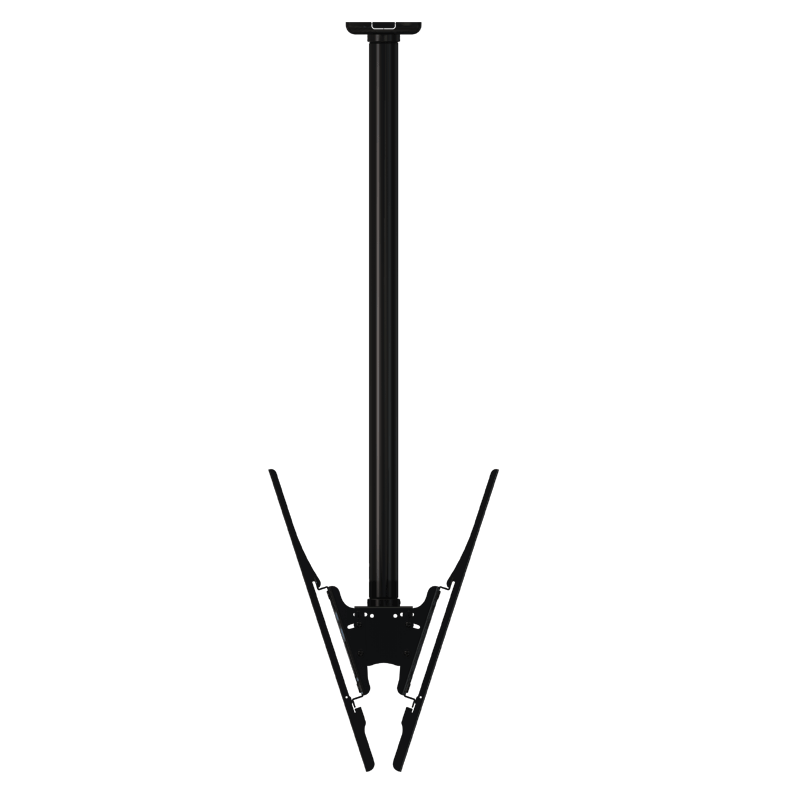

  • Crimson Large TV Ceiling Mount C63D-36, ceiling-mounted multi-display bracket in a full-length view

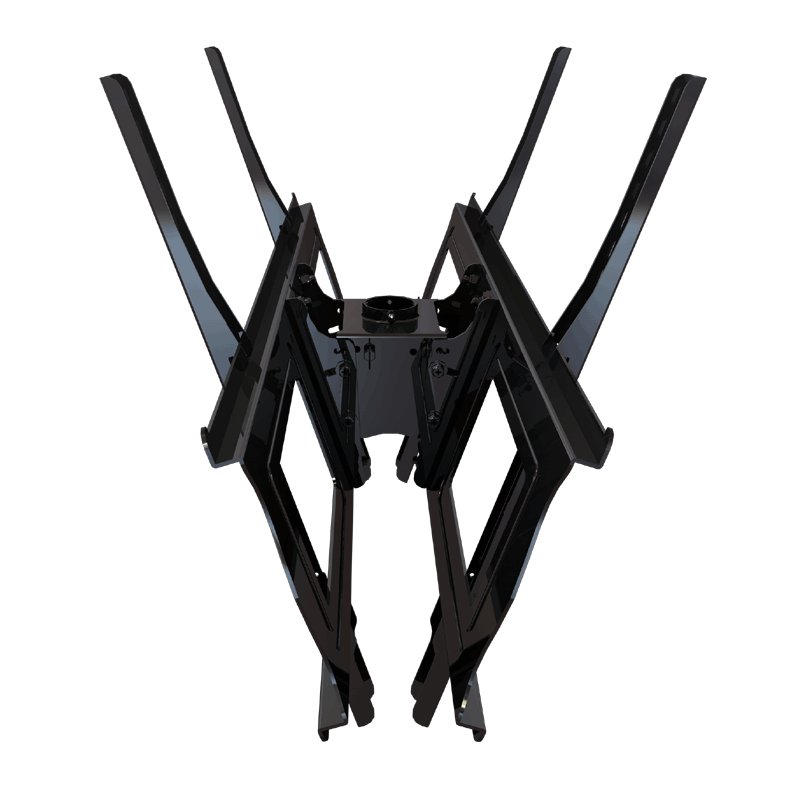

  • Crimson Large TV Ceiling Mount C63D-36, multi-arm ceiling display mount folded in a front view

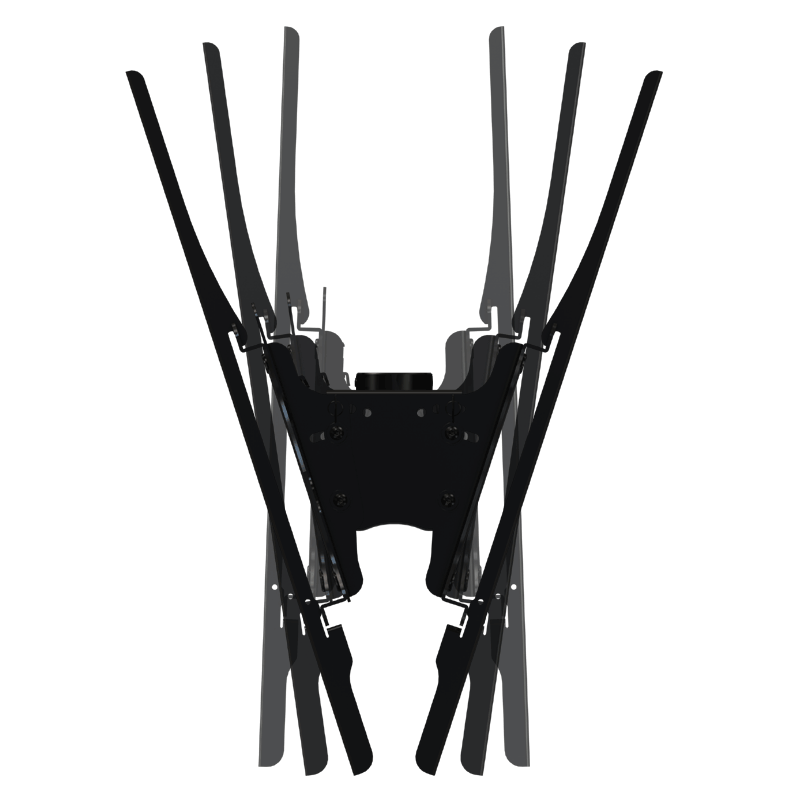

  • Crimson Large TV Ceiling Mount C63D-36, multi-arm ceiling display mount folded in a rear view

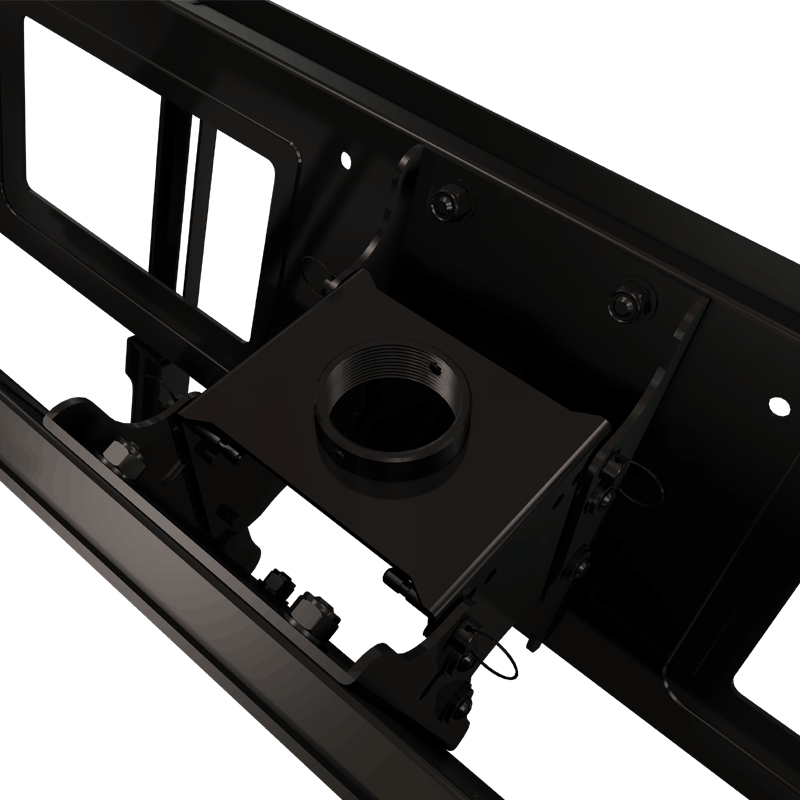

  • Crimson Large TV Ceiling Mount C63D-36, threaded ceiling-mount interface in close-up
  • Crimson Large TV Ceiling Mount C63D-36, multi-display ceiling mount dimensions diagram
  • Crimson Standoff Spacer HSO635, shipping transit-time map
Crimson Large TV Ceiling Mount (B2B, 3 ft Drop, Universal) C63D-36

Crimson

Save 15% on this product with code SAVE15

Mfg Part # C63D-36
SKU # CRIMSON-C63D-36
Crimson AV badge showing StandsandMounts.com as authorized partner
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$565.00 $707.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

Crimson C63D series back-to-back ceiling mount kits include a fixed drop column, ceiling flange and universal TV mount. They feature:

  • Works with two back-to-back 37-75+" TV's with mounting patterns up to 723x501mm and 150 lbs. each
  • Universal design
  • VESA compatible up to 723x501mm
  • Fast and easy installation
  • Up to 20° of continuous tilt and 360° swivel (at time of installation)
  • Pin-locking incremental tilt adjustment
  • Post installation screen leveling without use of tools
  • Pre-sorted hardware pack for easy installation
  • Compatible with any 1.5" NPT threaded pipe

Help Files

No PDF help files available for this product

Product Details and Specifications

Weight:

35.3lb (16kg),

Weight Capacity:

150lb (68kg) each, 300lb (136kg) total,

Color(s):

Black,

Mount Placement:

Ceiling,

Model Number:

C63D-36,

Rotate:

360 degrees,

Tilt:

+20/-0 Degrees,

Orientation:

Landscape,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 700 x 500 mm,

Use of Mount:

Monitor or TV,

Specific Mounting Patterns:

Up to 723x501mm,

Related Products

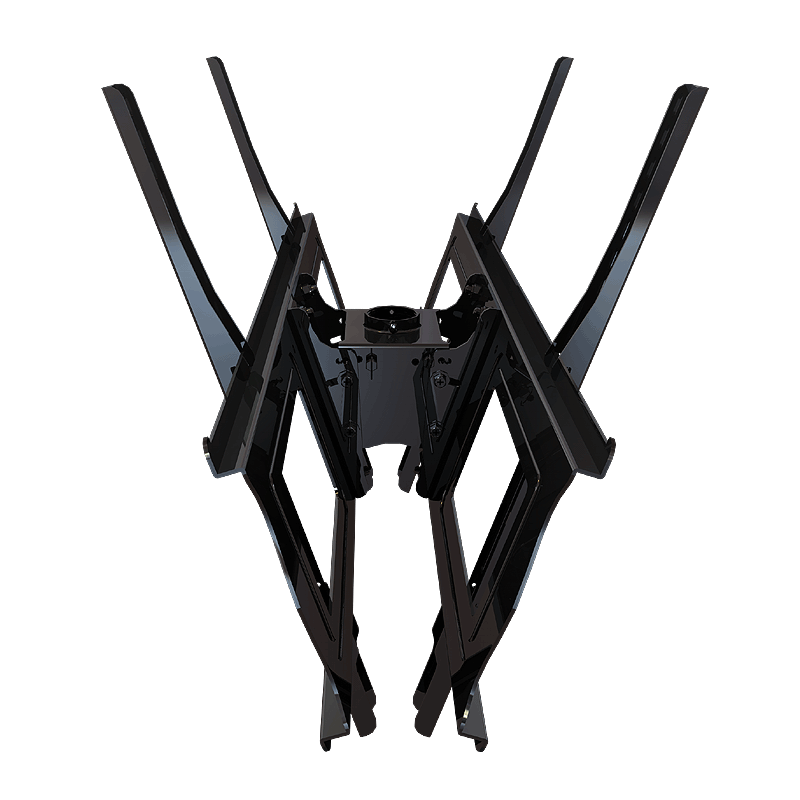

Crimson Dual Universal Ceiling Mount Lower Assembly for 37-63 inch Screens (Black) C63D
On Sale

Crimson Large TV Ceiling Mount (Lower Assembly, B2B, Universal) C63D

Crimson Large TV Ceiling Mount (Lower Assembly, B2B, Universal) C63D
$451.00 $564.00
Crimson Fixed Height Universal Ceiling Mount with 3 ft Drop for 37-63 inch Screens (Black) C63-36
On Sale

Crimson Large TV Ceiling Mount (3 ft Drop, Universal) C63-36

Crimson Large TV Ceiling Mount (3 ft Drop, Universal) C63-36
$434.00 $542.00

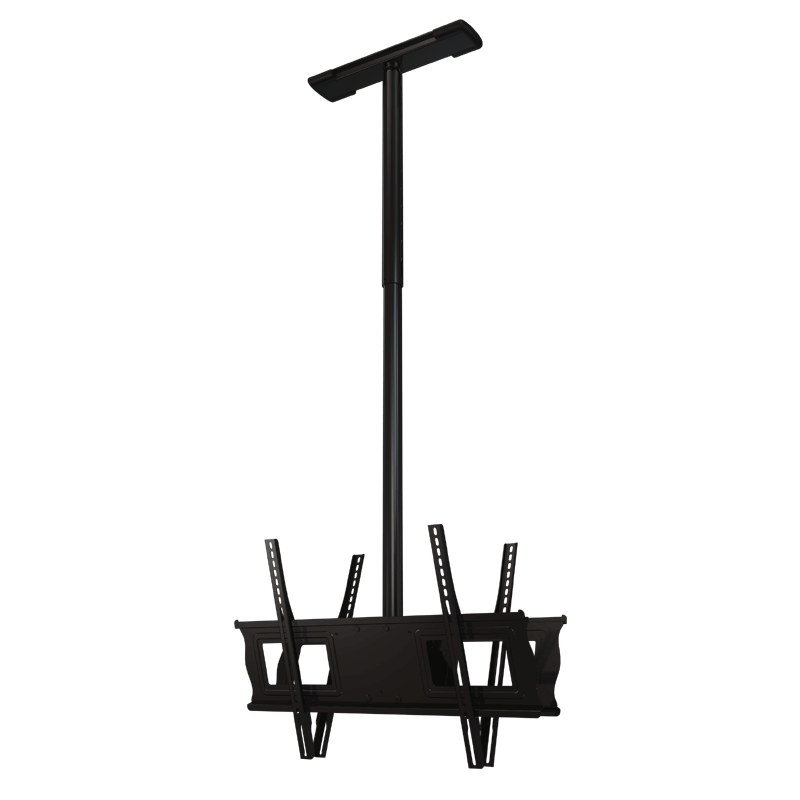

Crimson Adjustable Height Dual Universal Ceiling Mount with 3 to 5 ft Drop for 37-63 inch Screens (Black) C63D-60A
