Crimson Medium TV Ceiling Mount Lower Assembly (VESA 200) C37

Attaches to standard 1.5" threaded extension columns. Can be used as retrofit on existing columns or combine with Crimson E-series fixed extensions or EA-series adjustable extensions and CA ceiling adapters to complete the solution. Continuous tilt of 20° forward with 360° rotation. Makes a secure screen installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock the VESA adapter in place. Compatible with all 1.5" NPT threaded pipe. It features:

• Works with 13-46" TV's with maximum 200x200mm VESA mounting patterns and 80lbs.
• VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
• Fast and easy installation
• Up to 20° of continuous tilt and 360° rotation (at time of installation)
• Pre-sorted hardware pack for easy installation
• Compatible with any 1.5" NPT threaded pipe

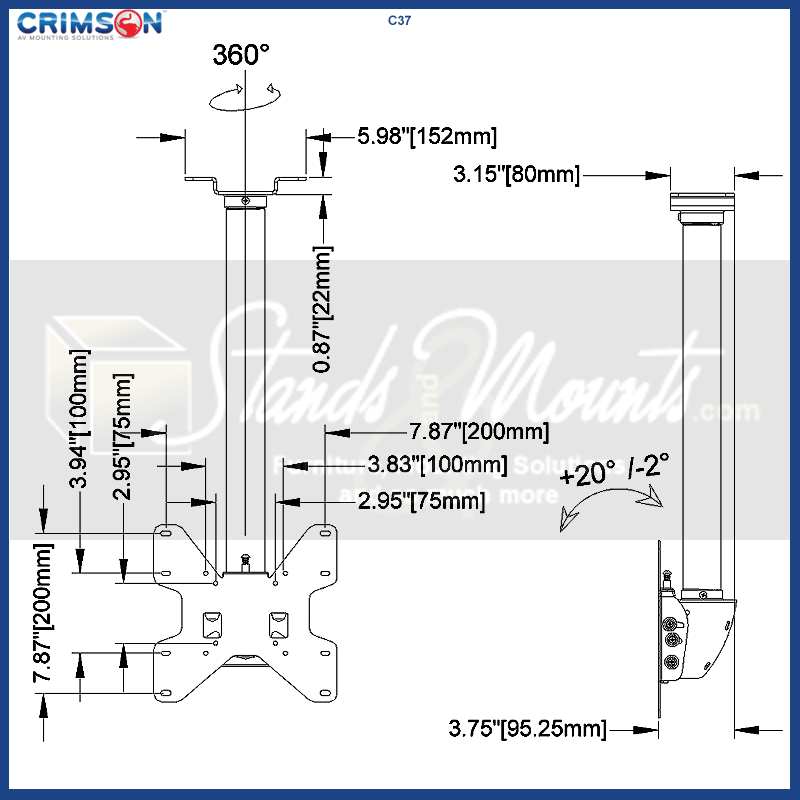

**Click on the last image above for detailed dimensions.
