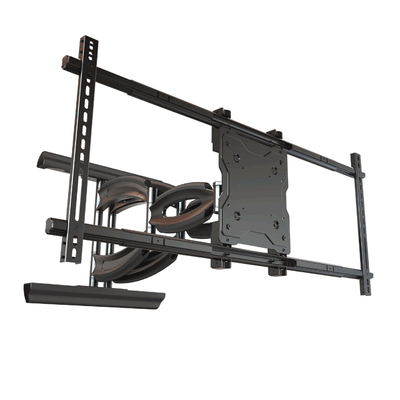

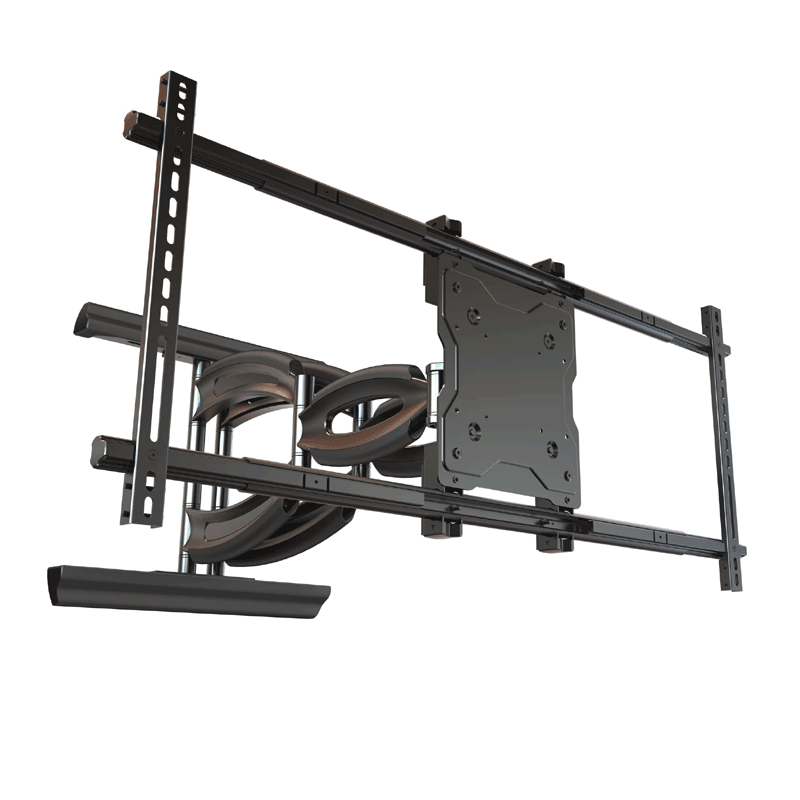

  • Crimson Robust Series Articulating Mount for Extra Large Screens RSA90

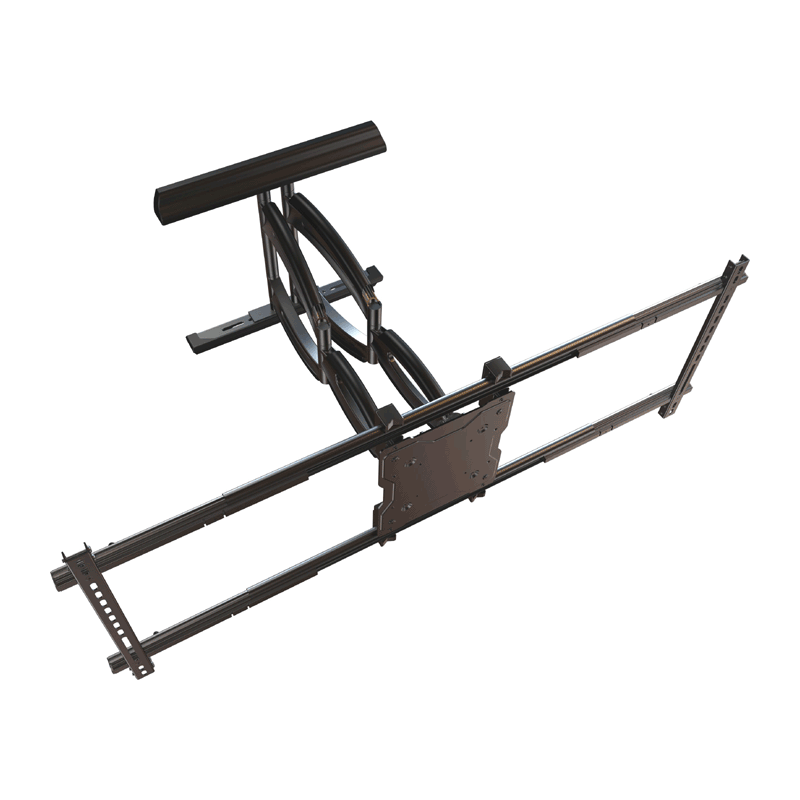

  • Crimson Robust Series Articulating Mount for Extra Large Screens RSA90, articulating ceiling mount frame in an extended three-quarter view

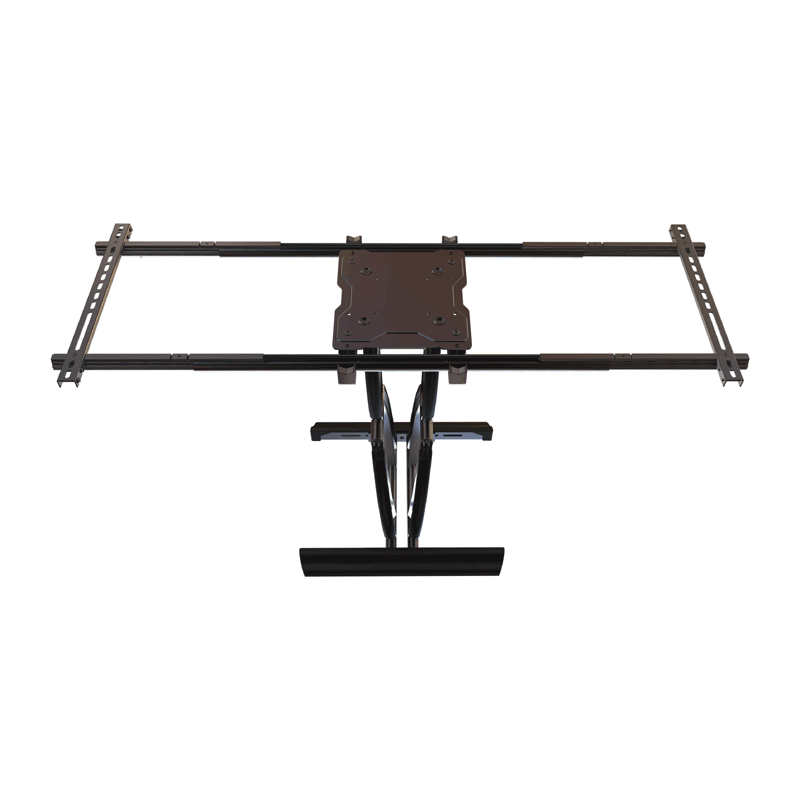

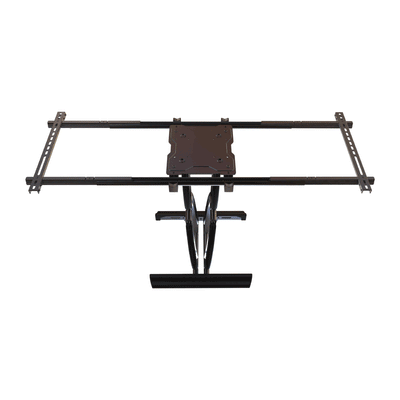

  • Crimson Robust Series Articulating Mount for Extra Large Screens RSA90, articulating ceiling mount frame viewed from above
  • Crimson Robust Series Articulating Mount for Extra Large Screens RSA90, articulating ceiling mount technical dimensions and rotation range
  • Crimson Standoff Spacer HSO635, shipping transit-time map
Crimson Robust Series Articulating Mount for Extra Large Screens RSA90

Crimson

Save 15% on this product with code SAVE15

Mfg Part # RSA90
SKU # CRIMSON-RSA90
Crimson AV badge showing StandsandMounts.com as authorized partner
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$751.00 $938.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

Crimson new Robust Series RSA90 Articulating Wall Mount features:

  • Fits 70-90+" screens with mounting patterns up to 1080x672mm
  • Universal design and VESA compliant
  • Smooth action dual scissor arm provides balance
  • Post-installation lateral and vertical adjustments
  • Post-installation leveling
  • Integrated cable management
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
  • Tilt: +15°/-5°
  • Depth from wall: 3.4" (86mm)
  • Max extension : 27" (686mm)
  • Pivot: 50°
  • Roll (side to side): 6°
  • Weight capacity: 200lb (91kg)

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

27.62 in.

Width:

34.92 in.

Depth:

26.92 in.

Weight:

33.7lb (15.3kg),

Weight Capacity:

200lb (91kg),

Color(s):

Black,

Mount Placement:

Wall,

Model Number:

RSA90,

Pivot:

50 degrees,

Roll:

+/-6 degrees,

Extension:

27 (686mm),

Tilt:

-15/+5 degrees,

Orientation:

Landscape,

VESA Mount Compatible:

400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 700 x 500 mm, 800 x 400 mm, 800 x 500 mm, 800 x 600 mm,

Adjustability of Mount:

Articulating Arm,

Stud Placement:

Dual Stud or More,

Special Features of Mounts:

Swing Out,

Use of Mount:

Monitor or TV,

Specific Mounting Patterns:

Up to 800x672mm,

Related Products

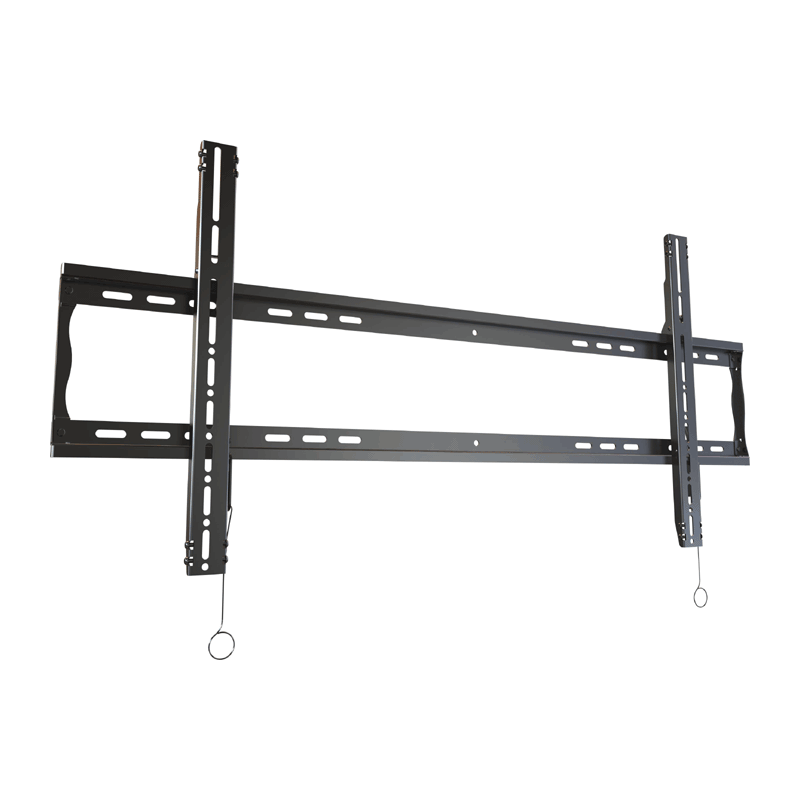

Crimson Robust Series Fixed Mount for Extra Large Screens RSF90
On Sale

Crimson Robust Series Fixed Mount for Extra Large Screens RSF90

Crimson Robust Series Fixed Mount for Extra Large Screens RSF90
$208.00 $260.00

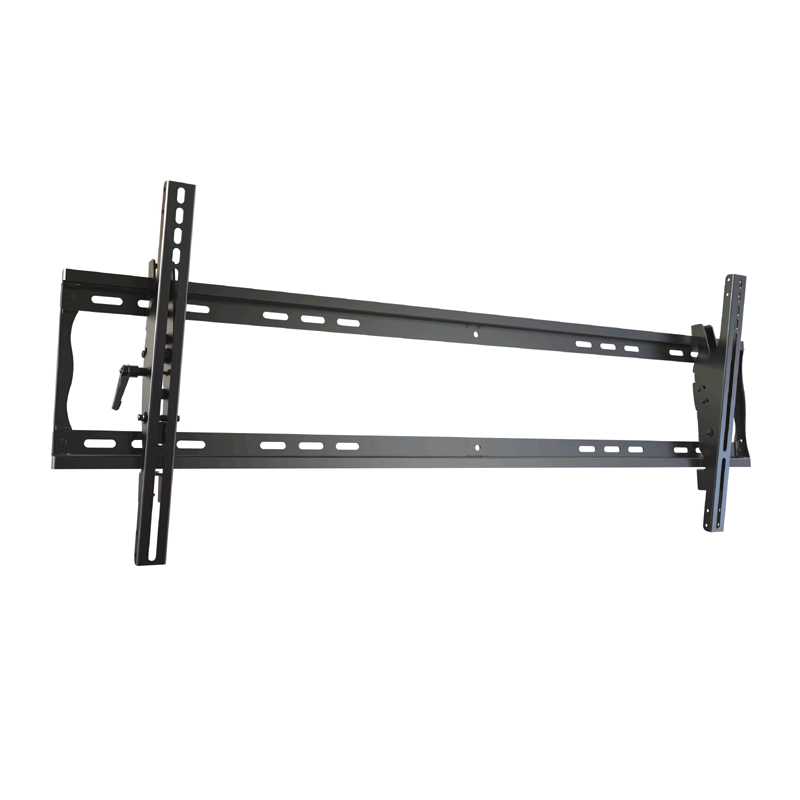

Crimson Robust Series Tilt Mount for Extra Large Screens RST90
