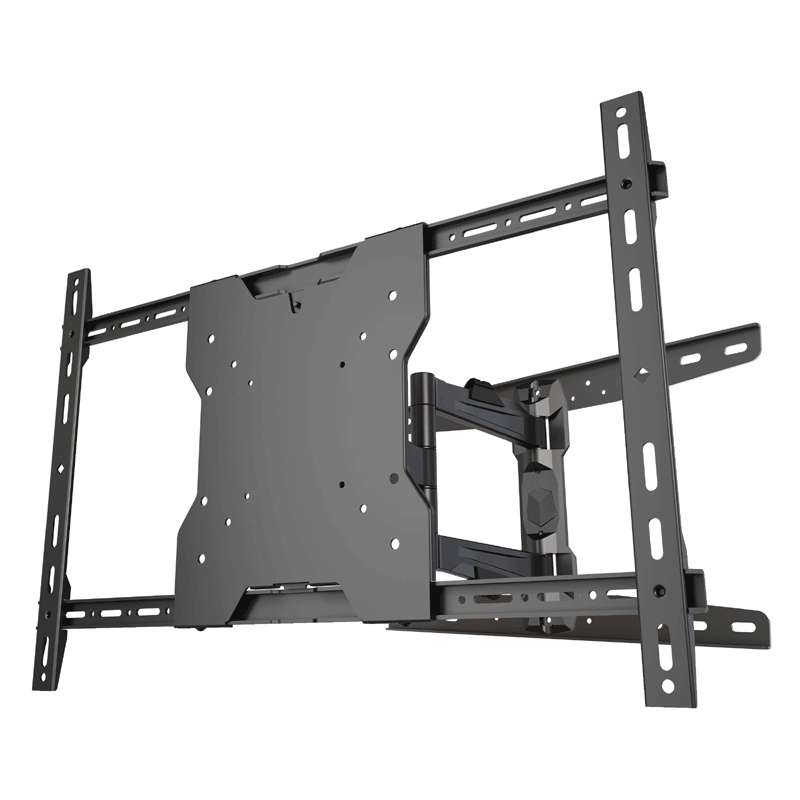

  • Crimson - AU65WP20 - Worlds Thinnest Articulating Dual Stud Wall Mount for 13-65 inch Screens

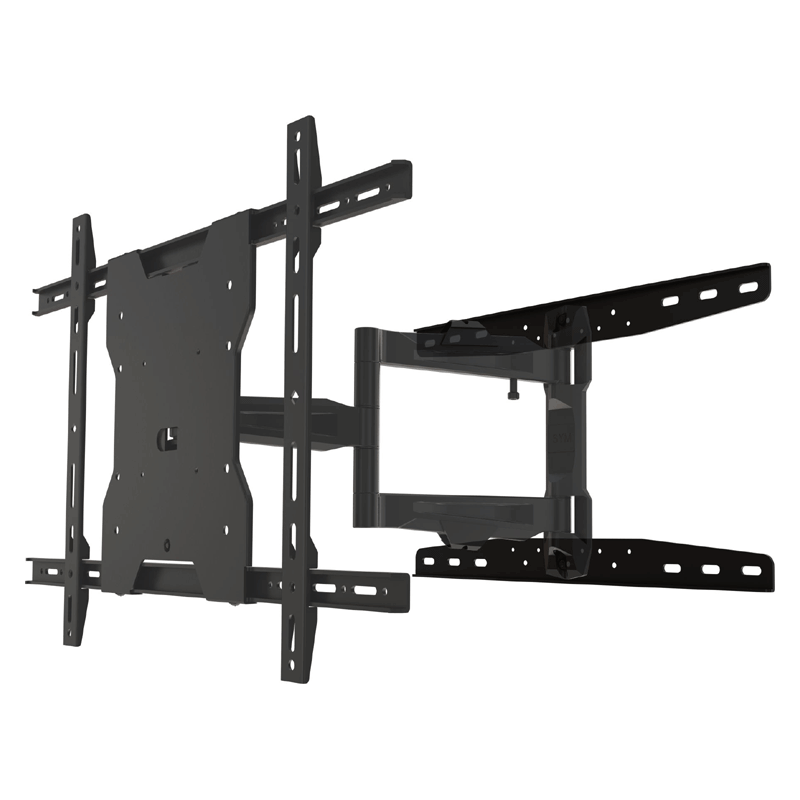

  • Crimson Ultra Thin Large Articulating TV Wall Mount AU65WP20, articulating TV wall mount front and rear view

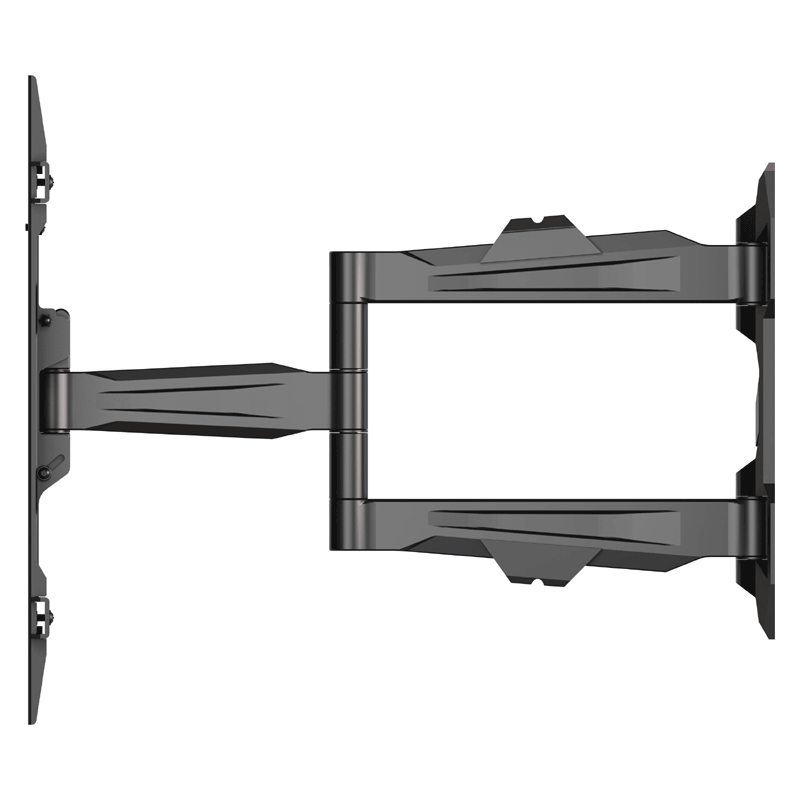

  • Crimson Ultra Thin Large Articulating TV Wall Mount AU65WP20, articulating TV wall mount top view

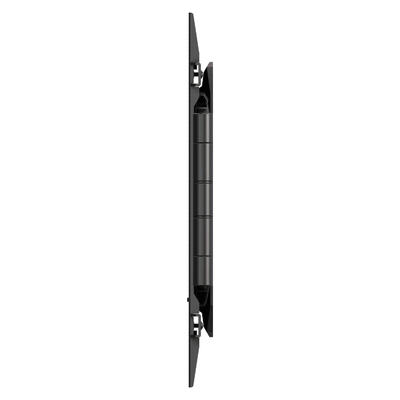

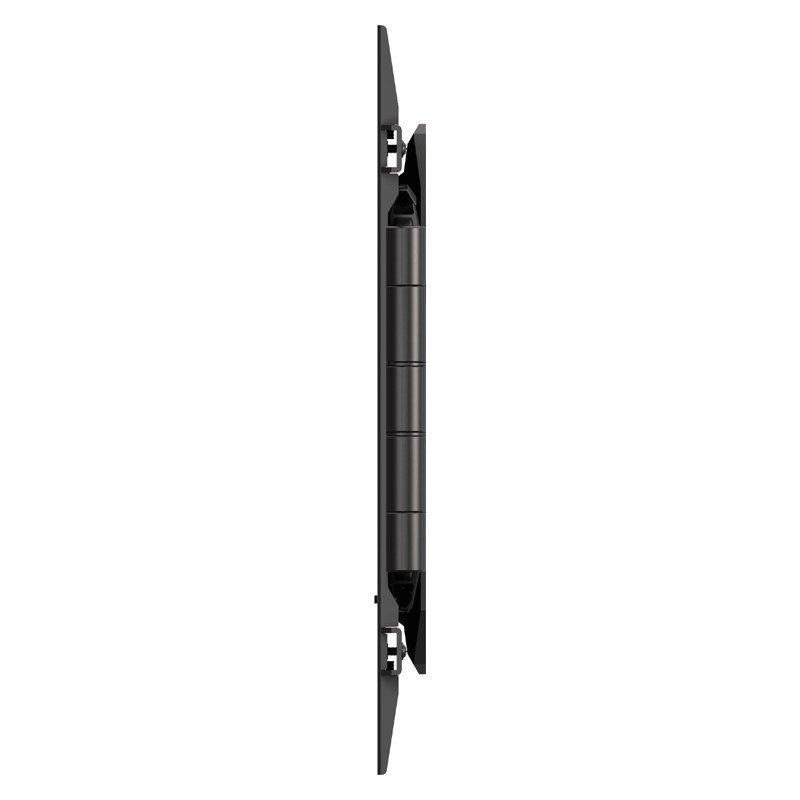

  • Crimson Ultra Thin Large Articulating TV Wall Mount AU65WP20, articulating TV wall mount side view

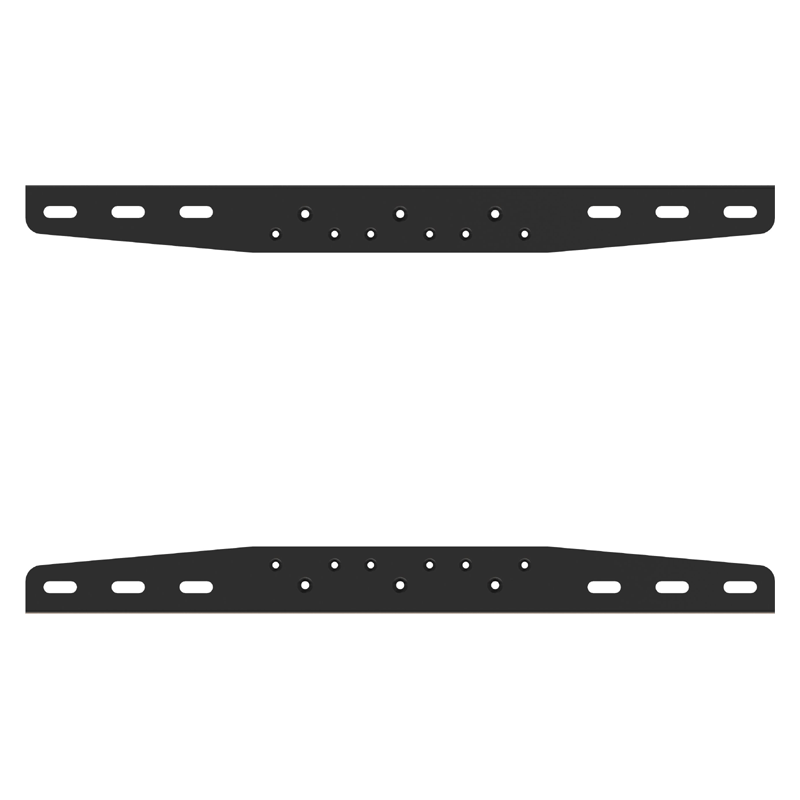

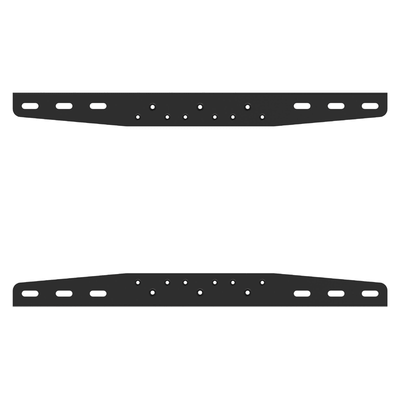

  • Crimson Ultra Thin Large Articulating TV Wall Mount AU65WP20, wall mounting rails
  • Crimson Ultra Thin Large Articulating TV Wall Mount AU65WP20, articulating TV wall mount dimensions diagram
  • Crimson Standoff Spacer HSO635, shipping transit-time map
Crimson Ultra Thin Large Articulating TV Wall Mount (Dual Stud) AU65WP20

Crimson

Save 15% on this product with code SAVE15

Mfg Part # AU65WP20
SKU # CRIMSON-AU65WP20
Crimson AV badge showing StandsandMounts.com as authorized partner
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$344.00 $430.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

Crimson's new AU series world's thinnest articulating mounts securely hold flat panel displays a mere 1.19" from the wall when retracted and a full 20" when extended. It features:

  • Works with 13-65" screens with mounting patterns up to VESA 600x400mm and 80 lbs.
  • VESA compatible 100x100, 200x100, 200x200, 300x100, 300x200, 300x300, 400x300, 400x400 and 600x400mm
  • Universal design
  • Attaches to 16 or 20" stud centers
  • +/- 2.8" lateral shift
  • Multiple attachment points for different mounting surfaces offers additional safety
  • Tool free post-installation leveling
  • Mount locks into position when retracted
  • Built in level guide for easy installation and perfect positioning
  • Decorative cover for a clean look
  • Smooth variable tilt from 15° forward to 5° back
  • Integrated cable management for clean look

**Click on the last image above for detailed dimensions.

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

16.73 in.

Width:

26.62 in.

Depth:

01.19 - 19.34 in.

Weight:

9lb (4.1kg),

Weight Capacity:

80lb (36kg),

Color(s):

Black,

Mount Placement:

Wall,

Model Number:

AU65WP20,

Pivot:

180 degrees,

Extension:

19.34 (491mm),

Tilt:

-15/+5 degrees,

Orientation:

Landscape,

VESA Mount Compatible:

100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm,

Adjustability of Mount:

Articulating Arm,

Stud Placement:

Dual Stud or More,

Special Features of Mounts:

Low Profile,

Use of Mount:

Monitor or TV,
