Crimson XL Tilt TV Wall Mount (Portrait, Post Install Level) TP63A

Crimson Tilt Portrait Wall Mount for 37-63 inch Screens with Post Installation Leveling (Black) TP63A

Crimson XL Tilt TV Wall Mount (Portrait, Post Install Level) TP63A

$195.00 $244.00
Skip to product information
Crimson Tilt Portrait Wall Mount for 37-63 inch Screens with Post Installation Leveling (Black) TP63A

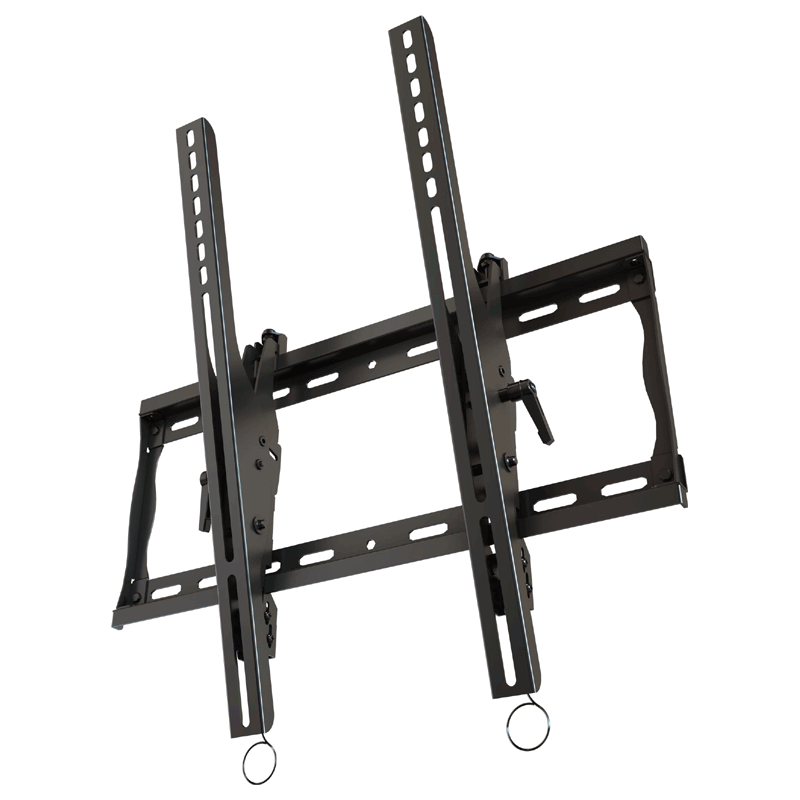

  • Crimson Tilt Portrait Wall Mount for 37-63 inch Screens with Post Installation Leveling (Black) TP63A

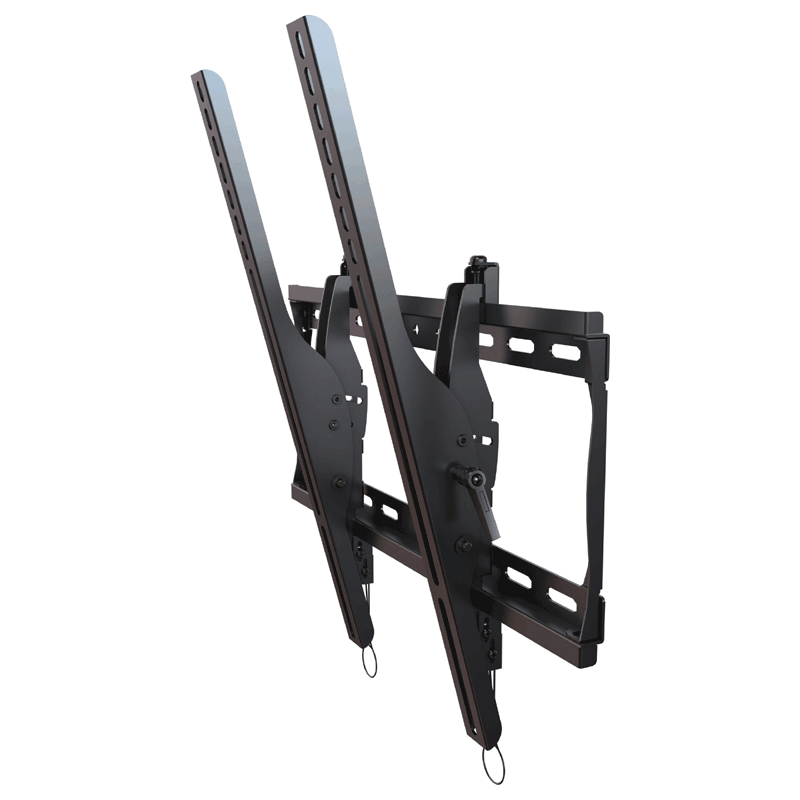

  • Crimson XL Tilt TV Wall Mount TP63A, tilting wall mount front three-quarter view

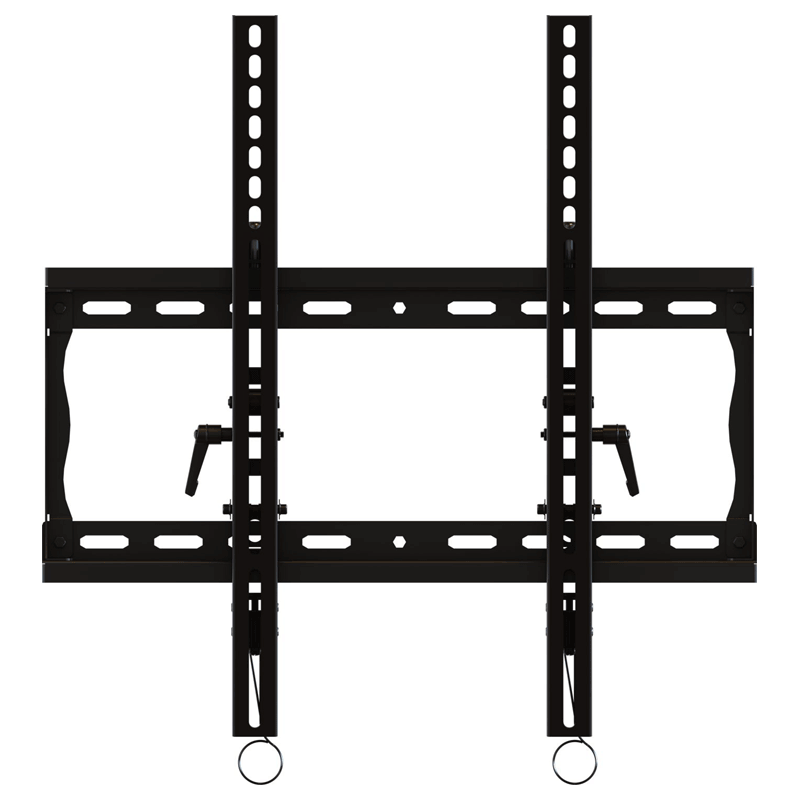

  • Crimson XL Tilt TV Wall Mount TP63A, tilting wall mount front view

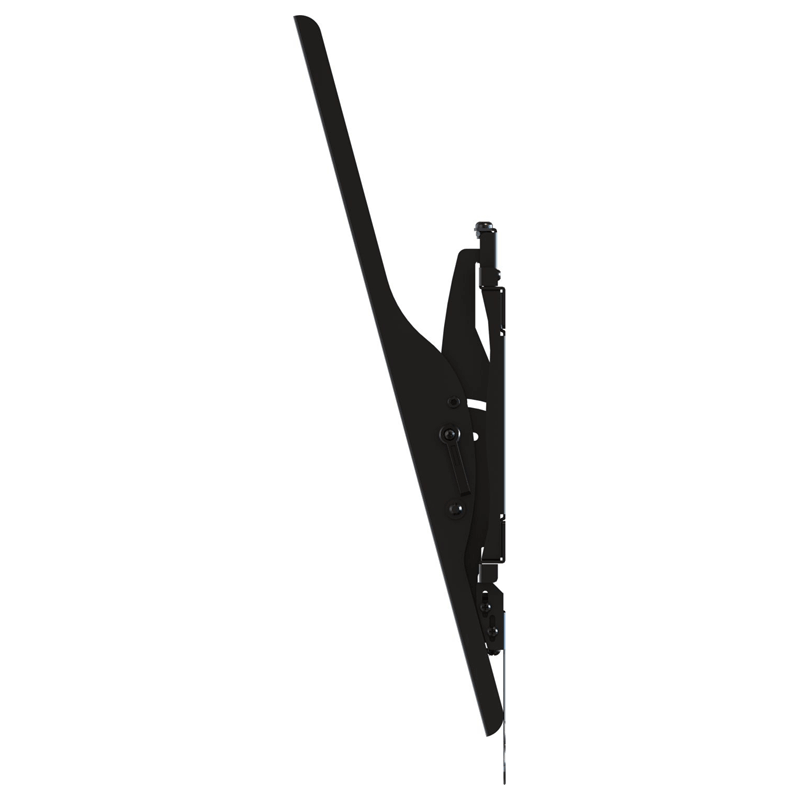

  • Crimson XL Tilt TV Wall Mount TP63A, tilting wall mount side view

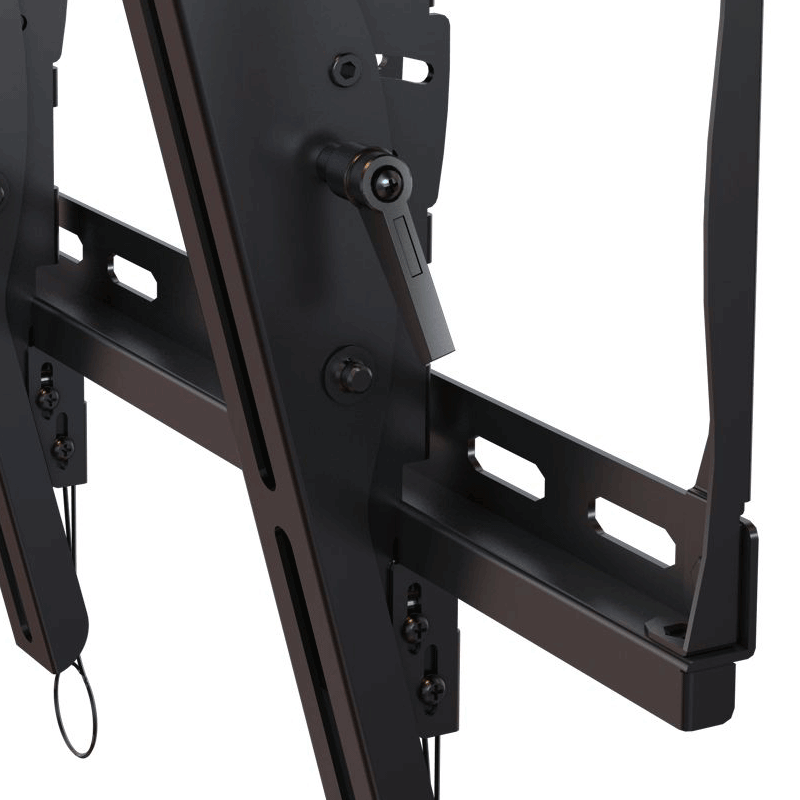

  • Crimson XL Tilt TV Wall Mount TP63A, wall mount tilt-adjustment mechanism close-up

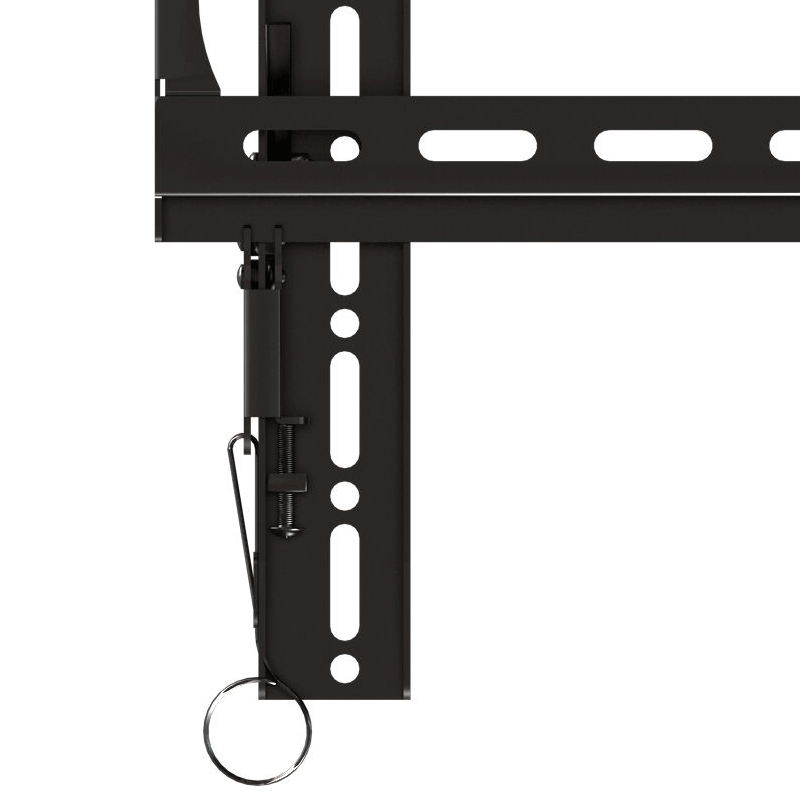

  • Crimson XL Tilt TV Wall Mount TP63A, fixed TV wall mount rail latch detail

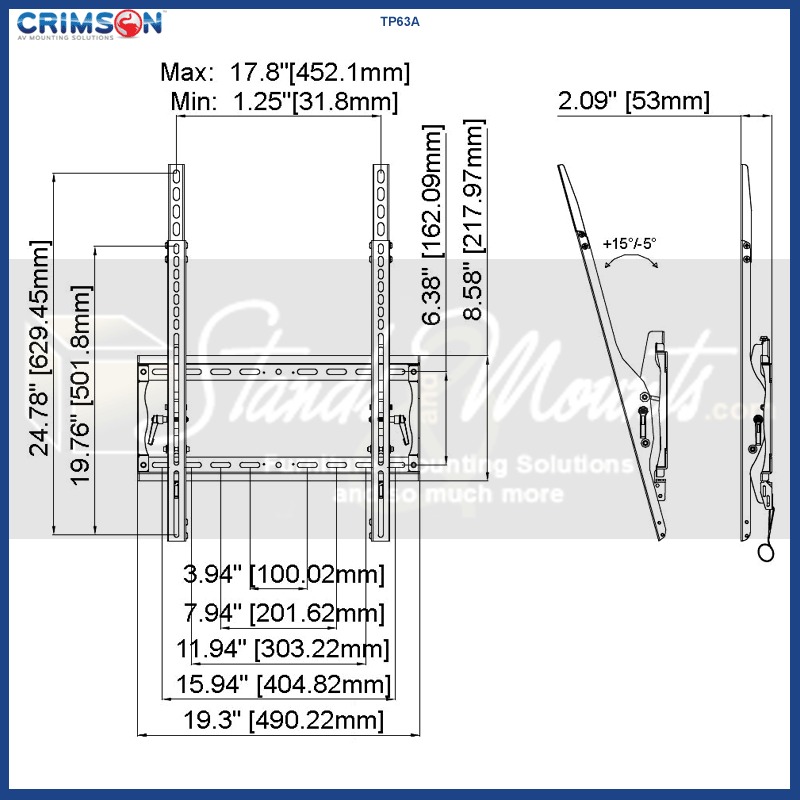

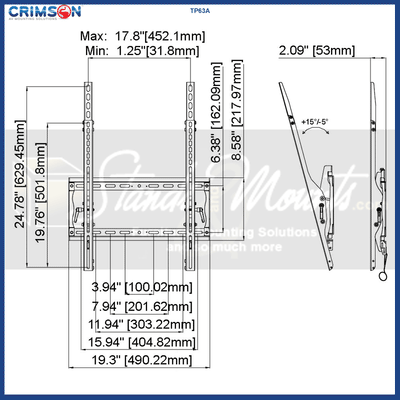

  • Crimson XL Tilt TV Wall Mount TP63A, wall mount technical dimensions diagram
  • Crimson Standoff Spacer HSO635, shipping transit-time map
Crimson XL Tilt TV Wall Mount (Portrait, Post Install Level) TP63A

Crimson

Save 15% on this product with code SAVE15

Mfg Part # TP63A
SKU # CRIMSON-TP63A
Crimson AV badge showing StandsandMounts.com as authorized partner
Product image with a clear background
In Stock: Free Delivery in 3-9 Days.
$195.00 $244.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

Adjustable flat wall mount with Universal hole patterns to fit a wide selection of flat panel screens. Makes a secure installation quick and easy. Post installation leveling feature allows for perfect screen positioning even when ceiling is not perfectly level. It features:

  • Works with 37-70+" TV's with mounting patterns up to 629x452mm and 200 lbs.
  • VESA compatible
  • Universal mounting design up to 452x629mm
  • Portrait orientation
  • Post-installation leveling
  • Open wall plate allows easy access for wiring
  • Low-profile, holds screen close to wall for a clean look
  • Lateral shift for perfect placement
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
  • Fast and easy installation

**Click on the last image above for detailed dimensions.

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

25.76 in.

Width:

19.30 in.

Depth:

02.09 in.

Weight:

9 lbs.,

Weight Capacity:

200 lbs,

Color(s):

Black,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Mount Placement:

Wall,

Model Number:

TP63A,

Orientation:

Portrait,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm,

Range of Screens Supported:

33 to 38 in., 39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Adjustability of Mount:

Tilt Up Down,

Stud Placement:

Dual Stud or More,

Special Features of Mounts:

Vertical Orientation,

Use of Mount:

Monitor or TV,

Specific Mounting Patterns:

Up to 452x629mm,

Related Products

Crimson Metal Stud and Drywall Toggle Bolts (6 Pack) HT6

Crimson Metal Stud and Drywall Toggle Bolts (6 Pack) HT6

Crimson Metal Stud and Drywall Toggle Bolts (6 Pack) HT6
$41.00

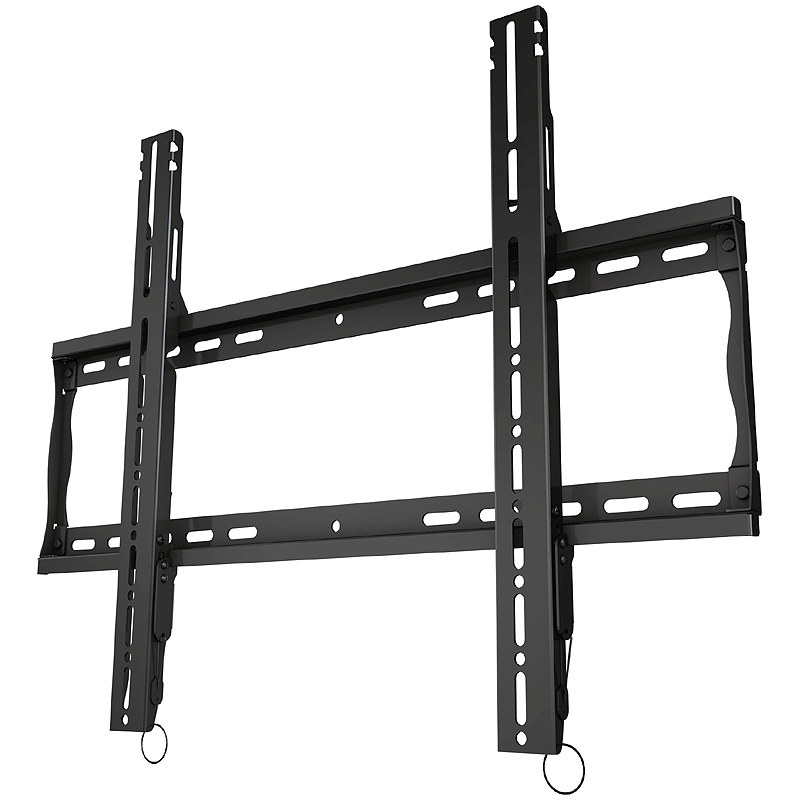

Crimson Fixed Wall Mount for 32-55 inch Screens with Post Installation Leveling (Black) F55A
On Sale

Crimson Large Fixed TV Wall Mount (Post Install Level, Univ) F55A

Crimson Large Fixed TV Wall Mount (Post Install Level, Univ) F55A
$87.00 $110.00

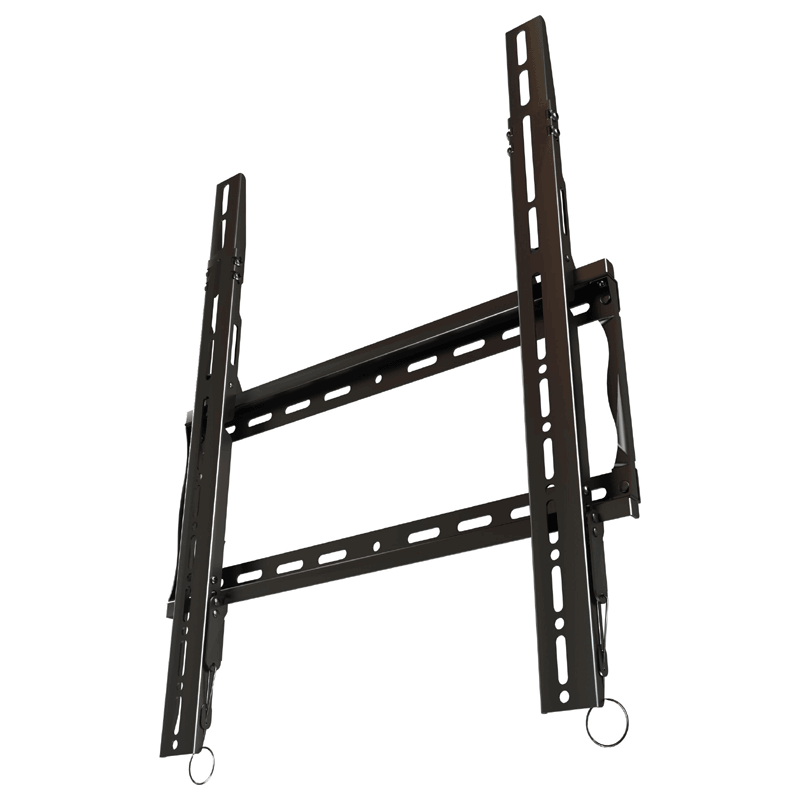

Crimson Fixed Portrait Wall Mount for 37-63 inch Screens with Post Installation Leveling (Black) FP63A
