Da-Lite 29224 Tensioned Wireline Advantage Projector Screen (HD Pro 1.3, 16:9, Flange, 220 inch)

Da-Lite 29224 Wireline Advantage Ceiling Recessed Electric Screen

Da-Lite 29224 Tensioned Wireline Advantage Projector Screen (HD Pro 1.3, 16:9, Flange, 220 inch)

Sale price  $28,902.40 Regular price  $36,128.00
Skip to product information
Da-Lite 29224 Wireline Advantage Ceiling Recessed Electric Screen

Mfg Part # 29224

SKU # Da-Lite-29224
Product image with a clear background
In Stock: Allow 2 Weeks to Ship.
Sale price  $28,902.40 Regular price  $36,128.00

Ask The Experts

Email Us

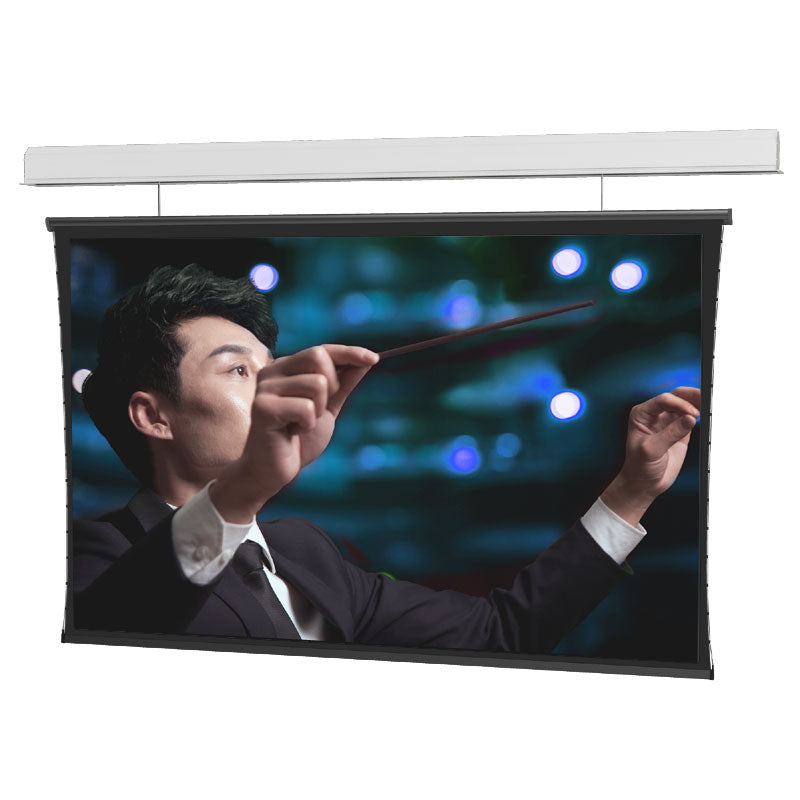

Da-Lite Wireline Advantage Series is a ceiling mounted electric projection screen available with a trim flange for recessed applications and without the trim flange for non-ceiling recessed applications. It is designed for large venues and uses thin steel cables up to 29 feet instead of black drop to lower the screen to an appropriate viewing height for a clean, aesthetically pleasing presentation. It features:

  • Up to 29' of cable to accommodate appropriate viewing height in rooms with high ceilings
  • Available without trim flange for non-ceiling recessed applications
  • TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
  • UL Plenum rated case meets standards for use in air handling space
  • Standard radio frequency motor with hand-held remote and dry contact interface
  • Optional radio frequency control accessories include single channel wall switch and RS-232 interface
  • Standard black backing retains projected brightness on front projection surfaces
  • Seamless surfaces in all models

Screen Surface: HD Progressive 1.3

  • Ideal for applications where projector brightness and screen size require an increase in gain
  • The purest white HD Progressive surface offers true color reproduction
  • Allows for more flexibility with ambient light conditions
  • Allows for easy viewing of detail in video as well as charts and graphs in a corporate setting
  • Can be cleaned with mild soap and water
  • Flame retardant and mildew resistant
  • Half Angle: 75°
  • Viewing Cone: 150°
  • Gain: 1.3

Help Files

Product Details and Specifications

Color(s):

Black, White,

Gain:

1.3

Model Number:

29224,

Screen Ratio:

16:9 HDTV,

Product Line:

Wireline Advantage,

Mount Type:

Ceiling Recessed,

Front or Rear Projection:

Front,

Viewable Width in Inches:

192

Viewable Height in Inches:

108

Viewable Diagonal in Inches:

220

Recessed Screen Options:

Complete Screen, Slot Closure,

Integrated Control:

Radio Frequency Motor,

Special Features:

Large Venue, Tensioned, Ultra Short Throw, High Gain, Suitable for Laser Projection, SightLine or Wireline Cable Drop, Short Throw, Standard Throw,

Screen Type:

Electric Motorized,

Screen Surface:

HD Progressive 1.3,
