Da-Lite 29454G Tensioned Wireline Advantage Projector Screen (HD Pro ReView 0.9, 16:10, Flangeless, 164 inch)

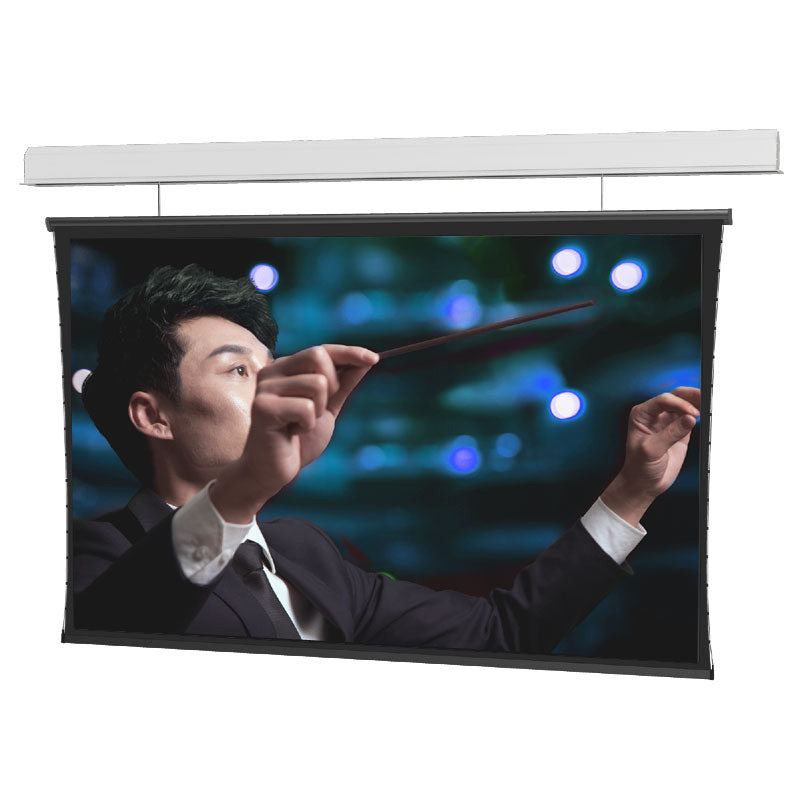

Da-Lite 29454G Wireline Advantage Ceiling Electric Screen

Da-Lite 29454G Tensioned Wireline Advantage Projector Screen (HD Pro ReView 0.9, 16:10, Flangeless, 164 inch)

Sale price  $25,640.00 Regular price  $32,050.00
Skip to product information
Da-Lite 29454G Wireline Advantage Ceiling Electric Screen

Mfg Part # 29454G

SKU # Da-Lite-29454G
Product image with a clear background
In Stock: Allow 2 Weeks to Ship.
Sale price  $25,640.00 Regular price  $32,050.00

Ask The Experts

Email Us

Da-Lite Wireline Advantage Series is a ceiling mounted electric projection screen available with a trim flange for recessed applications and without the trim flange for non-ceiling recessed applications. It is designed for large venues and uses thin steel cables up to 29 feet instead of black drop to lower the screen to an appropriate viewing height for a clean, aesthetically pleasing presentation. It features:

  • Up to 29' of cable to accommodate appropriate viewing height in rooms with high ceilings
  • Available without trim flange for non-ceiling recessed applications
  • TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
  • UL Plenum rated case meets standards for use in air handling space
  • Standard radio frequency motor with hand-held remote and dry contact interface
  • Optional radio frequency control accessories include single channel wall switch and RS-232 interface
  • Standard black backing retains projected brightness on front projection surfaces
  • Seamless surfaces in all models

Screen Surface: HD Progressive ReView 0.9 (formerly Dual Vision)

  • Flexible vinyl surface ideal for rear projection, but capable of both front and rear projection
  • Ideal for moderate to high output projectors
  • Light Gray surface achieves a perfect balance between color reproduction and image contrast
  • Exceptionally wide viewing cone provides a sharp image with no color shift is observed regardless of location in the room
  • Can be cleaned with mild soap and water
  • Flame retardant and mildew resistant
  • Half Angle: 65°
  • Viewing Cone: 130°
  • Gain: 0.9

Help Files

Product Details and Specifications

Color(s):

Black, White,

Gain:

0.9

Model Number:

29454G,

Screen Ratio:

16:10 Widescreen,

Product Line:

Wireline Advantage,

Mount Type:

Ceiling,

Front or Rear Projection:

Front, Rear, Both,

Viewable Width in Inches:

139

Viewable Height in Inches:

87

Viewable Diagonal in Inches:

164

Integrated Control:

Radio Frequency Motor,

Special Features:

Large Venue, Tensioned, Ultra Short Throw, Low Gain, Rec for Edge Blending, Rec for Laser Projection, SightLine or Wireline Cable Drop, Short Throw, Standard Throw,

Screen Type:

Electric Motorized,

Screen Surface:

HD Progressive ReView 0.9,
