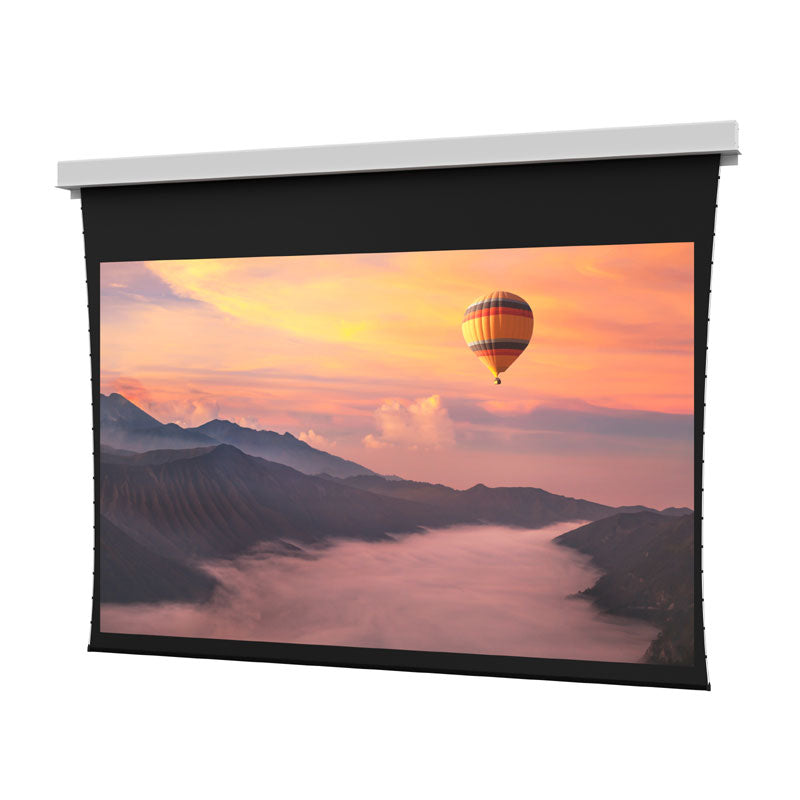

Da-Lite DL100237LF Myriad Tensioned Conceal REC Electric Projector Screen (HD Pro 1.1 Contrast, 16:10, 198 inch, Surf/Roller/Motor)

Da-Lite Myriad Conceal is a recessed ceiling mounted electric projection screen. It is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Myriad screens are ideal for large meeting spaces, conference centers, lecture halls, large classrooms, houses of worship, and hotel ballrooms. It features:

• All sizes standard with 12" of black drop
• TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
• Tensioned products are available with HD Progressive 16K ready and Parallax® Ambient Light Rejection screen surfaces
• Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
• UL Plenum rated case
• White powder-coated case for a clean aesthetic (available in Black as special order)
• Decora-style, three-button wall switch with motor limit adjustment and third-party control connections for dry contact interface or projector trigger (5-12V)
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models
• Smart integrated anchor points for roller suspension allows for easy maintenance
• Support includes a comprehensive five-year warranty to keep you confident in your purchase

Model number suffix legend:

• B = Case Only (Must order Surface, Motor & Roller separately)
• F = Surface, Motor & Roller Only (Must order Case separately)
• L = Low Voltage Control (LVC)

Screen Surface: HD Progressive 1.1 Contrast

• Provides a deeper reproduction of black, which improves contrast
• Increased reflectivity to enhance brightness for moderate ambient light
• Appropriate for ultra-short throw projection as well as standard high definition projection
• 16K-ready
• Can be cleaned with mild soap and water
• Flame retardant and mildew resistant
• Half Angle: 60°
• Viewing Cone: 120°
• Ambient Light Rejection: 20%
• Gain: 1.1
