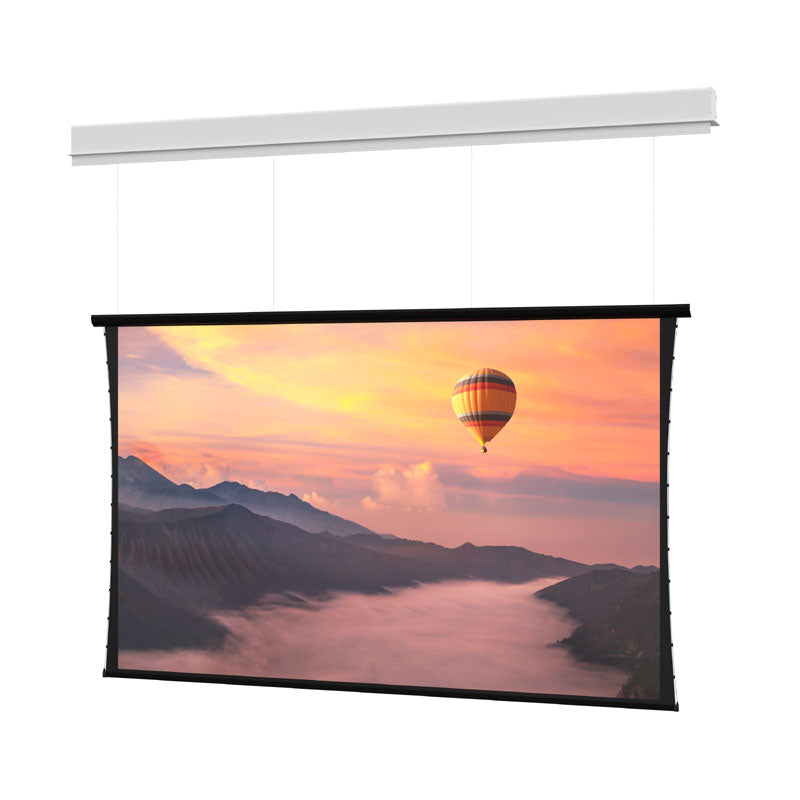

Da-Lite DL100287LB Myriad Tensioned Conceal REC Electric Projector Screen (HD Pro ReView 0.9, 16:10, SightLine, 198 inch, Case Only)

Da-Lite Myriad Conceal is a recessed ceiling mounted electric projection screen. It is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Myriad screens are ideal for large meeting spaces, conference centers, lecture halls, large classrooms, houses of worship, and hotel ballrooms. It features:

• SightLine thin cable drop elegantly suspends the screen surface and eliminates black drop
• Cables accommodate a range of drop distances up to standard 16' (5 m) between the ceiling and the top of the screen
• SightLine creates usable space above the viewing area to preserve architectural interests and possible camera/speaker placement
• TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
• Tensioned products are available with HD Progressive 16K ready and Parallax® Ambient Light Rejection screen surfaces
• Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
• UL Plenum rated case
• White powder-coated case for a clean aesthetic (available in Black as special order)
• Decora-style, three-button wall switch with motor limit adjustment and third-party control connections for dry contact interface or projector trigger (5-12V)
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models
• Smart integrated anchor points for roller suspension allows for easy maintenance
• Support includes a comprehensive five-year warranty to keep you confident in your purchase

Model number suffix legend:

• B = Case Only (Must order Surface, Motor & Roller separately)
• F = Surface, Motor & Roller Only (Must order Case separately)
• L = Low Voltage Control (LVC)

Screen Surface: HD Progressive ReView 0.9 (formerly Dual Vision)

• Flexible vinyl surface ideal for rear projection, but capable of both front and rear projection
• Ideal for moderate to high output projectors
• Light Gray surface achieves a perfect balance between color reproduction and image contrast
• Exceptionally wide viewing cone provides a sharp image with no color shift is observed regardless of location in the room
• Can be cleaned with mild soap and water
• Flame retardant and mildew resistant
• Half Angle: 65°
• Viewing Cone: 130°
• Gain: 0.9
