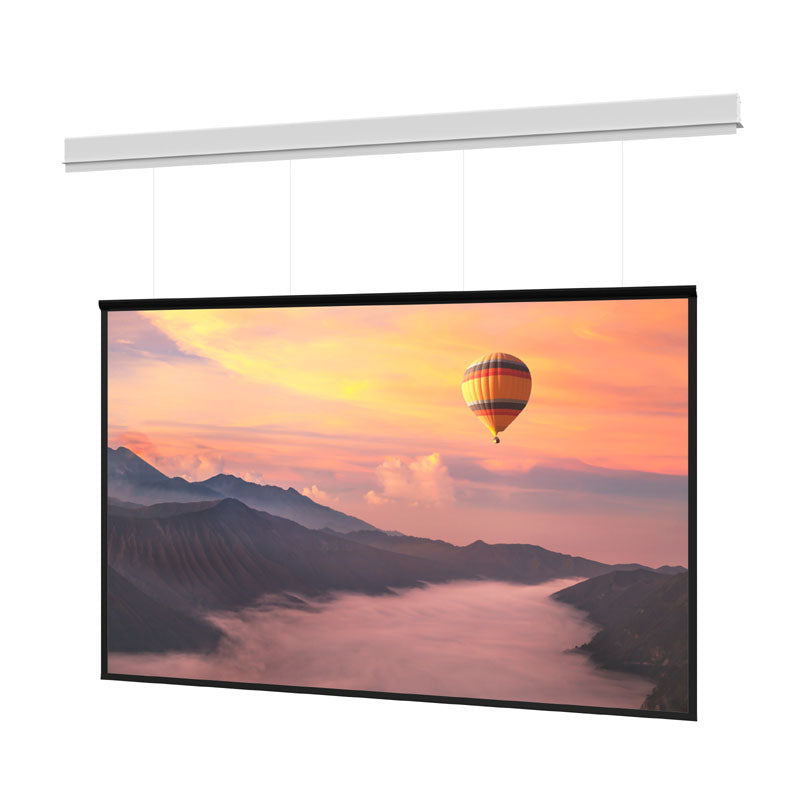

Da-Lite DL100317LF Myriad Conceal REC Electric Projector Screen (Matte White, 16:10, SightLine, 198 inch, Surf/Roller/Motor)

Da-Lite Myriad Conceal is a recessed ceiling mounted electric projection screen. It is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Myriad screens are ideal for large meeting spaces, conference centers, lecture halls, large classrooms, houses of worship, and hotel ballrooms. It features:

• SightLine thin cable drop elegantly suspends the screen surface and eliminates black drop
• Cables accommodate a range of drop distances up to standard 16' (5 m) between the ceiling and the top of the screen
• SightLine creates usable space above the viewing area to preserve architectural interests and possible camera/speaker placement
• Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
• UL Plenum rated case
• White powder-coated case for a clean aesthetic (available in Black as special order)
• Decora-style, three-button wall switch with motor limit adjustment and third-party control connections for dry contact interface or projector trigger (5-12V)
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models
• Smart integrated anchor points for roller suspension allows for easy maintenance
• Support includes a comprehensive five-year warranty to keep you confident in your purchase

Model number suffix legend:

• B = Case Only (Must order Surface, Motor & Roller separately)
• F = Surface, Motor & Roller Only (Must order Case separately)
• L = Low Voltage Control (LVC)

Screen Surface: Matte White

• Fiberglass surface for non-high-resolution projection and environments with controllable ambient light
• Preserves color as well as black and white images
• Can be cleaned with mild soap and water
• Flame retardant and mildew resistant
• Half Angle: 60°
• Viewing Cone: 120°
• Gain: 1.0
