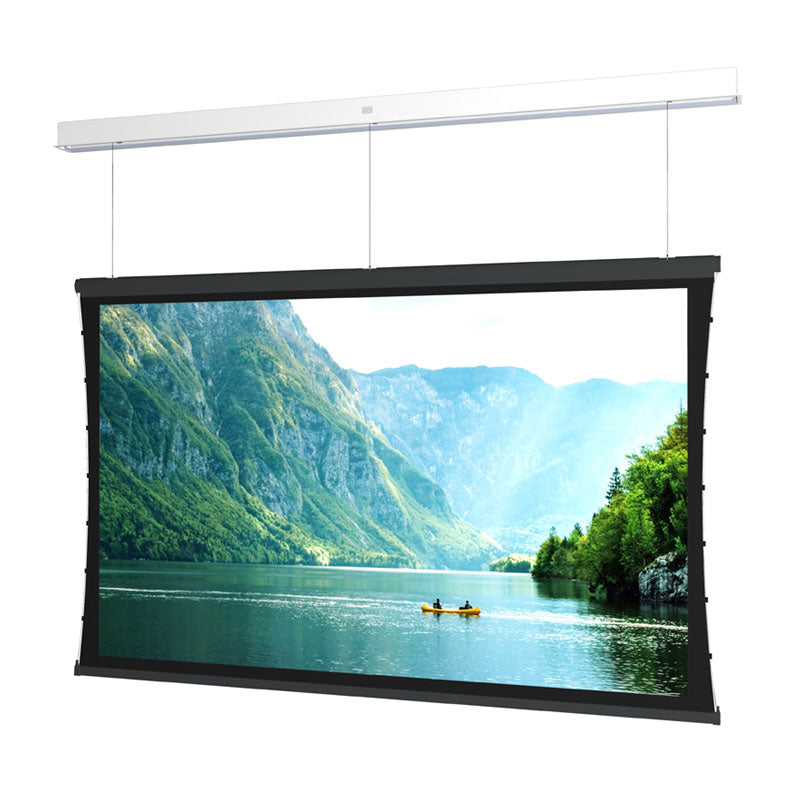

Da-Lite DL14945FLS Tensioned Advantage REC Electric Projector Screen (HD Pro 1.1 Perf, 16:9, Slot, Sightline, 92 inch, Surf/Roller/Motor)

Da-Lite Tensioned Advantage Series with Sightline is a recessed ceiling mounted electric projection screen. It is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. It features:

• Tensioning Cable System to prevent warping and ensure even lateral tension
• All sizes standard with 70" of adjustable cable drop
• 10' cable drop available.
• Vertical placement of the screen can be variable as the cables accommodate a range of drop distances
• SightLine cable drop feature gives the impression of a floating screen
• Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
• Can be ordered as a complete screen or separate as a case only or surface/roller/motor assembly only
• UL Plenum rated case
• Case available in White or Black powder-coat for a clean aesthetic
• Decora-style, three-button wall switch
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models
• Screens with a case length of 120" or under drop from 3 cables (4 cables over 120").

NOTE: The Tensioned Advantage Series with Parallax Pure will look visibly different when compared to Da-Lite vinyl screen surfaces due to the unique micro-layered, high-grade lens system of Parallax Pure. While it may exhibit slight waves, it is optically flat under projection, and the waves will not be visible.

Model number suffix legend:

• L = Low Voltage Control (LVC)
• S = Silent Motor
• B = Case Only (Must order Surface, Motor & Roller separately)
• F = Surface, Motor & Roller Only (Must order Case separately)
• No B or F = Complete Screen

Screen Surface: HD Progressive 1.0 Perf

• Premium acoustically transparent surface is ideal for projects with speakers placed behind the surface
• Front projection screen surface designed for high resolution up to 4K
• Recommended for laser projectors with ultra-short, short, and standard throw lenses
• Neutral white appearance provides brilliant image color
• Available in sizes up to 8' high seamless
• GREENGUARD and GREENGUARD Gold certified to meet and exceed stringent standards for indoor air quality
• Can be cleaned with mild soap and water
• Flame retardant and mildew resistant
• Half Angle: 85°
• Viewing Cone: 170°
• Gain: 1.0
