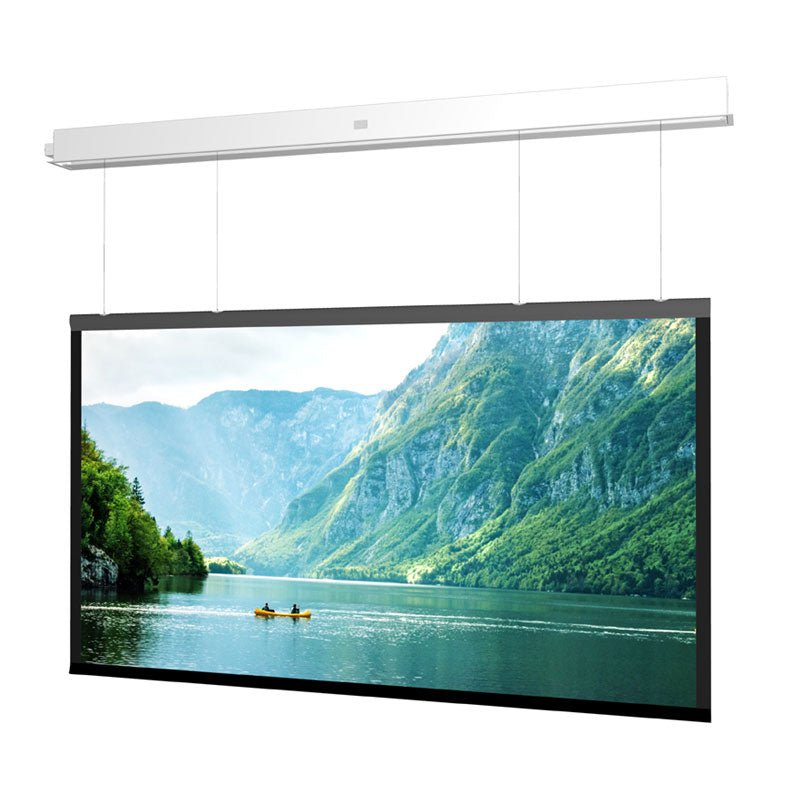

Da-Lite DL15274L Advantage REC Electric Projector Screen (HC Matte White, 16:10, Slot, Sightline, 164 inch)

Da-Lite Advantage Series is a recessed ceiling mounted electric projection screen. It is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. It features:

• All sizes standard with 70" of adjustable cable drop
• 10' cable drop available.
• Vertical placement of the screen can be variable as the cables accommodate a range of drop distances
• SightLine cable drop feature gives the impression of a floating screen
• Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
• Can be ordered as a complete screen or separate as a case only or surface/roller/motor assembly only
• UL Plenum rated case
• Case available in White or Black powder-coat for a clean aesthetic
• Decora-style, three-button wall switch
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models
• Screens with a case length of 120" or under drop from 3 cables (4 cables over 120").

Model number suffix legend:

• L = Low Voltage Control (LVC)
• S = Silent Motor
• B = Case Only (Must order Surface, Motor & Roller separately)
• F = Surface, Motor & Roller Only (Must order Case separately)
• No B or F = Complete Screen

Screen Surface: High Contrast Matte White

• Fiberglass surface with a gray base for deeper reproductions of black for improved contrast
• Preserves color as well as black and white images
• Appropriate for non-high-resolution projection and environments with moderate ambient light
• Can be cleaned with mild soap and water
• Flame retardant and mildew resistant
• Half Angle: 50°
• Viewing Cone: 100°
• Gain: 1.1
