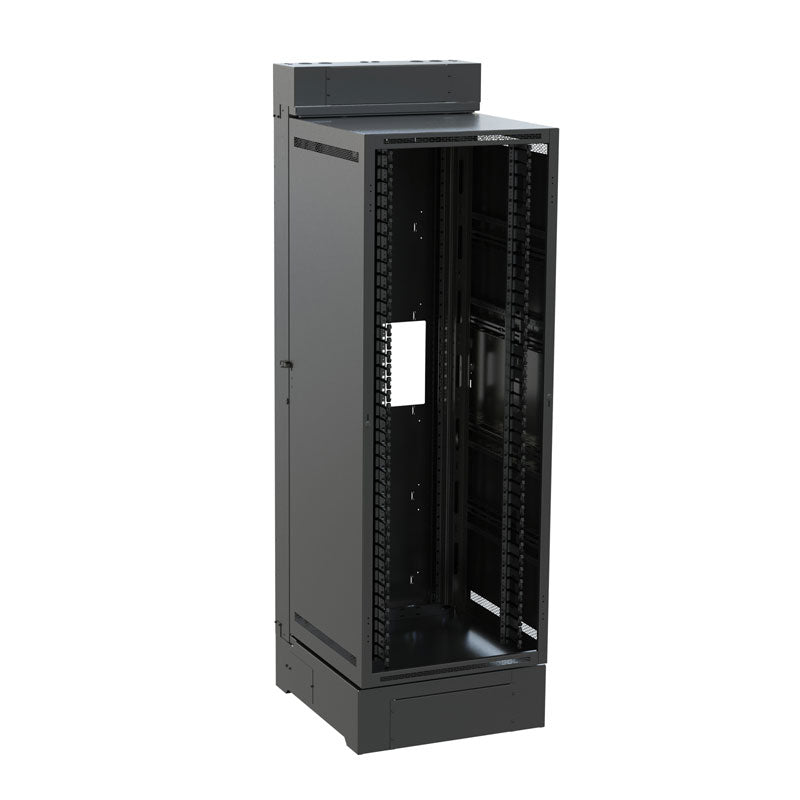

Middle Atlantic 28 in Wide Pivoting Wall Rack (40 RU, 32 D) SR28-40-32

Middle Atlantic SR28 Wide Pivoting Wall Rack Series features:

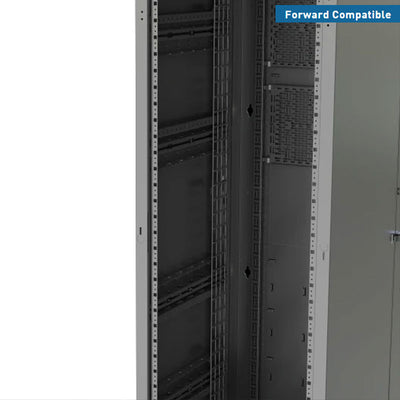

• Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rackrail is optional.

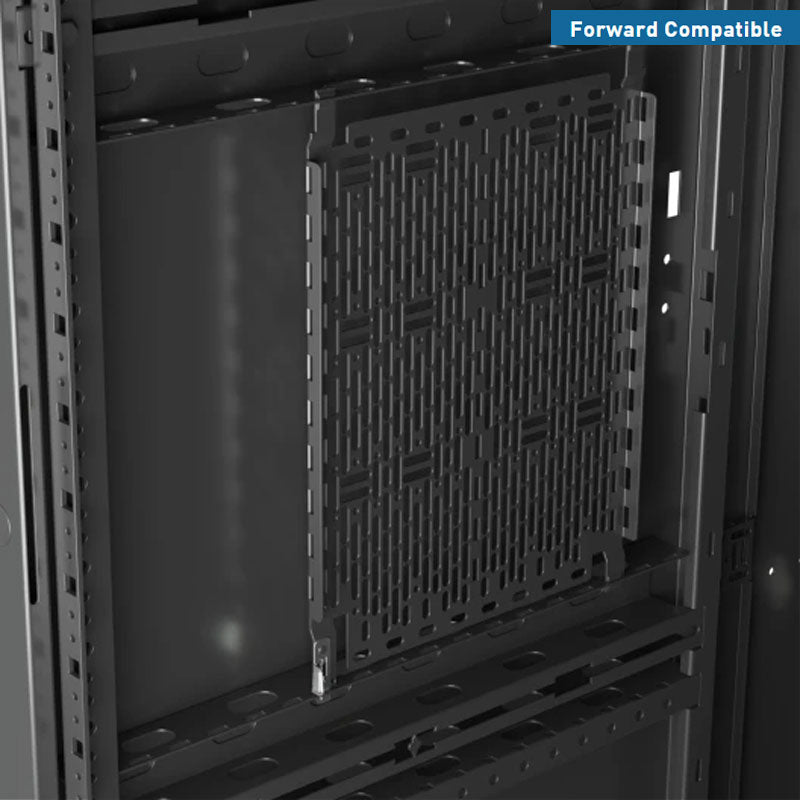

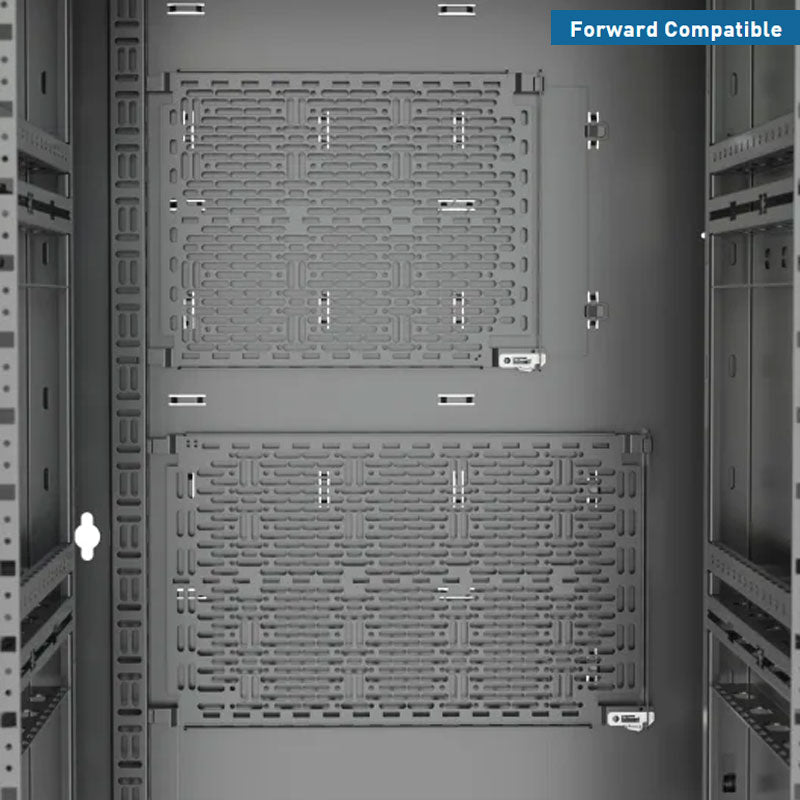

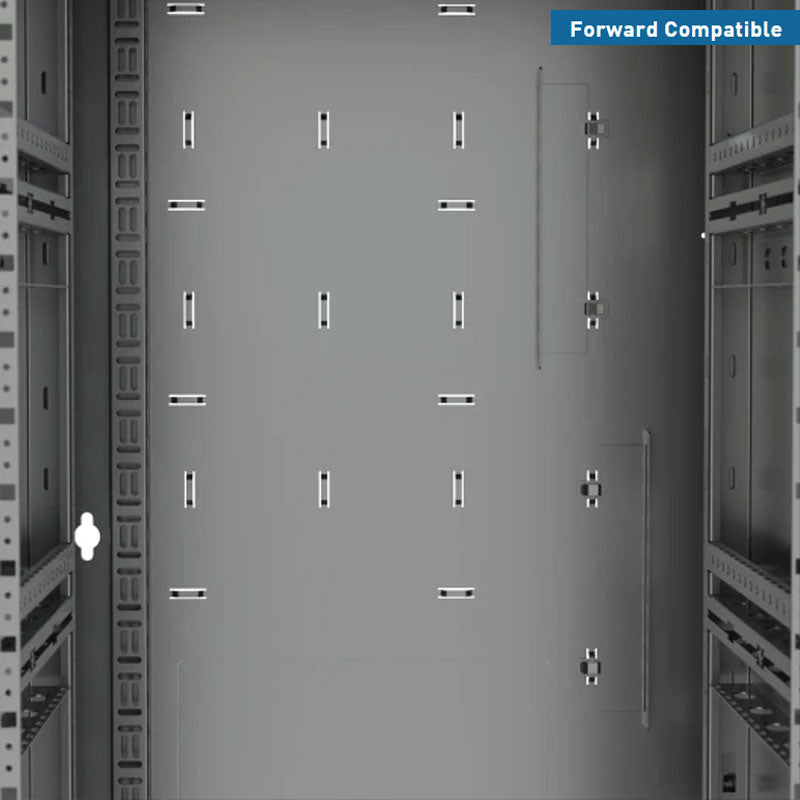

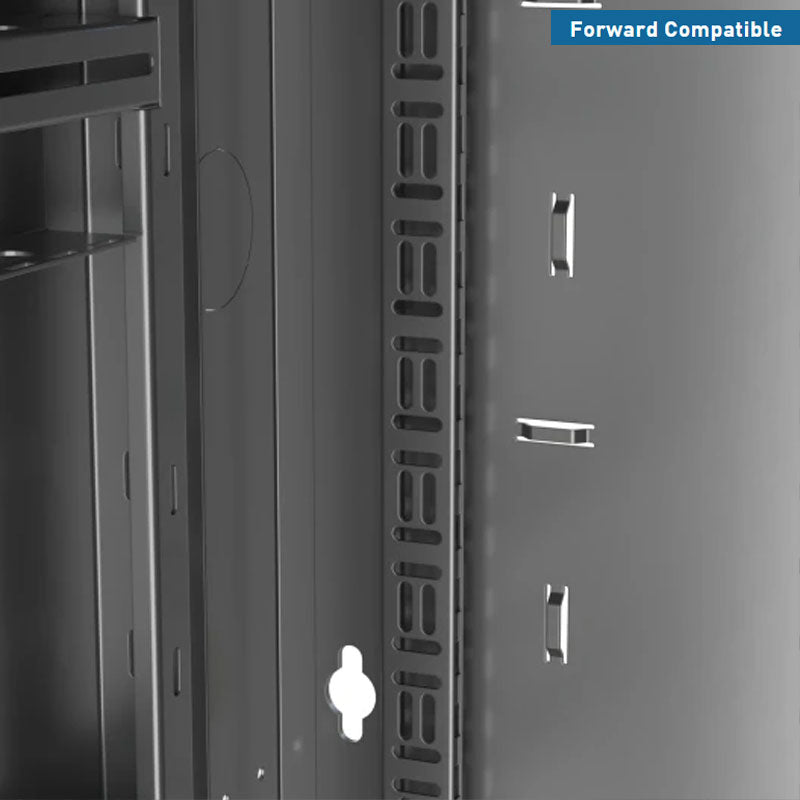

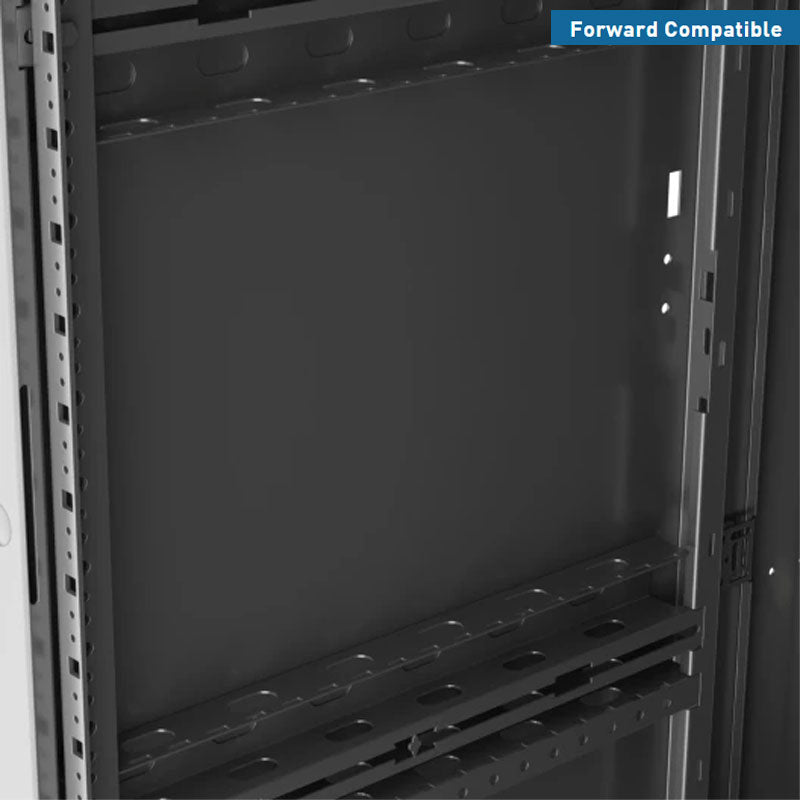

• Now accept patented Lever Lock™ tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)

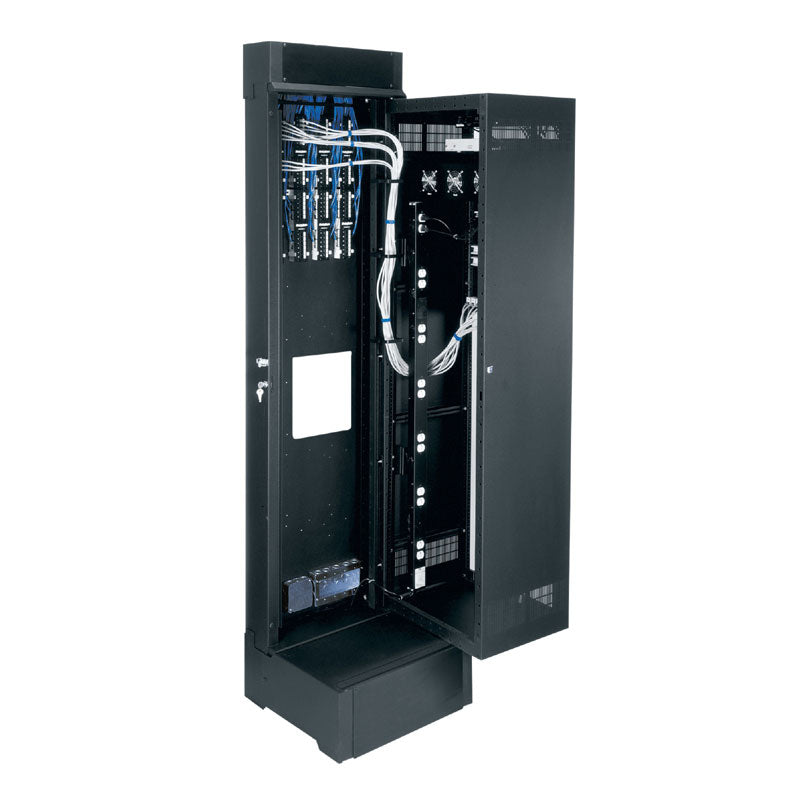

• Innovative design allows the rack to pivot open 90° on a floor base to provide quick and convenient access to rear equipment connections eliminating the need for an aisle behind the rack

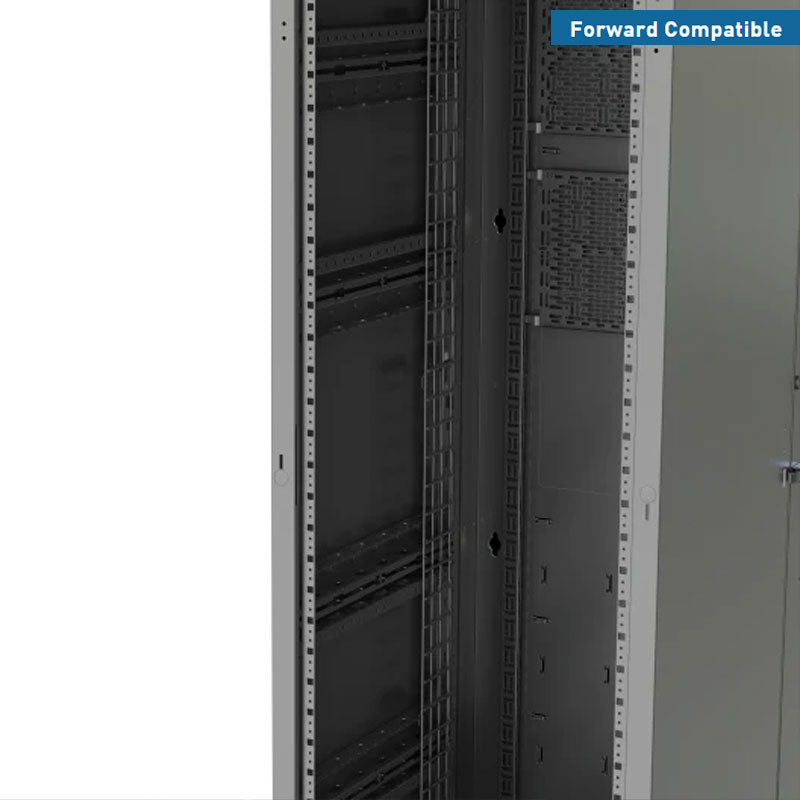

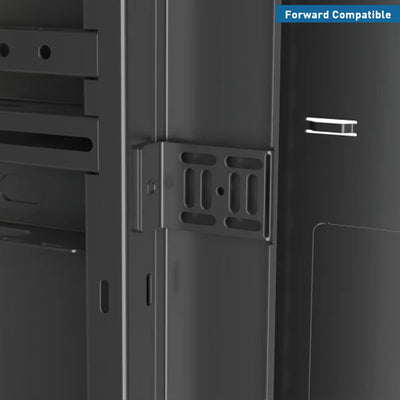

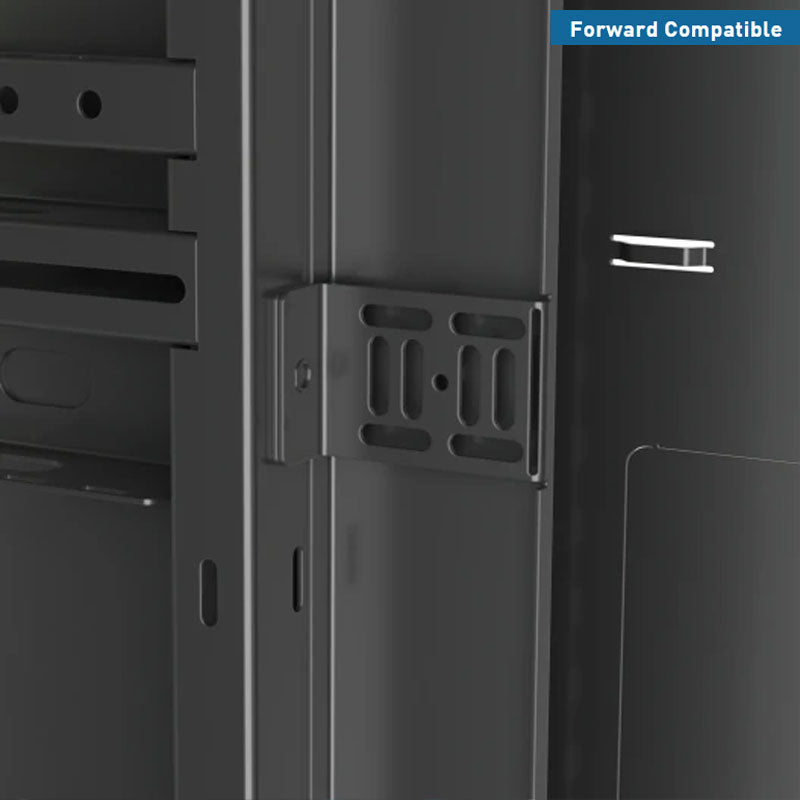

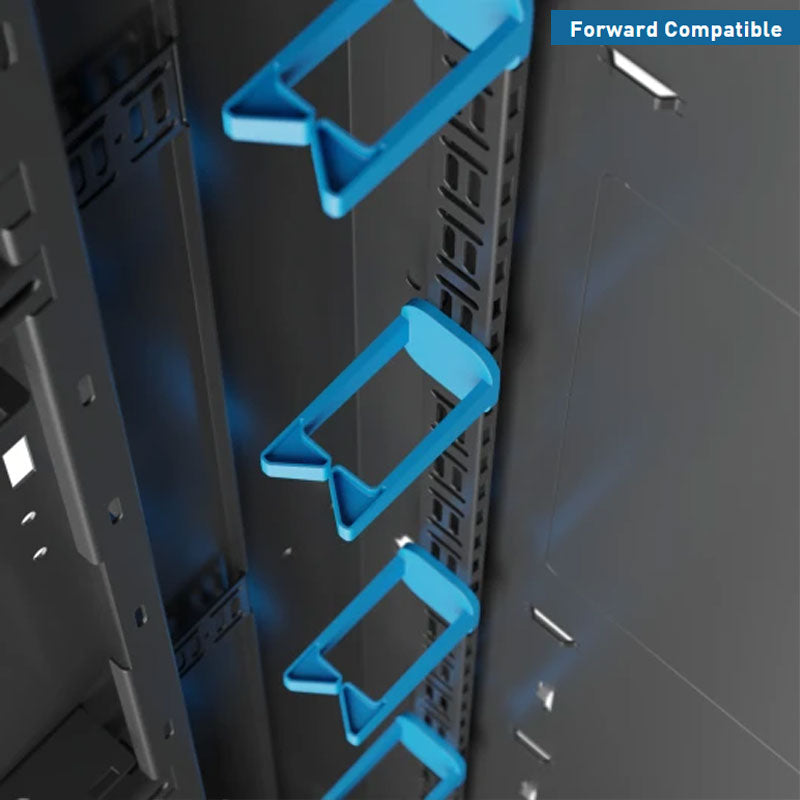

• New and improved rackrail brackets not only accommodate Lever Lock in the center section but all Forward Drop-In Accessories like vertical cable management and utility lighting
• "Bonus" 4 rackspaces in base for mounting a UPS or other equipment
• Additional 3 rackspaces at the top for patching and other small equipment mountingTool-free Quick-Mount™ system allows for easy mounting of the center section to the backpan on the job site
• Center section rear channel accommodates optional slim power to save space, including Select Vertical PDU with RackLink™
• Optional minimum-clearance latch allows side-by-side or corner mounting to save room
• Reversible padlockable center section is keyed differently from optional front door for security
• Bottom cable entry platform provides attractive shroud to conceal conduit stubs

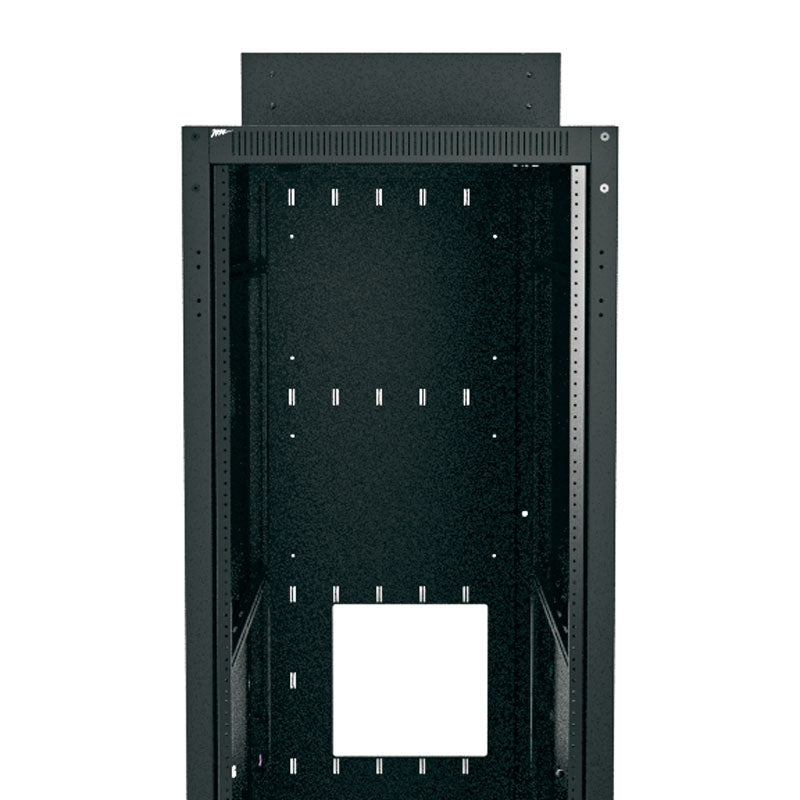

• Easily removable laser knockouts accommodate conduit, UHF/VHF antennas, Wiremold® 4000 Series raceways, Middle Atlantic Universal Connector Panels
• Grounding/bonding stud in top and bottom of center section and backpan facilitates proper grounding and bonding of electronic equipment, as per NEBS and NEC standards
• Finished in a durable black textured powder coat
• UL Listed in the US and Canada
• Seismic certified (when used with DWRSR-ZL latch) with an Importance factor (Ip) value of 1.5

• GREENGUARD Gold Certified
• Usable Depth: 25.5 in (64.8 cm)
• UL Load Capacity: 500 lbs (226.8 kg)
• Seismic Load Capacity: 335
• Certifications: CSA Standard, TAA, UL Listed
