Peerless-AV Full Service Video Wall Mount (Black) DS-VW765-LAND

Name: Peerless-AV Full Service Video Wall Mount (Black) DS-VW765-LAND
Brand: PEERLESS-AV
SKU: PEER-DS-VW765-LAND
Price: 759.00 USD
Availability: InStock

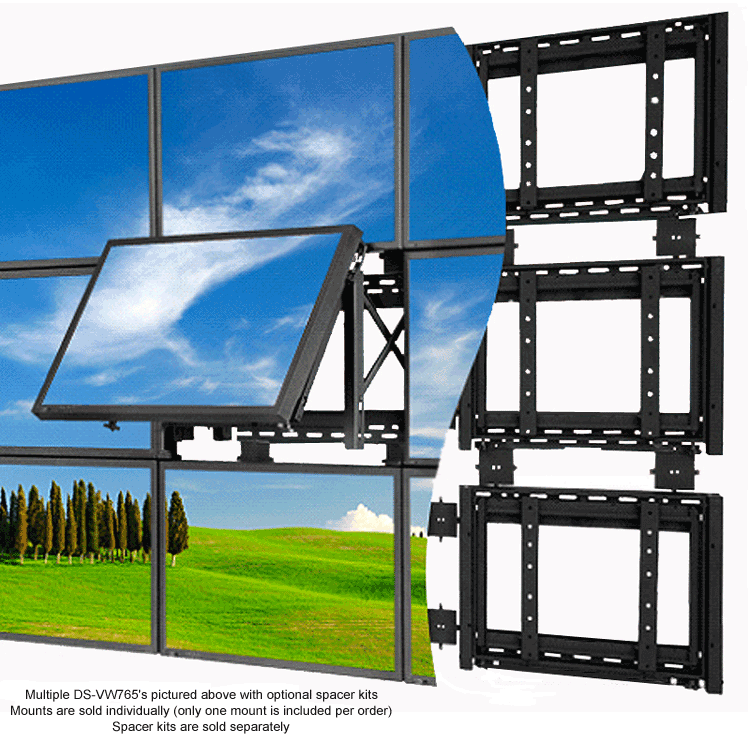

Peerless Full Service Video Wall Mount for 40-65 inch Screens (Black) DS-VW765-LAND

Peerless-AV Full Service Video Wall Mount (Black) DS-VW765-LAND

Mfg Part # DS-VW765-LAND

SKU # PEER-DS-VW765-LAND

In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.

$759.00 $865.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Email Us

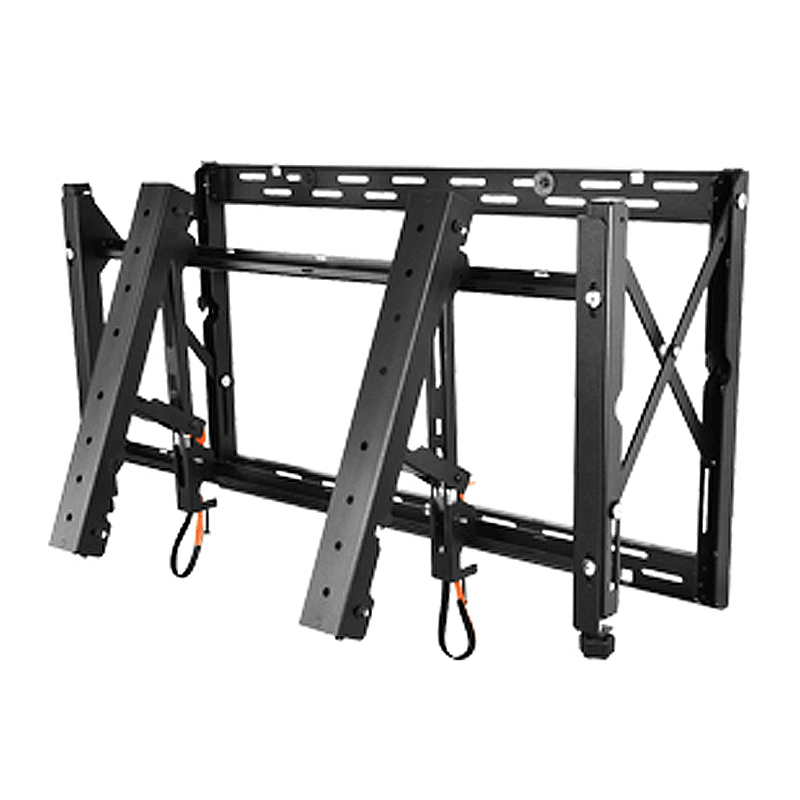

The Peerless DS-VW765-LAND video wall mount features:

Fits 40-65" displays up to 125lbs with VESA mounting patterns from 200x200mm to 700x400mm
Modular mount for unlimited video wall display configurations

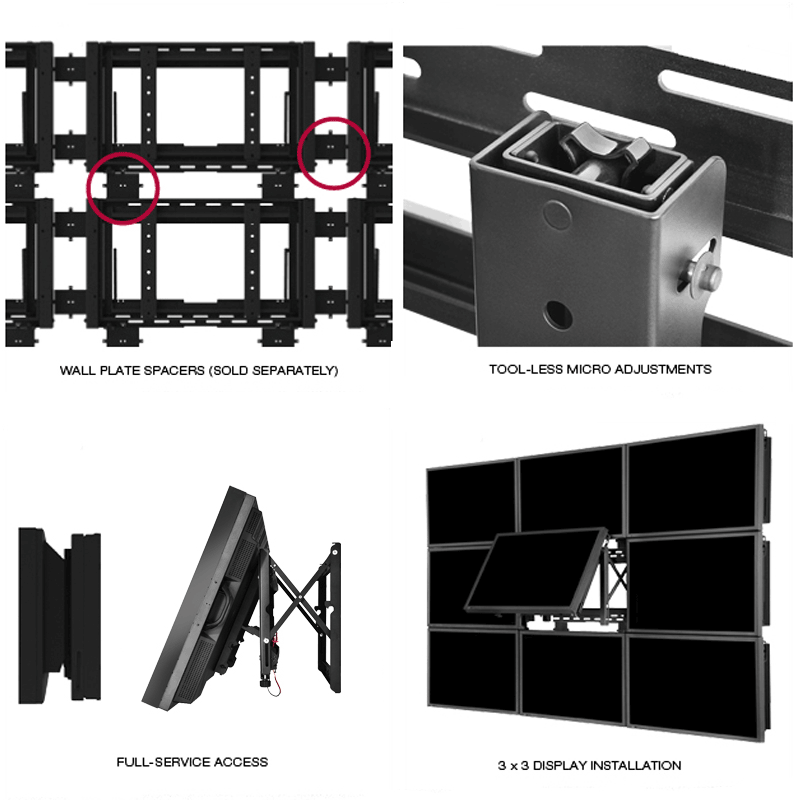

Custom wall plate spacers eliminate the guesswork and on-site installation calculations (sold separately)
Tool-less micro-adjustments at 8 points seamlessly align the displays
Displays click securely into place against the wall with spring-loaded mechanism
Displays and mounts sit flush against the wall for a clean side appearance
Snug fit at the attachment point to the display's mounting hole pattern ensures that each display as it is hung in succession is aligned at the same point
Innovative pull-out/prop-open mechanism provides quick service access
Integrated cable management tie-backs make display-to-display cabling simple
Security hardware prevents the mount from extending out from the wall
Landscape display orientation
Includes hardware for installation to wood, concrete or cinder block
Supports displays up to 125lb (56.8kg)
Adjustable VESA® mounting hole patterns in 100mm increments, starting at 200 x 200mm up to 700 x 400mm
Additional patterns supported with PLP adapter plates (see "Related Products" below for more information)

Help Files

No PDF help files available for this product

Important Notice

** Sold individually, Price is per mount. DS-VWS spacers are also recommended and sold separately (available for commercial grade screens only). See "Related Products" below for more information or call our Sales Team.

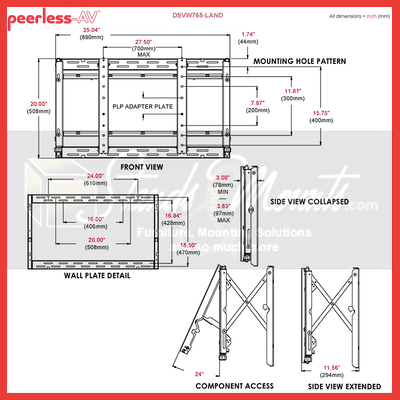

Product Details and Specifications

Height:

20.00 in.

Width:

35.04 in

Depth:

3.08 - 3.83 in

Weight:

39 lb (18kg),

Weight Capacity:

125 lb (56.8kg),

Color(s):

Black,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Mount Placement:

Wall,

Model Number:

DS-VW765-LAND,

Ship Weight:

43 lb (19.57kg)

Orientation:

Landscape,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 700 x 400 mm,
