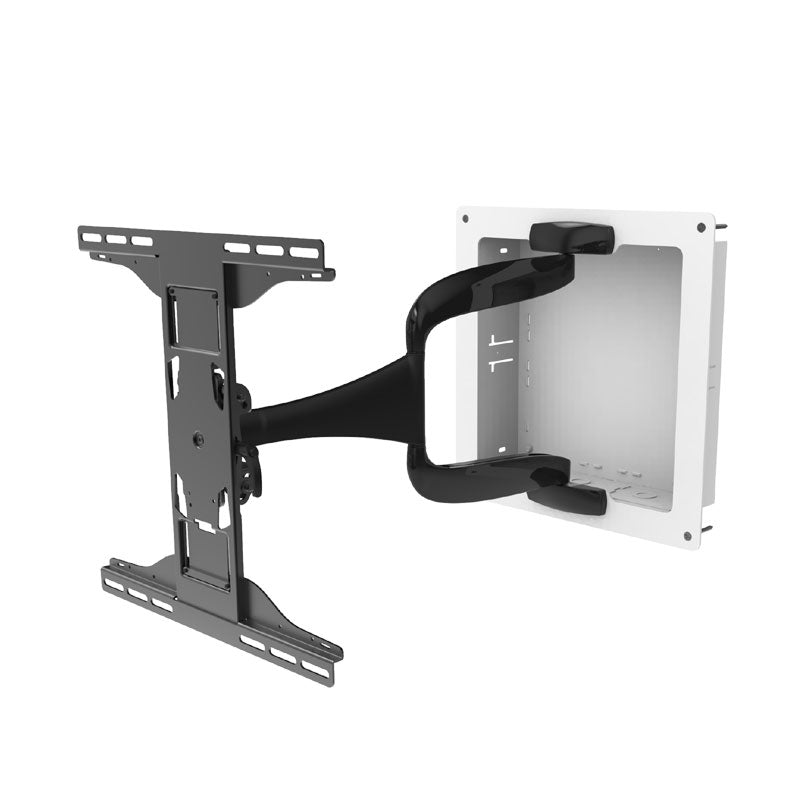

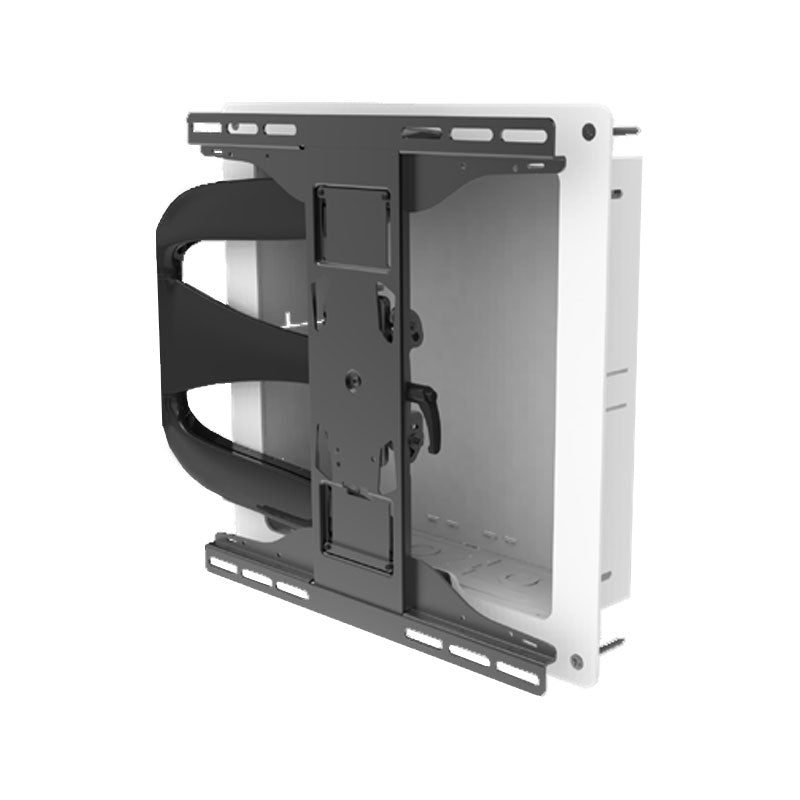

Peerless-AV Large Designer Articulating TV Mount (In-Wall Box) IM747PU

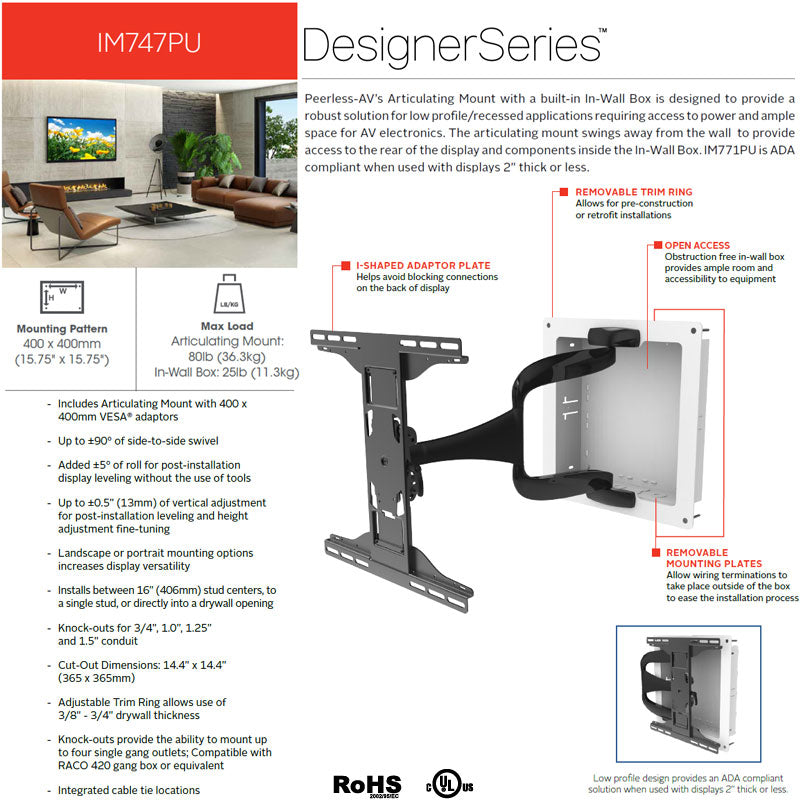

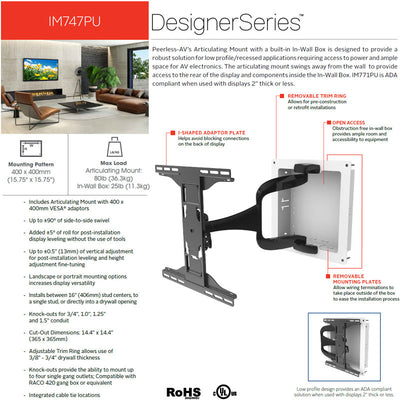

One of the world's thinnest articulating TV wall mount, the Peerless Designer Series is specifically designed for ultra-thin LED TVs and offers a sleek, sophisticated aesthetic for office spaces, conference centers, retail spaces and home theaters. It features:

• Fits ultra-thin displays with mounting patterns up to 400x400mm
• VESA compatible: 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm

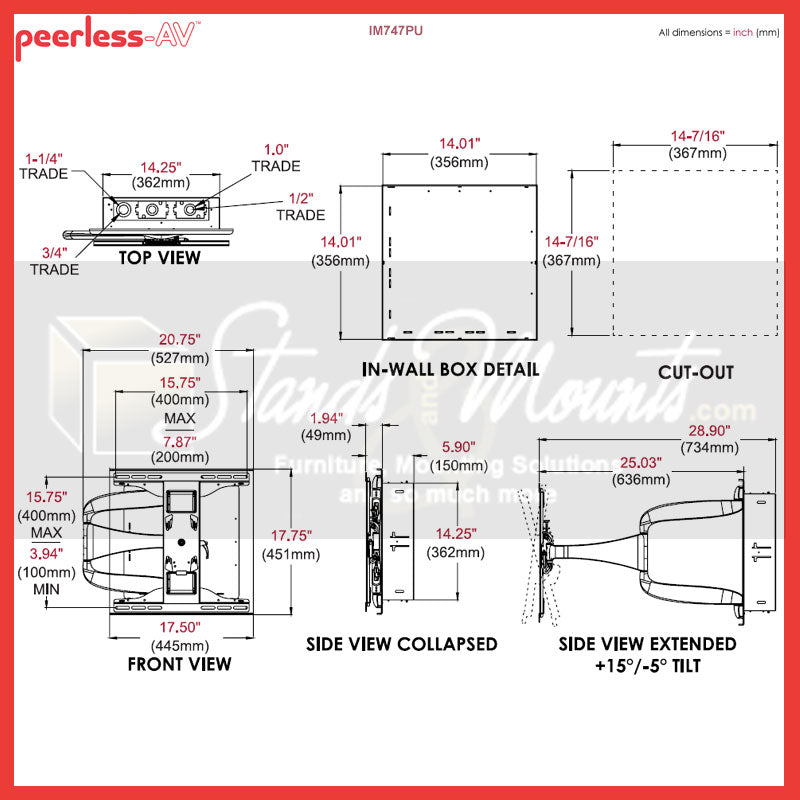

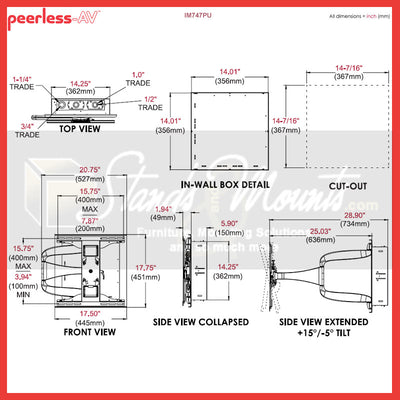

• Arms retract to 1.94" (49mm) and extend up to 25.03" (636mm) from the wall
• One-touch tilt, +15/-5&deg allows for ideal viewing angles without the use of tools
• Up to ±90&deg of side-to-side swivel
• ±5 degree of roll offers a simple way to horizontally level the display
• Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
• Landscape or portrait mounting options increases display versatility
• The I-Shaped Adaptor plate's innovative design helps avoid blocking connections on back of display
• Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
• Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit
• Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
• Knock-outs provide the ability to mount up to four single gang outlets.
• Compatible with RACO 420 gang box or equivalent.
• Integrated cable tie locations

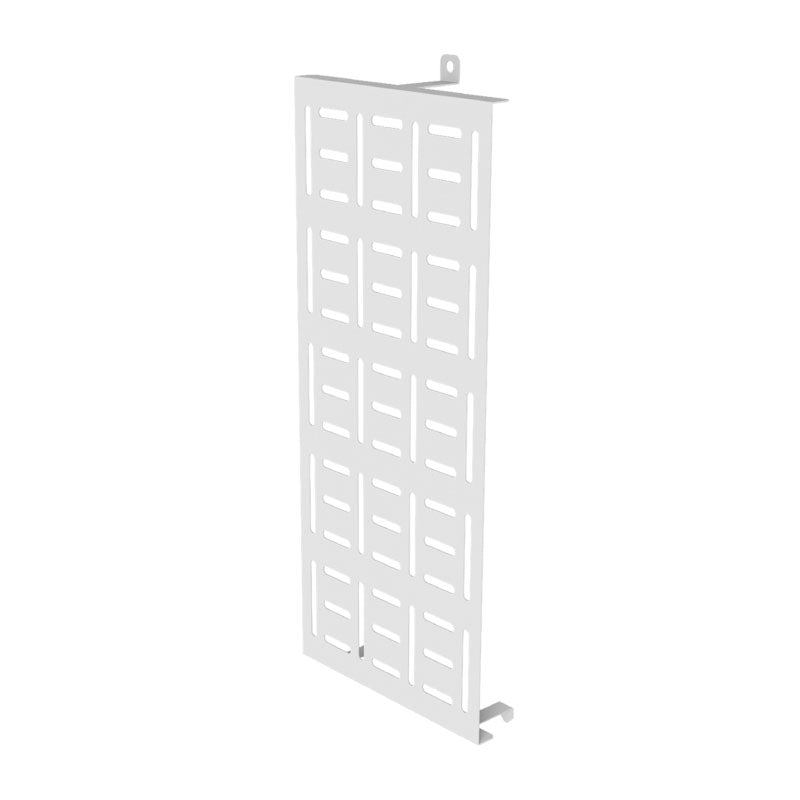

• Media plate accessory available separately (IBMP)

Recommended for:

• 37-65+" ultra-thin flat screens up to 3" deep and 80 lbs with mounting patterns up to 400x400mm.

PLEASE NOTE: This mount is designed exclusively for use with ultrathin screens 3" (76 mm) deep or less.
