Peerless-AV SmartMount XL Tilt TV Mount (Universal, Portrait) STP680

Peerless-AV SmartMount XL Tilt TV Mount (Universal, Portrait) STP680

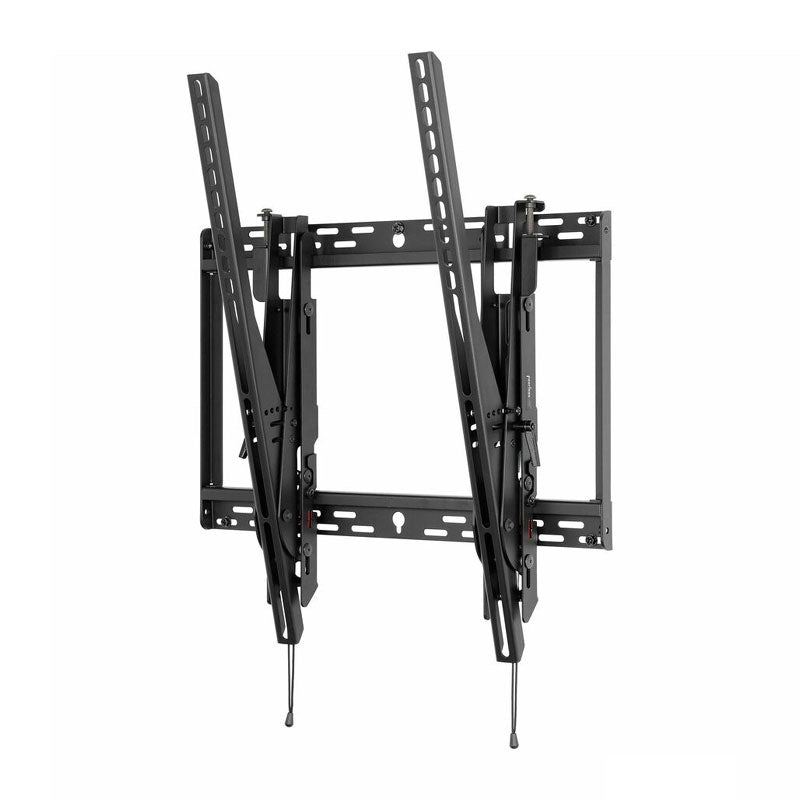

Peerless-AV SmartMount XL Tilt TV Mount STP680, tilting wall mount front view

Peerless-AV SmartMount XL Tilt TV Mount (Universal, Portrait) STP680

Mfg Part # STP680

SKU # PEER-STP680

In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.

$279.00 $389.00

View Current Discounts and Promotions

Ask The Experts

Peerless's SmartMount® tilt portrait wall mounts feature:

Fits 46-90" flat screens up to 350 lbs. with mounting patterns up to 455mm x 650mm
Adjustable up to 15° of forward tilt and -5° of backward tilt for the optimal viewing angle
Optional IncreLok™ feature offers fixed tilt angles of -5°, 0°, 5°, 10°, 15°
Horizontal display adjustment up to 1.63" (41mm) for centering display on wall
1" of post-installation vertical adjustment provides flexibility in the installation
All necessary hardware for single wood stud and concrete installations
Design is UL listed and tested to four times stated load capacity
Security screws provided deter tampering and theft

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

26.50 in.

Width:

22.00 in

Depth:

03.38 -10.58 in.

Weight:

13.78lb (6.3kg),

Weight Capacity:

350 lbs. (158kg),

Color(s):

Black,

Range of Screens Supported:

43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in., 81 to 90 in., Over 91 in.,

Mount Placement:

Wall,

Model Number:

STP680,

Ship Weight:

14.95 lbs (6.78kg)

Tilt:

-15/+5 degrees,

Orientation:

Portrait,

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm,

Range of Screens Supported:

43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in., 81 to 90 in., Over 91 in.,

Adjustability of Mount:

Fixed Flat,

Stud Placement:

Dual Stud or More,

Special Features of Mounts:

Vertical Orientation,

Use of Mount:

Monitor or TV,

Specific Mounting Patterns:

Up to 455mm x 650mm,
