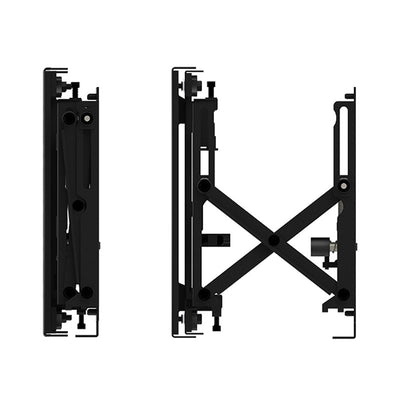

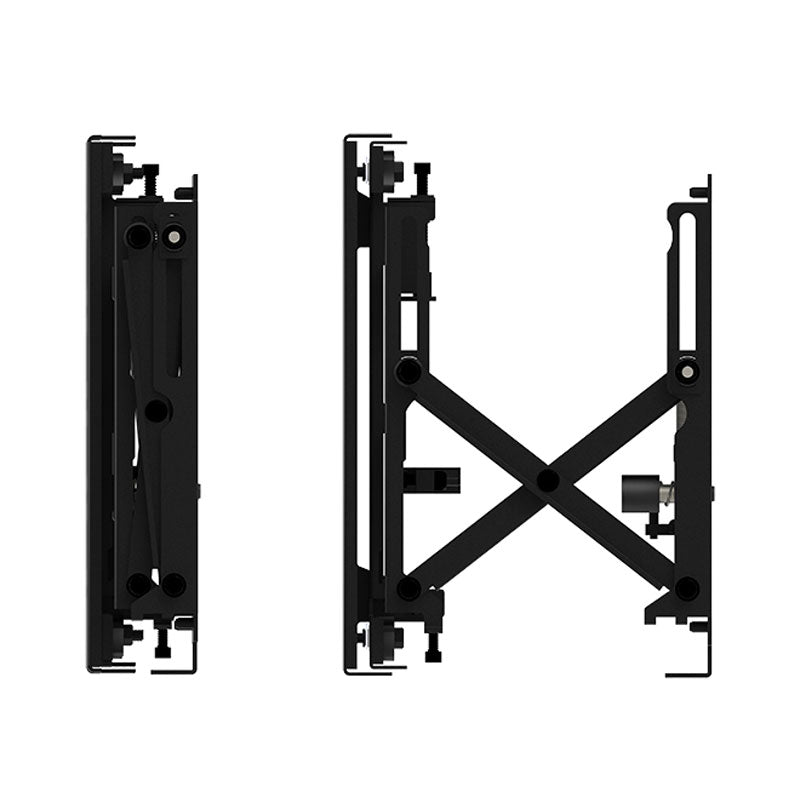

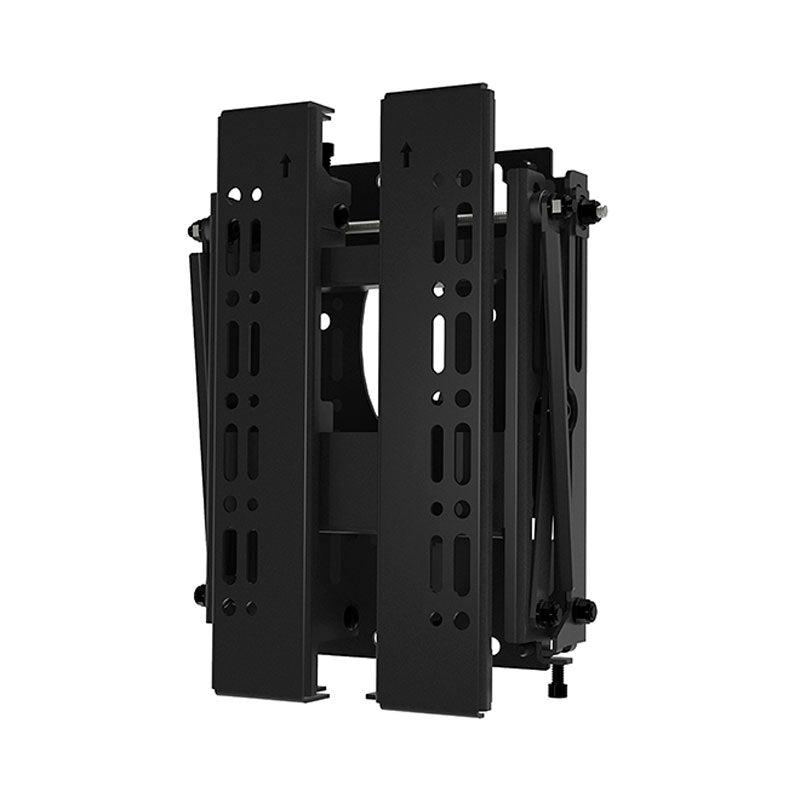

B-Tech Medium Pop-Out TV Wall Mount (Micro Adjust) BT8309/B

The BT8309 is designed for the installation of small to medium flat screens into recessed walls. It also features:

• Recommended screen size: up to 42 in. with mounting patterns up to 200 x 200mm

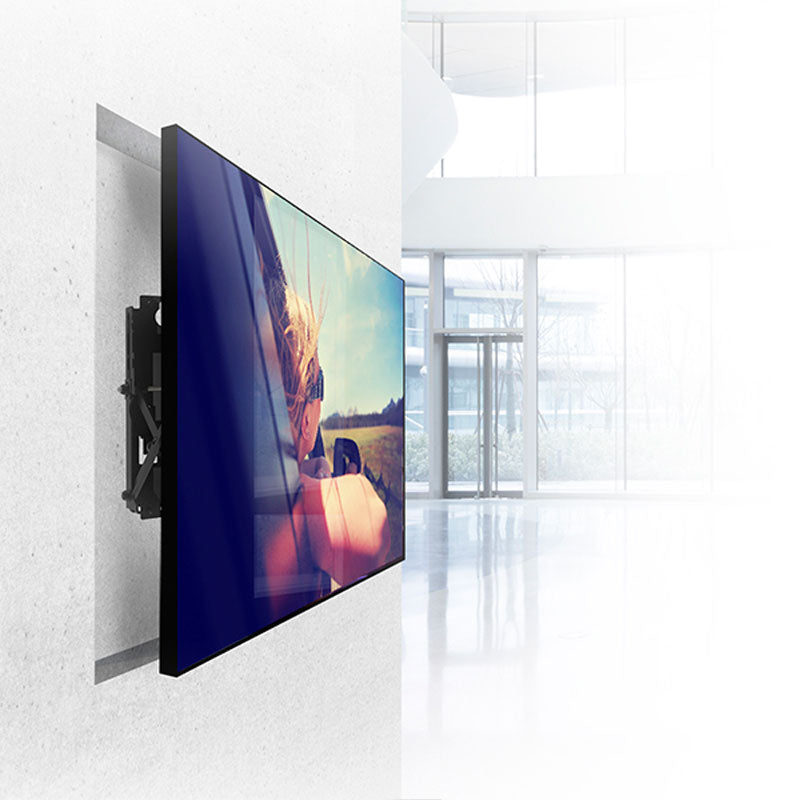

• Perfect solution for mounting screens into a recessed wall
• Can also be used to create video wall installations
• Push to open / push to close system provides quick and easy service access
• Micro-adjustment of +/-0.24" (6mm) at each corner for seamless display alignment
• Suitable for landscape or portrait screen mounting

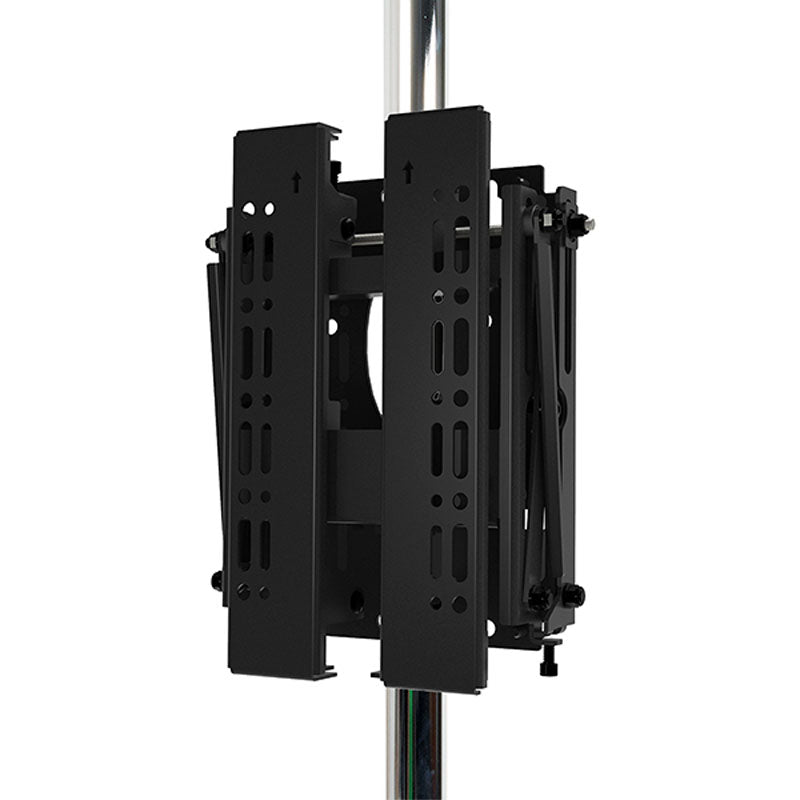

• Suitable for both wall or pole mounting (requires BT7841 accessory collar - sold separately)
• Keyhole mounting for quick and easy installation
• Leveling screws allow adjustment of screen height
• Integrated locking mechanism prevents accidental pop-out of mount
• Integrated cable management
• 'Hook-on' installation with all mounting hardware included

• Max load: 55lbs. (25kg)
• VESA® compatibility: up to 200 x 200mm
• Flat to wall depth: 2.9" (73mm) (+/-0.2" (6mm) micro-adjustment)
• Popped out depth: 7.5" (191mm) (+/-0.2" (6mm) micro-adjustment)*
• Screen height adjustment: +0.5" (12mm)

*Please note using the included Interface Adaptor Arms to mount VESA 200 x 200 screens will increase the total depth of the product by 0.15" (4mm ), for a total depth of: 3" (77mm) or 7.7" (195mm) while popped out.
