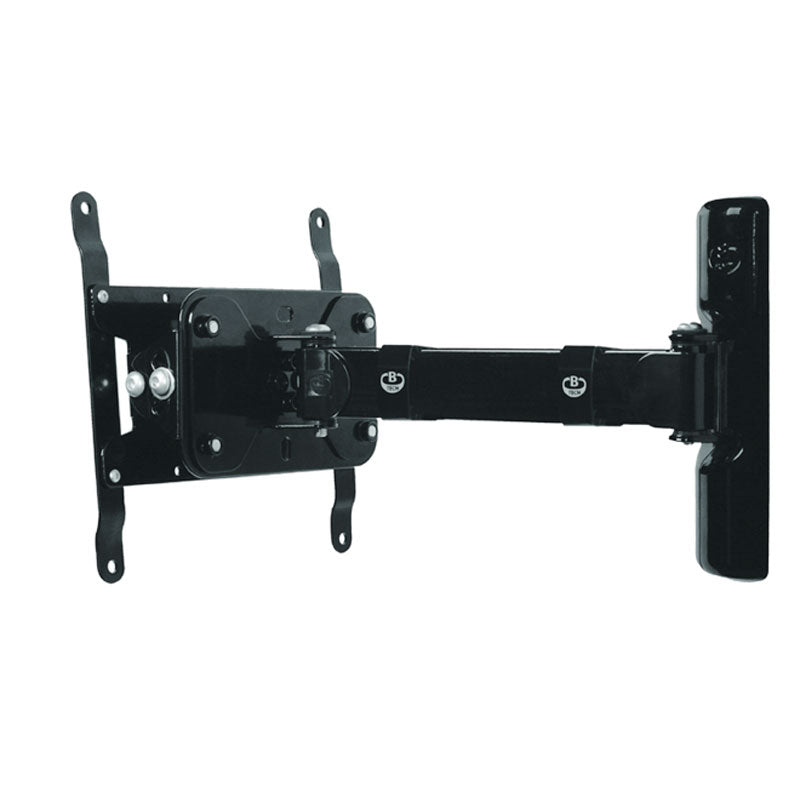

B-Tech Medium Single Arm TV Wall Mount (VESA 200) BT7514/PB

B-Tech Medium Single Arm TV Wall Mount BT7514/PB

B-Tech Medium Single Arm TV Wall Mount (VESA 200) BT7514/PB

$107.00 $127.00
Skip to product information
B-Tech Medium Single Arm TV Wall Mount BT7514/PB
  • B-Tech Medium Single Arm TV Wall Mount BT7514/PB

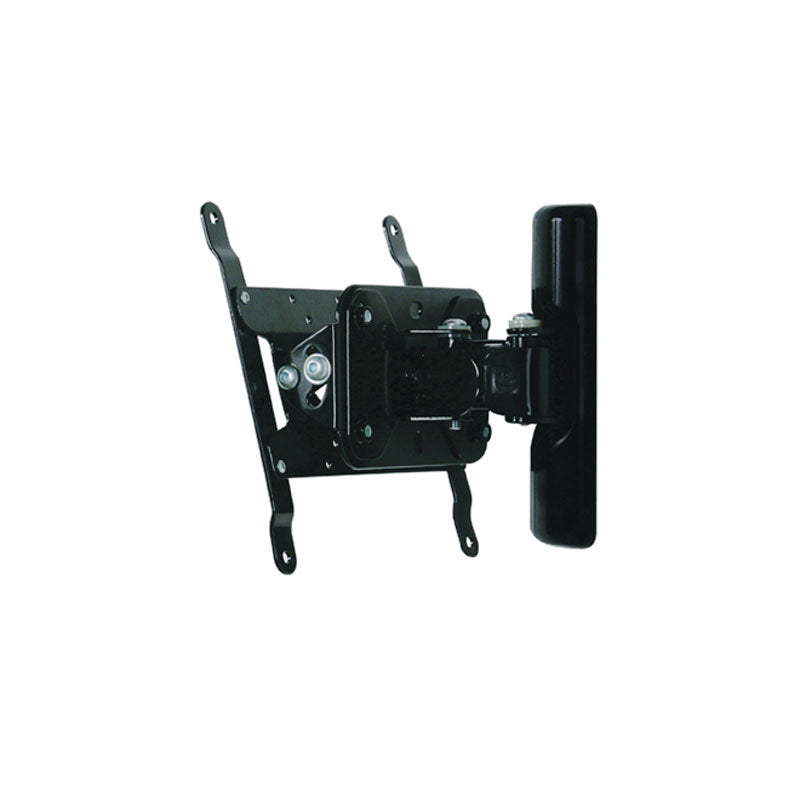

  • B-Tech Medium Single Arm TV Wall Mount BT7514/PB, articulating TV wall mount front view

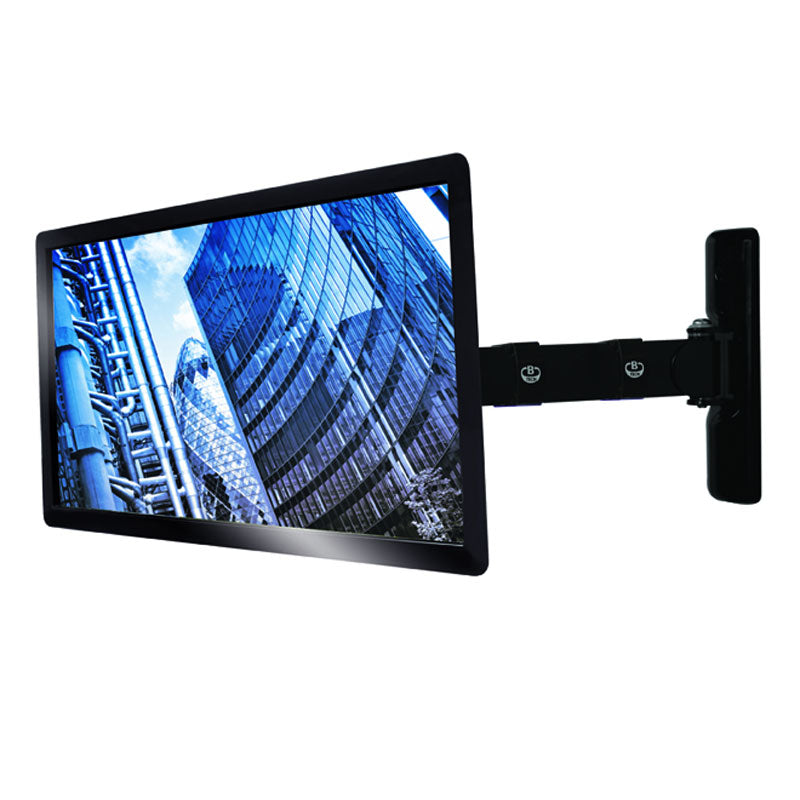

  • B-Tech Medium Single Arm TV Wall Mount BT7514/PB, articulating TV wall mount installed extended view

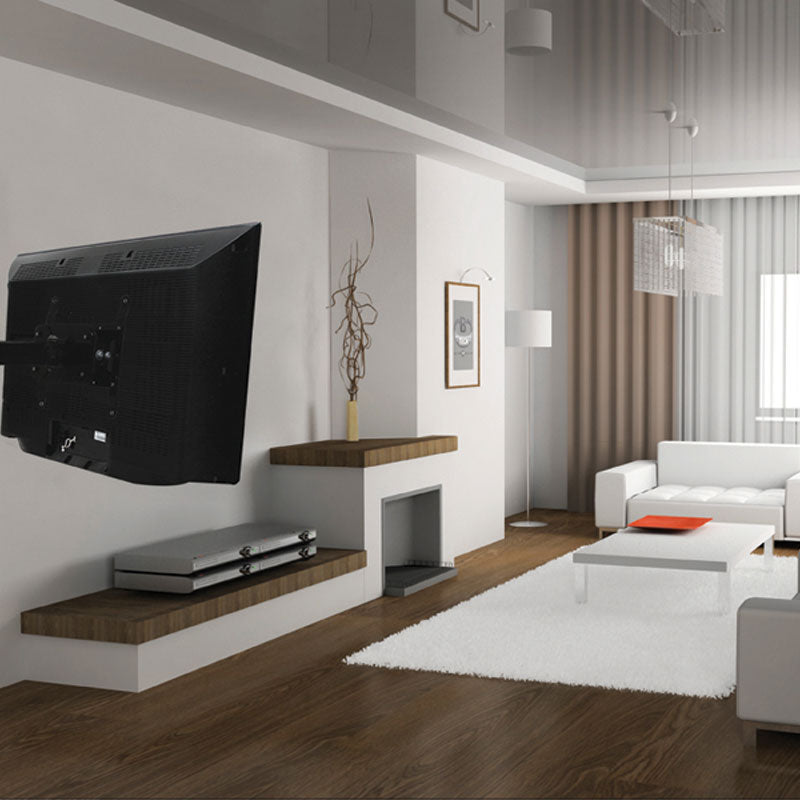

  • B-Tech Medium Single Arm TV Wall Mount BT7514/PB, articulating TV wall mount installed rear view
  • B-Tech Medium Single Arm TV Wall Mount BT7514/PB, articulating TV wall mount dimensions diagram
B-Tech Medium Single Arm TV Wall Mount (VESA 200) BT7514/PB

Mfg Part # BT7514/PB
SKU # BTECH-BT7514/PB
B-Tech Mounts Certified Experts Authorized Partner logo
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$107.00 $127.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

The B-Tech Articulating TV Wall Mount is designed to mount mid-size flat screens with easy tilt and swivel adjustment. It features:

  • Recommended screen size: up to 47 in. with mounting patterns up to 200 x 200mm
  • Two swivel points: 180° at wall and 240° at interface
  • Easy tilt and swivel adjustment
  • Features 'OWLS' On Wall Leveling System
  • CLIPLOGIC™ cable management included
  • Compatible with B-Tech range of poles and collars
  • Mounts to B-Tech BT7850 poles using x2 BT7841 Collars
  • Security locking screws and Allen key provided help prevent unauthorized removal of the screen
  • Simple 'hook-on' installation
  • Cover plates included for a neat and tidy installation
  • All mounting hardware included
  • Max load: 55lbs (25kg)
  • Tilt: +/-40°
  • Swivel at wall: 180°
  • Distance from Wall: 03.11" - 15.17" (95-336mm)

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

07.76 in.

Width:

14.69 in.

Depth:

03.74 - 13.23 in.

Weight Capacity:

55lbs (25kg),

Color(s):

Black,

Range of Screens Supported:

28 to 32 in., 33 to 38 in., 39 to 42 in., 43 to 50 in.,

Mount Placement:

Wall,

Model Number:

BT7514/PB,

Tilt:

+/-40 deg.,

Orientation:

Landscape,

Swivel:

180 deg.

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm,

Range of Screens Supported:

28 to 32 in., 33 to 38 in., 39 to 42 in., 43 to 50 in.,

Adjustability of Mount:

Tilt Up Down, Swivel Left Right,

Stud Placement:

Single Stud,

Use of Mount:

Monitor or TV,

Related Products

B-Tech Two-Piece Accessory Collar BT7841/B
On Sale

B-Tech Two-Piece Accessory Collar (50mm Poles) BT7841/B

B-Tech Two-Piece Accessory Collar (50mm Poles) BT7841/B
$42.00 $49.75
B-Tech System 2 Pole BT7850-050/B
On Sale

B-Tech System 2 Pole (50mm OD, 0.5M, Black) BT7850-050/B

B-Tech System 2 Pole (50mm OD, 0.5M, Black) BT7850-050/B
$26.00 $30.75
B-Tech System 2 Pole BT7850-100/B
On Sale

B-Tech System 2 Pole (50mm OD, 1M, Black) BT7850-100/B

B-Tech System 2 Pole (50mm OD, 1M, Black) BT7850-100/B
$45.00 $53.50
B-Tech System 2 Pole BT7850-150/B
On Sale

B-Tech System 2 Pole (50mm OD, 1.5M, Black) BT7850-150/B

B-Tech System 2 Pole (50mm OD, 1.5M, Black) BT7850-150/B
$62.00 $73.00
B-Tech System 2 Pole BT7850-200/B
On Sale

B-Tech System 2 Pole (50mm OD, 2M, Black) BT7850-200/B

B-Tech System 2 Pole (50mm OD, 2M, Black) BT7850-200/B
$83.00 $98.50
B-Tech System 2 Pole BT7850-300/B

B-Tech System 2 Pole (50mm OD, 3M, Black) BT7850-300/B

B-Tech System 2 Pole (50mm OD, 3M, Black) BT7850-300/B
$618.00
B-Tech System 2 Pole BT7850-050/W
On Sale

B-Tech System 2 Pole (50mm OD, 0.5M, White) BT7850-050/W

B-Tech System 2 Pole (50mm OD, 0.5M, White) BT7850-050/W
$26.00 $30.75
B-Tech System 2 Pole BT7850-100/W
On Sale

B-Tech System 2 Pole (50mm OD, 1M, White) BT7850-100/W

B-Tech System 2 Pole (50mm OD, 1M, White) BT7850-100/W
$45.00 $53.50
B-Tech System 2 Pole BT7850-150/W
On Sale

B-Tech System 2 Pole (50mm OD, 1.5M, White) BT7850-150/W

B-Tech System 2 Pole (50mm OD, 1.5M, White) BT7850-150/W
$62.00 $73.00

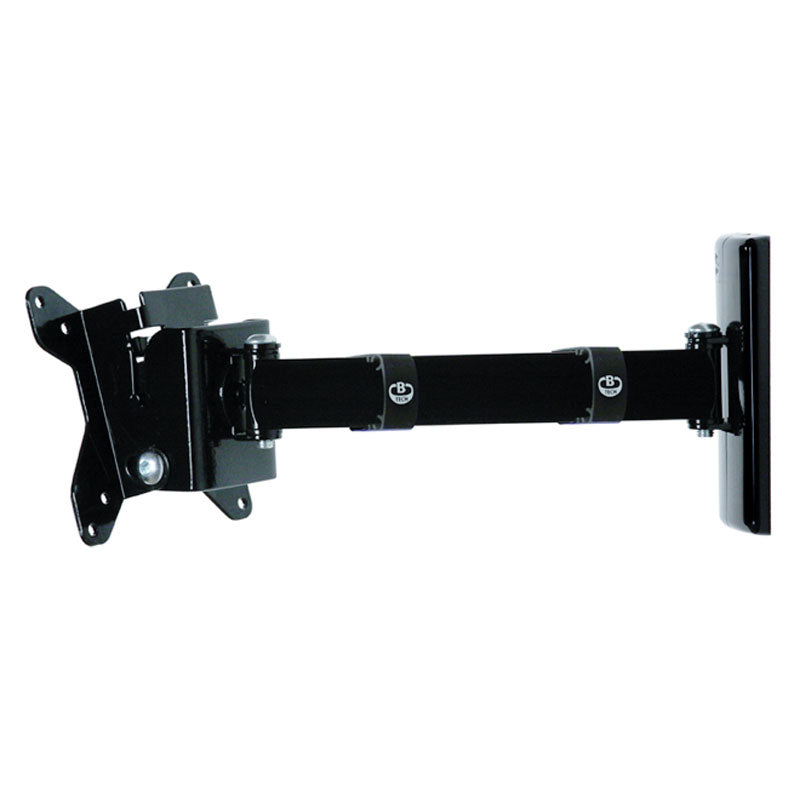

B-Tech Small Single Arm TV Wall Mount BT7512/PB
On Sale

B-Tech Small Single Arm TV Wall Mount (VESA 100) BT7512/PB

B-Tech Small Single Arm TV Wall Mount (VESA 100) BT7512/PB
$53.00 $63.50

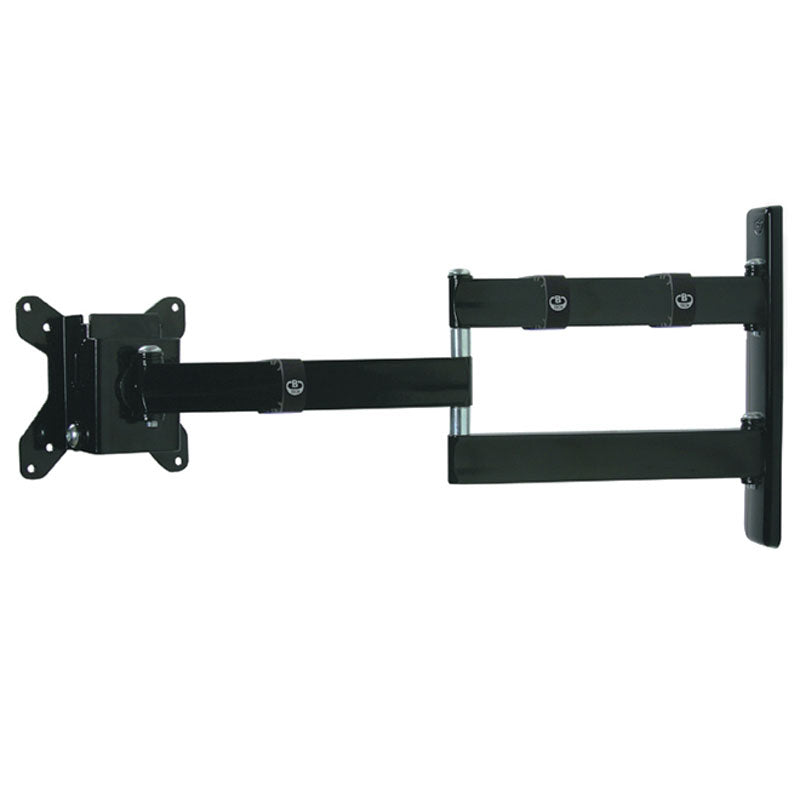

B-Tech Small Dual Arm TV Wall Mount BT7513/PB
On Sale

B-Tech Small Dual Arm TV Wall Mount (VESA 100) BT7513/PB

B-Tech Small Dual Arm TV Wall Mount (VESA 100) BT7513/PB
$90.00 $106.00

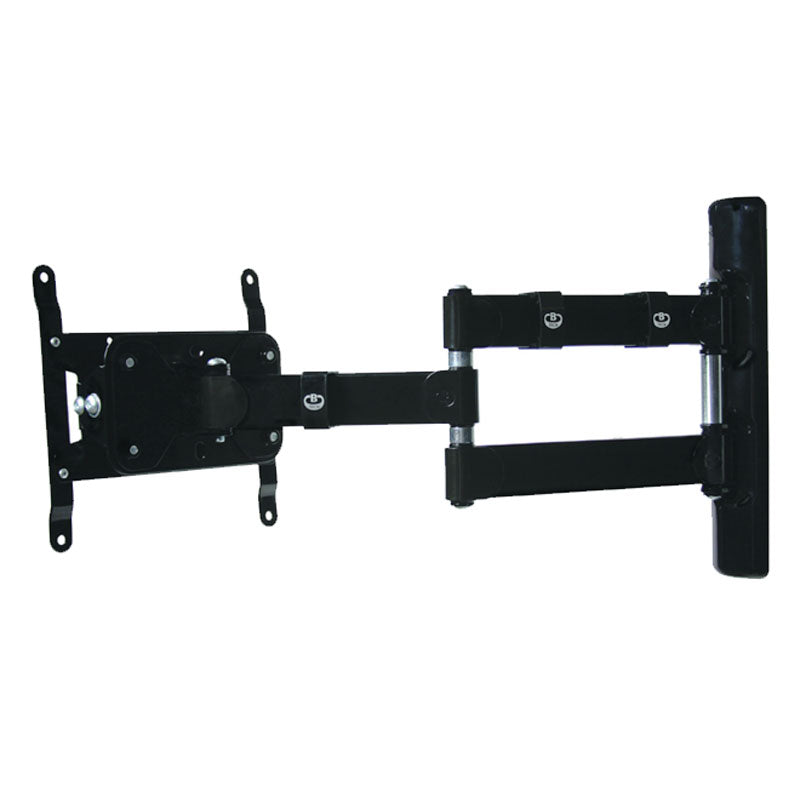

B-Tech Medium Dual Arm TV Wall Mount BT7515/PB
