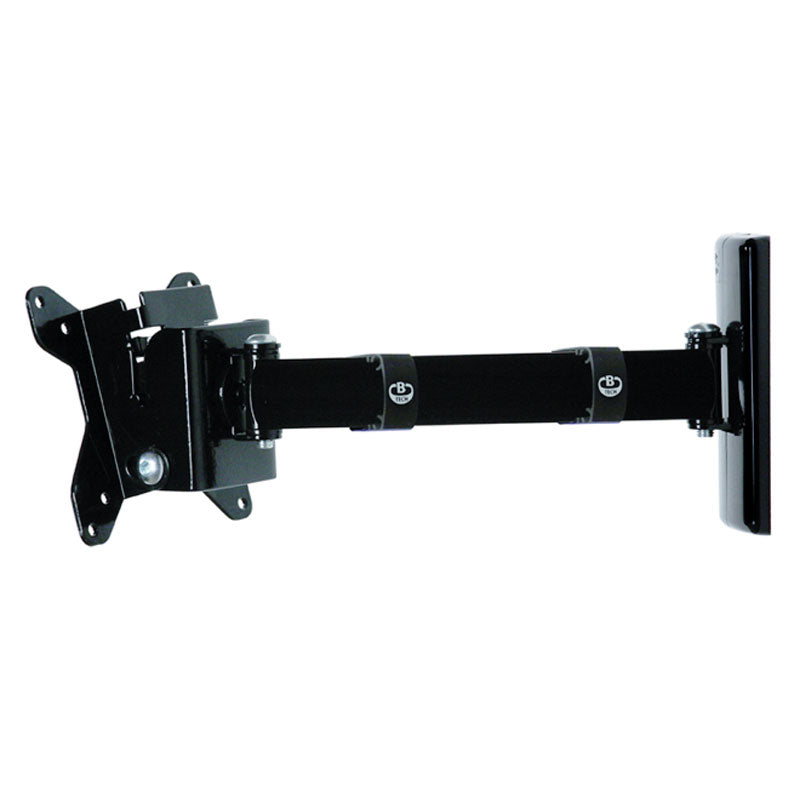

  • B-Tech Small Single Arm TV Wall Mount BT7512/PB

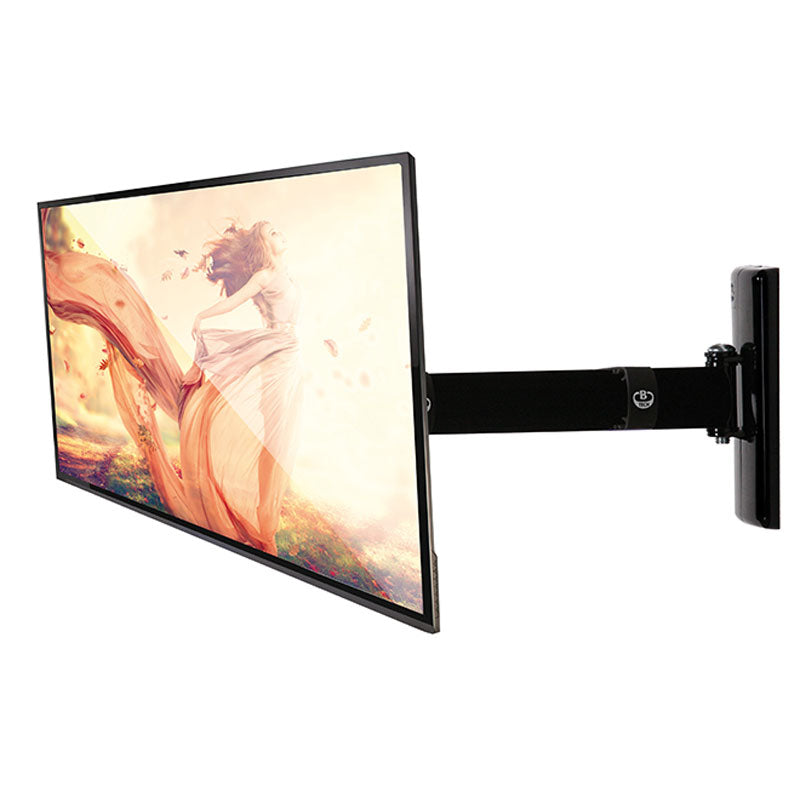

  • B-Tech Small Single Arm TV Wall Mount BT7512/PB, articulating wall mount extended with display

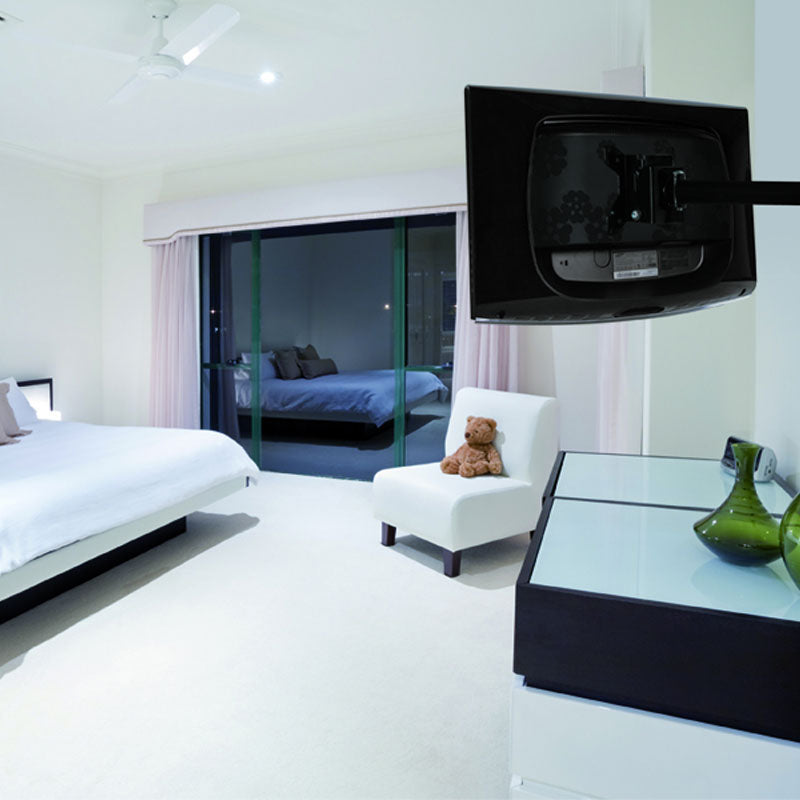

  • B-Tech Small Single Arm TV Wall Mount BT7512/PB, articulating wall mount rear view in living room

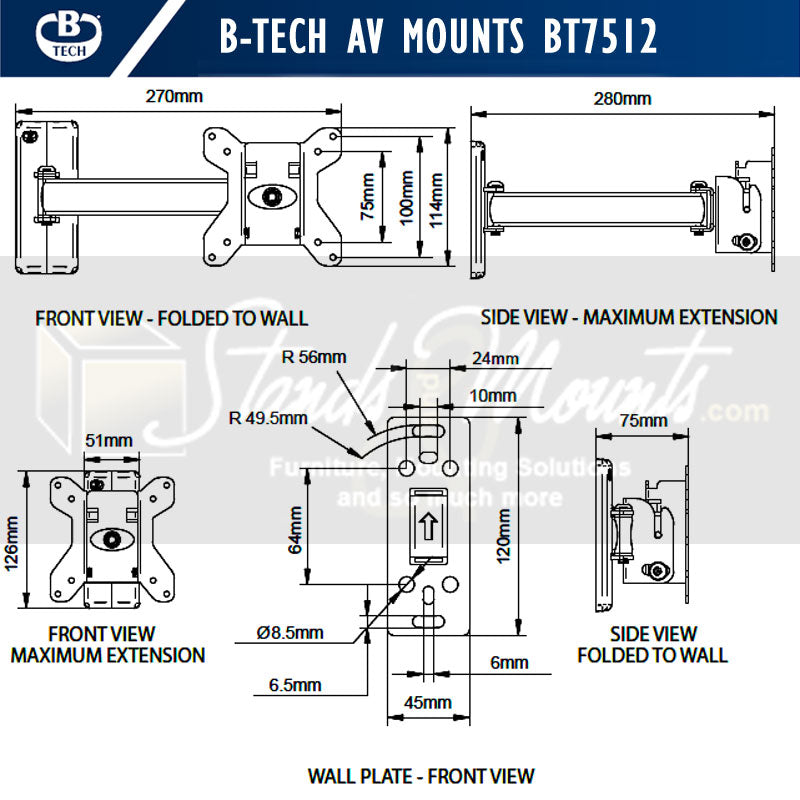

  • B-Tech Small Single Arm TV Wall Mount BT7512/PB, articulating display wall mount dimensions diagram
B-Tech Small Single Arm TV Wall Mount (VESA 100) BT7512/PB

Mfg Part # BT7512/PB
SKU # BTECH-BT7512/PB
B-Tech Mounts Certified Experts Authorized Partner logo
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$53.00 $63.50

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

The B-Tech Articulating TV Wall Mount is designed to mount small flat screen with easy tilt adjustment and a full 360° screen rotation for easy portrait or landscape mounting. It features:

  • Recommended screen size: up to 32 in. with mounting patterns up to 100 x 100mm
  • Easy tilt and swivel adjustment
  • Screen rotation allows screen to mounted in landscape or portrait orientation
  • Features 'OWLS' On Wall Leveling System
  • CLIPLOGIC™ cable management included
  • Compatible with B-Tech System 2 professional range
  • Mounts to B-Tech BT7850 poles using x2 BT7841 / BT7052 Collars
  • Security locking screws and Allen key provided help prevent unauthorized removal of the screen
  • Simple 'hook-on' installation
  • Cover plates included for a neat and tidy installation
  • All mounting hardware included
  • Max load: 33lbs (15kg)
  • Tilt: +17° / -10°
  • Swivel: 180°
  • Rotation: 360°
  • Distance from Wall: 02.95" - 11.02" (75-280mm)

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

04.96 in.

Width:

10.63 in.

Depth:

02.95 - 11.02 in.

Weight Capacity:

33lbs (15kg),

Color(s):

Black,

Range of Screens Supported:

10 to 20 in., 21 to 27 in., 28 to 32 in.,

Mount Placement:

Wall,

Model Number:

BT7512/PB,

Rotate:

360 deg,

Tilt:

+17 deg. - 10 deg.,

Orientation:

Landscape, Portrait,

Swivel:

180 deg.

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

75 x 75 mm, 100 x 100 mm,

Range of Screens Supported:

10 to 20 in., 21 to 27 in., 28 to 32 in.,

Adjustability of Mount:

Tilt Up Down, Vertical Rotation,

Stud Placement:

Single Stud,

Special Features of Mounts:

Rotates,

Use of Mount:

Monitor or TV,
