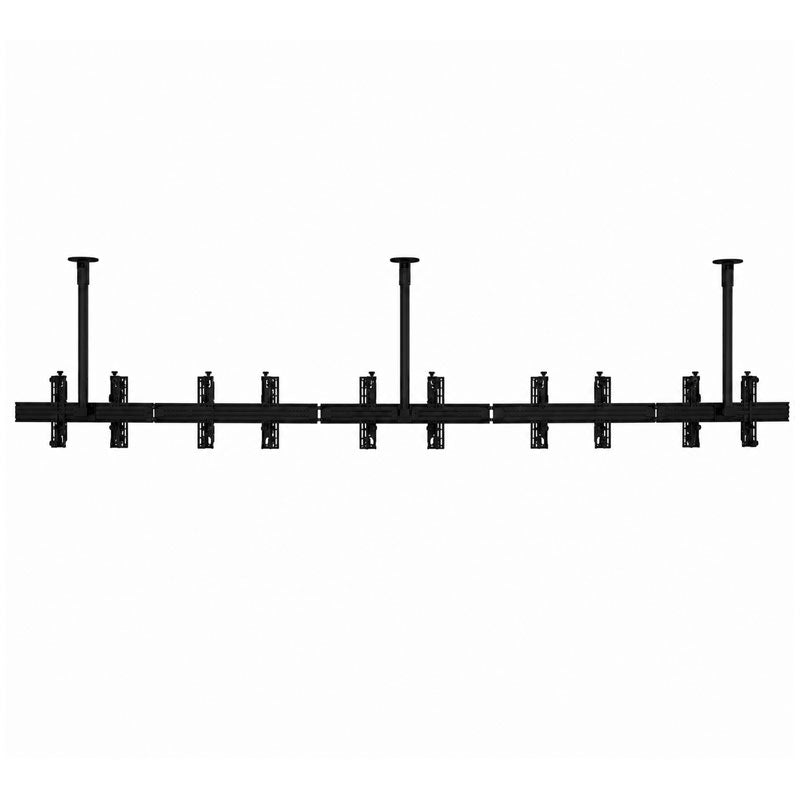

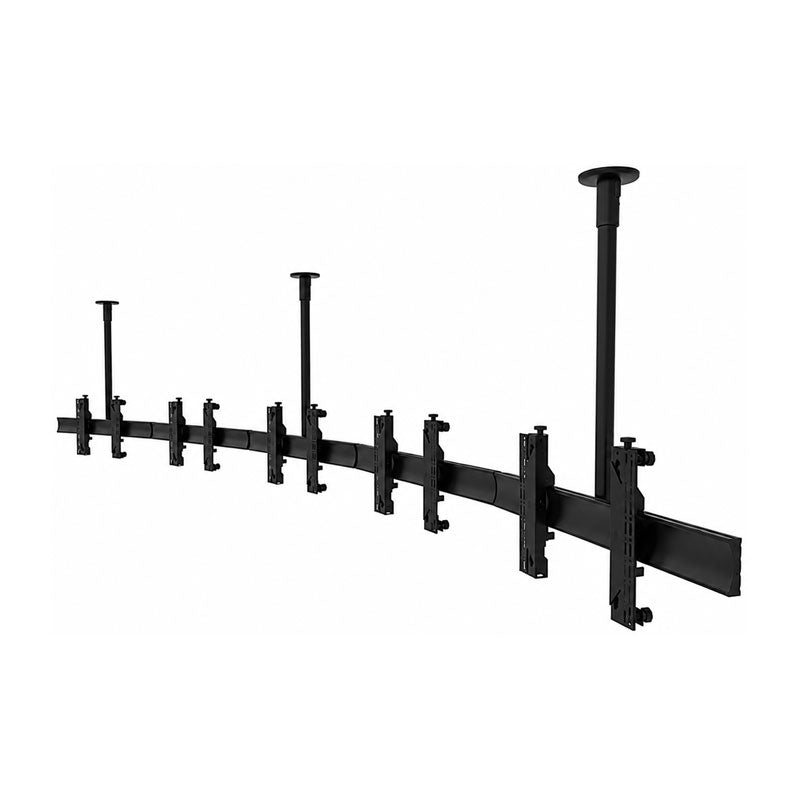

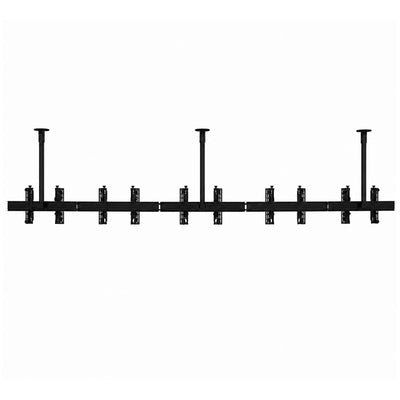

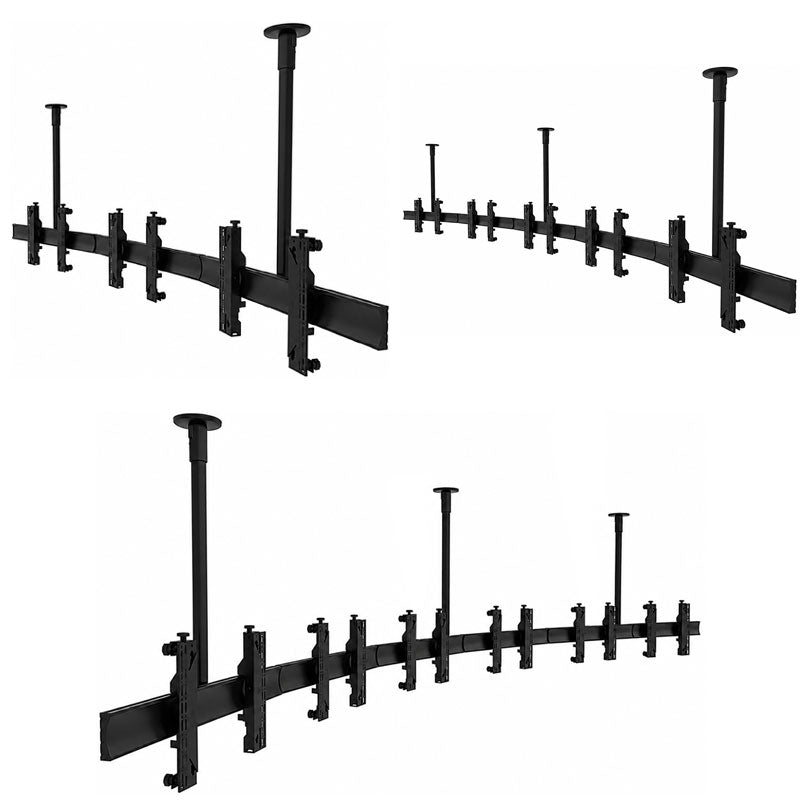

B-Tech Menu Board Ceiling Mount (32-75 inch, Configurable, Curved) BT8333/BB

The BT8333 is a modular curved ceiling mounting system for menu board installations of any size. The BT8333 can mount screens in landscape or portrait orientations with the option for fixed or micro-adjustment interface arms. As part of the System X range, the BT8333 can be used in thousands of different configurations and must be ordered according to your requirements.

• Configurable mounting solution available to order to your requirements from stock
• Universal design suitable for all sized screens up to 110lbs (50kg) per screen
• Integrated angle guides eliminate the need to measure required angles
• Integrated rail mounting guides ensure the join position is consistent throughout the installation without the need to measure
• Suitable for landscape or portrait mounting
• Select from a choice of fixed mounts or micro-adjustment arms when ordering
• Tool-less micro-adjustments for seamless display alignment (available on micro-adjustment arms only)
• All arms feature leveling screws to adjust the screen height
• Multiple rail lengths available and can be joined
• Recommended screen size: 32" (81.3cm) - 75" (190cm)
• Max load: 50kg (110lbs) (per screen)
• Angle adjustment range: +/- 45° between screens
• Pole Length: 19.7" (0.5m) up to 118.1" (3m) (can be cut or joined)
• VESA® & non-VESA fixings: up to 900mm (vertical)
• Correctly sized interface arms and adaptors will be supplied as necessary to suit the mounting pattern you require.
• TUV certified
