B-Tech Video Wall Ceiling Mount (39-75 inch, Configurable) BT8342/B

Name: B-Tech Video Wall Ceiling Mount (39-75 inch, Configurable) BT8342/B
Brand: B-TECH AV MOUNTS
SKU: BTECH-BT8342
Price: 2500.00 USD
Availability: InStock

B-Tech Video Wall Ceiling Mount BT8342/B, ceiling-mounted video wall rails in multiple configurations

B-Tech Video Wall Ceiling Mount (39-75 inch, Configurable) BT8342/B

Mfg Part # BT8342

SKU # BTECH-BT8342

In Stock: Once Quote is Accepted, Delivered Free in 3-9 Days.

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Email Us

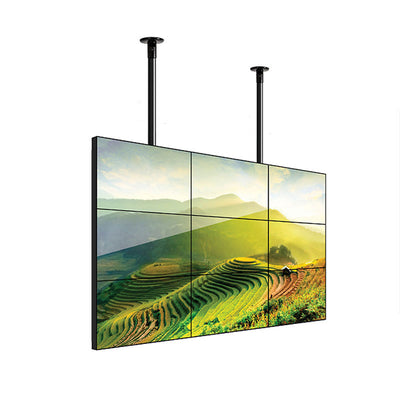

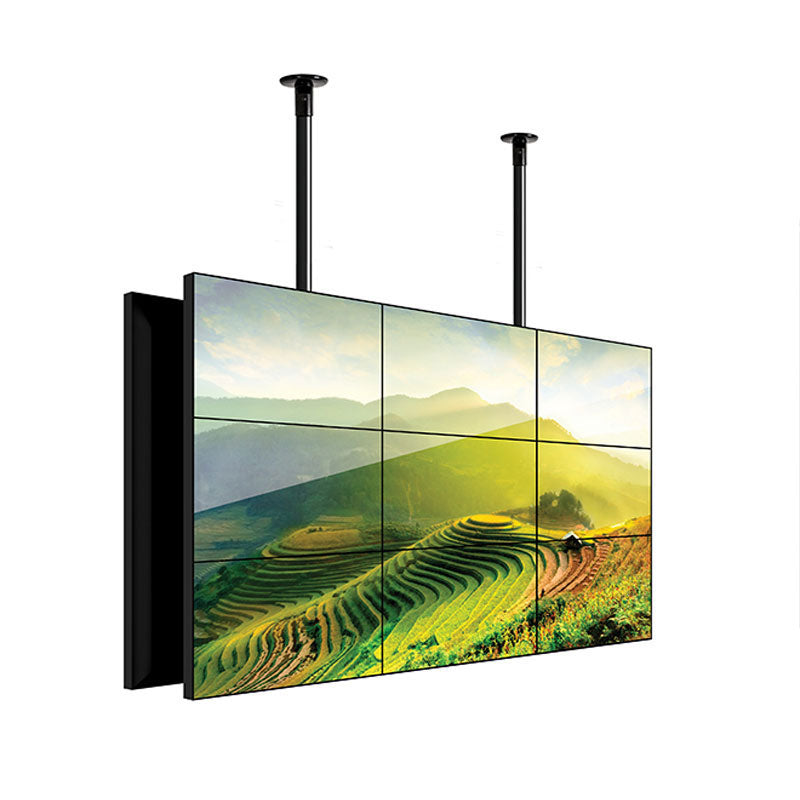

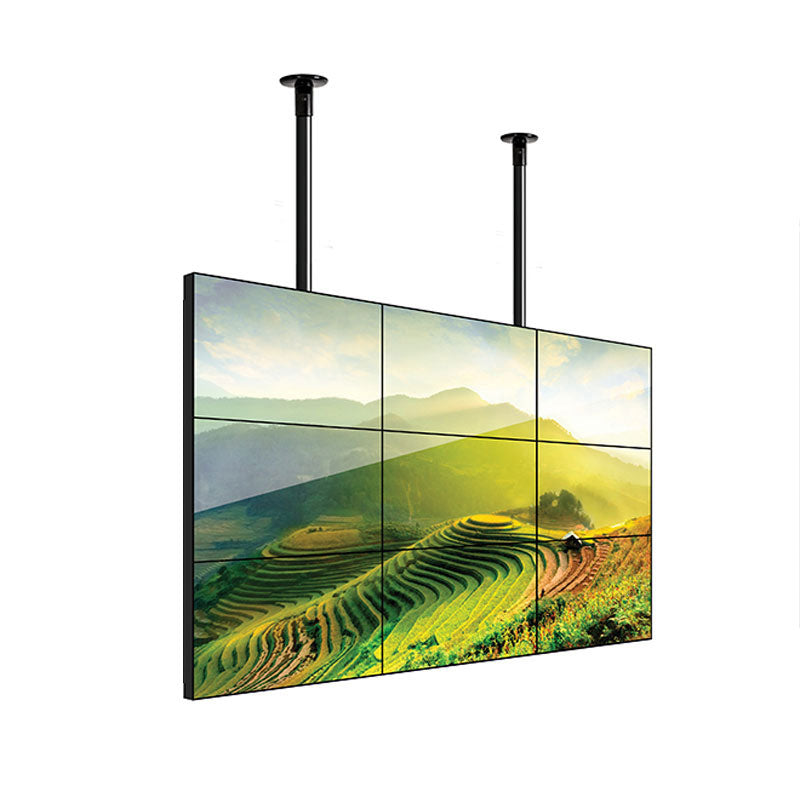

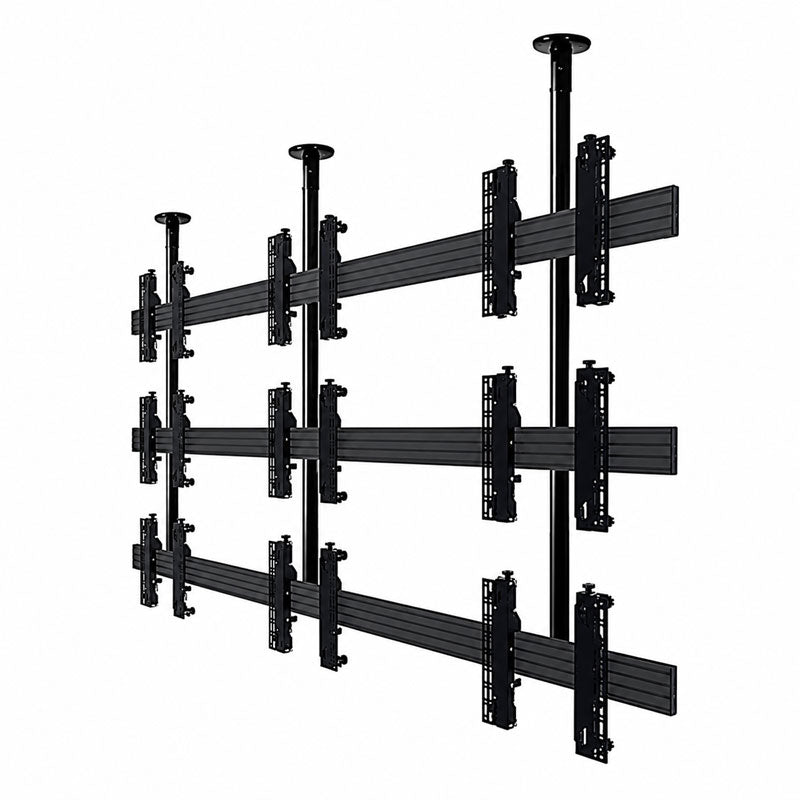

The BT8342 is a modular ceiling mounting system for video wall installations of any size. The BT8342 can mount screens in landscape or portrait orientations which is perfect for digital signage that needs to stand out. As part of the System X range, the BT8342 can be used in thousands of different configurations and must be ordered according to your requirements.

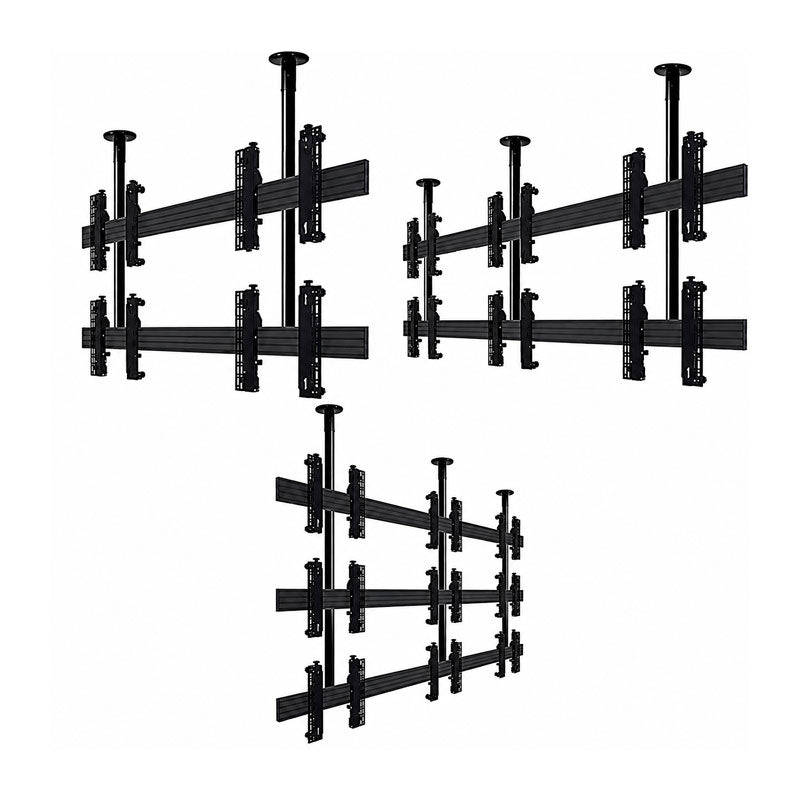

Configurable mounting solution available to order to your requirements from stock
Universal design suitable for all sized screens up to 110lbs (50kg) per screen
Suitable for landscape or portrait mounting

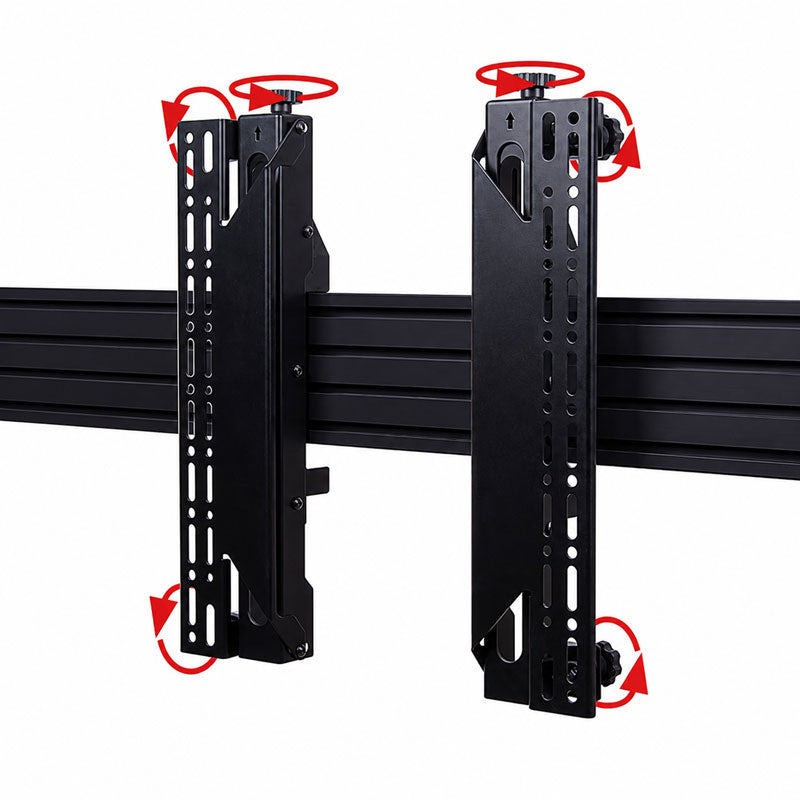

Tool-less micro-adjustments for seamless display alignment
High-end aesthetic quality
Safety screws help prevent unauthorized removal of screens
Multiple rail lengths available and can be joined
Heavy Duty poles will be automatically supplied with larger installs to cope with increased load (only available in 2m or 3m lengths)
Recommended screen size: 39" (99cm) - 75" (190cm)
Max load: 50kg (110lbs) (per screen)

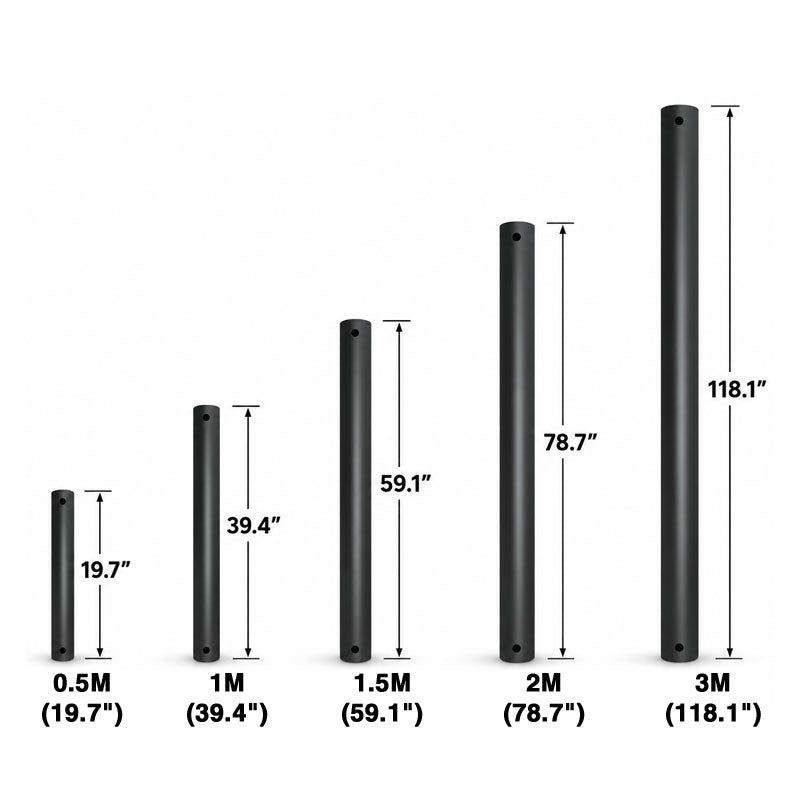

Pole Length: 39.4" (1m) up to 118.1" (3m) (can be cut or joined)
VESA® & non-VESA fixings: up to 900mm (vertical)
Correctly sized interface arms and adaptors will be supplied as necessary to suit the mounting pattern you require.
TUV certified

Help Files

No PDF help files available for this product

Product Details and Specifications

Color(s):

Black,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in.,

Mount Placement:

Ceiling,

Model Number:

BT8342,

Orientation:

Landscape, Portrait,

TV or Monitor Capacity:

2 Screens, 3 Screens, 4 Screens, 5 Screens, 6 Screens, 8 Screens, 9 Screens, 10 Screens, 12 Screens, Video Wall,

VESA Mount Compatible:

200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 700 x 500 mm, 800 x 400 mm, 800 x 500 mm, 800 x 600 mm, 900 x 600 mm, 1000 x 600 mm, 1000 x 700 mm, 1100 x 700 mm, 1200 x 700 mm, 1200 x 800 mm, 1300 x 700 mm, 1300 x 800 mm, 1400 x 700 mm, 1400 x 800 mm,
