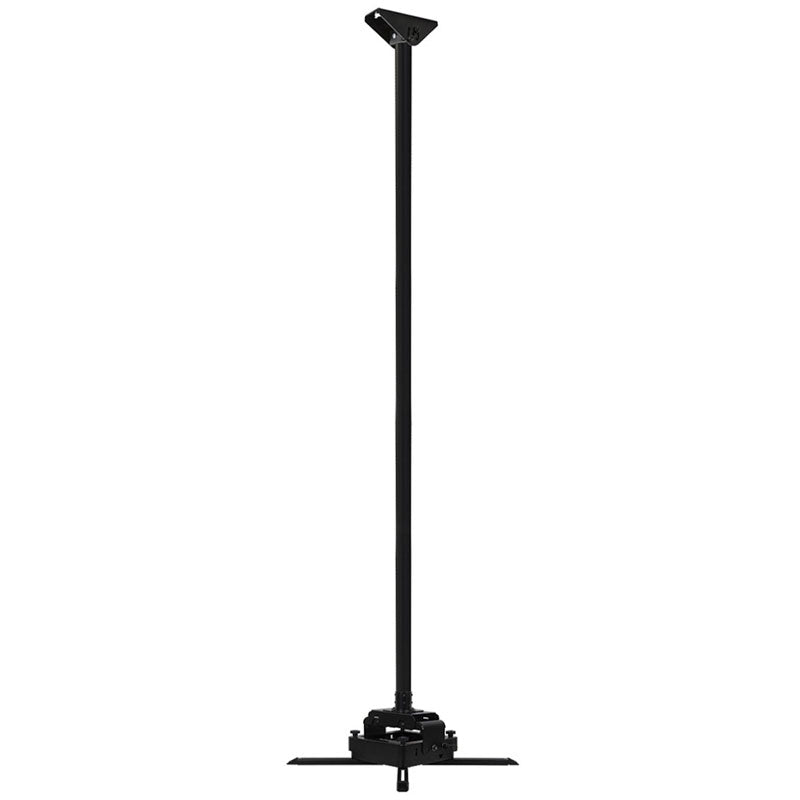

B-Tech System 2 Heavy Duty Projector Ceiling Mount (3M, BLK) BT893-FD300/B

The BT893-FD is designed to mount projectors up to 154lbs (70kg) and is available in a range of fixed ceiling drop lengths. It features:

• Designed to mount heavy duty projectors from the ceiling
• Adjustable ceiling plate suitable for angled ceilings
• Features easy, incremented tilt adjustment
• Extendable mounting plate features 4-point micro-adjustment for perfect alignment of the projected images
• Micro-adjustment is altered using thumb wheels for better grip and a more controlled adjustment
• Ø50mm poles are internally unobstructed for cables to pass through easily
• Optional extension legs can be used to accommodate larger fixing patterns
• Suitable for projectors using M6, M8, M10 and M12 fixings

• All mounting hardware included
• Maximum load: 154lbs (70kg)
• Tilt (pitch): +20°/-10° (+/- 5° with micro-adjustment)
• Yaw: +/-45°
• Roll : +/-5°

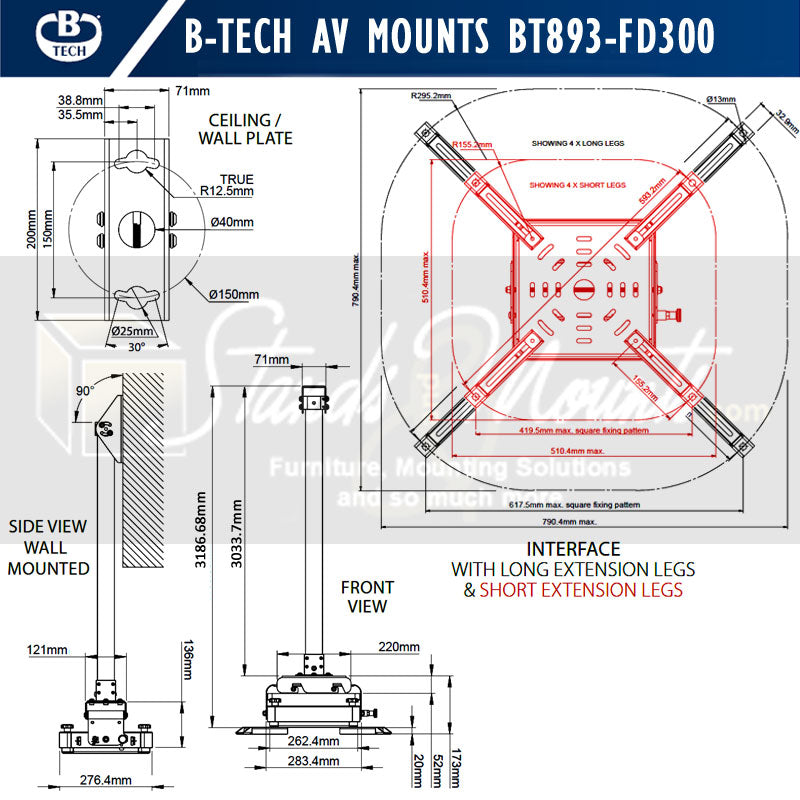

• Maximum distance (between fixings): 34.37" (873mm)
• Maximum distance (square fixing pattern): 24.33" (618mm)


*Add 20mm to ceiling drop if extension legs are used
