B-Tech System X TV Interface Arms (Fixed, VESA 400) BT8390-VESA400F/B

Name: B-Tech System X TV Interface Arms (Fixed, VESA 400) BT8390-VESA400F/B
Brand: B-TECH AV MOUNTS
SKU: BTECH-BT8390-VESA400F/B
Price: 78.00 USD
Availability: InStock

B-Tech System X TV Interface Arms BT8390-VESA400F/B

B-Tech System X TV Interface Arms (Fixed, VESA 400) BT8390-VESA400F/B

Mfg Part # BT8390-VESA400F/B

SKU # BTECH-BT8390-VESA400F/B

In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.

$78.00 $92.50

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Email Us

System X Row Universal Interface Arms features:

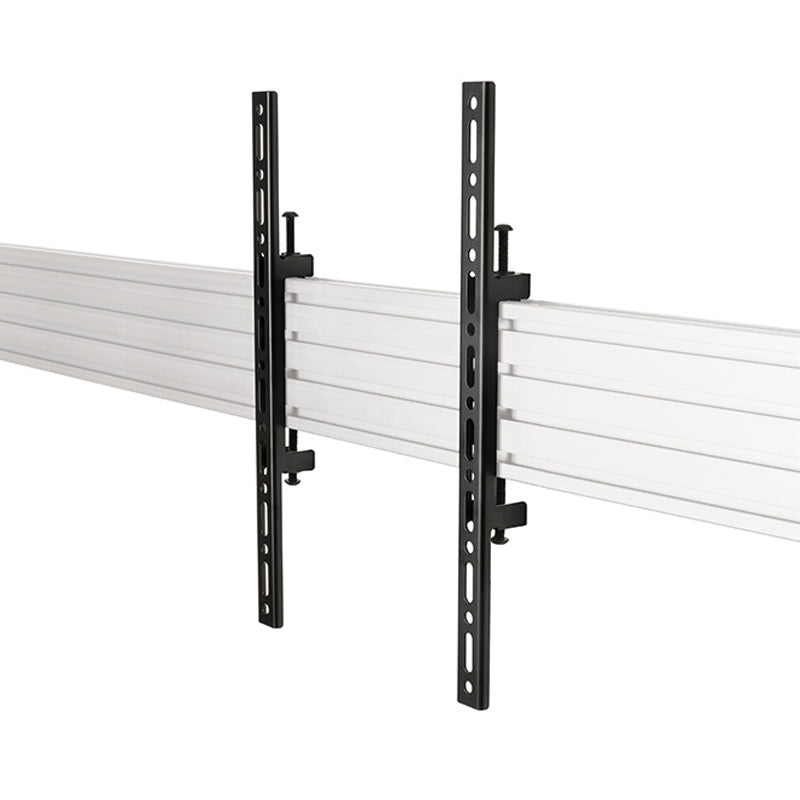

Designed to mount medium to large sized screens in a fixed position along System X horizontal mounting rails
Ideal for single row, multi-screen installations such as menu boards
Universal design compatible with most screen
Suitable for landscape or portrait mounting
Lateral adjustment - position arms anywhere along the length of the rail

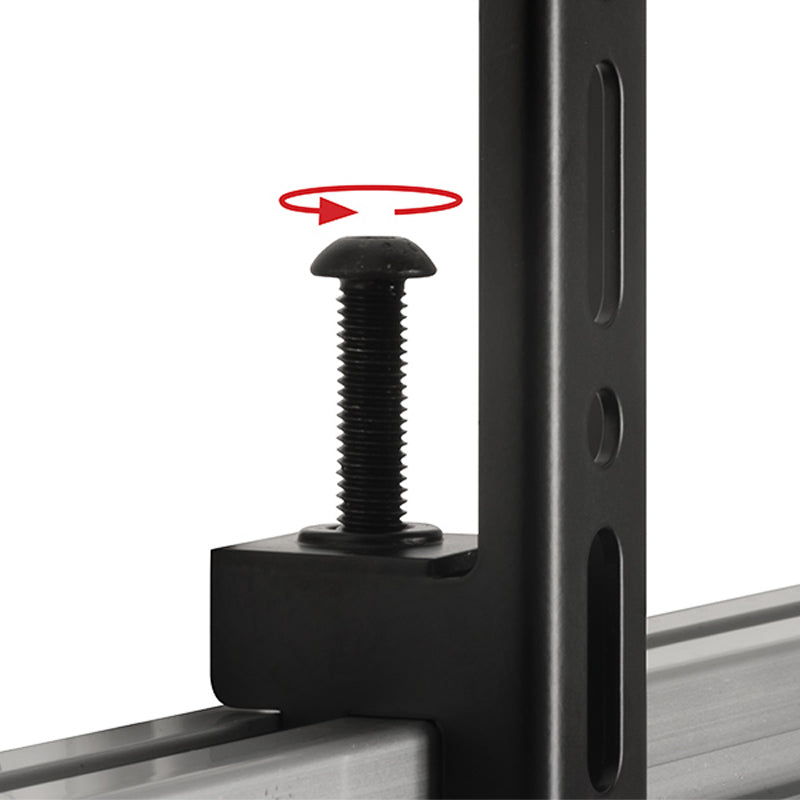

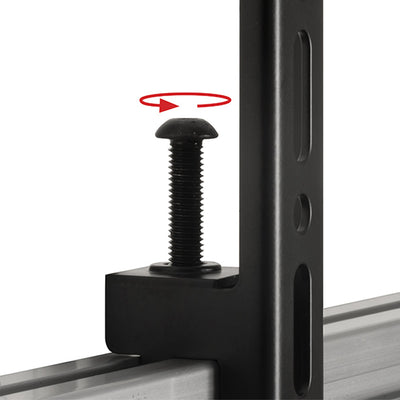

Includes leveling screws to adjust the screen height

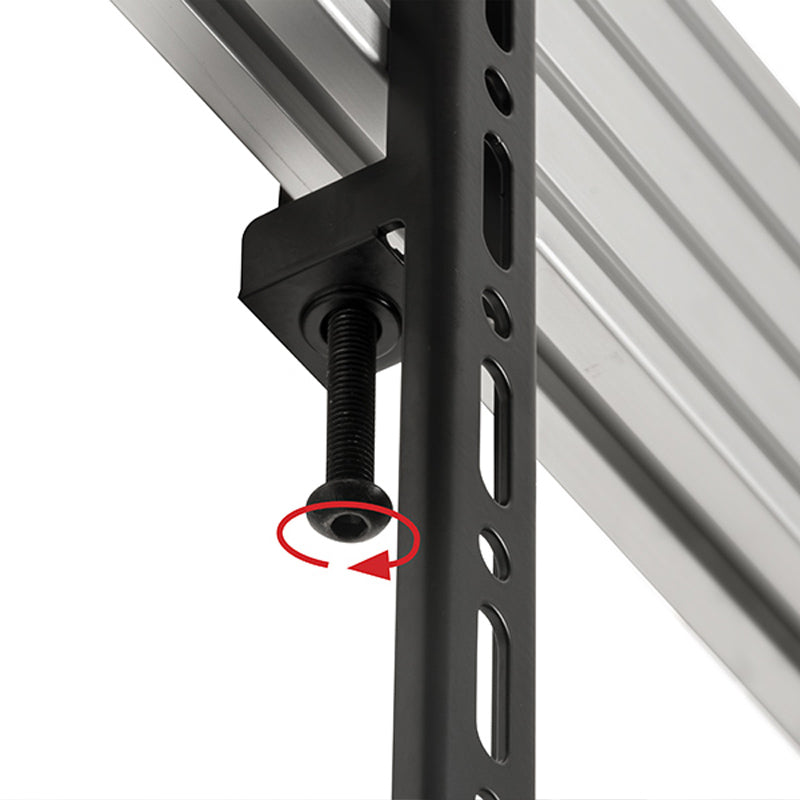

Safety screws help prevent unauthorized removal of screens

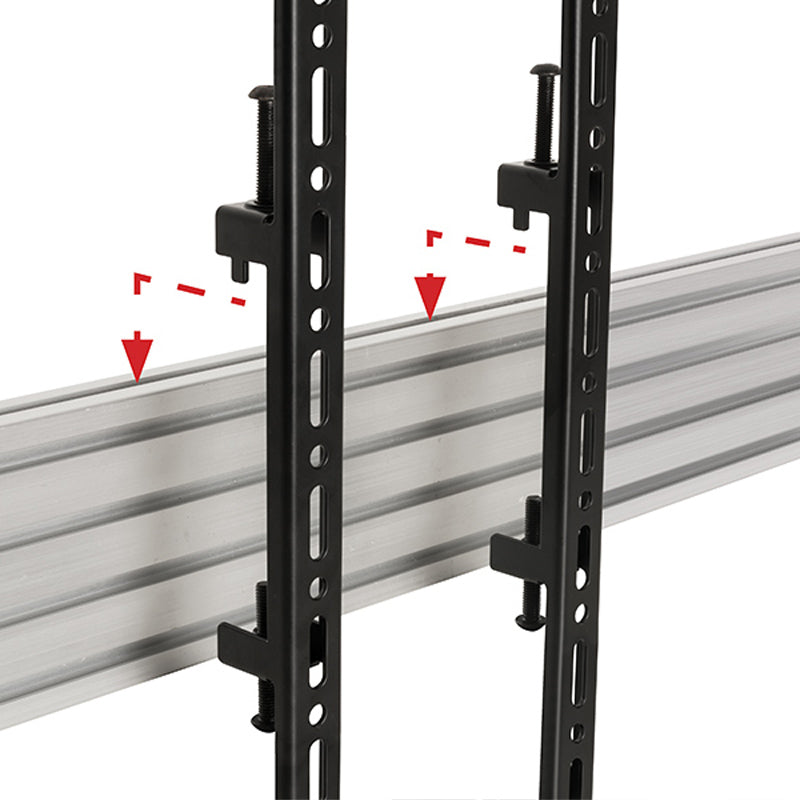

Simple 'hook-on' installation
All mounting hardware included
Recommended screen size: 39-70"
Max load: 154lbs (70kg)
VESA® & non-VESA fixings: up to 400mm* (vertical dimension)

*The VESA specification refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary

Help Files

No PDF help files available for this product

Product Details and Specifications

Weight Capacity:

154lbs (70kg),

Color(s):

Black,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in.,

Model Number:

BT8390-VESA400F/B,

Orientation:

Landscape, Portrait,

TV or Monitor Capacity:

Menu Board,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 700 x 400 mm, 800 x 400 mm,
