System X Row Universal Interface Arms features:

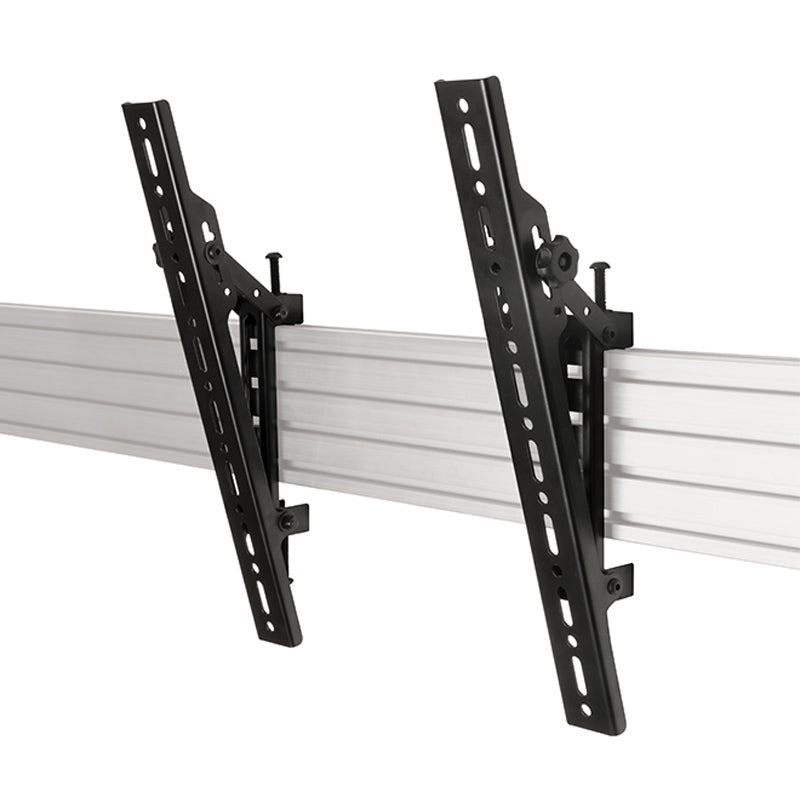

- Designed to mount medium to large sized screens in a tilt position along System X horizontal mounting rails
- Ideal for single row, multi-screen installations such as menu boards
- Tool-less thumb wheels for easy adjustment of the tilt angle
- Universal design compatible with most screen
- Suitable for landscape or portrait mounting
- Lateral adjustment - position arms anywhere along the length of the rail

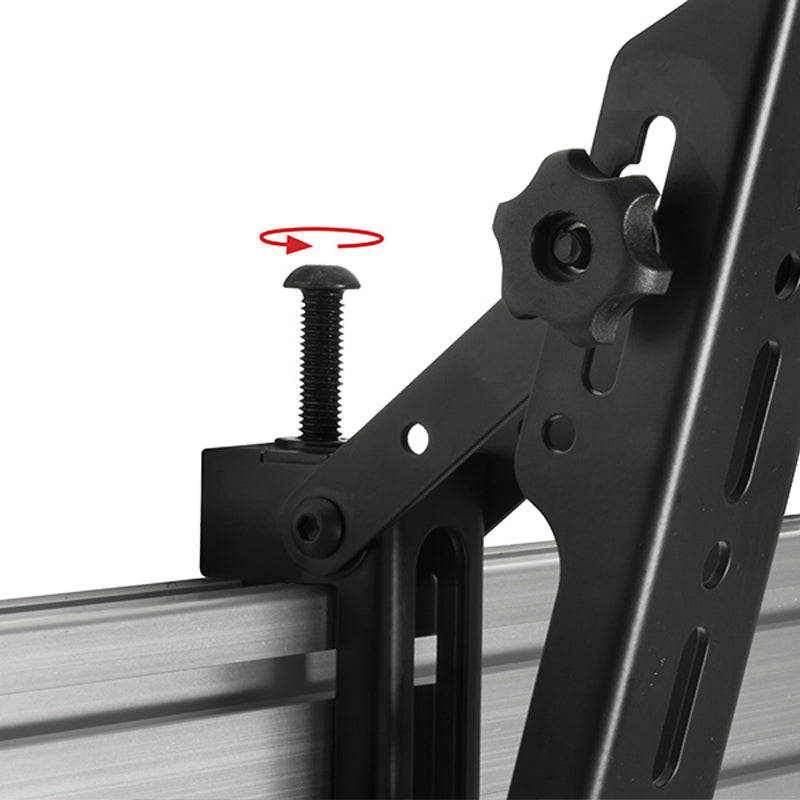

- Includes leveling screws to adjust the screen height

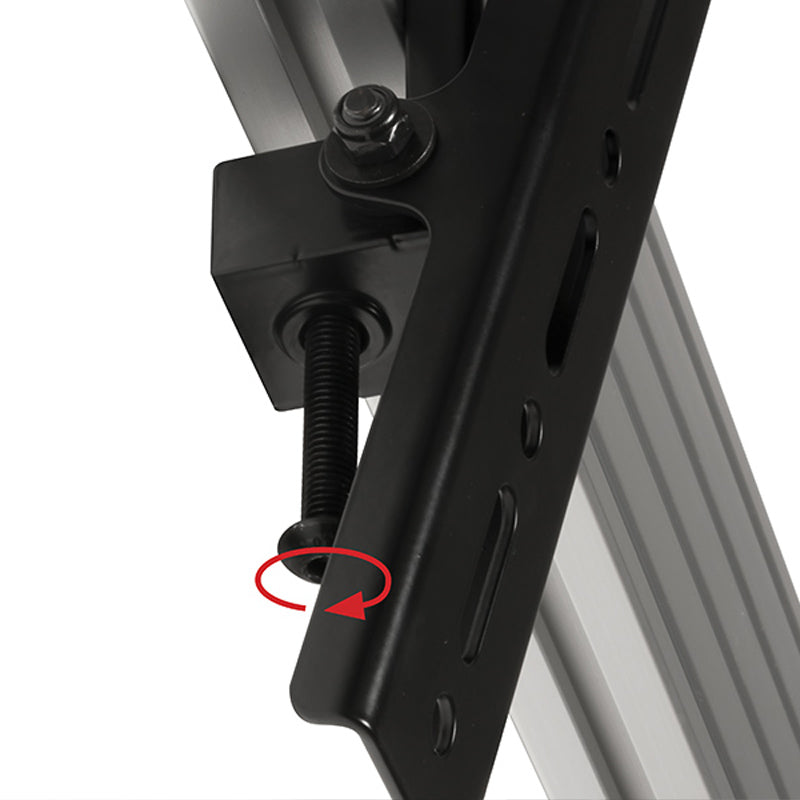

- Safety screws help prevent unauthorized removal of screens
- Simple 'hook-on' installation
- All mounting hardware included
- Recommended screen size: 39-70"

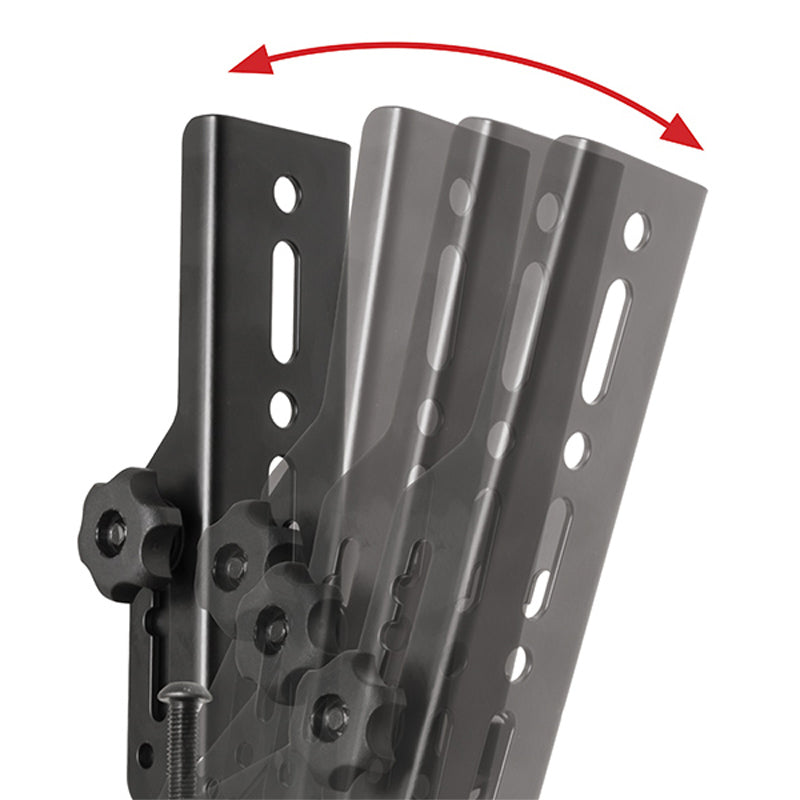

- Tilt adjustment: up to +20° (in increments of 5°)
- Max load: 154lbs (70kg)
- VESA® & non-VESA fixings: up to 400mm* (vertical dimension)
*The VESA specification refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary
